Summary of Contents for White Knight 0312 727 15003 - 727c

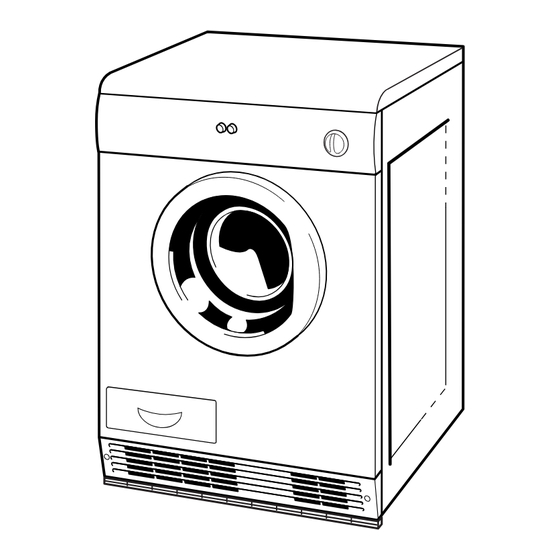

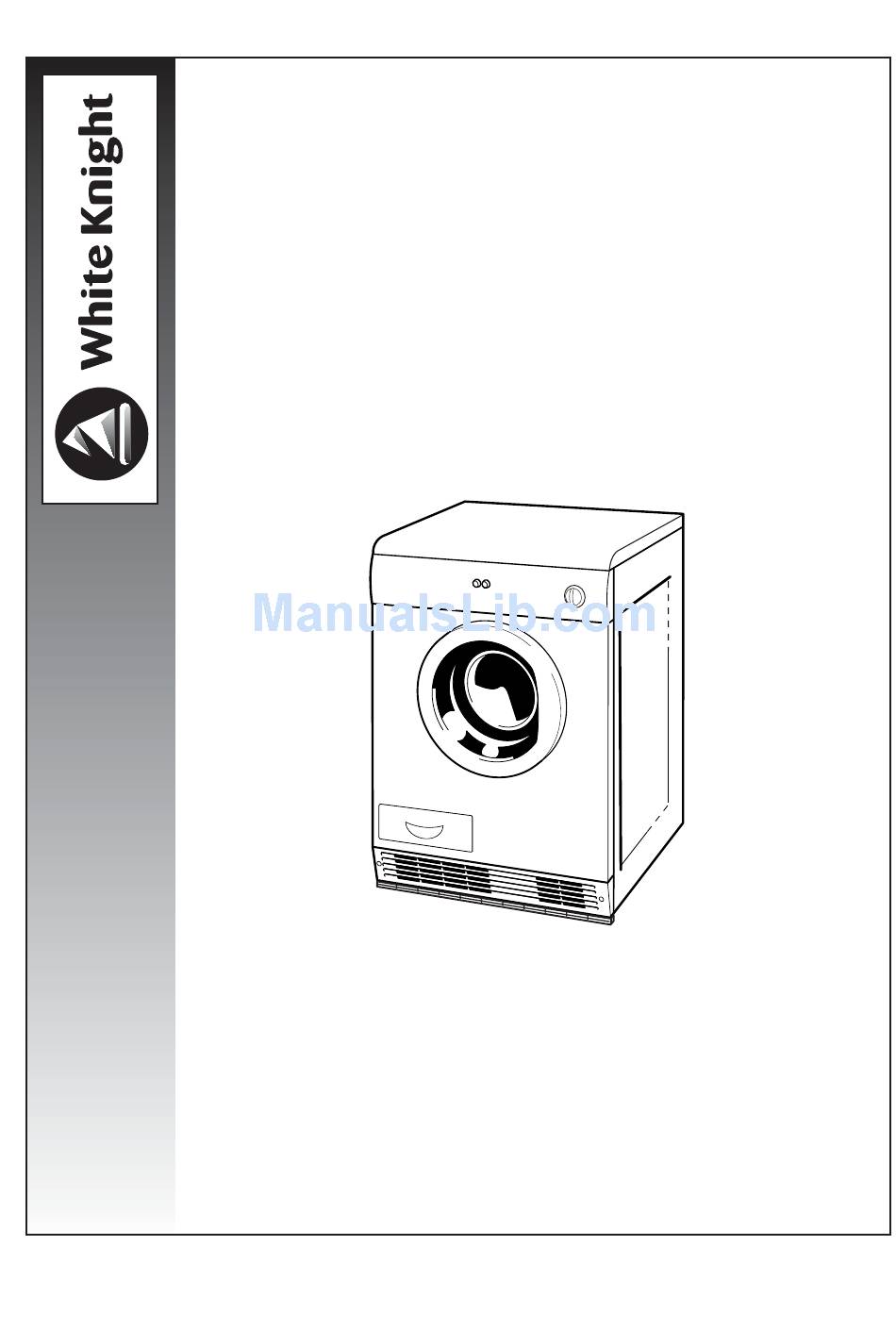

- Page 1 SERVICE MANUAL White Knight 'No Bottle' Condenser Dryer - UK 0312 727 15003 - 727c Wiring Diagram Exploded Views Parts List October 2011...
- Page 2 White Knight 727c 'No Bottle' Condenser Dryer - Exploded View 1 235a 248a 203a...
- Page 3 White Knight 727c 'No Bottle' Condenser Dryer - Exploded View 2 445b 445a...
- Page 4 White Knight 727c 'No Bottle' Condenser Dryer - Exploded View 3...
- Page 5 White Knight CL727 'No Bottle' Condenser Dryer - Exploded View 4...
- Page 6 Wiring Diagram A 1.25 Momentary Start Switch EC Timer Start Relay TB-L D-SW Mains Cable TB-N Wire Colour Code Black Brown Orange "Dryer On" Yellow Neon IN-TH Green Blue Violet White Pink Component Code 0.75 0.75 Terminal Block Bottle Switch B-SW D-SW Door Switch...
- Page 7 Wiring Diagram B...
- Page 8 White Knight 727c 'No Bottle' Condenser - Parts List Item Description Part Number Expl.View Motor + 8µf Capacitor Assembly 4213 092 21001 Capacitor Assembly 8µf 4213 092 08091 Drive Belt 4213 092 19501 Mains Cable 4213 076 35123 Terminal Block...
- Page 9 White Knight 727c 'No Bottle' Condenser - Parts List 445b Bearing Pads (short) 4213 077 40952 Cooling Air Fan 4213 077 56173 Fan Cover Assembly 4213 092 21181 Seal Fan Access Cover 4213 077 08871 Inlet Duct Case Assembly 4213 092 21241...
