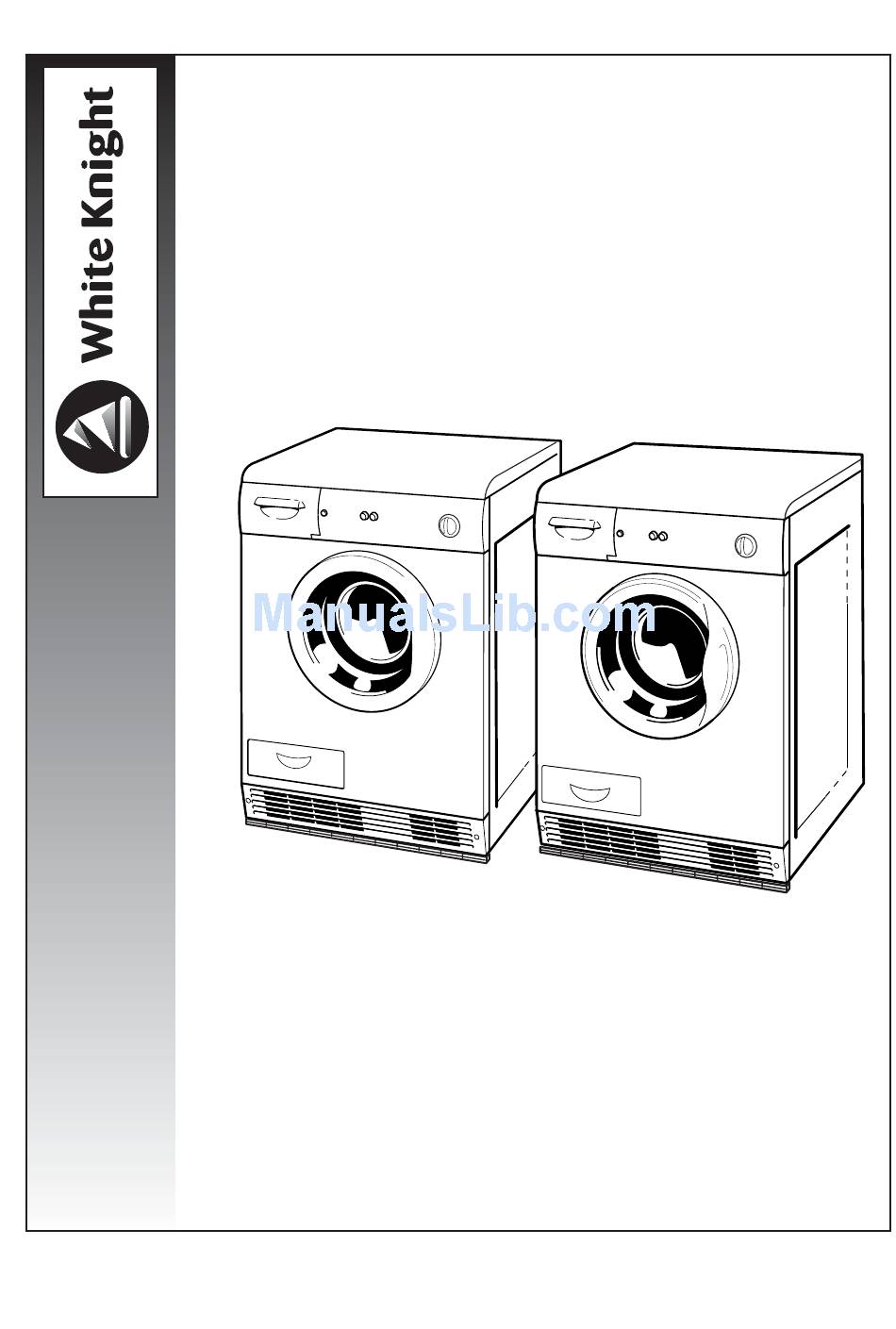

- Page 1 SERVICE MANUAL White Knight 767c - 0312 767 15009 White Knight 767SVNC - 0312 767 15312 Time Steered Condenser Dryer - UK Wiring Diagram Exploded Views Parts List October 2011...
- Page 2 White Knight Flush Front Condenser Dryer - Exploded View 1 235a 248a 203a Door Assembly SVNC 363a 203a...
- Page 3 White Knight Flush Front Condenser Dryer - Exploded View 2 445b 445a...
- Page 4 White Knight Flush Front Condenser Dryer - Exploded View 3...
- Page 5 White Knight Flush Front Condenser Dryer - Exploded View 4 450 449...
- Page 6 Wiring Diagram A...
- Page 7 Wiring Diagram B...
- Page 8 White Knight Flush Front Condenser - Parts List Item Description Part Number Expl.View Motor + 8µf Capacitor Assembly 4213 092 21001 Capacitor Assembly 8µf 4213 092 08091 Drive Belt 4213 092 19501 Mains Cable 4213 076 35123 Terminal Block 4213 078 44621...
- Page 9 White Knight Flush Front Condenser - Parts List Control Panel - Mid White 4213 092 49261 Control Panel - Silver 4213 092 49271 Timer Knob assembly - Euro White 4213 092 40131 Timer Knob Assembly - Mid White 4213 092 46001...
- Page 10 White Knight Flush Front Condenser - Parts List Seal Clamp Kit 4213 092 27661 Condenser Housing Assembly 4213 092 21151 Banjo/Seals/Clips/Bearing Pads Assembly 4213 092 21161 Front Seal 4213 077 40942 Lifter 4213 077 41009 Front Bearings/Drum Seal Assembly 4213 092 21171...
- Page 11 White Knight Flush Front Condenser - Parts List Due to changes to the loom wiring Dryers built prior to the loom change and including dryers built with serial No's up to 1002774925 refer to wiring diagram A Dryers built with serial No's after 1002774925 refer to wiring diagram B...
