ACONT802AS32DA Touch Screen and
ACONT803AS32DA Touch Screen with
Dehumidification Control Comfort Controls
11-HD02D9-3
APPLICATION
The ACONT802AS32DA and ACONT803AS32DA Touch Screen Comfort Controls provide electronic control of 24 Vac
heating and cooling systems. See Table 1 for a general description.
Table 1. ACONT802AS32DA and ACONT803AS32DA Comfort Control Description.
Power Method
24 Vac common Automatic or
wire manual selectable
MERCURY NOTICE
If this control is replacing a control that contains
mercury in a sealed tube, do not place your old
control in the trash. Dispose of properly.
Contact your local waste management authority
for instructions regarding recycling and the
proper disposal of the old control.
INSTALLATION
When Installing this Product...
1. Read these instructions carefully. Failure to follow
the instructions can damage the product or cause
a hazardous condition.
2. Installer must be a trained, experienced service
technician.
3. After completing installation, use these instructions
to check out the product operation.
This thermostat contains a Lithium battery which
may contain Perchlorate material. Due to State Law
in California, the following statement is required:
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate
Changeover System Selection
Heat-Off-Cool-Auto
(Em. Heat for heat
pumps)
INSTALLATION INSTRUCTIONS
Fan Selection
On-Auto-Circ
Selecting Location

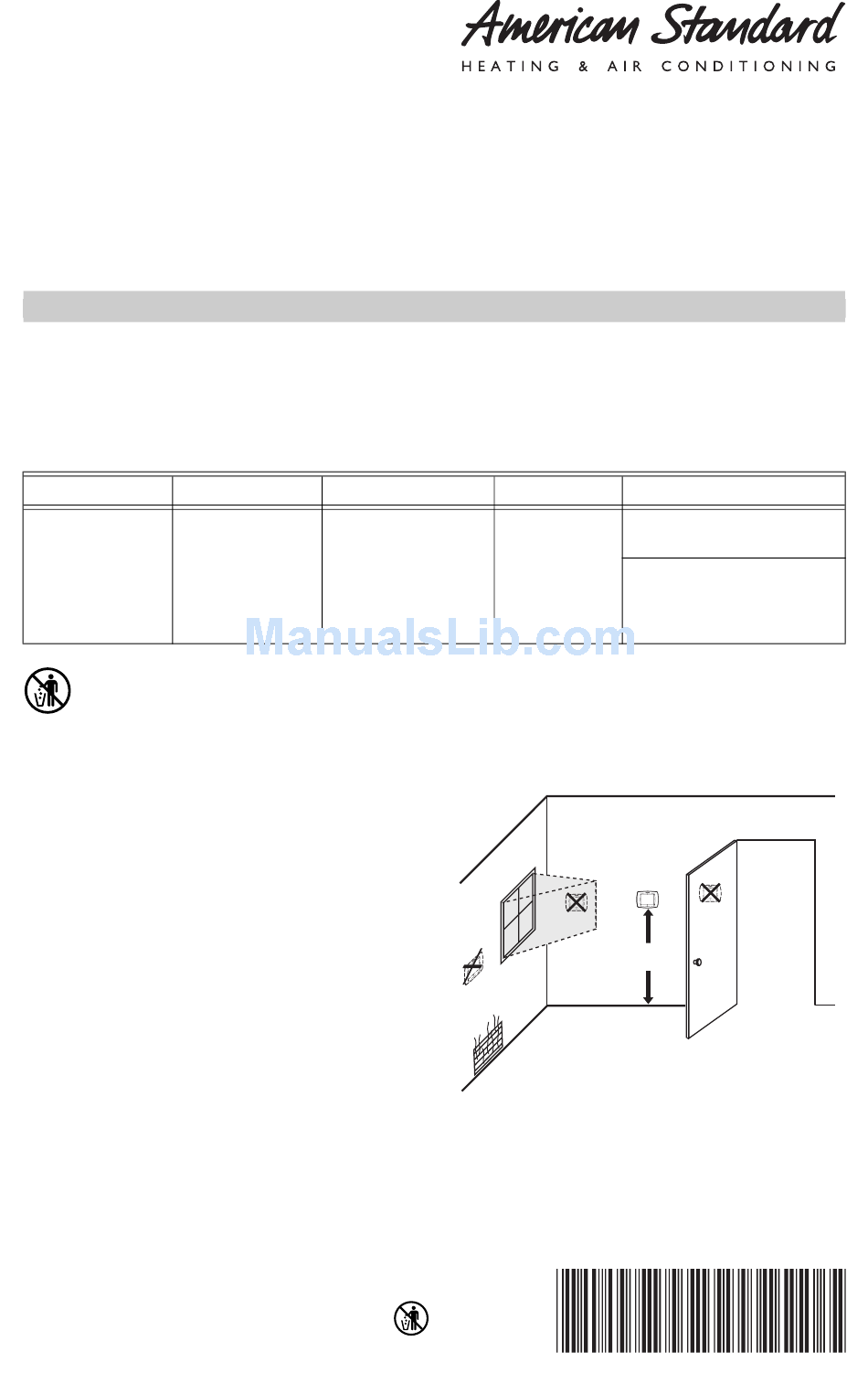

Install the comfort control about 5 ft. (1.5m) above the
floor in an area with good air circulation at average
temperature. See Fig. 1.
NO
NO
Fig. 1. Selecting comfort control location.
Comments
System and Fan selection
vary based on system type
System and Fan selection
vary based on System type.
Humidity sensor to control
dehumidification.
NO
YES
5 FEET
[1.5 METERS]
69-1788-03
M19925
