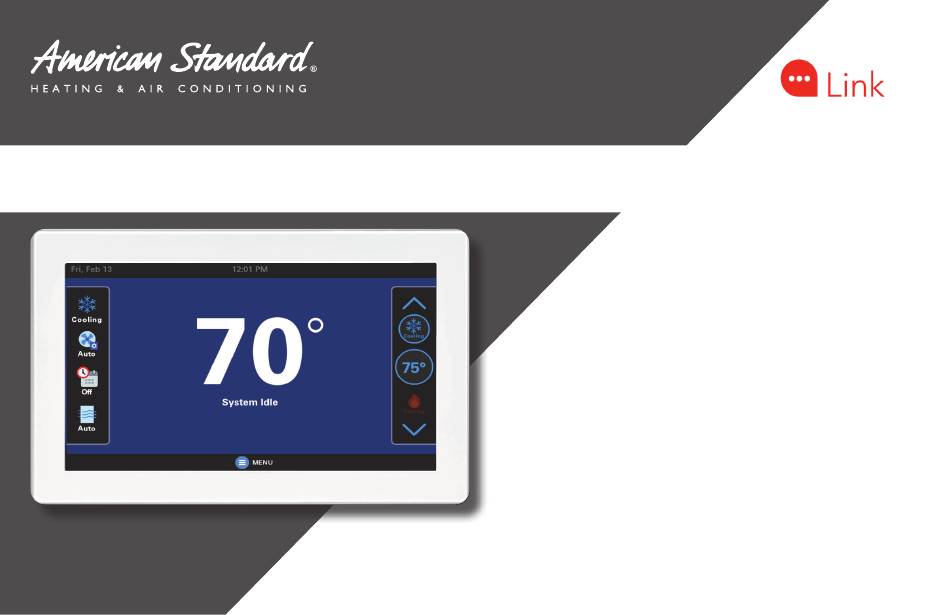

- Page 1 American Standard® Link UX360 Thermostat User Guide One System. Limitless Potential. Complete Control. Model AHUI2360A200U 012-5063-01B-EN...
- Page 2 • Programmable Scheduling • One Touch Presets This guide will introduce you to many of the • System Alerts features of your new American Standard Link • Screen Saver system. • Color Themes • System Software Upgrades To enjoy the full benefits of your system, it should be connected to a American Standard Home •...
-
Page 3: Table Of Contents
American Standard Home Remote Climate Access is included with the purchase of American Standard smart connected controls. Up Advanced Bridge Settings ..........27 to eight American Standard smart controls, of any combination, may be connected to an American Standard Home account without Other Features ..........28 a monthly service fee. -
Page 4: Home Screen
Home Screen Current Indoor Alerts/Noti cations appear across banner Temperature Date/ Time appear across Network banner Status System Mode Cooling Mode Fan Mode Set Point Desired Set Point Schedule Mode Heating Mode Air E ects Set Point Mode Wireless Sensor Ventilation Dehumidifying Menu/Back Schedule... -
Page 5: Menu
Menu Scheduling Exit Menu Weather and Humidity Control 5-Day Forecast Press to access all user settings Screen Settings System Alerts, Temp Scale, Noti cations and Deadband and About Info Calibration One Touch Bridge for Service/ Tech Presets Z-Wave ® Devices Access Menu 012-5063-01B-EN page 5... -
Page 6: Settings
Settings Navigate to Settings by selecting: Home Screen > Menu > Settings Manually set the Restart the Date & Time. No need thermostat and all to update when communicating connected to American equipment on the Standard Home system Connect to a Wi-Fi network. Enable/Disable Enable/Disable wireless access wireless connection, access Advanced Setup, to equipment for technician... -
Page 7: Wireless Technician Access
Wireless Technician Access Wireless technician access allows the technician to wirelessly connect to the communicating equipment on the system. Wireless access is always enabled Wireless access is enabled Wireless access is disabled temporarily for 24 hours. After 24 hours, access will be disabled 012-5063-01B-EN page 7... -
Page 8: Thermostat Settings
Thermostat Settings Navigate to Thermostat Settings by selecting: Home Screen > Menu > Thermostat Temperature Scale Setpoint Deadband Indoor Sensor Calibration NOTE: Indoor sensor calibration settings are disabled when the thermostat is not enabled as an indoor sensor. Please contact your dealer for help. page 8 UX360 User Guide... -
Page 9: Screen Settings
Screen Settings Display Brightness Screen Saver Navigate to Display Settings by selecting: Home Screen > Menu > Screen Settings > Display Select your preferred display brightness, backlight, screen saver and color theme settings and press Done. Backlight Color Themes 012-5063-01B-EN page 9... -
Page 10: Access Restrictions
Screen Settings (Cont.) Access Restrictions Navigate to Access Restrictions by selecting: Home Screen > Menu > Screen Settings > Access Restrictions The UX360 features several levels to restrict access to functionality. Select the desired level of access restriction and select Done. Applying an access restriction will cause the screen to lock when inactive for one minute. -
Page 11: Weather
Weather Navigate to Weather by selecting: Home Screen > Menu > Weather The weather feature is only available when registered with American Standard Home. Current Weather 5-day Forecast Postal Code To view your local weather, select Today. Select Forecast to view the 5-day forecast. -
Page 12: Indoor Humidity
Indoor Humidity Navigate to Indoor Humidity by selecting: Home Screen > Menu > Humidity Select the indoor humidity target. Frost settings only apply when heating is running and may override the target humidity setting. page 12 UX360 User Guide... -
Page 13: System Info
Details and equipment listed will vary with each system. System Name Notifications Enter a custom, meaningful System notifications such name for the system. as air filter, service and American Standard Home registration reminders will be displayed here. 012-5063-01B-EN page 13... -
Page 14: 1-Touch Presets
1-Touch Presets Navigate to 1-Touch Presets by selecting: Home Screen > Menu > 1-Touch Presets Configuring 1-Touch Presets Use the UP and DOWN Arrows to adjust 1-Touch Presets provide predetermined Heating and Cooling Set Points for Home, the Set Point to the desired temperature. To change the Cooling Set Point, press Away and Sleep time periods. - Page 15 1-Touch Presets (cont.) Press Away, Home or Sleep Press here to change to set Cooling & Heating the cooling set point setpoints for each preset Press here to Press here to raise the raise the temperature temperature System Mode System Mode Indicator Indicator Press here to...
-
Page 16: Scheduling
Scheduling Navigate to Scheduling by selecting: Home Screen > Menu > Schedules The UX360 Thermostat is capable of adjusting temperature settings throughout the day according to a user- programmable schedule. Each day of the week can have its own unique schedule, and each day can have a maximum number of four periods. -
Page 17: Changing The Schedule
Changing the Schedule The day of the week to be To change the temperature settings in each period and adjust the period start and stop time press the red or blue area. The up/down Day arrows will change to Temperature and Add/Delete period buttons scheduled is highlighted will change to Time Start/Time Stop Add a period... - Page 18 Changing the Schedule (cont.) Changing Period Start or End Times To change temperature settings press in the red or blue Adjust start and area, then adjust the setting up or down with the arrows Press anywhere in a Period to make it on the right end times active.
-
Page 19: Adding Periods
Adding Periods Adding Periods Select ADD PERIOD, the Add Period Screen is displayed. Press the green circle where you would like to insert a Period. Choose a name for the new Period or select New to define a Custom Name and select NEXT. -
Page 20: Deleting Periods
Deleting Periods Deleting Periods Select one of the trash From the Schedule Screen select DELETE cans to delete that period. PERIOD, the Delete Periods Screen is displayed. Press the TRASH CAN icon in the Period(s) you wish to delete. Select DONE to save your changes and return to the Schedule Screen. -
Page 21: Network Connection
Network Connection Navigate to Network Settings by selecting: Home Screen > Menu > Settings > Network Please connect your American Standard Link system to your home internet connection for remote and diagnostic access. Enter the password and select Turn Wireless to ON and then select Select your network. -
Page 22: Mobile App Registration
To control your home climate system from your web enabled smartphone, tablet or computer go to www.asairhome.com or use your mobile app to setup an American Standard Home account. Download the American Standard Home mobile app from the Google Play™ Store or App Store ®... - Page 23 Mobile App Registration (cont.) Read the License Agreement, then ACCEPT or DECLINE. Return to the UX360 control and select NEXT. Registration successful. Select DONE. Enter the Pin Code and select NEXT. 012-5063-01B-EN page 23...
-
Page 24: Adding/Removing Devices
® Screen > Menu > Smart Home displayed. 1. From the HOME Screen, press MENU, then select American Standard Home. 2. Select REMOVE DEVICE and follow the Adding Z-Wave Devices manufacturer’s instructions for setting the 1. From the HOME Screen, select MENU, then Z-Wave device into learn mode. -
Page 25: Adding Devices (Via Mobile App)
Alternatively, your UX360 allows you to add Z-Wave 4. Select Z-Wave Device. 5. Select Continue and then prepare the devices using the American Standard Home app on device for inclusion by following the device your mobile device. manufacturer’s instructions for setting the Z-Wave device into learn mode. - Page 26 6. Select Grant Keys if a list of security keys is displayed. 7. If prompted, enter the 5-digit DSK PIN Code for the device being added and select Accept DSK. This PIN Code can usually be found on the back of the device, on the box, or in the device’s instruction manual.
-
Page 27: Advanced Bridge Settings
Unregister Learn button on the bridge. This function copies a new Z-Wave network to the Removes the bridge from American Standard bridge from another controller. This function is not Home. All remote control features will be disabled. allowed if your bridge is a primary controller with Factory Reset included Z-Wave devices. -
Page 28: Other Features
About American Standard Heating and Air Conditioning American Standard has been creating comfortable and affordable living environments for more than a century. For more information, please visit www.americanstandardair.com. The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
