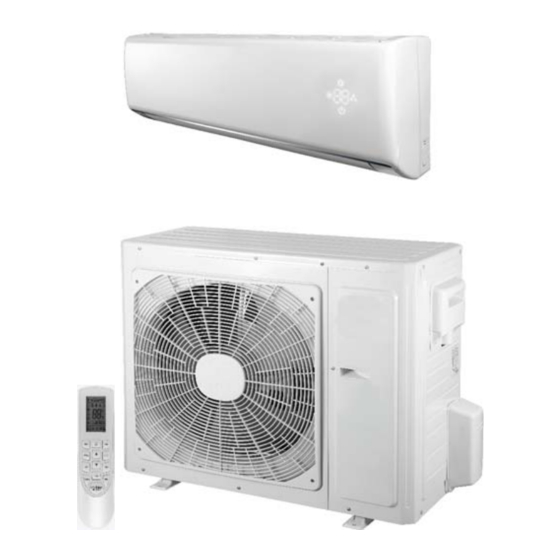

KeepRite DLFCAB Installation Instruction

High- wall ductless split system sizes 09 - 36
Hide thumbs Also See for DLFCAB:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
DLFCAB / DLCCAR / DLFCHB / DLCCHR
DLFDAB / DLCDAR / DLFDHB / DLCDHR
High- Wall Ductless Split System
Sizes 09 - 36
NOTE: Read the entire instruction manual before starting the installation.
Installation Instruction

TABLE OF CONTENTS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The following parts are included in your indoor unit. Please
contact your dealer if any parts are damaged or missing.
Table 1-Parts List
Parts
Mounting Plate
Mounting Hardware
Remote Control
Remote Control Holder
Battery (1.5V)
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
Qty
1
7
1
1
2
PAGE
2
2
2
2
4
5
8
8
9
9
9
9
9
9
11
11
13
14
15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLFCAB and is the answer not in the manual?

Questions and answers

Related Manuals for KeepRite DLFCAB

Summary of Contents for KeepRite DLFCAB

  • Page 1: Table Of Contents

    DLFCAB / DLCCAR / DLFCHB / DLCCHR DLFDAB / DLCDAR / DLFDHB / DLCDHR High- Wall Ductless Split System Sizes 09 - 36 Installation Instruction NOTE: Read the entire instruction manual before starting the installation. TABLE OF CONTENTS PAGE SAFETY CONSIDERATIONS .
