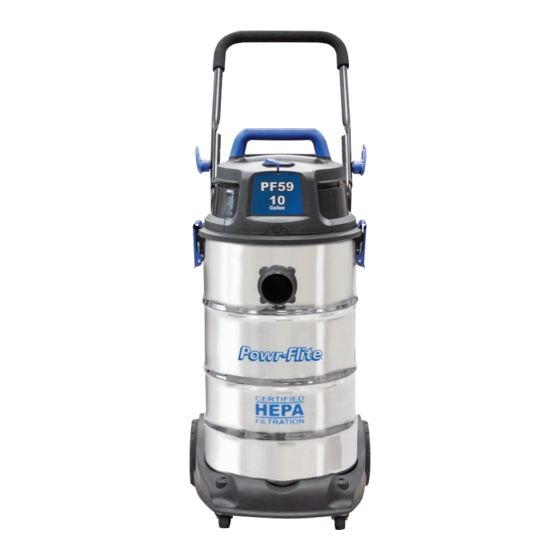

Powr-Flite PF59 Operators Manual And Parts Lists

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

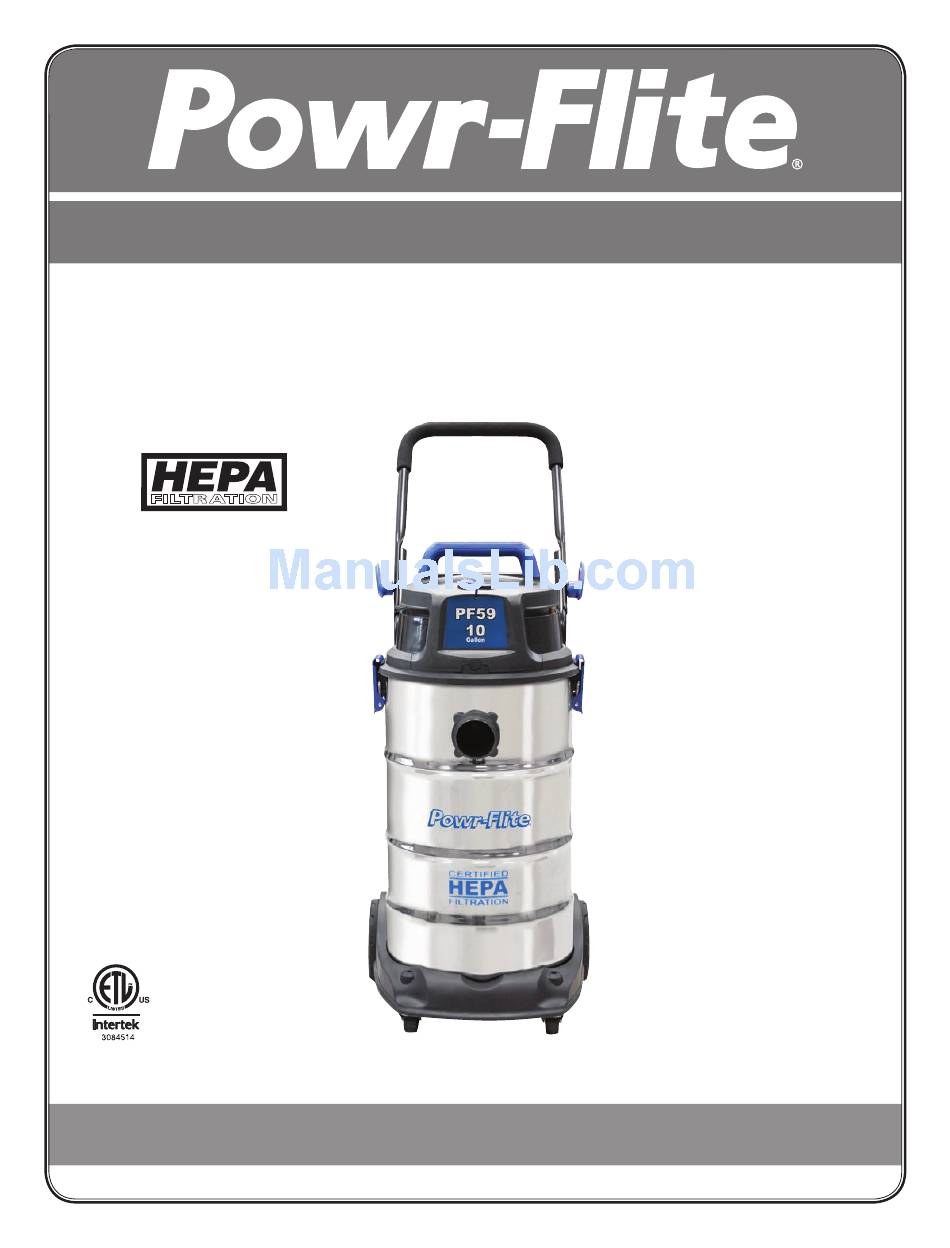

OPERATOR'S MANUAL & PARTS LIST
10 GALLON WET/DRY VAC
MODEL PF59
Conforms to UL
Standard UL1017
Certified to CSA STD
C22.2 No.243-10
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©
Tacony, Inc., All rights reserved
X1142 7/2016

Save These Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF59 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powr-Flite PF59

Summary of Contents for Powr-Flite PF59

  • Page 1: Save These Instructions

    OPERATOR’S MANUAL & PARTS LIST 10 GALLON WET/DRY VAC MODEL PF59 Conforms to UL Standard UL1017 Certified to CSA STD C22.2 No.243-10 WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved...

  • Page 2: Table Of Contents

    Parts - Exploded View .....................13 Thank you for purchasing this HEPA vacuum cleaner. Feel confident that with Powr-Flite you are obtaining a high quality product engineered for optimal performance. This vacuum is capable of picking up dry materials as well liquids.

  • Page 3: Safety Instructions And Warnings

    SAFETY INSTRUCTIONS & WARNINGS IMPORTANT SAFETY PRECAUTIONS Read and understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this HEPA Filtered Vacuum only as described in this manual.

  • Page 4: Grounding Instructions

    CONNECT TO A PROPERLY GROUNDED OUTLET ONLY! See Grounding Instructions GROUNDING INSTRUCTIONS This vacuum must be grounded! Grounding is a safety measure to reduce the risk of electrical shock to the operator should the machine malfunction or stop working. Grounding provides the path of least resistance for electric current and will trip the circuit breaker, stopping the flow of electricity.

  • Page 5: Unpacking And Checking Carton Contents

    UNPACKING AND CHECKING CARTON CONTENTS Remove entire contents of carton. Check each item against the carton contents list. Carton contents lists Key Description ........QTY. Vac Assembly ........1 Push/Pull Handle ......... 1 Crevice Nozzle ........1 Extension Wands ......... 3 Hose ............

  • Page 6: General Assembly Instructions

    WARNING! DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC. The HEPA filtered vacuum is supplied with a certified HEPA filter that has been lot tested by an independent lab to IEST-RP-CC001 that meet the EPA definition of a HEPA vacuum (100% leak tested to 99.97% @ 0.3 micron Efficiency).
  • Page 7 UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY 1. Verify that the power cord is disconnected from the outlet. (fig. 1) 2. Undo the latches. (fig. 2) 3. Lift the power head off the tank. (fig. 3) 4. Remove the contents from inside the tank, make sure you have all contents as listed on page 6. (fig. 4) 5.

  • Page 8: Dry Vacuuming Operation

    WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS.

  • Page 9: Liquid Vacuuming Operation

    WARNING: IF FILTERS ARE CONTAMINATED OR HAVE BEEN USED, THEY MUST BE DISPOSED OF PROPERLY, PRIOR TO PERFORMING WET VACUUMING OPERATIONS. DO NOT USE THE HEPA FILTER FOR LIQUID VACUUMING. Hazardous materials must be disposed of properly. NEVER throw contaminated debris in your usual trash receptacle. Place debris in a OSHA approved poly bag or container marked with HAZARDOUS MATERIAL warning and dispose in accordance with your local Hazardous Waste Regulations.

  • Page 10: Maintenance

    IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve that stops the suction action when the container reaches its maximum capacity.

  • Page 11: Installing & Cleaning Foam Sleeve Filter

    Installing HEPA Filter and Pre-Filter 1. Verify that the power cord is disconnected from the outlet. (fig. 1) 2. Remove power head and place in upside down position. 3. Install the HEPA filter over the filter cage with the flat end of the filter towards the vacuum power head. Carefully push filter in until it stops against the power head.

  • Page 12: When To Change Filters

    WHEN TO CHANGE FILTERS Change the collection bag When the collection bag is 3/4 full, it MUST be replaced. Excessive over filling of this bag makes it difficult to remove from the vacuum tank and can result in breakage and spills. The collection bag comes equipped with a quick closing flap.

  • Page 13: Parts - Exploded View

    PARTS - EXPLODED VIEW PF59 Parts List PF59 Parts List Key PF Part No. Description Line Key PF Part No. Description Line WD400 Handle Assembly WD419 Inner Cable WD401 Top Cover WD420 Transport Handle Assembly WD402 Switch WD421 Accessory Storage...
  • Page 14 1 year on pump, vac motor, parts and workmanship. In case you as our customer, meet any trouble with your machine, contact your Powr-Flite representative who will be happy to be of service to you and will take care of the warranty settlement.
