System configuration of each control function

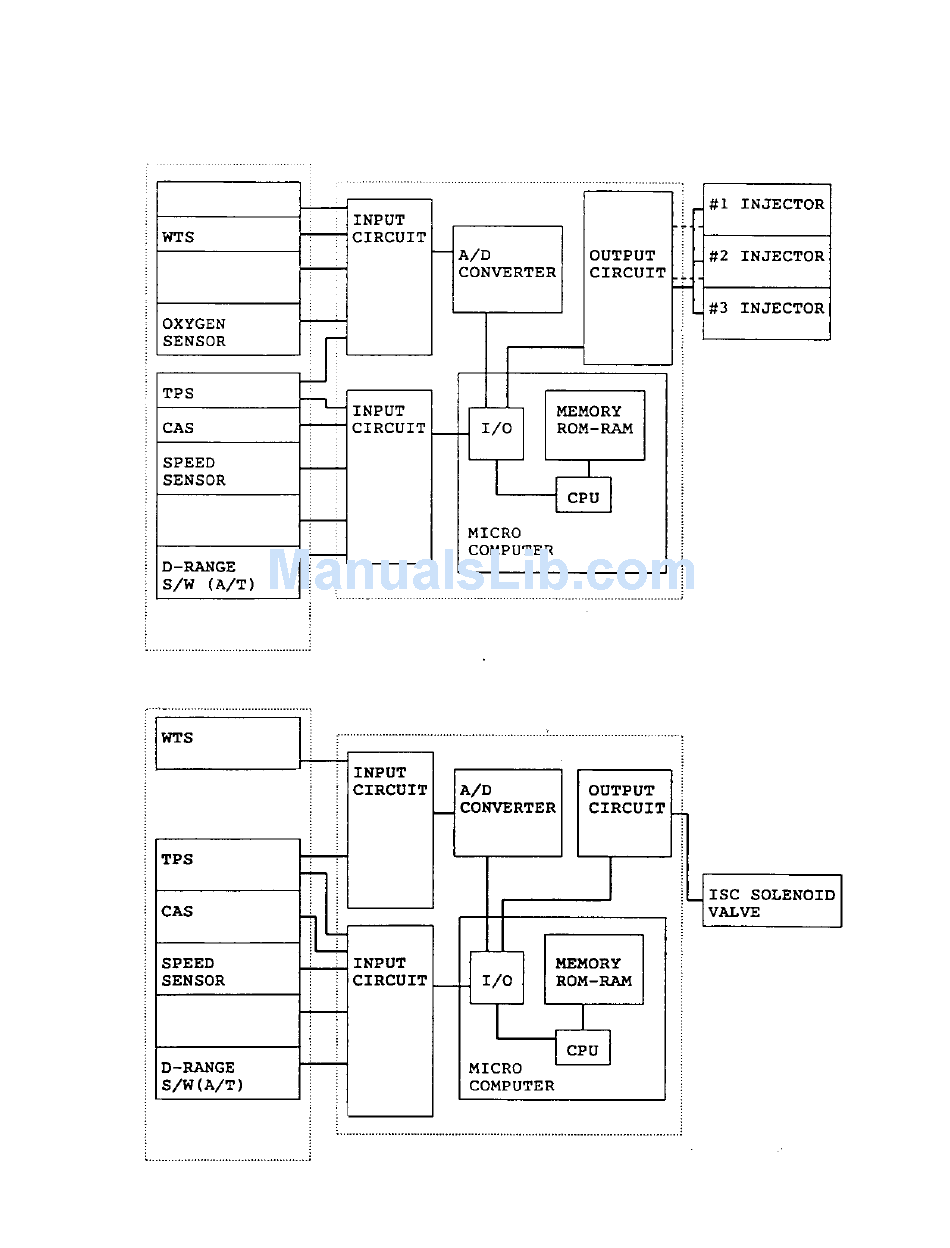

Following block diagrams show configurations of sensors and actuators used for such control systems as fuel injection
control, idle speed control, ignition control EGR control and purging control.
(1) Fuel injection control
PRESSURE
SENSOR
KEY SWITCH
(2) Idle speed control
KEY
SWITCH
6
