OIL PUMP

The oil pump uses a trochoid system, and is driven directly by engagement with the width across the flat of the
crankshaft and the inner rotor.
SPECIFICATIONS
Discharge pressure, discharge amount
(pump rotation speed 4000 rpm)
Relief valve open pressure
When 270 kPa {2.8 kgf/cm
14 L/min
290~370 kPa {2.8~3.6 kgf/cm

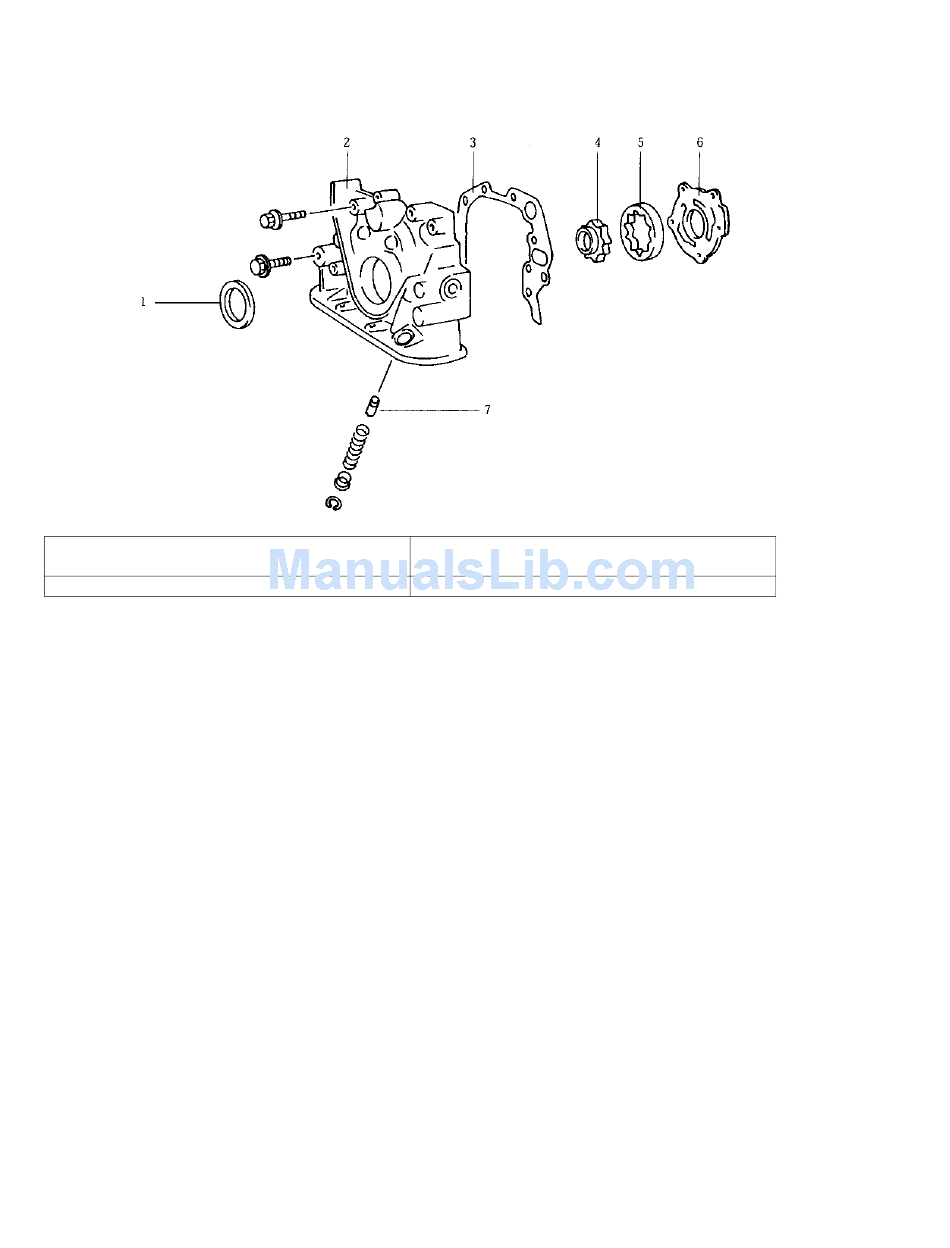

1. Oil seal
2. Oil pump case
3. Gasket
4. Inner rotor
5. Outer rotor
6. Rotor plate
7. Relief valve
2
}
2
}
