Page 1

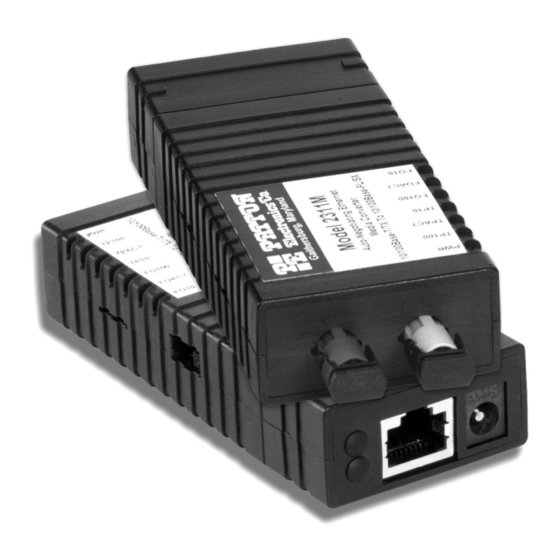

Part# 07M2300M Doc# 077321U Rev. A Revised 4/14/03 An ISO-9001 Certified Company USER MANUAL MODEL 2300M SERIES OpticLink Ethernet Media Converters (2300M, 2310M, 2311M, & 2312M) SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007...
CONTENTS Warranty Information ... 3 Radio and TV Interference... 3 CE Notice... 3 Service... 4 General Information... 5 Features... 5 Description... 6 Installation... 8 Installing a media converter... 8 End-to-end connection... 11 Operation... 12 LED indicators ... 12 Specifications ... 14 A.1 Interfaces/Connectors ...
1.0 WARRANTY INFORMATION Patton Electronics warrants all Model 2300M Series components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of shipment. This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse, or unauthorized modification.
and the Low Voltage Directive (LVD) of the Union European (EU). A Cer- tificate of Compliance is available by contacting Technical Support. This device is not intended to be connected to the public telephone network. Caution 1.3 SERVICE All warranty and nonwarranty repairs must be returned freight prepaid and insured to Patton Electronics.
2.0 GENERAL INFORMATION Thank you for your purchase of this Patton Electronics product. It has been thoroughly inspected and tested and is warranted for parts and labor. If you have any questions about this product, please call Patton Electronics Technical Support at (301) 975-1007. 2.1 FEATURES •...
The Model 2300M can be used to connect auto-sensing 10/100 and 100Base-TX/100Base-FX network devices only; it is not capable of connecting to 10Base-T/10Base-FL network devices. • The Model 2310M converts 10Base-T to 10Base-FL and extends up to 1.24 miles (2.0 km). Note The Model 2310M can be used to connect auto-sensing 10/100 and 10Base-T/10Base-FL network devices only;...
Page 7
side of the Model 2311M, there must be another 100Base or an auto-sensing 10/100 network device on the other. The Model 2311M is the ideal product for customers who currently have 10Base-T networks and/or equipment and are planning to upgrade to 100Base-TX in the future.
The following sections describe installing and configuring the Model 2300M Series of Ethernet Media Converters 3.1 INSTALLING A MEDIA CONVERTER Do the following to install the Model 2300M Series of Ethernet Media Converters: 1. The MDI/MDI-X switch enables you to connect the 2300M models to different types of network devices using a standard (straight- through) network patch cable.
Page 9
2. The media converter comes equipped with a shielded RJ-45 Jack for Ethernet connections (see Figure 1 on page 8). Connect the Ethernet RJ-45 jack to the appropriate 802.3 compliant network equipment via a standard network patch cable (not pro- vided).
Page 10
3. Connect the dual fiber ST or SC connectors on the media converter (see Figure 3) directly to the 802.3 compliant multi-mode fiber cable equipped with male ST or SC connectors or via 802.3 compliant multi-mode fiber patch cord (not provided) and corresponding ST or SC fiber wall jacks.
3.2 END-TO-END CONNECTION Figure 4 shows an end-to-end connection between a personal computer/ terminal and Ethernet hub using two Patton Model 2300M Series Ether- net Media Converters and a multi-mode fiber connection. Figure 4. End-to-end multi-mode fiber connection...
4.0 OPERATION Once you have installed the Model 2300M Series unit and have con- nected the External Power Supply Adapter to the appropriate power source, the unit will power up automatically and is ready to operate. 4.1 LED INDICATORS Once powered up, LED indicators located on the side of the Model 2300M Series unit will illuminate to indicate the operating status of the unit.
Page 13
Model 2300M.) Illuminates green to show that a 100 Mbps signal is present on the twisted-pair/copper side of the unit. (Not used on Model 2310M.) Blinks yellow to show activity on the twisted-pair/ copper side of the unit. Illuminates green to show that a 10 Mbps signal is present on the twisted-pair/copper side of the unit.
• 2311M: -28 dBm (typical) • 2312M: -33.5 dBm (typical) Delay Time • 2300M: 5µs per km (typical) • 2310M: 5µs per km (typical) • 2311M: 5µs per km (typical) • 2312M: 5µs per km (typical) Typical Fiber Max. Distance •...
