USER MANUAL
DVM-65

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVM-65 and is the answer not in the manual?

Questions and answers

Related Manuals for Alecto DVM-65

Summary of Contents for Alecto DVM-65

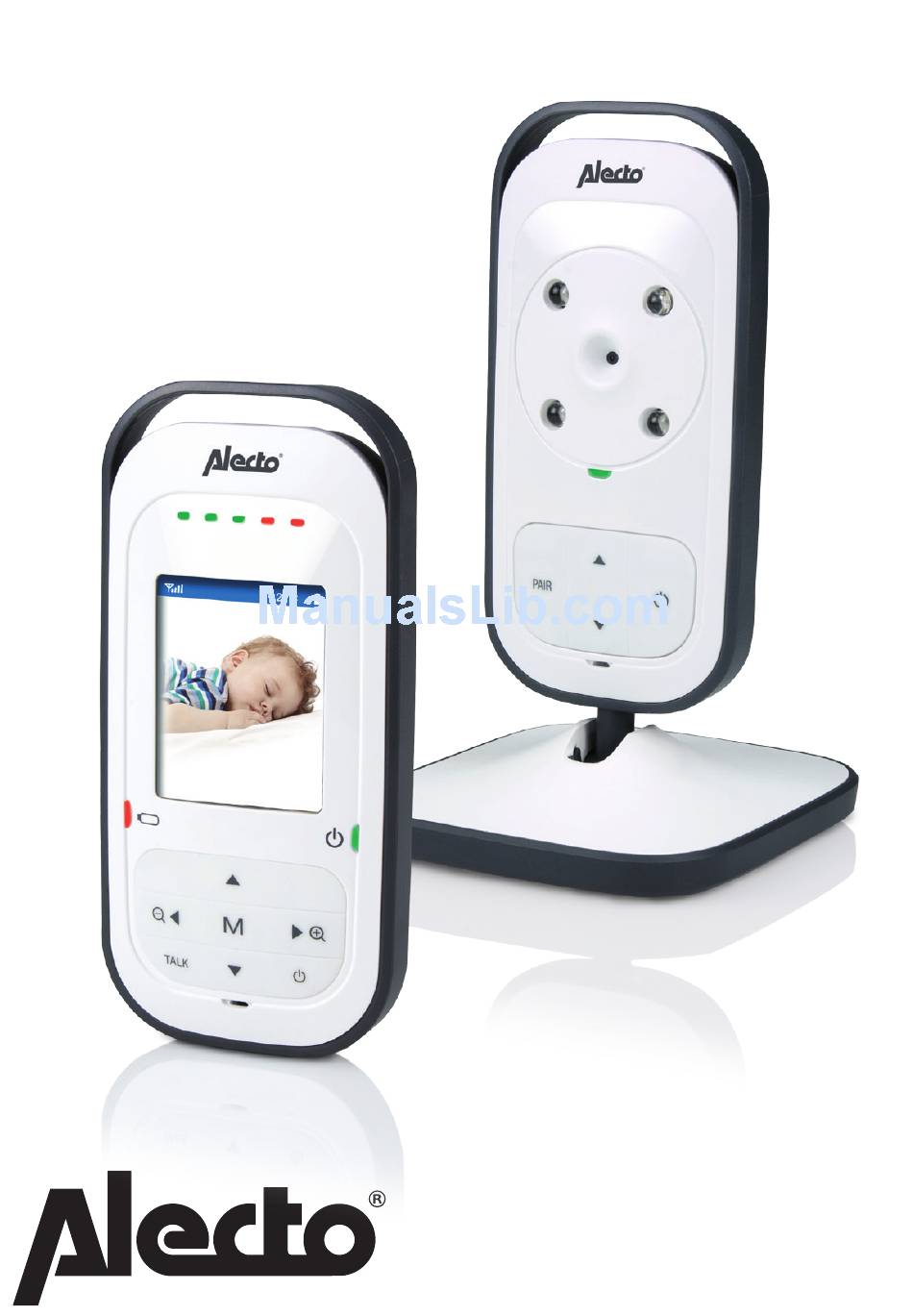

  • Page 1 USER MANUAL DVM-65...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ..................3 FUNCTIONS OVERVIEW BABY-UNIT ....................3 PARENT UNIT ....................4 ICONS ON THE DISPLAY ................4 INSTALLATION BABY-UNIT ....................6 PARENT UNIT ....................7 BABY-UNIT Switching on/off .....................9 Volume ......................9 Automatic night vision ...................9 PARENT UNIT Switching on/off .....................9 Volume ......................9 Switching on/off automatically: (VOX) ............10 Switching the display on/off manually ............10 Leaving the display switched on continuously ..........10 Talking back ....................10...

  • Page 3: Introduction

    1 INTRODUCTION The Alecto DVM-65 is a wireless audio/video baby monitor, suitable for private use indoors. You can either watch and listen continuously or you can have the baby monitor switch on automatically as soon as your baby starts crying.

  • Page 4: Parent Unit

    2.2 PARENT UNIT: 1. visual sound indication, also displays the volume level while adjusting 2. display 3. battery indicator 4. increase/decrease the reception volume, in zoom mode: press and hold to view up or down, in menu mode to scroll the setup options 5.
  • Page 5 ‘patrol-mode’ (setup choice to view cameras one after the other when using multiple cameras) indication that the zoom mode is activated volume set to 0 (speaker turned off) VOX is activated (unit switches on automatically when the baby starts crying) temperature display of the baby room battery indication: battery is empty...

  • Page 6: Installation

    3 INSTALLATION 3.1 BABY-UNIT: Power: 1. Connect one of the supplied 6V power adaptors to the 6V DC input of the baby unit. 2. Insert the adapter into a 230V wall socket. Only use the supplied power adaptor with model number S003IV0600060. >2m When used as a baby monitor: Make sure the baby cannot reach the baby unit or wire.

  • Page 7: Parent Unit

    • The temperature protrudes from the rear of the baby unit. Make sure this sensor hangs freely, unexposed to direct sunlight and avoid heat from e.g. light bulbs. • The baby unit is not waterproof. When using outdoors, make sure to protect the baby unit against moisture and sand.
  • Page 8 You can recharge the battery with the parent unit either swit- ched on or off, although charging the battery with the parent unit switched off will take less time. Charging: The battery will be charged as soon as you connect the power adapter and insert it into a 230V wall socket.

  • Page 9: Use

    4 USE 4.1 BABY-UNIT: Switching on/off: • press briefly to switch on • press and hold for 2 seconds to turn off The green indicator on the baby unit flashes while the baby unit is trying to establish a connection with the parent unit, this indicator remains lit when the connection is successful.

  • Page 10: Switching On/Off Automatically: (Vox)

    While adjusting, the volume level will be indicated on the display and the icon will appear in the upper part when the volume level is set to 0 (no sound). Switching on/off automatically: (VOX) You can set the parent unit to turn off when the baby is sleeping quietly and the baby unit is not detecting any sound, and let it turn on again as soon as the baby starts to cry.

  • Page 11: Zoom Function

    Zoom function: Press the button to turn on the zoom function (moving the image somewhat closer) and press the button to turn off the zoom function. When the zoom function is switched on, the icon will appear in the upper part of the display. With the zoom function activated, press and hold the , , but- ton to move the image to the left, to the right, up or down (attention: the...

  • Page 12: Multi Camera 5.1 Introduction

    You can register up to a maximum of 4 baby units (cameras) on the DVM-65 parent unit. Separate cameras are available via the service department of Alecto via 073 6411 355 (Netherlands), 03 238 5666 (Bel- gium) or via internet www.alecto.nl Read paragraph 4.2 (Multi-camera) for instructions on how you can use...

  • Page 13: Tips And Warnings General

    Only connect or disconnect the power adapter to/from the baby unit or parent unit when the power adapter is removed from the wall socket. • Never install the DVM-65 during thunder storms. • Never touch any non-isolated adapter cables, unless the adapters are removed from the wall socket.

  • Page 14: Eavesdropping/Wiretapping

    6.4 EAVESDROPPING/WIRETAPPING: • Eavesdropping/wiretapping of the signals from this baby video mo- nitor is nearly impossible. Not only must one be within range of the baby video monitor, one also needs some very costly equipment. 6.5 MAINTENANCE: • Only clean the baby monitor with a moist cloth; never use chemical cleaners.

  • Page 15: Problems

    • If you still receive no images or sound, please contact the customer service of Alecto via the phone number 073 6411 355 (Netherlands), 03 238 5666 (Belgium), 0180 503 0085 (Germany) or via internet www.alecto.nl...

  • Page 16: Warranty

    8 WARRANTY For the Alecto DVM-65 you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by material and workmanship errors. All this subjected to the final assessment of the importer.
