  • Page 1 DVM-120 observation system USER MANUAL...

  • Page 2: Table Of Contents

    INDEX INTRODUCTION ..................3 FUNCTIONLIST BABY-UNIT ....................3 PARENT-UNIT ................... 4 INSTALL BABY UNIT ....................5 PARENT UNIT ................... 5 SWITCH ON / OFF ..................7 PARENT UNIT ................... 7 MENU DRIVEN FUNCTIONS & SETTINGS ..........8 AUTOMATIC NIGHTVIEW ..............10 SYSTEM EXPANSION GENERAL ....................11 REGISTER ADDITIONAL CAMERAS ............11...

  • Page 3: Introduction

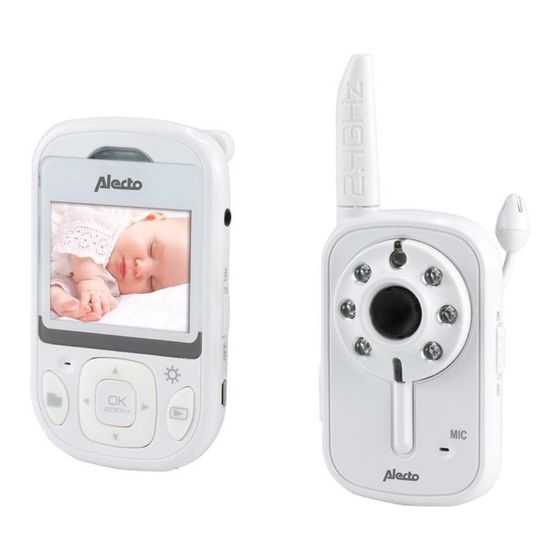

    INTRODUCTION The Alecto DVM-120 is a wireless audio/video observation system, for indoor use. Either you can watch and listen to your baby continuously or you can choose to have the babymonitor been switched on when your baby starts to cry.

  • Page 4: Parent-Unit

    11. night lamp 12. connection for the power adapter 13. built-in speaker 2.2 PARENT-UNIT: indicators: • green light: constantly lit when there is an active con- nection to the parent unit flashes when there is no active connection to the parent unit •...

  • Page 5: Install

    INSTALL 3.1 BABY UNIT: (CAMERA) The baby parent unit is not waterproof and therefore only suitable for indoor use. Power adapter: 1. Connect one of the supplied power adapters with de connector xx on the back of the baby unit. 2.
  • Page 6 3. Slide the battery cover back on the parent unit. Don’t force placing the battery. Only use the supplied rechargeable Li-ion battery (3.7V, 800mAh). Power adapter: 1. Connect the other power supply adapter with the connector on the side of the parent unit.

  • Page 7: Use

    4.1 SWITCH ON / OFF: Baby unit: • Slide on the right side of the baby unit the switch to ON to switch on the baby unit. • Slide this switch to OFF to switch off the baby unit. Parent unit: •...

  • Page 8: Menu Driven Functions & Settings

    Night light on/off: • Hold button for over a second to turn on the night ligth on the baby unit. • Again hold button for over a second to turn off the night light. 4.3 MENU DRIVEN FUNCTIONS & SETTINGS: Press the parent unit on button to open the menu.
  • Page 9 Feeding timer: push, after selecting the adjacent icon, the OK button to select this function switch with buttons to the ON function or OFF function use the buttons to select interval times (minimum 30 minutes, maximum 8 hours, 30 minutes adjustable) and press OK push button 2x to capture the power timer and exit the menu The power timer sounds for 60 seconds max or push the OK button tot...

  • Page 10: Automatic Nightview

    2x to capture the setting and exit the menu The DVM-120 only displays the temperature of the room where the baby unit is placed; you can not set alarm in here. Note that the temperature is displayed only indicative, you must consi- der a possible deviation of + or - 2 degrees.

  • Page 11: System Expansion

    SYSTEM EXPANSION 5.1 GENERAL: The DVM-120 parent unit can log up to 4 cameras max. From the menu of the parent unit you can select the desired camera or you can display successively the images of all registered cameras (scan function).

  • Page 12: Installation

    Only connect the power adapter to the baby unit or the parent unit or discon- nect when the power adapter is taken out of the wall outlet. • Don’t install the DVM-120 during an electrical storm. • Do not touch any uninsulated adapter cables unless the adapters have been taken from the wall outlet.

  • Page 13: Interference-Free

    6.6 INTERFERENCE-FREE: • This image baby monitor is digitally coded. So you will never receive the signal from other equipment nor will the signal of your baby unit (s) be displayed on the parent unit of, for example, your neighbors. •...

  • Page 14: Declaration Of Conformity

    Switch on the parent unit and the baby unit again. • If you still have no video or sound, please contact the Alecto service depart- ment on telephone 073 6411 355 (Netherlands), 03 238 5666 (Belgium) or via internet www.alecto.nl...

  • Page 15: Warranty

    All this at the final judgment of the importer. HOW TO ACT: if you notice a defect, consult the manual first. If this manual gives you no definite answer, consult the supplier of the video baby monitor or the Alecto service department via www.alecto.info.
  • Page 16 Service Help WWW.ALECTO.NL SERVICE@ALECTO.NL NL 073 6411 355 (Lokaal tarief) BE 03 238 5666 (Lokaal tarief) (Tarif local) DE 0180 503 0085 Lokale Festnetzkosten Hesdo, Australiëlaan 1 5232 BB, ‘s-Hertogenbosch The Netherlands WWW.ALECTO.NL Service SERVICE@ALECTO.NL NL 073 6411 355 (Lokaal tarief)
