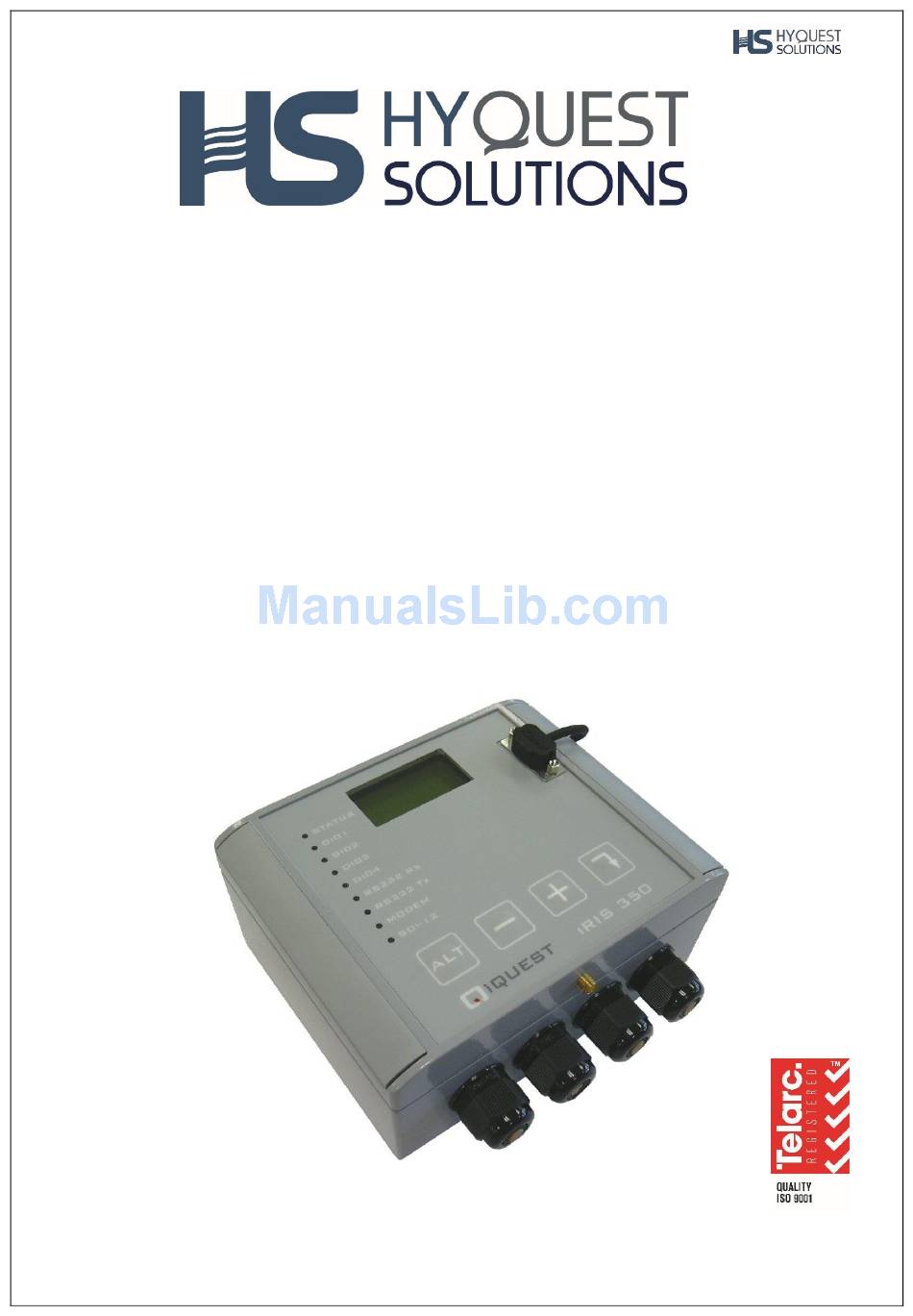

iRIS 350FX Reference Manual V1.00
iRIS 350FX
Basic User Guide
For Software
Version: 1.50
Requires Firmware
Version: Vz/1.50+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iRIS 350FX and is the answer not in the manual?

Questions and answers

Related Manuals for HyQuest Solutions iRIS 350FX

Summary of Contents for HyQuest Solutions iRIS 350FX

  • Page 1 350FX Reference Manual V1.00 iRIS 350FX Basic User Guide For Software Version: 1.50 Requires Firmware Version: Vz/1.50+...
  • Page 2 This publication, or any part of it, and any software accompanying it may not be copied, photocopied, reproduced, translated or communicated to any third party, or reduced to electronic medium without prior written permission from HyQuest Solutions (NZ) Ltd. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 3: Table Of Contents

    Configuration ........................16 Terminal Connection ....................... 16 Terminal Security Code ......................16 Configuration Menus ......................17 General ..........................17 Power ..........................19 Comms ..........................21 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 4 Connecting Analogue Wind Instruments ................65 Connecting SDI-12 Instruments ....................66 Connecting Quadrature Encoders ................... 68 Connecting a Vaisala WXT5x0 Weather Transmitter ............69 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 5 13 Appendix A – Specific Information ..................82 General Characteristics ....................... 82 Technical Specifications ....................... 83 Antenna Connection ......................84 Mounting ..........................85 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 6 Advantages of SDI-12 ......................99 SDI-12 Electrical Interface ....................100 Serial Data Line ......................100 Ground Line ........................100 Volt-Line ......................... 100 18 User Notes ......................... 101 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 7 Figure 11 - iRIS 350FX External View ....................... 82 Figure 12 - Mounting Diagram ........................85 Figure 13 Connecting the iRIS-CAM to a PC....................93 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 9: Declaration Of Conformity

    Declaration will be identical to the sample tested. Signed: Name: David Richards Position: Managing Director Place: Hamilton Date: 20/09/2012 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 10: Introduction

    Indicates extra detail to expand the current discussion. WARNING Describes something that may cause problems if not heeded. The term “iRIS” is generally used throughout this manual in reference to the iRIS 350FX datalogger. 1.1 Support Technical support for the iRIS 350FX datalogger is available by contacting: HyQuest Solutions (NZ) Ltd P.O Box 9466...

  • Page 11: Overview

    Mobile temperature monitoring   Water / power / gas metering Irrigation monitoring / control   IP  RS232 communications gateway Remote control HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 12: Key Features

    With power management disabled, the internal wireless modem is maintained in a powered on state even if an IP session is not currently active. While in this state, periodic signal strength measurements are made and HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 13: Data Logging

    (slope and constant). The scaled value can be logged to non-volatile memory at rates between once per minute to once per hour or immediately in true event mode for pulse inputs. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 14: Logged Data Array Identification

    The iRIS has a non-volatile real time clock that can be read and/or synchronised using HydroTel™ or iLink 2012. The iRIS 350FX differs from its predecessors in that the internal clock runs in UTC (GMT) and all logged data is time/date stamped in this time zone. HydroTel™ and/or iLink 2012 automatically adjust for this.

  • Page 15: Security

    The port that the redirected packet is sent from depends on the configuration of the iRIS. Refer to the Section RS232 Interface Telemetry for further information on using the gateway. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 16: Iris 350X And Iris 350Fx Comparison

    4 iRIS 350X and iRIS 350FX Comparison The iRIS 350FX is an enhanced firmware/software set that can be applied to any existing iRIS 350 or iRIS 350X datalogger. Primarily this update changes the fundamental datalogging format to floating-point and is built around a new IEEE-745 2008 compliant library.

  • Page 17: Installation

    The function of each I/O termination is shown in the diagram below. iRIS 350FX units fitted with a PCB revision V1.2+ have an 18-way connector compared to the 16- way connector on earlier units. The two additional terminals provide an extra GND connection and the 1-wire bus expansion port.

  • Page 18: Internal Battery

    Applying a voltage higher than 14.5V for a sustained period to these terminals will permanently damage the internal battery and may cause an acid leak and/or an explosion. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 19: Internal/External 12V Battery Supply

    See Section for details on the recommended scaling method for optimising the calibration. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 20: Digital I/O

    If the digital output configuration is set to 0 (Disabled) the channel is by default an input. See Section 6.3.4.1 for details on configuring the digital outputs. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 21 5V through a 57K resistance, providing a wetting current of approximately 100A. +12V DIOx To internal logic circuitry 100nF DGND Figure 6 - Digital Input Circuit HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 22 It will also activate when a call-in is pending and the Power Save mode is set to RS232 Telemetry to allow communications equipment to be powered HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 23 +12V DOUT1 DOUT2 DGND DGND Figure 7 - Pull-Down Mode Circuit Figure 8 - Switched 12V Mode Circuit HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 24: Configuration

    The security code is case-sensitive. The code cannot be viewed or changed except by an authorised user using iLink 2012 which is registered to Administrator level. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 25: Configuration Menus

    Enter the UTC offset in this column. Date Format: This option is used to select the date format as used throughout the iRIS (LCD screens and configuration menus). HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 26 If this option is enabled, all the service events will be logged. LCD Auto-Scroll: Ticking this option will enable the LCD screens to scroll automatically. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 27: Power

    6pm to midnight. Activation during these two times may be configured differently using the on interval and off interval settings described below. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 28 Enter the length of time in minutes between each successive power mode change – when there are one or more active alarms in the iRIS. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 29: Comms

    Use 0 to disable gateway communication. If this is not zero, then a gateway block of 100 locations is set up starting from the offset. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 30 Enter the call-back mode for the wireless modem (IP or SMS). IP Mode: If the connection mode is set to IP, choose the protocol, either TCP or UDP from the drop down list. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 31 If the SIM card installed has a PIN code enabled for security purposes, use this option to define it. If a PIN code is not required, enter zero (0) for this setting. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 32 Enter the time at which the iRIS is allowed to start establishing wireless IP sessions or sending SMS messages. End Time: Enter the time after which the iRIS must stop establishing wireless IP sessions. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 33 Enter the length of time in minutes between each successive wireless IP session being established or an SMS message being sent – when there are one or more active alarms in the iRIS. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 34 The iRIS will always respond to messages from the IP addresses programmed for primary and secondary base since these are the defaults used for unsolicited calls. If your unit is connected to the HyQuest Solutions APN and you would like HyQuest Solutions to have access to the device for maintenance and support purposes, enter the HyQuest Solutions Host IP address (192.168.1.10) into one of the table entries –...
  • Page 35 Enable this option if you wish to include a header line in the file. This option is available only for CSV/TXT file types. Apply UTC Offset to Sample Timestamps HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 36 Enter the password required to login to the FTP server. 6.3.3.6 Modbus Mode: The iRIS 350FX would operate in either the Modbus RTU mode or the Modbus ASCII mode. Choose the appropriate one from the list. Address: Enter the MODBUS slave address in this field.

  • Page 37: I/O Configuration

    DIO2 by bit 1 of d1000, DIO3 by bit 2 of d1000 and DIO4 by bit 3 of d1000. Online Follow wireless link state i.e. the output is on if the wireless modem is on-line. Table 2 – Digital Output Modes HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 38: Table 3 - Digital Output Polarity

    Enter the length of time in minutes between the successive operations of the output if the mode is set to Schedule - when there are one or more active alarms in the iRIS. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 39 Sets the actual value representing the maximum signal output (5V or 20mA). The Span setting is used to set the output as a percentage when the source is Fixed. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 40: Devices

    Measurement Interval: This is the time interval between each measurement. Custom Command: This is an optional custom command with a separate schedule for measurements. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 41: Sensor Configuration

    Multiplier Offset Unused / disabled Analogue Input 1 0 to 5.0000 Analogue Input 2 0 to 5.0000 Analogue Input 3 0 to 5.0000 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 42: Table 4 - Standard Sensor Sources

    Enter a scaling offset in this column. This offset is added to the scaled engineering value. It is the “c” variable in the y=mx+c scaling equation. Calibration (User) Offset: This is the offset to shift the scaled value’s datum. Linearisation: HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 43 Scalar Average Logs the average of all samples taken over logging period, but uses (for Wind Direction) scalar calculations to calculate the average. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 44 4. Log Calculated Flow Rate (in l/s) over log period or Log Accumulated Volume for sensors with an analogue or frequency source. 5. Log Check Count. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 45: Alarm Configuration

    If the total over the given alarm duration is above the trigger level then an alarm is generated. Typically this feature is used for rainfall alarms. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 46: Camera Configuration

    6.3.4.1 Start Time: Enter the time at which the device starts to take images (24 hour clock). HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 47: Sms Numbers

    This is the place to configure the phone numbers for SMS text messaging initiated by the iRIS. These numbers are only applicable when the connection mode is set to SMS. See the description of the connection mode in Section 6.3.3.2. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 48: User Configuration

    350FX Reference Manual V1.50 User Configuration This section enables to set different user configurations (maximum 20). HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 49: User Messages

    Lookup Tables The iRIS 350FX supports two lookup tables for use in calculating derived data using the scaled value from Sensor 1 as a source. The table file format is identical to that used by HydroTel. The lookup table must be contained in a text file with a .tbl extension and only integer values are permitted.
  • Page 50 - Clears the current lookup table from the iRIS. - Checks whether the table is sorted correctly. - Sorts the table. - Loads table from disk. - Saves table to disk. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 51: Terminal Menus

    Last Year: 3457765.0 Year To Date: 96339.0 Yesterday: 1337.2 Today: 149.7 Running: 158823.0 0 Exit 1 Reset All Totals 2 Edit Running Total HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 52 The iRIS will not attempt to connect to the network if the RSSI is 0 or less than -113dBm. Example diagnostic information. The < character indicates data received from the modem and the > character indicates data sent to the modem. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 53 > WARNING! This will completely clear logged data and totals. Type 'init' to initialise the unit. Or just Enter to exit. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 54: Operation

    If the user was logged on (PIN entered), they will be logged off. This version of software has the timeout period set to 5 minutes. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 55: Status Icons

    They will appear if Modbus mode is active or a picture is  Solid secure (PIN is set to zero) being taken or a voice call is in progress. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 56: Display Menu Structure

    Sensor Menu Sensor Settings [1..5] Sensor Calibration Sensor Data Totalisers [1..4] Totalisers Reset Comms Status Comms Menu Comms Settings [1..9] RS232 Cfg Comms Test HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 57: Keypad Buttons

    Comms: Sierra Q26 Enter Move down to Main Menu screen Modbus (RTU 9600) Alt Enter Log in (If PIN code <> 0), otherwise unused HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 58 Use the – or + keys to switch the logging on or off. Pressing the <Enter> key will return the display to the top-level Welcome (System Status 1) screen. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 59: Sensor Related Screens

    For pulse input sources I also shows the check counter. PROCESS Mode: Avg Move forwards/backwards through sensor setting screens. +Min+Max Alt Enter Move up to Sensor Status screen Chk Cnt: 0.0 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 60 12.4000 Enter only Multiply target value by factor of 10 Alt Enter Move to Calibration Acceptance screen HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 61: Totaliser Related Screens

    RESET TOTALISER 1? Enter Reset total and move up to Sensor Total screen Alt Enter Move up to Sensor Total screen Enter to initiate HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 62: Comms Related Screens

    IP address assigned by the network when in dynamic IP mode. Move forwards/backwards through communication setting screens. APN/LOCAL IP Alt Enter Move up to Comms Status screen hyquestsolutions.co.nz 10.236.0.1 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 63 Move forwards/backwards through communication setting screens. Alt Enter Move up to Comms Status screen SCHEDULE Duration 120sec Interval 60min HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 64 Select new mode displayed and move back to Comms Setting Screen 9 Alt Enter Move up to Comms Setting Screen 9, but with mode left unchanged HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 65: Sms Communication

    Callback Mode setting. Typically this is an IP connection, but could be a SMS message (but to the numbers defined in the Phone Number configuration, not the requester’s number). HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 66: General Hints

     The three iRIS 350FX application program segments (.350fx files) can normally be upgraded with no effect upon the logged data or iRIS configuration. In the case of a major upgrade that may affect the internal memory of the unit, HyQuest Solutions will issue an upgrade notification explaining the procedure that should be followed when upgrading your unit.

  • Page 67: Sensor Connection Examples

    The instrument is a 0.5mm tipping bucket rain gauge and is logged every 15 minutes for examples 1 and 2. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 68 No “time slot” has an associated interval earlier, if there has not zero samples are logged. sample. been a value logged. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 69: Connecting A 0-5V Pressure Transducer

    Ensure the sensor mode is set to Instant (0) or 1 minute average (4). HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 70: Connecting A 2-Wire Loop-Powered 4-20Ma Sensor

    If power consumption is an issue, the sensor can be Log Rate: 15 mins controlled by a digital output on a timed basis. See the description in Section above. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 71: Connecting An Up/Down Water Level Instrument

    The level is averaged and Multiplier: 0.001 Offset: 0.0000 the result logged every 15 minutes. Log Rate: 15 mins HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 72: Connecting A Unidata High-Speed Serial Instrument

    Off Interval: 0 minutes Off Interval: 0 minutes Log Rate: 15 mins Start Time: 00:00 Start Time: 00:00 End Time: 00:00 End Time: 00:00 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 73: Connecting Analogue Wind Instruments

    Average+Min+Max to capture the wind lull and gust. The wind direction is configured as an analogue input with a mode of Scalar Average. More specific documentation can be found in our application notes available on our website, for example: HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 74: Connecting Sdi-12 Instruments

    15 minutes at 14, 29, 44 and 59 minute of each hour. Note the log rate of the sensor configuration matches the measurement interval of the sensor. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 75 350FX Reference Manual V1.50 HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 76: Connecting Quadrature Encoders

    The level is averaged and Multiplier: 0.001 Offset: 0.000 the result logged every 15 minutes. Log Rate: 15 mins HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 77: Connecting A Vaisala Wxt5X0 Weather Transmitter

    The last subsection, (Section 8.10.3) shows the settings for each of the sensors to enable the WXT5x0 data to be acquired and logged. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 78: Vaisala Configuration Software Settings

    350FX Reference Manual V1.50 Vaisala Configuration Software Settings HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 79: Iris Sensor Configuration

    Log Rate: 5 mins Name: Hail Source 19. SDI-12 SDI-12 Device: WXT510 Variable: 7 Mode: Instant Process Multiplier: 1.00000 Offset: 0.00000 Log Rate: 5 mins HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 80: Analogue Input Scaling

    Click the “Calculate” button to generate the correct multiplier and offset parameters to use in the sensor setup menu for Sensor 1 as shown. Min V Max V HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 81: Rs232 Interface Telemetry / Gateway Comms

    “store and forward” or “gateway” communications. This feature allows data packets that are not addressed to this logger to be redirected to other HyQuest Solutions devices. This chapter describes using the RS232 Telemetry function and also explains the gateway communications functionality.

  • Page 82: Non-Dedicated Rs232 Telemetry Mode

    Radio comms repeater function  IP to radio bridging When an incoming data packet is received from either communications port, the iRIS does the following: HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 83: Aliased Gateway Explained

    67. The address gets changed as it passes through the gateway iRIS logger as described below. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 84 The gateway logger sends the aliased packet via the IP network to the HydroTel™ base. It is now addressed to destination address 0 from sender’s address 1067. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 85: Using Modbus Slave Mode

    “holding registers”. In the case of the written holding registers, the iRIS 350FX can be configured to access these values as sources for one or more sensor channels.
  • Page 86 Also, in the Comms section there is a new tab for Modbus settings as shown below. Set the Mode to ‘RTU’ and enter the address and parity. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 87: Enabling Rs232 Modbus Operation Using Keypad/Lcd

    Again click ‘Enter’ to set the user ‘Modbus’. RS232 Port Mode is USR: MODBUS Enter to chg Use the ‘Enter’ key again to change it back to normal mode. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 88: Troubleshooting

    (IP addresses and port numbers are non-zero). If the secondary base is not used, set it to the same values as the primary base. See Appendix I for a list of the network settings for the HyQuest Solutions APN or HyQuest Solutions Global Data Network.

  • Page 89: Unable To Access Terminal Menu

    For sites with a large solar panel (20watt or greater) an external solar regulator is recommended. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 90: Appendix A - Specific Information

    Data from all enabled sensors are logged in a four word (8 byte) compressed format which includes full date and time stamp to a 1 second resolution. The iRIS 350FX supports SDI-12 communication with a range of industry standard intelligent sensors.

  • Page 91: Technical Specifications

    12 minutes at 11.025kHz sampling rate. Clock/Calendar: Non-volatile with user replaceable lithium back-up battery module. Accurate to +/- 20 seconds / month HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 92: Antenna Connection

    Yagi, via appropriate low- loss high frequency coaxial cable and male SMA connector. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 93: Mounting

    It is very important that the four screws retaining the lid are tightened firmly after installation to maintain the IP66 rating of the enclosure. The mounting holes are on 142mm (5.11in) width by 80mm (3.2in) height centres. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 94: Appendix B - Voice Annunciation (Iris 350Fxv)

    14 Appendix B – Voice Annunciation (iRIS 350FXV) The iRIS 350FX can be supplied with a voice annunciation feature. In this case it is then allocated the designation, iRIS 350FXV. Typically the voice annunciation feature is used to play back the current values of all enabled sensors when the unit is called up from a telephone.

  • Page 95: Loading Wave Files Into The Iris

    The page is split into two separate areas, Audio File and Audio Script. The Audio File settings are used to playback and/or upload individual files to an audio logger. The Audio Script settings are used to validate and/or upload multiple sound files. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 96: Audio File Settings

    The first line in the DefaultSoundScript file shown here indicates that a file named zero.wav should be loaded into partition 0, message index 1. 0,1,zero 0,2,one 0,3,two HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 97 When the script has completed, a message will be displayed confirming that the upload procedure is complete. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 98: Uploading Audio Files Over A Remote Connection

    15 Appendix C – Using an iRIS-CAM Camera Overview The iRIS-CAM is a camera accessory for the iRIS 350FX datalogger. It is supplied in an environmentally sealed (IP66) enclosure constructed from a special corrosion-resistant aluminium alloy that is finished in a hard- anodised coating.

  • Page 99: Mounting

    This is located next to the SIM card carrier on the iRIS. Finally tighten the gland and re- power the logger. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 100: Installing Pc Based Software & Usb Drivers

    If you are prompted with the message saying the software has not passed Windows Logo Verification, please ignore and click the Continue Anyway button. Software can be obtained from CD or the HyQuest Solutions website: www.hyquestsolutions.co.nz HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 101: Connecting To The Pc

    5. Select the resolution and the repeat function as desired. 6. Click the Go button to start downloading images. To stop the automatic repeat feature, uncheck the “Repeat Automatically” checkbox. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 102: Focusing

    Picture capture will happen automatically and can be used in conjunction with schedule mode. Resolution of the remotely requested picture can be different to ones taken by the scheduler, alarm or user. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 103: Appendix D - Upgrading Firmware/Software

    350FX Software, Cellular, Version 1.40, Bank 1 The default repository for the program files is the “Programs” folder under iLink. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 104: Module Openat

    See the section below. iRIS Automated Upgrade Procedure (Software/Firmware) iLink 2012 has an automated firmware/software upgrade tool that supports the iRIS 350FX. This tool includes several checks to confirm the validity of the components being installed.

  • Page 105: Iris Manual Upgrade Procedure (Software/Firmware)

    5. Select the appropriate software files for Bank1, Bank2 and Bank3 using the browse buttons. 6. Enable “Upgrade OpenAT” checkbox if you wish to upgrade Open AT and choose the Open AT file using the browse button. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
  • Page 106 8. Once the process is completed, you can see a message saying "Upgrade completed successfully" on the status bar and the iLink 2012 window will show the current software status of the device. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 107: Appendix E - Sdi-12

    SDI-12 sensors interface with a variety of data recorders.  Personnel trained in SDI-12 will have skills to work with a variety of SDI-12 data recorders and SDI- 12 sensors. HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 108: Electrical Interface

    Note: This information is taken from: SDI-12 Serial-Digital Interface Standard for Microprocessor-Based Sensors, Version 1.3 – September 17, 2002 Prepared By SDI-12 Support Group (Technical Committee) HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...

  • Page 109: User Notes

    350FX Reference Manual V1.50 18 User Notes HyQuest Solutions (NZ) Ltd - PO Box 9466, Hamilton, New Zealand Tel: +64 7 857-0810 Email: support@hyquestsolutions.co.nz...
