- Page 1 HyQuest Solutions ML-IoT/C and ML-IoT/N (MiniLog - Internet of Things – Cat-M1 and NB-IoT) Operation Manual Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
-
Page 2: Table Of Contents
Specifications ....................28 Troubleshooting ..................29 Appendix A Data Format : CSV, JSON, DAS ..........32 Appendix B Configuration from a File or Remote ........35 Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 3: Overview

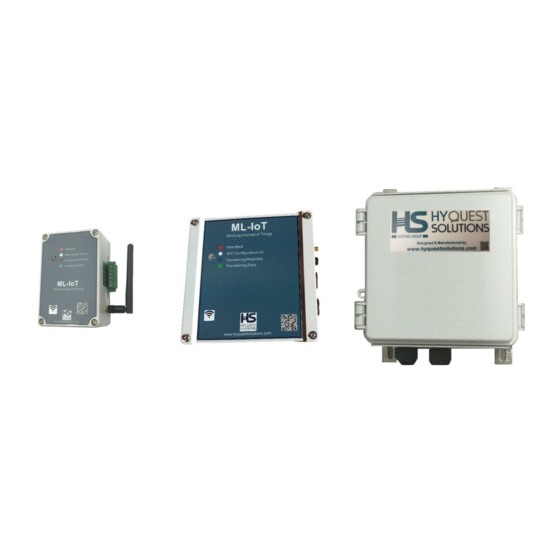

HyQuest Solutions 1. Overview The MiniLog ML-IoT/C (Cat-M1) and ML-IoT/N (NBIoT) provides an interface between a TBRG Rain Gauge or Pulse Flow Meter and up to 6 x SDI-12 sensors / variables and a data collection system – via the public telecommunications network using either FTP or HTTPS or MQTTS data transfer method. -
Page 4: New Features
• In the Mem-Config menu an extra button will appear which allows the configuration to be saved to a file on the SD card – this can be used as a record, or a template. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... - Page 5 • When selecting LTE Band 0 (All bands) – it will now connect properly (bug in previous versions). • The Processor F/W can be updated “Over the Air” via an FTP connection. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
-
Page 6: Installation
Philips head screwdriver Mounting The basic ML-IoT/C or /N can be mounted inside a TBRG when the mounting bracket shown is screwed to the rear of the ML-IoT enclosure with the 2x M5x8 pan head bolts. This assembly is then clipped onto the TB7 Rain gauge. - Page 7 The -IP66 enclosure can either be rear mounted on 122mm x 122mm grid holes - or front mounted with the mounting clips and screw provided. Or pole mounted with a HS pole mount kit P/N : ML-IoT-PMK. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
-
Page 8: Wiring
HyQuest Solutions Wiring The ML-IoT/C and /N has a 6 way plug-in screw terminal. The solar input may be connected to a 5W Solar panel or alternatively 8V to 24V DC to keep the internal NiMh batteries charged. TBRG or Flow Meter contact closure. -
Page 9: Sim Card
Gently press the module down into the socket. 6. Make sure the module antenna cable is routed nicely around the outside edge of the enclosure, and doesn’t have any sharp kinks. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 10: Sd Card
These may be purchased from many local grocery or department stores – it is best if these are charged when installed. Please note the battery polarity when installing. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 11: Configuration
WiFi Mobile phone, tablet or PC. Andoid, iOS or Windows. (No App required – just a browser) Press the WiFi button Configuring the ML-IoT through WiFi Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... - Page 12 HyQuest Solutions Step-by-Step : ML-IoT_20-XXXX Steve L ML-IoT_20-XXXX Connect to the “ML-IoT_20-XXXX“ Network Use the Password “hyquestsolutions” Start a browser Enter the IP address 10.10.10.10 Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
-
Page 13: Viewing The Status
HyQuest Solutions Actual screenshots of the Configuration pages served via the ML-IoT/C WiFi. Dialog to log in as the administrator. The default password is “admin” but should be changed in Config – Change Password. Click on the checkbox after the password to view what you have entered. -
Page 14: Sitename - Gps - Additional Sensor Port
SDI-12 : Used to monitor an extra 6 x SDI-12 data points from one or several SDI-12 sensors. 485 Modbus : Future feature to monitor extra Modbus data. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 15: Digital Input
Email : The most recent value of each sensor is emailed to the configured recipients at this interval. The email is only attempted once at the scheduled time – there is no retry for emails. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 16: Sdi-12
If the new adjusted value is what you require, then press the “Save Multiplier & Offset” button – the values will be saved and you will return to the previous screen. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... - Page 17 Otherwise you may specify the Warm Up Time here – from 1 to 99 secs.) Warm Up Measure + Data of 6x Sensors 12V from BST0512 Board Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
-
Page 18: New Password
---------------------------------------------------------------- Entering the password **** is a special case and disables the password access. Do not leave the ML-IoT in this state when deployed. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 19: Ntp (Time) Server
NTP server. Do not rely upon setting the time manually and the time being accurately maintained! Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 20: Configuring Comms
While the test is in progress the status is displayed, press the same button marked “Stop” to abort the test – be patient. (Green mesg => success : Red mesg => failed) Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 21: Lte
“Stop” to abort the test – be patient. (Green mesg => success : Red mesg => failed) Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021 (Green mesg => success : Red mesg => failed) -
Page 22: Ftp
Save the settings and the press : “Test HTTP” – to send a test file to the server – progress of the connection and the transfer is displayed. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 23: Mqtt
: “Azure Only : Generate Username + Password” and it will open the dialog shown on the next page Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 24: Email
“CC” – extra recipient of the email (or leave blank) Save the Settings and then press “Test Email” to check that the email credentials are configured correctly – a test email will be sent. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 25: Mem - Loading New Firmware / Configuration From A File
Scroll down even further to reveal a button to “Erase all Local History” – this just erases the data not transmitted yet – it does not erase history saved on the SD Card. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 26: About
This dialog shows the firmware versions installed, the release dates and the type of LTE module installed – Cat-M1 or NB-IoT. This dialog appears when exiting the User Interface Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 27: Operation
MQTT Broker Configured for Cat-M1 or NB-IoT. (Also called LTE – Mobile phone tower MQTT Client requires a SIM card) (CSV or JSON data) MQTT Client Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 28: Specifications
120mm (H) x 80mm (W) x 55mm (D) ML-IoT/C-IP66LP (or /N) 140mm (H) x 140mm (W) x 60mm (D) ML-IoT/C-IP66 (or /N) 187mm (H) x 152mm (W) x 92mm (D) Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... -
Page 29: Troubleshooting
– check your devices WiFi settings to make sure you are connected. • Try a different browser on your device, or try a different device. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... - Page 30 • If your LTE connection is on a VPN (Virtual Private Network) then it may not be able to access a global NTP server such as “pool.ntp.org”. You may need to contact your VPN Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
- Page 31 • The message that appears may give a hint as to what the problem may be. • Check if another device works with these credentials. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
-
Page 32: Appendix A Data Format : Csv, Json, Das
The file is transmitted at the scheduled Tx rate (every 15 mins or 1 hr or 6 hr or 12 hr or 24 hr) If a message transmission is not successful for some reason, the transmission is retried on each subsequent data log until it is successful. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021... - Page 33 2. The timestamp and unix epoch time is the number of secs since 00:00:00 01/01/1970 at UTC (Universal Time Co-ordinate or GMT) 3. null => the sensor is either not configured or not responding. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
- Page 34 The installer has changed the flow units string to ML -Flow total manually preset to 123.456 The installer has manually preset the flow total to match the flow meter itself. Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
-
Page 35: Appendix B Configuration From A File Or Remote
• The cfg file can be placed on the FTP server with the name "mliot_20-0000.cfg" (where 20-0000 is the unit serial number) and the ML-IoT/C will read the file during the next FTP connection and the ML-IoT will rename the file to "mliot_20-0000.don" to indicate the file has been processed. - Page 36 “ SDI-12 #5 Configuration SDI5= “ SDI-12 #6 Configuration SDI6= SDI-12 Warm Up Time SDIWUT= 1 to 99 secs “” Blank Parameter Marked with a * Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
- Page 37 # Clear the User and Pwd if the Key and Expiry are used !!! ApplUser="" ApplPwd="" # To generate the User and Pwd from the Azure Key and Expiry (20-Nov-2021 3:16:40) AzureKey=4y5T8vwDx5PVD8kPEVip6eNBGcF+t8COoapiLjJuo5I= AzureExpiry=1637378200 Page - ML-IoT/C and /N Operation Manual © Copyright Issue 1.2 28 Jun, 2021...
