ACR5 Acoustic Guitar Amplifier
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACR5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hartke ACR5

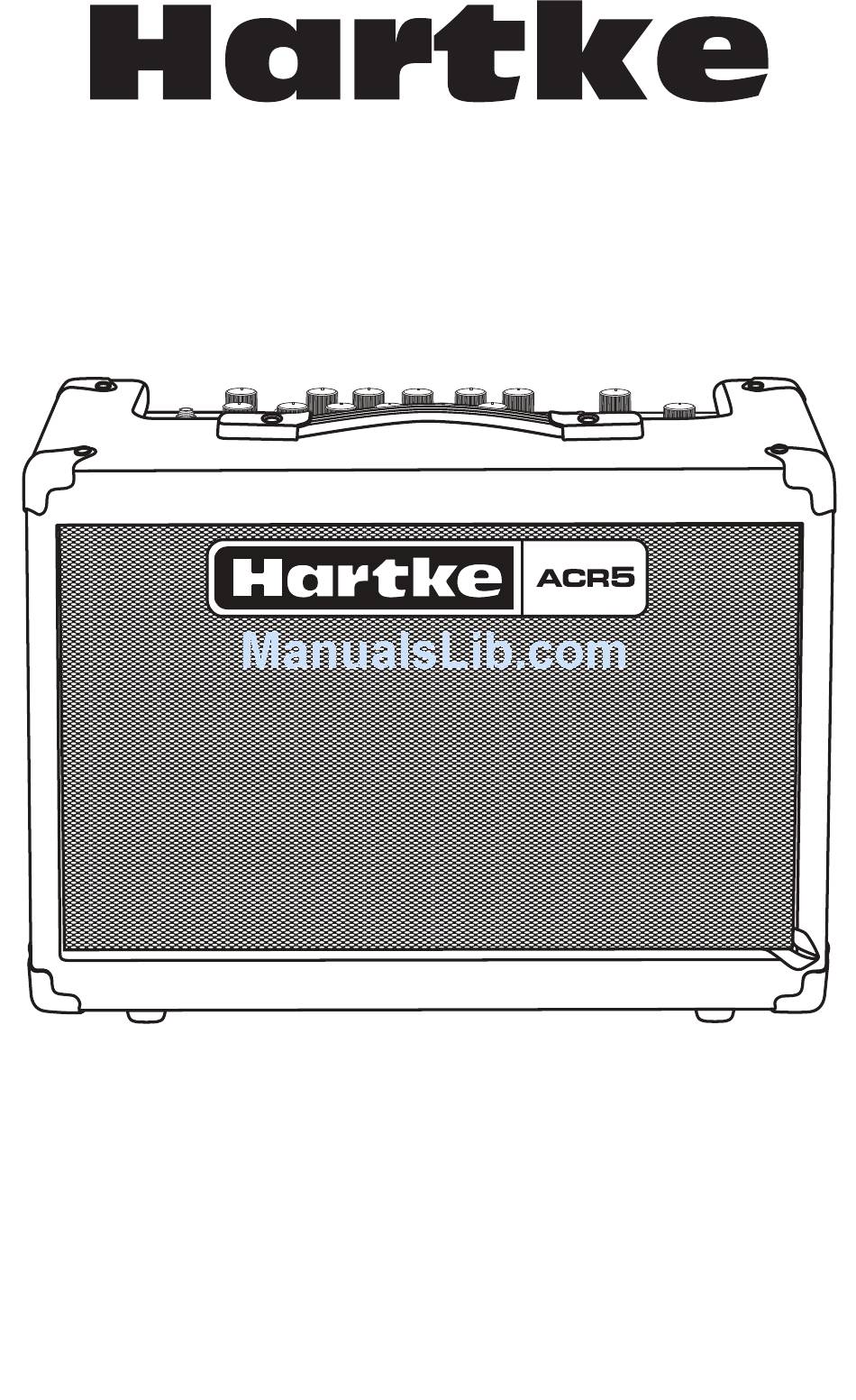

  • Page 1 ACR5 Acoustic Guitar Amplifier Owner's Manual...
  • Page 2: Important Safety Information

    Important Safety Information ATTENTION RISQUE DE CHOC ÉLECTRONIQUE - NE PAS OUVRIR WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION To prevent electric shock hazard, do not connect to mains power supply while grille is removed.
  • Page 3 For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. ACR5 Acoustic Guitar Amplifier...
  • Page 4 The Hartke ACR5 series faithfully reproduces the natural sound of the any acoustic instrument, while providing versatility for practice and performance. The ACR5 is a lightweight combo featuring a 50 watt power amplifier section with a 6.5” woofer and 1” soft dome tweeter. The ACR5 has two independent channels, each with a 3-band EQ, independent reverb and chorus controls, for connecting acoustic electric instruments, microphones or line level devices.
  • Page 5 Features The Hartke ACR5 Acoustic Guitar Amplifier employs the most advanced electronic and speaker design concepts in acoustic instrument amplification. Here are some of their main features: • Lightweight acoustic guitar amplifier that weighs just under 25lb • 50 watts of power •...
  • Page 6 CONTOUR Switch - Pressing this switch engages a mid scoop curve to the Guitar channel which makes the amplifier sound more natural when plugging an electric instrument to the ACR5, or allows an acoustic guitar to cut through the mix by suppressing the mids and accentuating the highs.
  • Page 7 ACR5 as a practice amplifier. The level of the signal sent to the headphones is determined by the setting of the VOLUME knob.
  • Page 8: Quick Start

    GUITAR Input jack on the top panel. 4. Before turning the amplifier on turn, set the ACR5 controls to the default setting for getting good sound quickly. On the Guitar Input channel set the VOLUME knob to the nine o’clock position and set BASS, MID and TREBLE...
  • Page 9 The ACR5 is great for using as a small PA or can make a great vocal monitor thanks to the flat and natural response of its built-in speaker system.
  • Page 10 Setting the Notch Filter The ACR5 Notch Filter is a tool to help you remove feedback. Feedback is that annoying howling sound that you get when the sound from a loudspeaker is picked up by a microphone connected to the speaker, re-amplified, pick-up again, re-amplified…...
  • Page 11: Specifications

    Phantom power tolerant, ground isolated Dimensions (LxWxH) 9.8” x 16.5” x 12” 250mm x 420mm x 306mm Weight 24.9lb 11.27kg At Hartke, we are continually improving our products, therefore specifications and images are subject to change without notice. ACR5 Acoustic Guitar Amplifier...
  • Page 12: Phone: 1-800-3-Samson

    Hartke 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
