5. AI Menus

There are two AI related menu pages
accessed in the System Setup menu�
All AI settings must be configured on the surface before a
dive, since System Setup is not accessible during a dive�
5.1. AI Setup
The AI Setup menu page
(FIGURE 11)
apply to all transmitters�

AI Mode

AI Mode is used to completely disable AI, or select which
transmitters are active�
AI Mode Setting Description
Off
T1
T2
T1&T2
Set AI Mode to OFF when AI not in use
Leaving AI enabled when not in use will negatively impact
battery life� When a paired transmitter is not communicating,
the Perdix goes into a higher power scan state� This increases
power consumption to about 25% higher than with AI off.
Once communications are established, power drops to about
10% higher than with AI off.
Page 9
that can be
(FIGURE 10)
contains settings that
AI sub-system is completely powered
down and consumes no power� When
on, AI increases power consumption
by about 10%�
Transmitter (tank) 1 is enabled�
Transmitter (tank) 2 is enabled�
Both transmitters are enabled�
AI Setup
AI Mode
T1&T2
GTR Mode
T1
Units
PSI
T1 Setup
123456
T2 Setup
654321
Next Edit

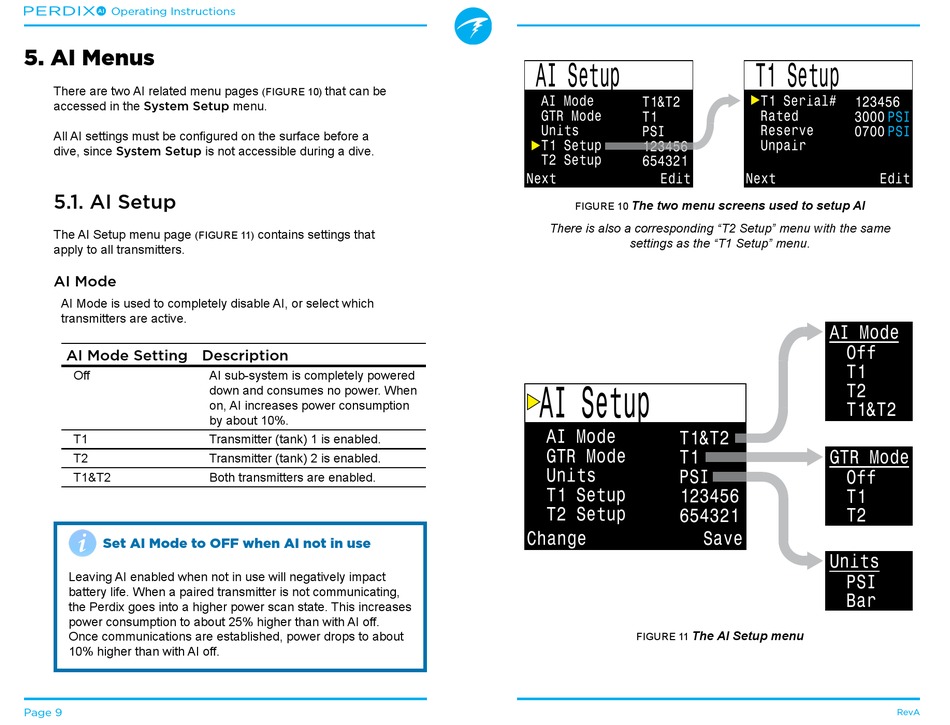

The two menu screens used to setup AI
FIGURE 10
There is also a corresponding "T2 Setup" menu with the same
settings as the "T1 Setup" menu.
AI Setup
AI Mode
T1&T2
GTR Mode
T1
Units
PSI
T1 Setup
123456
T2 Setup
654321
Change Save
The AI Setup menu
FIGURE 11
T1 Setup
T1 Serial#
123456
Rated
3000 PSI
Reserve
0700 PSI
Unpair
Next Edit
AI Mode
Off
T1
T2
T1&T2
GTR Mode
Off
T1
T2
Units
PSI
Bar
RevA
