Operating Instructions

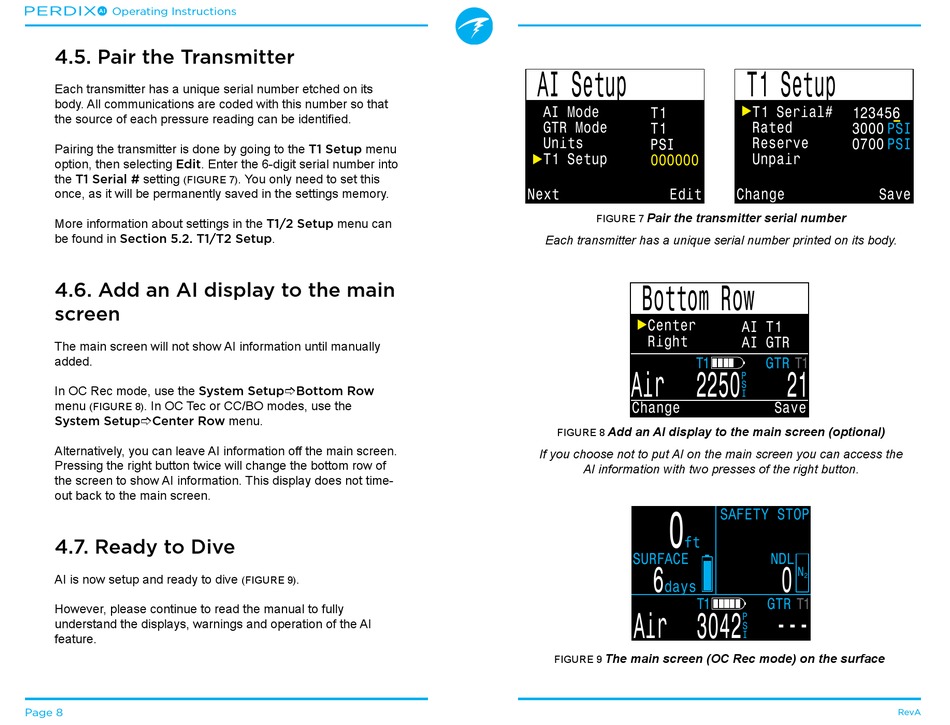

4.5. Pair the Transmitter
Each transmitter has a unique serial number etched on its
body� All communications are coded with this number so that
the source of each pressure reading can be identified.
Pairing the transmitter is done by going to the T1 Setup menu
option, then selecting Edit� Enter the 6-digit serial number into
the T1 Serial # setting
(FIGURE 7)
once, as it will be permanently saved in the settings memory�
More information about settings in the T1/2 Setup menu can
be found in Section 5.2. T1/T2 Setup�
4.6. Add an AI display to the main
screen
The main screen will not show AI information until manually
added�
In OC Rec mode, use the System SetupBottom Row
menu � In OC Tec or CC/BO modes, use the
(FIGURE 8)
System SetupCenter Row menu�
Alternatively, you can leave AI information off the main screen.
Pressing the right button twice will change the bottom row of
the screen to show AI information� This display does not time-
out back to the main screen�
4.7. Ready to Dive
AI is now setup and ready to dive
However, please continue to read the manual to fully
understand the displays, warnings and operation of the AI
feature�
Page 8
� You only need to set this
�
(FIGURE 9)
AI Setup
AI Mode
T1
GTR Mode
T1
Units
PSI
T1 Setup
000000
Next Edit
Pair the transmitter serial number
FIGURE 7
Each transmitter has a unique serial number printed on its body.
Bottom Row
Center
Right
T1
Air 2250
Change
Add an AI display to the main screen (optional)
FIGURE 8
If you choose not to put AI on the main screen you can access the
AI information with two presses of the right button.
0
ft
SURFACE
6
days
T1
Air 3042
The main screen (OC Rec mode) on the surface
FIGURE 9
T1 Setup
T1 Serial#
123456
Rated
3000 PSI
Reserve
0700 PSI
Unpair
Change Save
AI T1
AI GTR
GTR T1
21
P
S
I
Save
SAFETY STOP
NDL
0
N
2
GTR T1
---
P
S
I
RevA
