Operating Instructions

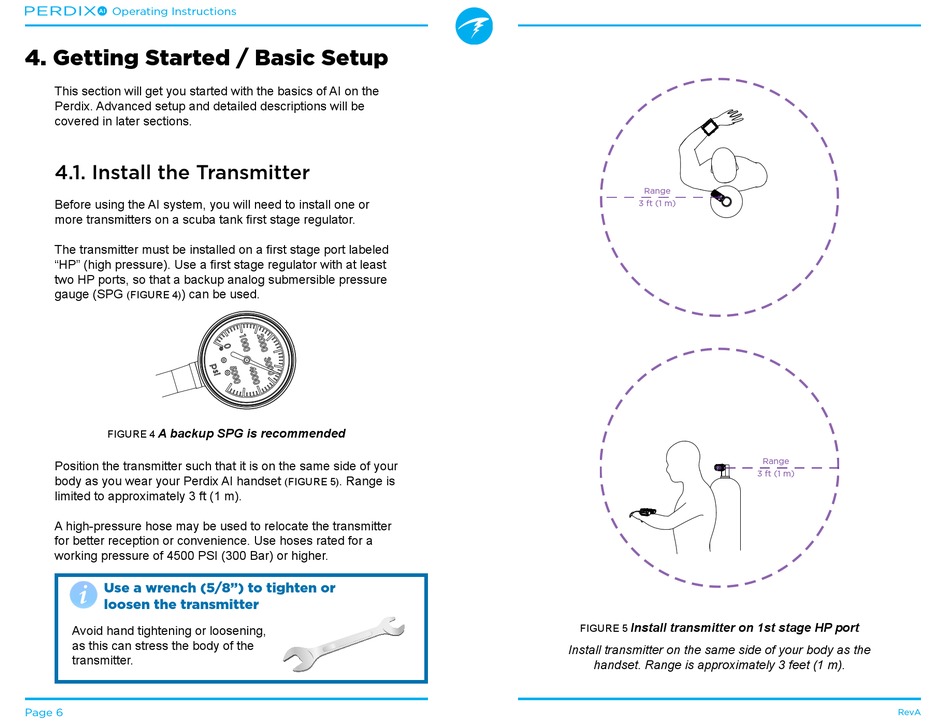

4. Getting Started / Basic Setup

This section will get you started with the basics of AI on the
Perdix� Advanced setup and detailed descriptions will be
covered in later sections�
4.1. Install the Transmitter
Before using the AI system, you will need to install one or
more transmitters on a scuba tank first stage regulator.
The transmitter must be installed on a first stage port labeled
"HP" (high pressure). Use a first stage regulator with at least
two HP ports, so that a backup analog submersible pressure
gauge (SPG ) can be used�
(FIGURE 4)
A backup SPG is recommended
FIGURE 4
Position the transmitter such that it is on the same side of your
body as you wear your Perdix AI handset
limited to approximately 3 ft (1 m)�
A high-pressure hose may be used to relocate the transmitter
for better reception or convenience� Use hoses rated for a
working pressure of 4500 PSI (300 Bar) or higher�
Use a wrench (5/8") to tighten or
loosen the transmitter
Avoid hand tightening or loosening,
as this can stress the body of the
transmitter�
Page 6
� Range is
(FIGURE 5)
Range
3 ft (1 m)
Install transmitter on 1st stage HP port
FIGURE 5
Install transmitter on the same side of your body as the
handset. Range is approximately 3 feet (1 m).
Range
3 ft (1 m)
RevA
