Operating Instructions

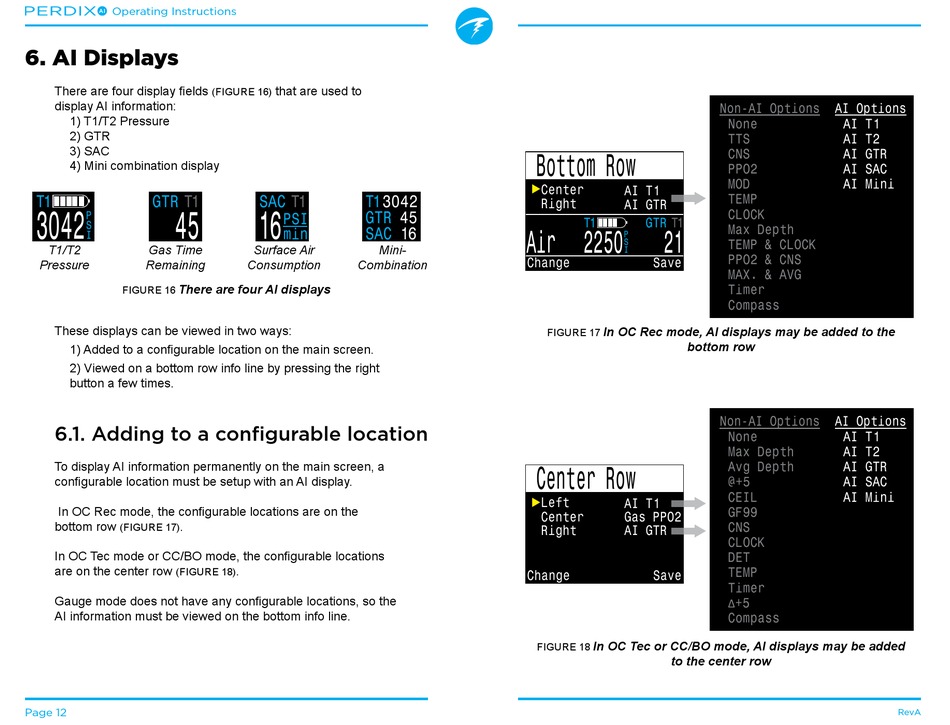

6. AI Displays

There are four display fields
display AI information:
1) T1/T2 Pressure
2) GTR
3) SAC
4) Mini combination display
T1 GTR T1
3042 45
P
S
I
T1/T2 Gas Time
Pressure Remaining
There are four AI displays
FIGURE 16
These displays can be viewed in two ways:
1) Added to a configurable location on the main screen.
2) Viewed on a bottom row info line by pressing the right
button a few times�
6.1. Adding to a configurable location
To display AI information permanently on the main screen, a
configurable location must be setup with an AI display.
In OC Rec mode, the configurable locations are on the
bottom row �
(FIGURE 17)
In OC Tec mode or CC/BO mode, the configurable locations
are on the center row
(FIGURE 18)
Gauge mode does not have any configurable locations, so the
AI information must be viewed on the bottom info line�
Page 12
that are used to
(FIGURE 16)
SAC T1 T1 3042
16
GTR
PSI
SAC
min
Surface Air Mini-
Consumption Combination
�
Bottom Row
Center
Right
45
Air
16
Change
FIGURE 17
Center Row
Left
Center
Right
Change
FIGURE 18
Non-AI Options
None
TTS
CNS
PPO2
MOD
AI T1
TEMP
AI GTR
CLOCK
T1 GTR T1
Max Depth
2250 21
P
S TEMP & CLOCK
I
PPO2 & CNS
Save
MAX. & AVG
Timer
Compass
In OC Rec mode, AI displays may be added to the
bottom row
Non-AI Options
None
Max Depth
Avg Depth
@+5
CEIL
AI T1
GF99
Gas PPO2
CNS
AI GTR
CLOCK
DET
TEMP
Save
Timer
Δ+5
Compass
In OC Tec or CC/BO mode, AI displays may be added
to the center row
AI Options
AI T1
AI T2
AI GTR
AI SAC
AI Mini
AI Options
AI T1
AI T2
AI GTR
AI SAC
AI Mini
RevA
