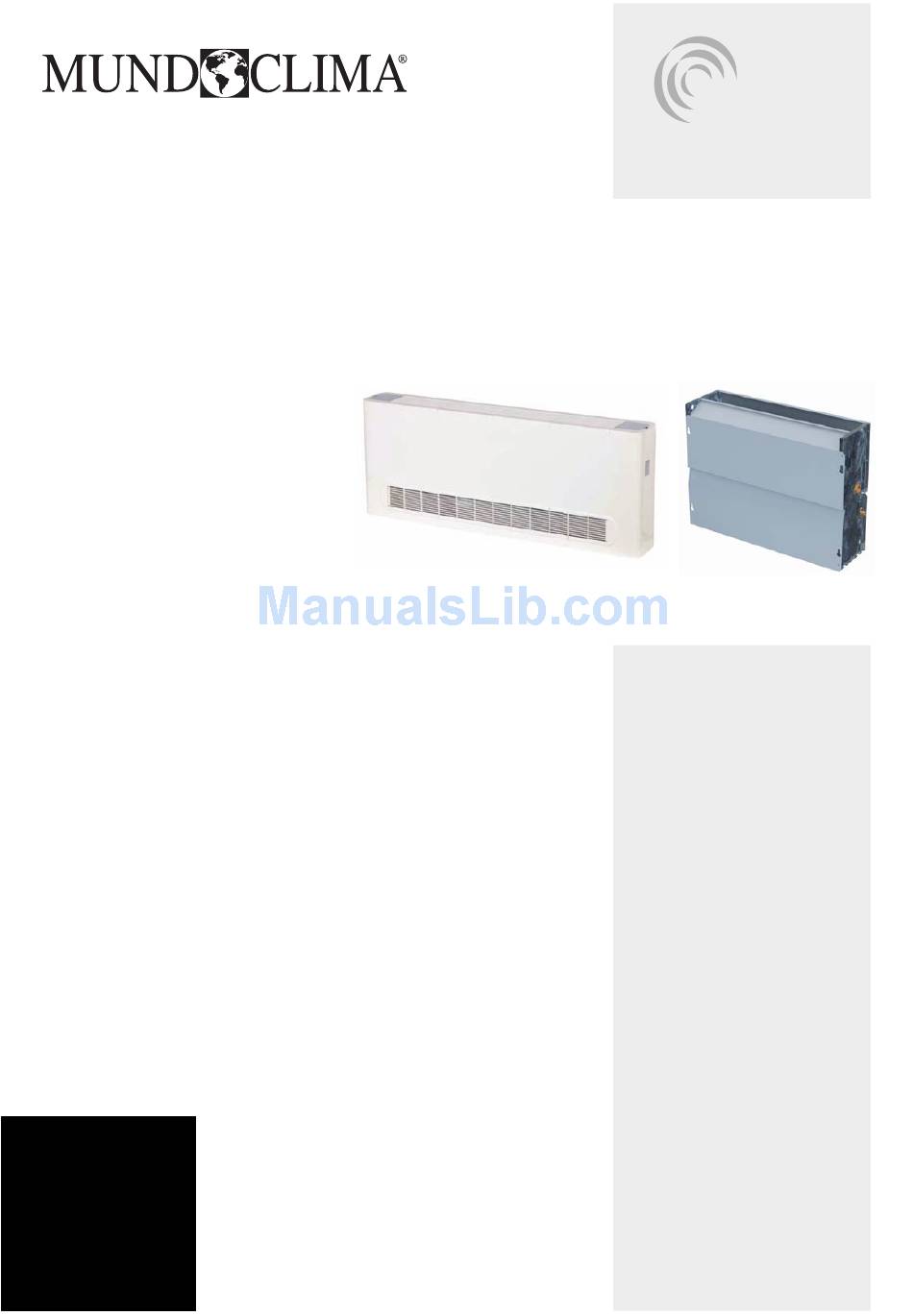

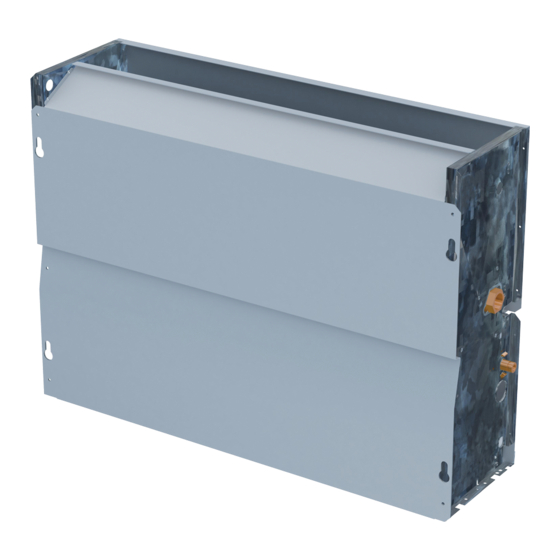

- Page 1 Floor standing MVD DC Service manual CL23430 to CL23456 English www.mundoclima.com...
-
Page 2: Table Of Contents
Service manual MVD DC Indoor units Content 1. Feature ....................2 2. Specifications ..................3 3. Dimensions ................... 9 4. Service Spaces ..................12 5. Piping Diagrams .................. 13 6. Wiring Diagrams ................. 14 7. Capacity Tables ................... 17 8. Electrical Characteristics ..............22 9. -
Page 3: Feature
1.5 Easy maintenance Filter is equipped as standard accessory; and it can be removed and cleaned easily due to Mundoclima's sophisticated design as well as the removable blades. Streamlined appearance makes it much more harmonious with the decoration. All metal parts are made of commercial grade galvanized steel, providing maximum protection against corrosion. -
Page 4: Specifications
Service manual MVD DC Indoor units 2. Specifications MVD-22Z/DHN1-F4 MVD-28Z/DHN1-F4 MVD-36Z/DHN1-F4 Model MVD-22Z/DHN1-F5 MVD-28Z/DHN1-F5 MVD-36Z/DHN1-F5 Power supply V- Ph-Hz 220-240V, 1Ph, 50/60Hz Capacity Cooling Input Rated current 0.29 0.32 0.33 Capacity Heating Input Rated current 0.29 0.32 0.33 Model WZDK100-38GS-2 WZDK100-38GS-2 WZDK100-38GS-2 Type... - Page 5 Service manual MVD DC Indoor units MVD-45Z/DHN1-F4 MVD-56Z/DHN1-F4 Model MVD-45Z/DHN1-F5 MVD-56Z/DHN1-F5 Power supply V- Ph-Hz 220-240V, 1Ph, 50/60Hz Capacity Cooling Input Rated current 0.35 0.49 Capacity Heating Input Rated current 0.35 0.49 Model WZDK100-38GS-2 WZDK100-38GS-3 Type DC motor Indoor Brand Panasonic/Welling/Shibaura Panasonic/Welling/Shibaura fan motor...
- Page 6 Service manual MVD DC Indoor units MVD-71Z/DHN1-F4 MVD-80Z/DHN1-F4 Model MVD-71Z/DHN1-F5 MVD-80Z/DHN1-F5 Power supply V- Ph-Hz 220-240V, 1Ph, 50/60Hz Capacity Cooling Input 0.81 0.82 Rated current Capacity Heating Input 0.81 0.82 Rated current YSK74-4E YSK74-4E Model Type DC motor Indoor Brand Panasonic/Welling/Shibaura Panasonic/Welling/Shibaura Input...
- Page 7 Service manual MVD DC Indoor units MVD-22Z/DHN1-F3B MVD-28Z/DHN1-F3B MVD-36Z/DHN1-F3B Model Power supply 220-240V, 1Ph, 50/60Hz Capacity Ph-Hz Cooling Input Rated current 0.18 0.21 0.22 Capacity Heating Input Rated current 0.18 0.21 0.22 Model WZDK100-38GS-2 Type DC motor YSK20-4A Indoor Brand Panasonic/Welling/Shibaura Panasonic/Welling/Shibaura YSK20-6...
- Page 8 Service manual MVD DC Indoor units MVD-56Z/DHN1-F3B Model MVD-45Z/DHN1-F3B Power supply V- Ph-Hz 220-240V, 1Ph, 50/60Hz Capacity Cooling Input Rated current 0.22 Capacity Heating Input Rated current 0.22 Model WZDK100-38GS-2 WZDK100-38GS-3 Type DC motor Indoor Brand Panasonic/Welling/Shibaur Panasonic/Welling/Shibaura Input motor Output Speed (h/m/l) r/min...
- Page 9 Service manual MVD DC Indoor units MVD-80Z/DHN1-F3B MVD-71Z/DHN1-F3B Model Power supply 220-240V, 1Ph, 50/60Hz Capacity Ph-Hz Cooling Input 0.59 Rated current 0.56 Capacity Heating Input 0.59 Rated current 0.56 YSK74-4E Model WZDK100-38GS-3 DC motor Type Indoor Panasonic/Welling/Shibaura Panasonic/Welling/Shibaura Brand Input motor Output 1140/1040/910...
-
Page 10: Dimensions
Service manual MVD DC Indoor units 3. Dimensions 3.1 Exposed Floor-standing (air inlet from front) Mounting hole, 4 Φ 4× Φ 4× Gas side connector Air inlet grille Liquid side connector 149.5 149.5 Right Left Air outlet grille Cover Cover Unit: mm MODEL (MVD-**Z/DHN1-F4) - Page 11 Service manual MVD DC Indoor units 3.2 Exposed Floor-standing (air inlet from bottom) Mounting hole, 4 Φ 4× Φ 4× Gas side connector Liquid side connector Air inlet grille 149.5 149.5 Right Left Air outlet grille Cover Cover Unit: mm MODEL (MVD- **Z/DHN1-F5)
- Page 12 Service manual MVD DC Indoor units 3.3 3.1 Concealed Floor-standing Connecting point of refrigerant pipe (Liquid side ΦA) Connecting point of refrigerant pipe (Gas side ΦB) MODEL C (mm) (MVD -**Z/DHN1-F3B) Φ6.4 Φ12.7 Φ6.4 Φ12.7 Φ9.5 Φ15.9 1225...
-
Page 13: Service Spaces
Service manual MVD DC Indoor units 4. Service Spaces F4 series Vertical unit with casing , with air intake from front and air outlet on top, for installation on a wall or on feet on the floor. F5 series Vertical unit with casing , with air intake from below and air outlet on top, for installation on a wall or on feet on the floor. -
Page 14: Piping Diagrams
Service manual MVD DC Indoor units 5. Piping Diagrams motor flare nut gas side heat exchanger flare nut liquid side... -
Page 15: Wiring Diagrams
Service manual MVD DC Indoor units 6. Wiring Diagrams... - Page 16 Service manual MVD DC Indoor units Horsepower set ENC1 switch code Cooling power output 2200W(0.8HP） 2800W(1.0HP） 3600W(1.2HP） 4500W(1.5HP） 5600W(2.0HP） 7100W(2.5HP） 8000W(3.0HP） Note: Base on different purposes to setting the switch cords on PC panel of indoor electrical control box. Once finish the setting, please cut off the main power, and then input power again, otherwise, setting function could not work.
- Page 17 Service manual MVD DC Indoor units SW5 definition SW6 definition SW7 definition J1,J2 definition 0/1 definition...
-
Page 18: Capacity Tables
Service manual MVD DC Indoor units 7. Capacity Tables 7.1 Cooling TC: total capacity SC: sensible capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature (℃WB/DB) Indoor Outdoor 14/20 16/23 18/26 19/27 20/28 22/30 24/32 Unit size temperature (kW) (℃DB) 10.0 12.0 14.0... - Page 19 Service manual MVD DC Indoor units 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0 10.0 12.0 14.0 16.0 18.0 20.0 21.0 23.0 25.0 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0...
- Page 20 Service manual MVD DC Indoor units 27.0 29.0 31.0 33.0 35.0 37.0 39.0 42.0 44.0 46.0 7.2 Heating TC: total capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature (℃ DB) Outdoor temperature 16.00 18.00 20.00 21.00 22.00 24.00 Indoor Unit size (℃) (kW) -19.8...
- Page 21 Service manual MVD DC Indoor units -0.70 0.00 3.56 3.56 3.56 3.56 3.56 3.36 2.20 3.00 3.76 3.76 3.76 3.76 3.68 3.36 4.10 5.00 3.88 3.88 3.88 3.88 3.68 3.36 6.00 7.00 4.00 4.00 4.00 3.88 3.68 3.36 7.90 9.00 4.12 4.12 4.00...
- Page 22 Service manual MVD DC Indoor units -19.8 5.04 5.04 5.04 5.04 5.04 5.04 -18.8 5.40 5.40 5.40 5.40 5.40 5.40 -16.7 5.67 5.67 5.67 5.67 5.67 5.67 -14.7 5.85 5.85 5.85 5.85 5.85 5.85 -13.00 -12.60 6.03 6.03 6.03 6.03 6.03 6.03 -11.00...
-
Page 23: Electrical Characteristics
Service manual MVD DC Indoor units 8. Electrical Characteristics Indoor Unit Power Supply Model Voltage Min. Max. MVD-22Z/DHN1-F4 50/60 220-240V 0.36 0.026 0.29 MVD-22Z/DHN1-F5 50/60 220-240V 0.36 0.026 0.29 MVD-22Z/DHN1-F3B 50/60 220-240V 0.36 0.026 0.29 50/60 220-240V 0.029 0.32 MVD-28Z/DHN1-F4 50/60 220-240V 0.029... -
Page 24: Sound Levels
Service manual MVD DC Indoor units 9. Sound Levels 9.1 Test condition Note: 1, during actual operation, these values are normally somewhat higher as a result of ambient conditions. 2, Semi-anechoic chamber conversion value, measured at a point 1m in front of the unit at a height of 1.5m. 9.2 Test value Sound test value dB(A) Model... -
Page 25: Octave Band Level
Service manual MVD DC Indoor units 9.3 Octave Band Level 3,6 kW to 4,5 kW 2,2 kW to 2,8 kW Audibility limits of Audibility limits of continuous white continuous white sound sound Octave band center frequency （ Hz ） Octave band center frequency （ Hz ） 7,1 kW to 8 kW 5,6 kW Audibility limits of... -
Page 26: Accessories
Service manual MVD DC Indoor units 10. Accessories Name Quantity Shape Usage Owner’s manual Installation manual Pipe insulation material Heat insulation Signal receiver display board Receive signals Mounting screw(ST3.9x12-C-H) Use for pipe connection of engineering Cooper nut installation Remote controller Control the indoor units Remote controller holder For holding the remote controller... - Page 27 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 81 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
