DVR Quick Start Guide
READ ME
FIRST!
Welcome! Lets get started.
To start using your DVR, you need the following -
1. A high-definition TV capable of displaying 720p
or 1080p video. Look at the ports on the back of
your TV to make sure it has an HDMI input.
2. A router with a broadband Internet connec-
tion.
3. A mobile device (Android or iOS) to download
the free SwannView Link app.
Carefully unpack each item and discard any
packaging not required.
QH_484350140416E | © Swann 2016
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4-4350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swann 4-4350

Summary of Contents for Swann 4-4350

  • Page 1 TV to make sure it has an HDMI input. 2. A router with a broadband Internet connec- tion. 3. A mobile device (Android or iOS) to download the free SwannView Link app. Carefully unpack each item and discard any packaging not required. QH_484350140416E | © Swann 2016...

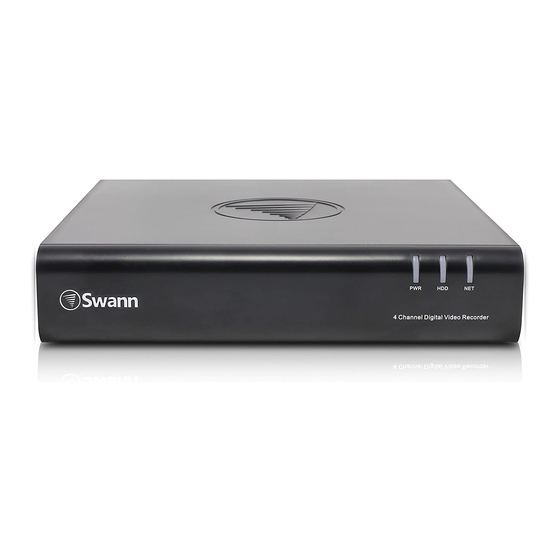

  • Page 2: Getting To Know Your Dvr

    Getting to know your DVR Congratulations on the purchase of your Swann DVR. This quick start guide will assist you on getting your DVR up and running as soon as possible. We recommend that you connect everything and give it a try before you do a permanent installation, to make sure nothing was damaged during shipping.

  • Page 3: What Does This Mean

    What does this mean? 1) Camera Inputs 11) Network LED - Connect your cameras here. Twist the - Flashes when there is network activity. video connection to lock it in place. As your DVR is designed to be always on, there is no 3) HDMI Port - Connect this to your TV with a HDMI input power button.
  • Page 4 Step One - Connect your Cameras Connect the video output and power Video & Power Cable Connect this to the DVR Video Input input connection on the camera to the Twist to lock connectors corresponding connections on the supplied video & power cable. Power Splitter Power Output connects here...
  • Page 5 Step Two - Connect to your Home Network Connect the supplied Ethernet cable (1) to the Ethernet port on your DVR then connect the other end to a spare port on your router (2). Don’t proceed to the next step until this is done. IN IN IN IN VIDEO IN AUDIO...
  • Page 6 Step Three - Connect your Mouse Connect the supplied mouse (1) to the bottom USB port. To copy your video recordings and to perform a firmware upgrade, connect a USB storage device (2) such as a flash drive (not included) to the top port. IN IN IN IN VIDEO IN AUDIO...
  • Page 7 Step Four - Connect to your TV Connect the supplied HDMI cable to the HDMI output on your DVR then connect the other end to a spare HDMI input (1) on your TV. Press the A/V button on your TV’s remote to select the HDMI input (in this case it would be HDMI 1). HDMI IN 2 HDMI IN 1 Press the A/V button...
  • Page 8 Step Five - Connect to your Monitor If you have a monitor with a VGA connection, connect a VGA cable (not supplied) to the VGA port on the DVR then connect the other end to the VGA input (1) on your monitor. A VGA cable and monitor IN IN IN IN are not required when...
  • Page 9 Step Six - Connect your Power Adapter Connect the supplied power adapter’s power connection (1) to the power input on your DVR first (this will minimise sparking) then connect the power adapter to a power outlet (2). Press the outlet’s switch to supply power. IN IN IN IN VIDEO IN AUDIO...
