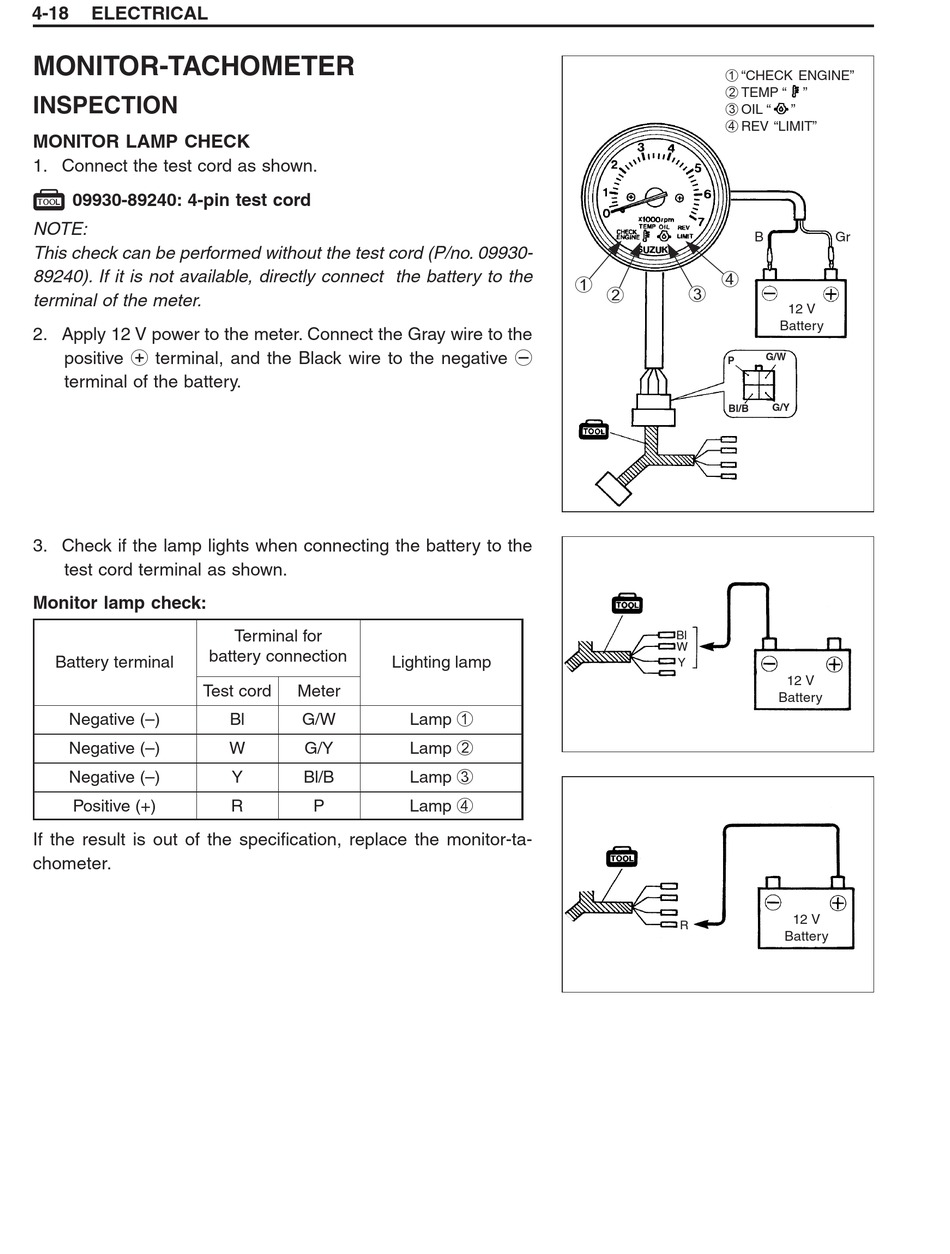

4-18 ELECTRICAL

MONITOR-TACHOMETER

INSPECTION
MONITOR LAMP CHECK
1. Connect the test cord as shown.
!
09930-89240: 4-pin test cord
NOTE:
This check can be performed without the test cord (P/no. 09930-
89240). If it is not available, directly connect the battery to the
terminal of the meter.
2. Apply 12 V power to the meter. Connect the Gray wire to the
positive + terminal, and the Black wire to the negative -
terminal of the battery.
3. Check if the lamp lights when connecting the battery to the
test cord terminal as shown.
Monitor lamp check:
battery connection
Battery terminal
Test cord
Negative (–)
Negative (–)
Negative (–)
Positive (+)
If the result is out of the specification, replace the monitor-ta-
chometer.
Terminal for
Lighting lamp
Meter
Bl G/W
W G/Y
Y Bl/B
R P
1
Lamp 1
Lamp 2
Lamp 3
Lamp 4
1 "CHECK ENGINE"
2 TEMP "
3 OIL "
4 REV "LIMIT"
B
4
3
2
Battery
G/W
P
G/Y
Bl/B
Bl
W
Y
12 V
Battery
R
Battery
"
"
Gr
12 V
12 V
