QuickSpecs
Overview

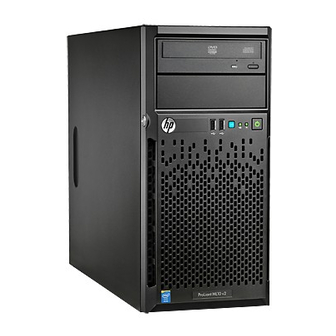

HP ProLiant ML10 v2 Server
HP ProLiant ML10 v2, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate
changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small
vertical applications or databases.
Front View:
1. HDD cage – NHP 4LFF
2. Two (2) USB connectors
3. Half Height SATA DVD-ROM or DVD RW Optical Drive
4. Power Button
5. System Health
6. NIC Activity LED
7. UID LED Button
c04567802 – DA – 15220 North America — Version 1 — March 30, 2015
Rear View:
1. Four (4) PCIe expansion slots
2. VGA connector
3. Two (2) USB 3.0 Connectors
4. NIC Connectors
5. Power Supply
6. Power Supply power connector
HP ProLiant ML10 v2 Server
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant ML10 v2

Summary of Contents for HP ProLiant ML10 v2

  • Page 1 HP ProLiant ML10 v2 Server HP ProLiant ML10 v2, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical applications or databases.
  • Page 2 QuickSpecs HP ProLiant ML10 v2 Server Overview Internal View: 1. System Fans: One NHP fan 2. One (1) processors and Heat sink 3. Power Supply 4. Four (4) DDR3 DIMM slots, shown fully populated in 4 slots 5. Four (4) PCIe expansion slots c04567802 –...

  • Page 3: Standard Features

    Maximum Capacity 32GB (4 x 8GB UDIMM) (UDIMM) NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant ML10 v2 Server. NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1600MT/s or 1333MT/s.
  • Page 4 NOTE: Supports RAID 0/1/10 only. No FBWC support. For FBWC, a standup Smart Array Controller card must be configured. NOTE: For set up instructions, please refer to the HP ProLiant ML10 v2 series server user guide. NOTE: For general information about HP Smart Array B120i SATA RAID Controller, please go to: http://h18013.www1.hp.com/products/servers/proliantstorage/arraycontrollers/dynamicsmartarray/...
  • Page 5 Power Supply is a non-redundant power supply with an efficiency rating of 85%. It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your needs. HP Power Advisor can be accessed at: http://www.hp.com/go/hppoweradvisor.
  • Page 6 BladeSystem enclosures. Further improving system uptime and stability is the fact that HP provides 12 months of support for each Service Pack for ProLiant release. c04567802 – DA – 15220 North America — Version 1 — March 30, 2015...
  • Page 7 Administrator's password Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.

  • Page 8: Optional Features

    Storage software that gets the job done:  Data Protection and Recovery Software Whether you're a large enterprise or a smaller business, HP data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.  Data Archive and Migration Software...
  • Page 9 HP Insight Online HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at any time.

  • Page 10: Service And Support

    Supports maintaining high level of server availability Foundation Care 24x7, three-year Care Pack Service HP Foundation Care 24x7 connects you to HP 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HP server.
  • Page 11 Learn more http://www.hp.com/go/hpsc HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

  • Page 12: Pre-Configured Models

    NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs. NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
  • Page 13 Power Supply HP 350W Multi-Output Power Supply Fans One (1) Non-redundant system fan ships standard Management HP iLO Management Engine (standard on system NIC) Optional: HP iLO Essentials or HP Insight Control Form Factor Micro ATX Tower (4U) Warranty Server Warranty includes 1-Year Parts.

  • Page 14: Core Options

    659341-B21 Drive 6G SATA Non-hot Plug LFF (3.5-inch) Entry (ETY) Drives HP 500GB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard 815612-B21 Drive HP 1TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard...
  • Page 15 HP PS110 Wireless 802.11n VPN AM Router JL065A HP PS110 Wireless 802.11n VPN WW Router JL066A NOTE: HP PS110 Wireless VPN Router Series deliver high-performance internet access and wired/wireless connectivity for offices and remote/mobile employees. NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www8.hp.com/h20195/v2/Gethtml.aspx?docname=c04519011...

  • Page 16: Additional Options

    HP ProLiant ML10 v2 Server Additional Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 17 Specifications, and additional information: http://h18000.www1.hp.com/products/quickspecs/13036_na/13036_na.html HP Disk Storage Systems Disk Enclosures HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle E7W32A NOTE: Please see the QuickSpecs for Technical Specifications and additional c04567802 – DA – 15220 North America — Version 1 — March 30, 2015...
  • Page 18 AF478A Input/Output Module Options for 1U UPS NOTE: Choose one I/O Module per UPS. HP 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output AF489A Module HP 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output...
  • Page 19 NOTE: For additional information on sizing your server, please reference: http://www.upssizer.com. NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units.
  • Page 20 QuickSpecs HP ProLiant ML10 v2 Server Additional Options NOTE: Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit http://www.hp.com/go/rackandpower. HP Remote Monitored HP Remote Monitored Power Distribution Unit: 1U Version Power Distribution Units HP 2.8kVA 120 Volt L5-30 Input (12xNEMA 5-20R)NA/JP Monitored PDU...
  • Page 21 HP 3.6kVA 200-240 Volt Detachable C20 Input (7xC13/1xC19) WW Managed PDU H8B49A (maPDU) Full Height Models HP 2.8kVA 120 Volt L5-30 Input (24x NEMA 5-20) NA/JP Managed PDU H8B48A HP 4.9kVA 208 Volt L6-30 Input (20xC13/4xC19) NA/JP Managed PDU H8B50A HP 8.6kVA 208 Volt L15-30 3 Phase Input (18xC13/6xC19) NA/JP Managed PDU...
  • Page 22 Additional Options HP Care Pack Services Proactive Care HP 3y 4h 24x7 ML10 v2 ProCare SVC U0SC5E HP 3y 4h 24x7 w/DMR ML10 v2 ProCare SVC U0SC6E HP 3y 4h 24x7 w/CDMR ML10 v2 ProCare SVC U0SC7E Foundation Care HP 3y Nbd ML10 v2 FC SVC...
  • Page 23 NOTE: Memory configurations listed do not apply to "Factory Integrated Models". HP SmartMemory New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP Qualified Memory in your HP ProLiant Gen8 server.
  • Page 24 NOTE: Memory speed is a function of the processor QPI bus speed. To realize the performance memory capabilities listed above HP SmartMemory is required. * Maximum capacity will vary based on individual server platform qualification schedule. ** For HP SmartMemory, UDIMM is supported at 2DPC@1333 at 1.35V. Third party memory may only support up to 2DPC@1066 at 1.5V. Memory...
  • Page 25 HP ProLiant ML10 v2 Server Memory Following are memory options available from HP: HP Memory Unbuffered with ECC DIMMs (UDIMMs) HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 669322-B21 Memory Kit HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 669324-B21...
  • Page 26 QuickSpecs HP ProLiant ML10 v2 Server Storage 1 - 4 Four-bay LFF drive model c04567802 – DA – 15220 North America — Version 1 — March 30, 2015 Page 26...

  • Page 27: Technical Specifications

    QuickSpecs HP ProLiant ML10 v2 Server Technical Specifications System Unit Tower Dimensions 14.5.x 6.89 x 18.71 in (36.82 x17.5 x 47.52 cm) (H x W x D) (with feet/bezel) Tower Weight Maximum 33.51 lb (15.20 kg) (approximate) (all hard drives, power...
  • Page 28 QuickSpecs HP ProLiant ML10 v2 Server Technical Specifications Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). Idle L WAd 4.2 B L pAm 27dB-A Operating L WAd 4.2 B...
  • Page 29 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
