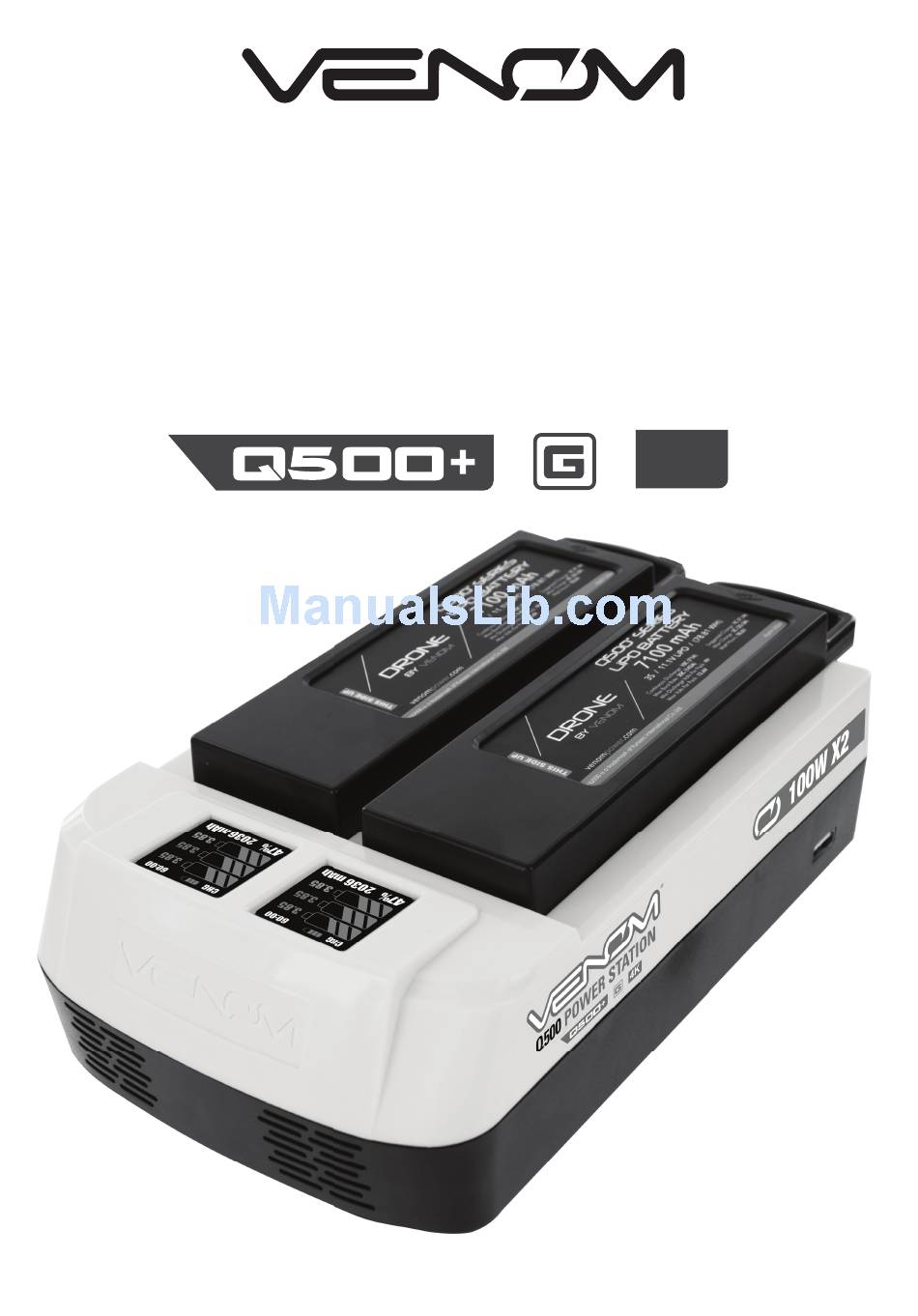

- Page 1 POWER STATION Q500 POWER STATION C H A R G E R 200W DUAL PORT YUNEEC Q500 LiPo BATTERY / TRANSMITTER CHARGER O P E R A T I N G M A N U A L venompower.com © Venom Group International 2016...
- Page 2 Thank you for purchasing the Venom Power Station for the Yuneec Typhoon (Q500, 4K and G) series of multirotor platforms. This powerful and easy to use charger will dramatically reduce your charge times and simplify the charging and storage process.
-
Page 3: Table Of Contents
Q500 POWER STATION Exterior of the Power Station Using Your Power Station TFT Screen Display Overview Warnings and Safety Notes Specifications Warranty and Service venompower.com © Venom Group International 2016... -
Page 4: Exterior Of The Power Station
1. EXTERIOR OF THE POWER STATION TFT Screen Displays 060:00 060:00 3.85 3.85 3.85 3.85 3.85 3.85 2036 mAh 2036 mAh 2.3A USB Port AC Input 100V - 240V venompower.com 0695... -
Page 5: Using Your Power Station
Yuneec charger will take around 120-130 minutes.) Charging two batteries at the same time does not increase the overall charge time. The Venom Q500 Power Station features a handy 2.3A USB output allowing easy charging of your transmitter or other accessories. venompower.com... -
Page 6: Tft Screen Display Overview
Your Yuneec Q500 battery is comprised of three individual lithium Ion cells assembled into one pack. The Venom Q500 Power Station allows you to monitor the voltage of each individual cell within the battery via by the way of the three large battery images on the display. - Page 7 Power Station 10 seconds and the screen will reset itself. When batteries display “FULL ” in the upper left corner of the screen, the pack is ready to be removed from the charger. venompower.com © Venom Group International 2016...
-
Page 8: Warnings And Safety Notes
6. WARNINGS & SAFETY NOTES • Never leave the charger unsupervised when it is connected to its power supply. If any malfunction is observed immediately terminate the process and refer to the operation manual. • Keep the charger away from dust, water, heat, direct sunlight and vibration. •... -
Page 9: Specifications
216.5mm x 142mm x 72mm USB: 5V / 2.3A 8. WARRANTY AND SERVICE We are so certain of the quality of our chargers that we offer a Venom Limited Lifetime ® Charger Replacement Plan. Venom will, at its discretion, repair or replace a defective ®... - Page 10 Notice of Liability The information in this manual is distributed on an “As Is” basis, without warranty. While every precaution has been taken in the preparation of the manual, Venom does not have ® any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the information contained in this manual or by the products described in it.
- Page 11 Q500 POWER STATION Notes: venompower.com © Venom Group International 2016...
- Page 12 VENOM GROUP INTERNATIONAL 14028 N. Ohio Street Rathdrum, Idaho 83858 USA CUSTOMER SERVICE North America: 800.705.0620 Outside North America: 208.762.0620 For Customer Service issues and the quickest warranty service please visit www.venompower.com and click the support tab /venomgroupintl /venomgroupintl /venomgroup...
