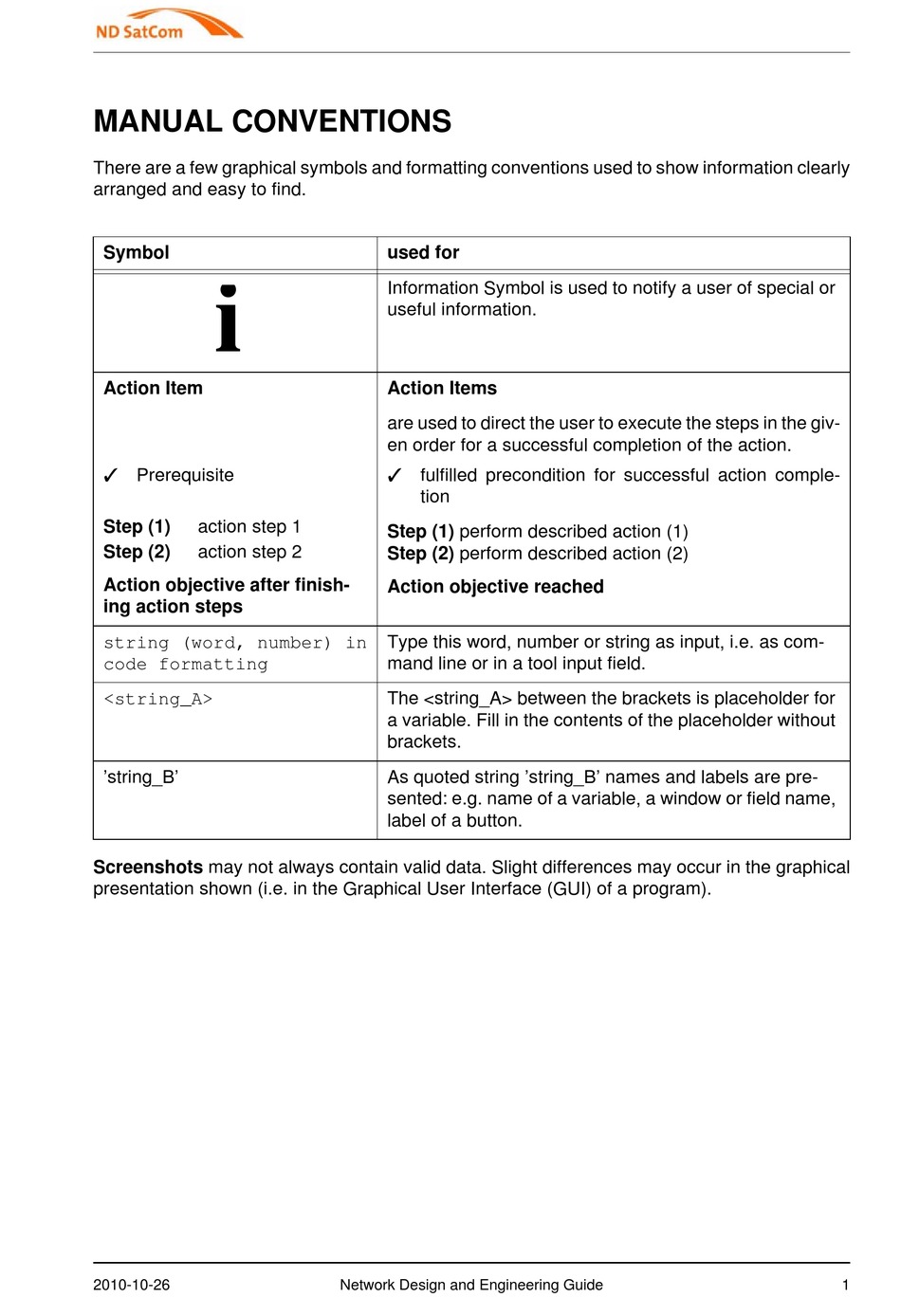

MANUAL CONVENTIONS

There are a few graphical symbols and formatting conventions used to show information clearly
arranged and easy to find.
Symbol
i
Action Item
 Prerequisite
Step (1) action step 1
Step (2) action step 2
Action objective after finish-
ing action steps
string (word, number) in
code formatting
<string_A>
'string_B'
Screenshots may not always contain valid data. Slight differences may occur in the graphical
presentation shown (i.e. in the Graphical User Interface (GUI) of a program).
2010-10-26
used for
Information Symbol is used to notify a user of special or
useful information.
Action Items
are used to direct the user to execute the steps in the giv-
en order for a successful completion of the action.
 fulfilled precondition for successful action comple-
tion
Step (1) perform described action (1)
Step (2) perform described action (2)
Action objective reached
Type this word, number or string as input, i.e. as com-
mand line or in a tool input field.
The <string_A> between the brackets is placeholder for
a variable. Fill in the contents of the placeholder without
brackets.
As quoted string 'string_B' names and labels are pre-
sented: e.g. name of a variable, a window or field name,
label of a button.
Network Design and Engineering Guide 1
