Outdoor Unit and Satellite Link Design
®
SkyWAN Link Budget Calculation Tool

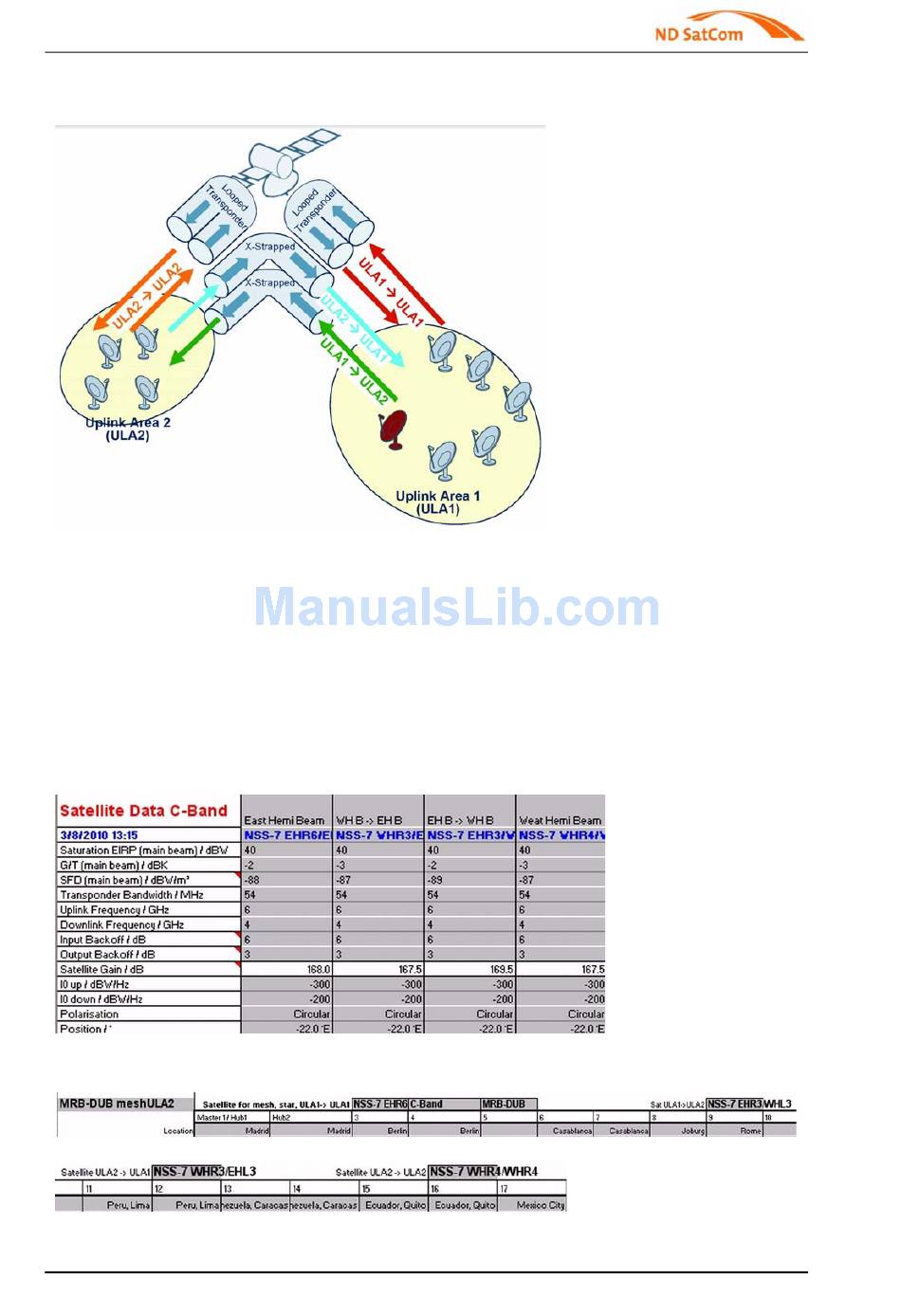

Figure 3-23 MRB-Dub Network Overview
As an example a link budget calculation for a network with stations located in Europe and Africa
(ULA1) and America (ULA2) is presented. The transponders used for this network are served
by the hemispherical beams on the SES World Skies Satellite NSS-7 (cf. chapter 3.2 for foot-
print diagrams of that satellite).

Transponder Data

For each beam of a cross strapped transponders additional entries in the satellite sheet are
necessary.
Figure 3-24 MRB-DUB Network - Satellite Data
Figure 3-25 MRB-DUB Network - Transponder in Stations Sheet
96 Network Design and Engineering Guide 2010-10-26
