Satellite Transponder Data

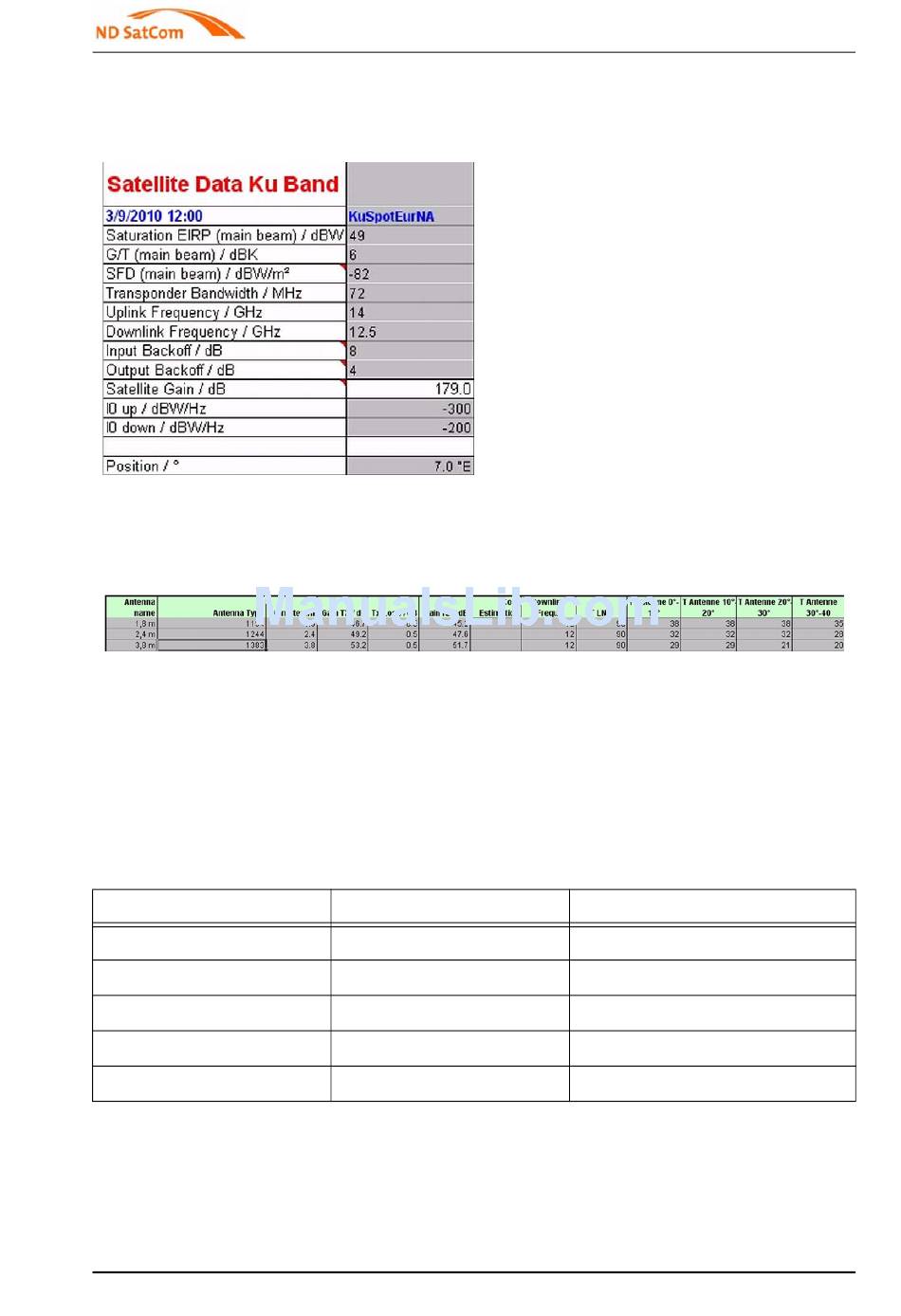

Figure 3-34 Scenario 1 - Ku-Band Transponder Data

Antenna Data

Figure 3-35 Scenario 1 - Ku-Band Antenna Data

Optimizations

The result of user traffic and TDMA calculation for this network was a total modem data rate
requirement of 8625 kbps. Preliminary link calculation showed that a single carrier solution
would lead to a very high power requirement for the earth stations.
Therefore it was decided to split the capacity into two carriers, the master stations using carrier
1 and the slave stations carrier 2. The following requirements were defined:
Topology
Modem rate [kbps]
Gross container size [Byte]
BER max.
Rain availability min. [%]
Table 3-5 Scenarion 1 - 2 Carrier Solution Requirements
2010-10-26
Carrier 1
Mesh in ULA1
4760
> 200
-8
10
99.5
Network Design and Engineering Guide
Outdoor Unit and Satellite Link Design
Link Budget Examples
Carrier 2
Mesh in ULA1
3865
> 200
-8
10
99.5
