SkyWAN IDU 7000 Series Interfaces

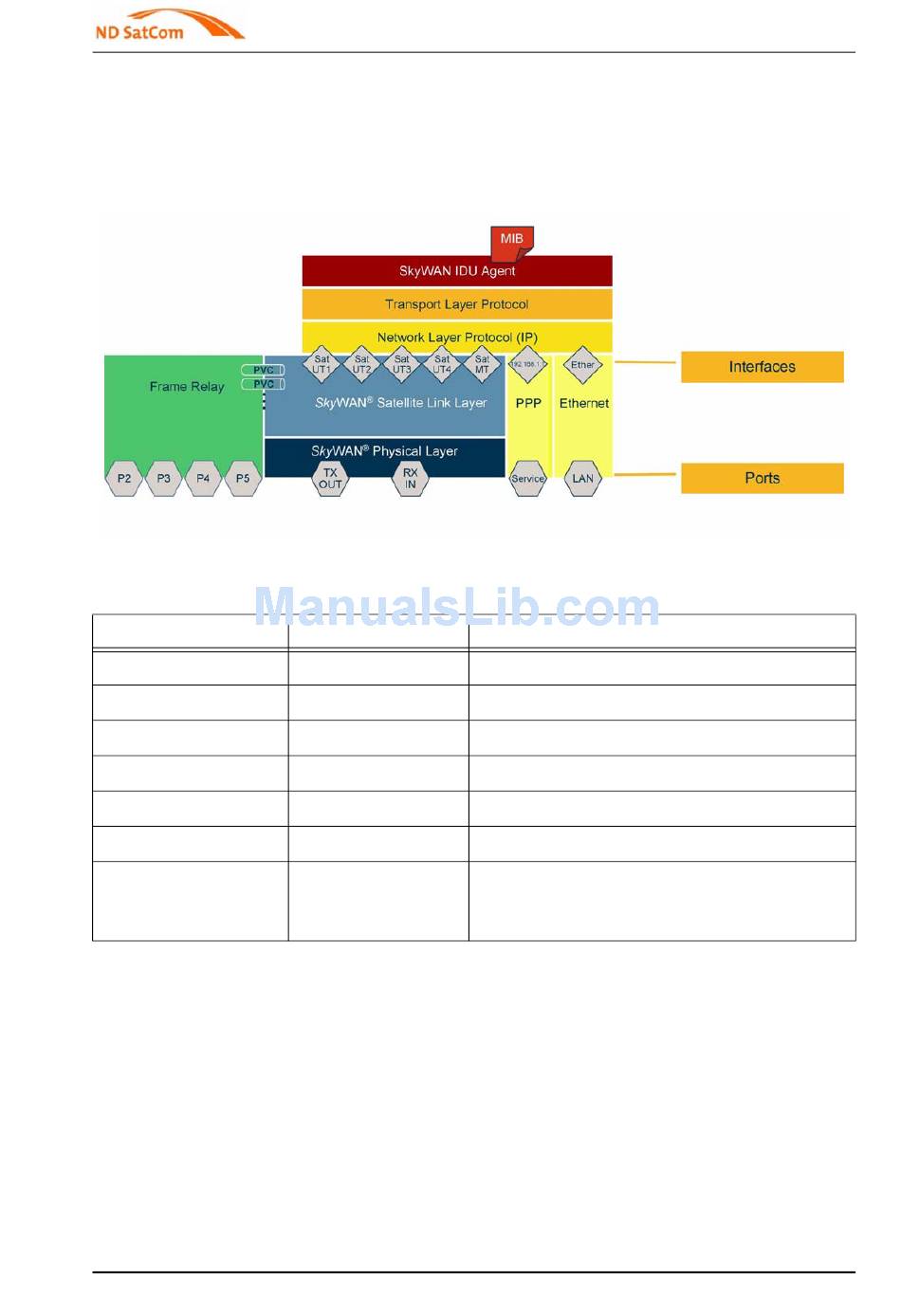

The figure 4-1 below represents an overview of the IP protocol stack of the SkyWAN
7000 series.
®
Figure 4-1 SkyWAN
Interface Number
1
8
9
10
11
12
dynamic
Table 4-1 IP Interface Usage of IDU 7000 series
2010-10-26
IP Protocol Stack IDU 7000 series
Interface Name
LAN
Sat-UT1, SatOne
Sat-UT2, SatTwo
Sat-UT3, SatThree
Sat-UT4, SatFour
Sat-MT
Service Port
Network Design and Engineering Guide
SkyWAN
User or Management Plane
User & Management
User & Management
User & Management
User & Management
User & Management
Management
Management
For local management only, no packet for-
warding over satellite interface
