Compact Four-way Cassette Type DC FCU

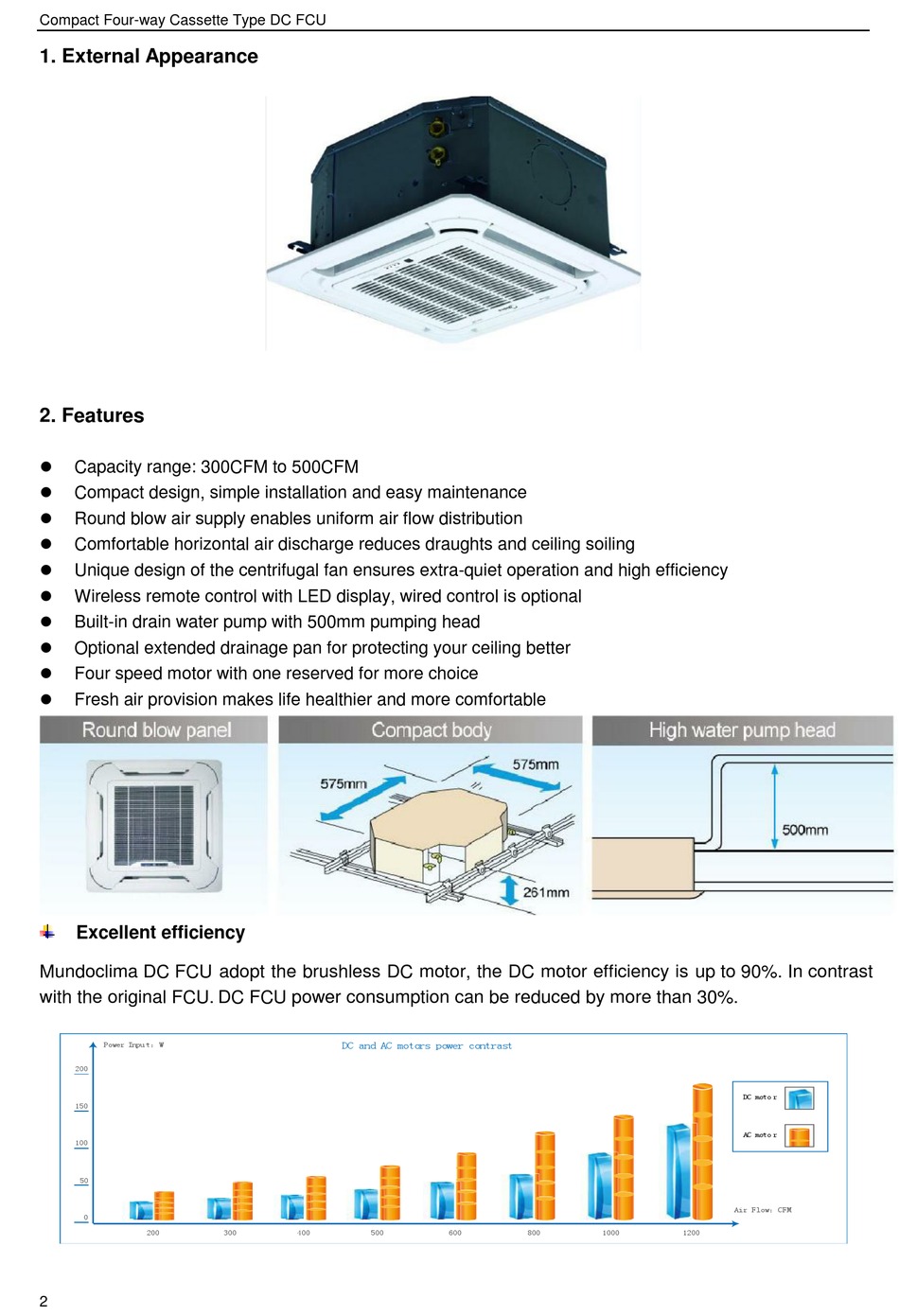

1. External Appearance

2. Features


Capacity range: 300CFM to 500CFM

Compact design, simple installation and easy maintenance

Round blow air supply enables uniform air flow distribution

Comfortable horizontal air discharge reduces draughts and ceiling soiling

Unique design of the centrifugal fan ensures extra-quiet operation and high efficiency

Wireless remote control with LED display, wired control is optional

Built-in drain water pump with 500mm pumping head

Optional extended drainage pan for protecting your ceiling better

Four speed motor with one reserved for more choice

Fresh air provision makes life healthier and more comfortable
Excellent efficiency
Mundoclima DC FCU adopt the brushless DC motor, the DC motor efficiency is up to 90%. In contrast
with the original FCU. DC FCU power consumption can be reduced by more than 30%.
Power Inpu t：W
200
150
100
50
0
200
2
DC and AC motors power contrast
300 400 500 600 800 1000
DC moto r
AC moto r
Air Flow：CFM
1200
