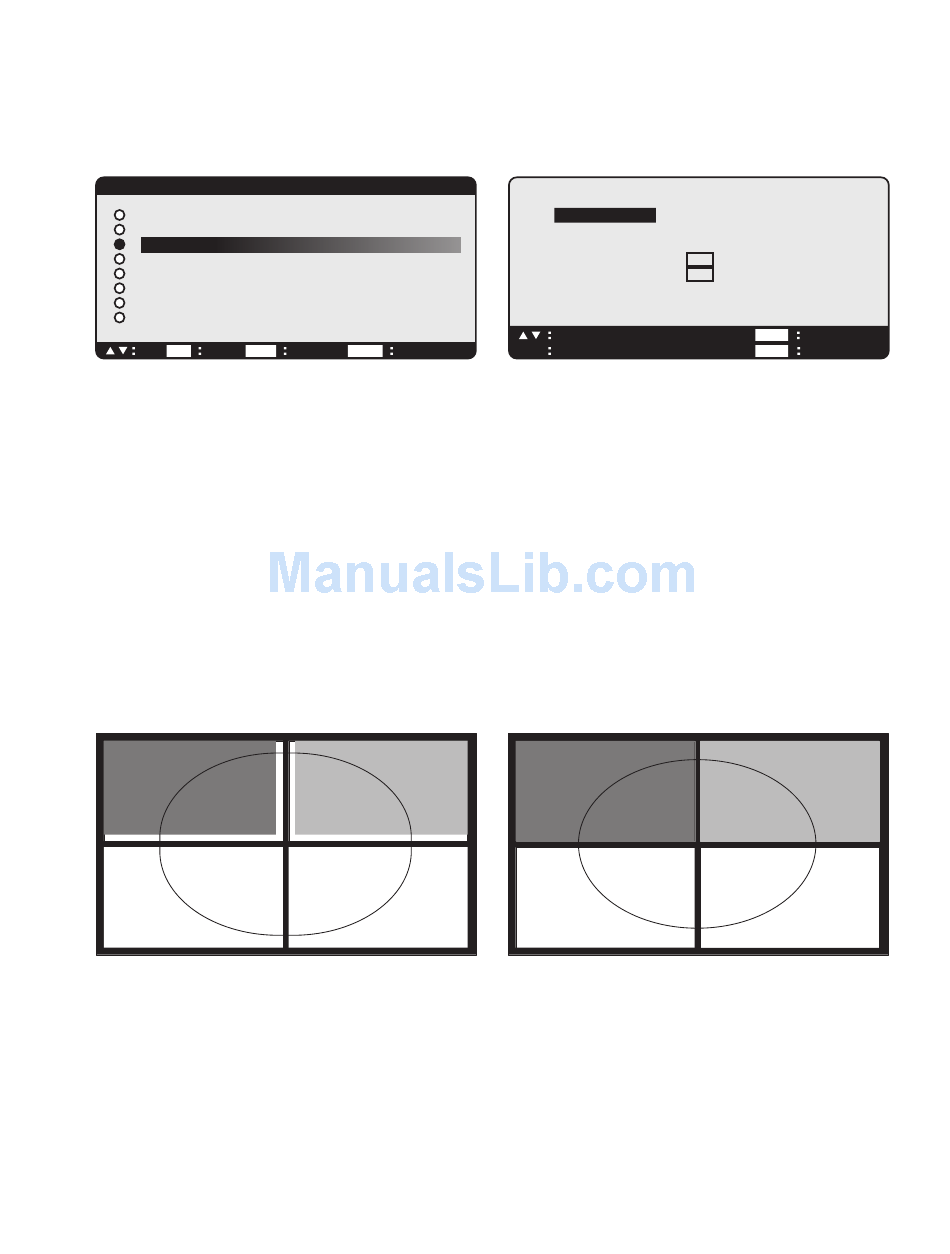

TileMatrix Setup in Advanced Option Menu
The TileMatrix feature located in the "Advanced Option" menu in the OSD (On-Screen Display) Controls. While
location may vary depending on the model, the setup procedures remain the same.
ADVANCED OPTION
MONITOR ID
IR CONTROL
TILEMATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED OPTION RESET
SET EXIT
SEL NEXT
• The "TileMatrix" feature allows one image to be displayed over multiple screens.
• POSITION: Set the position whithin the matrix for each display.
• TILE COMP: Works in tandem with "TileMatrix" to compensate for the width of the tiled bezels in order to
accurately display the image.
• ENABLE: Select "YES" , to expand the signal to the selected settings.
TILE COMP using 4 displays (black area represents Display frames).
Display 1
Display 3
"Tile Comp" OFF
• The "EXPANSION" mode will be set to "FULL" when the "TileMatrix" is activated. The display number is the
location of the display in the expanded screen.
GO TO
RETURN EXIT MENU
Display 2
Display 4
3
TILEMATRIX
H MONITORS 2
V MONITORS 2
POSITION 1
TILE COMP
YES
ENABLE
YES
SEL
+ –
ADJ
Display 1
Display 3
"Tile Comp" ON
/ NO
/ NO
EXIT
RETURN
GO TO
EXIT MENU
Display 2
Display 4
