Wall mounting

Wall mounting
MPORTANT
Before you wall-mount your Colombo, check that you are not
drilling into any hidden wiring. Before you drill, make sure the
power and telephone line cables will reach the sockets.

To wall mount the base and charger

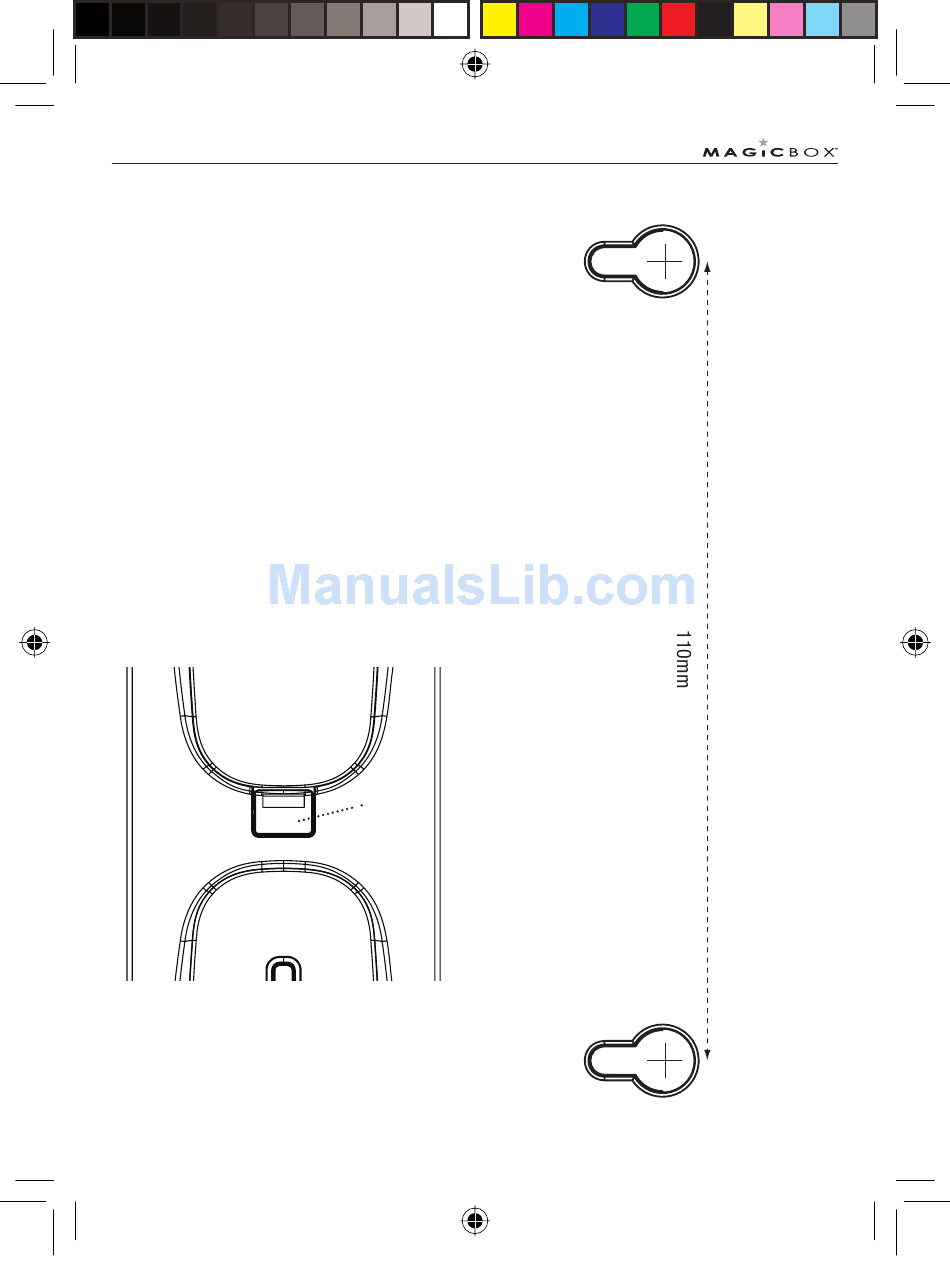

• Drill two holes in the wall 110mm apart
vertically using an 8mm drill bit
• Use the following templates to mark the drilling
locations.
• Push in the bottom of the wall mount clip on the
base and rotate by 180
is now a 'hook' to hold your handset when the
base is fi xed to the wall.
• Place the handset in the cradle
Colombo UG.indd Sec16:42 Colombo UG.indd Sec16:42
o . You will see that there
Wall
mount
clip
42
