• 7-Day Programmable
• Single Stage Heat Pump/Non-Heat Pump Systems
• Backlit Display
• Manual Changeover
• Simpleset
®
7-Day Programming
• Compatible with Gas, Oil, or Electric
• Title 24 Compliant/No Batteries Required
• Relay Outputs
(minimum voltage drop in thermostat)
• Ideally Suited for:
–
Residential (New Construction/Replacement), Light Commercial
Installation, Operation & Application Guide
For more information on our complete range of American-made
products – plus wiring diagrams, troubleshooting tips and more,
visit us at www.icmcontrols.com

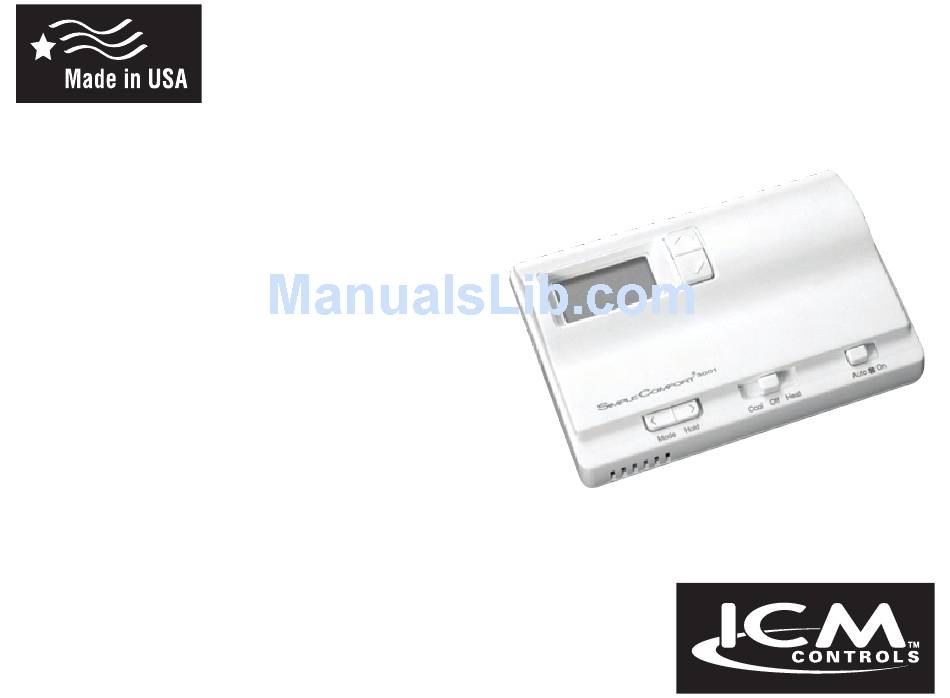

SC 3001
Programmable Electronic Thermostat
Manual Changeover
7-Day Programmable
Hardwired
Advertisement
Table of Contents
Related Manuals for ICM Controls SC 3001
Summary of Contents for ICM Controls SC 3001
- Page 1 SC 3001 Manual Changeover 7-Day Programmable Hardwired Programmable Electronic Thermostat • 7-Day Programmable • Single Stage Heat Pump/Non-Heat Pump Systems • Backlit Display • Manual Changeover • Simpleset ® 7-Day Programming • Compatible with Gas, Oil, or Electric • Title 24 Compliant/No Batteries Required • Relay Outputs (minimum voltage drop in thermostat) • Ideally Suited for: – Residential (New Construction/Replacement), Light Commercial Installation, Operation & Application Guide For more information on our complete range of American-made products –...
-
Page 2: Table Of Contents
Table of Contents Specifications ..........................1 Important Safety Information ..................... 1 Package Contents/Tools Required ....................1 To Remove Existing Thermostat ....................2 To Install Thermostat ........................2 Wiring Diagrams .......................... 4 Heating/Cooling ......................... 4 Heating Only ..........................5 Heat Pump ..........................6 Cooling Only .......................... -
Page 3: Specifications
Specifications Electrical rating: • 24 VAC (18-30 VAC) • 1 amp maximum per terminal • 3 amp maximum total load Temperature control ranges: 45°F to 90°F Accuracy: ± 1°F System configurations: 1-stage heat, 1-stage cool, heat pump, gas, oil, electric Terminations: C, RH, RC, W, Y, B, O, G Important Safety Information WARNING!: Always turn off power at the main power supply before installing, cleaning, or removing thermostat. -
Page 4: To Remove Existing Thermostat
To Remove Existing Thermostat ELECTRICAL SHOCK HAZARD – Turn off power at the main service panel by removing the fuse or switching the appropriate circuit breaker to the OFF position before removing the existing thermostat. 1. Turn off power to the heating and cooling system by removing the fuse or switching the appropriate circuit breaker off. - Page 5 To Install Thermostat (continued) To remove cover, insert and twist a coin or screwdriver in the slots on the sides of the thermostat. Put thermostat base against the wall where you plan to mount it (Be sure wires will feed through the wire opening in the base of the thermostat).
-
Page 6: Wiring Diagrams
Wiring Diagrams Heating/Cooling 4 or 5-Wire, Single Transformer 5-Wire, Two Transformer* Pre-Installed Jumper Remove Pre- Installed Jumper (Heating) Transformer Transformer 120 VAC 24 VAC 120 VAC 24 VAC Heating Heating Control Control Cooling Cooling Control Control (Cooling) Transformer 120 VAC 24 VAC Control Control... -
Page 7: Heating Only
Heating Only 4-Wire, Single Transformer 3-Wire, Single Transformer Pre-Installed Jumper Remove Pre- Installed Jumper Transformer Transformer 120 VAC 24 VAC 120 VAC 24 VAC Heating Heating Control Control Control... -
Page 8: Heat Pump
Heat Pump Cooling Only Cool Active Heat Active Reversing Valve Reversing Valve 4-Wire, Single Transformer Pre-Installed Pre-Installed Remove Pre- Jumper Jumper Installed Jumper Transformer Transformer Transformer 120 VAC 120 VAC 120 VAC Compressor Compressor Cooling Contactor Contactor Control Reversing Valve Reversing Valve Control... -
Page 9: Operation
Operation The SimpleComfort ® 3001 thermostat has buttons that are used to: • Adjust the set points of the thermostat • Set to program or non program operation • Program the schedule • Enter or exit vacation hold Setting the Room Temperature (Setpoint Temperature) 1. -
Page 10: Setting To Heat Pump Or Non-Heat Pump
Setting to Heat Pump or Non-Heat Pump Note: The factory default setting is non-heat pump. 1. Place the Cool/Off/Heat switch in Off position. 2. Press both buttons simultaneously. Differential setting displays. 3. Press button. Heat pump ON/OFF displays. 4. Press the button to configure the heat pump setting. -
Page 11: Testing The Thermostat
Testing the Thermostat Note: Once the thermostat is installed, it should be thoroughly tested. CAUTION!: Do not energize the air conditioning system when the outdoor temperature is below 50 degrees. It can result in equipment damage or personal injury. 1. Move the Fan Auto/On switch to the Auto position. Cool Test 1. -
Page 12: Operating Modes
(Testing continued from Page 9) Fan Test 1. Slide Fan switch to On position. 3. Slide Fan switch to Auto position. 2. Indoor fan turns on. 4. Indoor fan turns off. Operating Modes OFF Mode • In this mode, the thermostat will not turn on the heating or cooling devices (manual fan can operate) •... -
Page 13: Setting The Time And Day Of The Week
Setting the Time and Day of the Week Note: The time and day of the week must be set for your program schedule to operate correctly. 1. Slide the Cool/Off/Heat switch to the Off position. 2. Press the button in for 6 seconds. Time displays. 3. -
Page 14: Programming
Programming Program Overview The SC3001 programmable thermostat has four periods (MORN, DAY, EVE, NITE) that are customizable for each day of the week. Each period will have a start time, heat temperature, and cool temperature. The SC3001 monitors the day and time, while maintaining the specific conditions you have chosen for each period in your program. - Page 15 • Set time is displayed 8. Press the button to change transition time. 9. Press the button to advance to the next screen. • Heat temperature is displayed (50°F-90°F) 10. Press the button to adjust heat set temperature. 11. Press the button to advance to the next screen.
-
Page 16: Simpleset® Programming
Simpleset® Programming Simpleset ® programming is a convenient method of programming the thermostat. Once the entire Monday (Day 1) schedule is set, Simpleset ® programming will copy the Monday schedule to every day of the week. After the complete Monday schedule is set (see Programming on Page 12), you are at the Day 2 screen: 1. -
Page 17: Personal Program Schedule
Personal Program Schedule Use the following personal program schedule to record your settings: MORN NITE MONDAY HEAT HEAT HEAT HEAT COOL COOL COOL COOL MORN NITE TUESDAY HEAT HEAT HEAT HEAT COOL COOL COOL COOL MORN NITE WEDNESDAY HEAT HEAT HEAT HEAT COOL... - Page 18 Personal Program Schedule (continued) MORN NITE THURSDAY HEAT HEAT HEAT HEAT COOL COOL COOL COOL MORN NITE FRIDAY HEAT HEAT HEAT HEAT COOL COOL COOL COOL MORN NITE SATURDAY HEAT HEAT HEAT HEAT COOL COOL COOL COOL MORN NITE SUNDAY HEAT HEAT HEAT...
-
Page 19: Troubleshooting
Troubleshooting Symptom Remedy No display Check for 24 VAC at thermostat; display is blank when 24 VAC is not present System fan does not come on properly Verify wiring is correct; check Gas/Electric switch position (see Page 3, section 12) All thermostat buttons are inoperative Verify 24 VAC is present;... - Page 20 ONE-YEAR LIMITED WARRANTY The Seller warrants its products against defects in material or workmanship for a period of one (1) year from the date of manufacture. The liability of the Seller is limited, at its option, to repair, replace or issue a non-case credit for the purchase prices of the goods which are provided to be defective.
