Installation, Operation & Application Guide
For more information on our complete range of American-made
products – plus wiring diagrams, troubleshooting tips and more,
visit us at www.icmcontrols.com

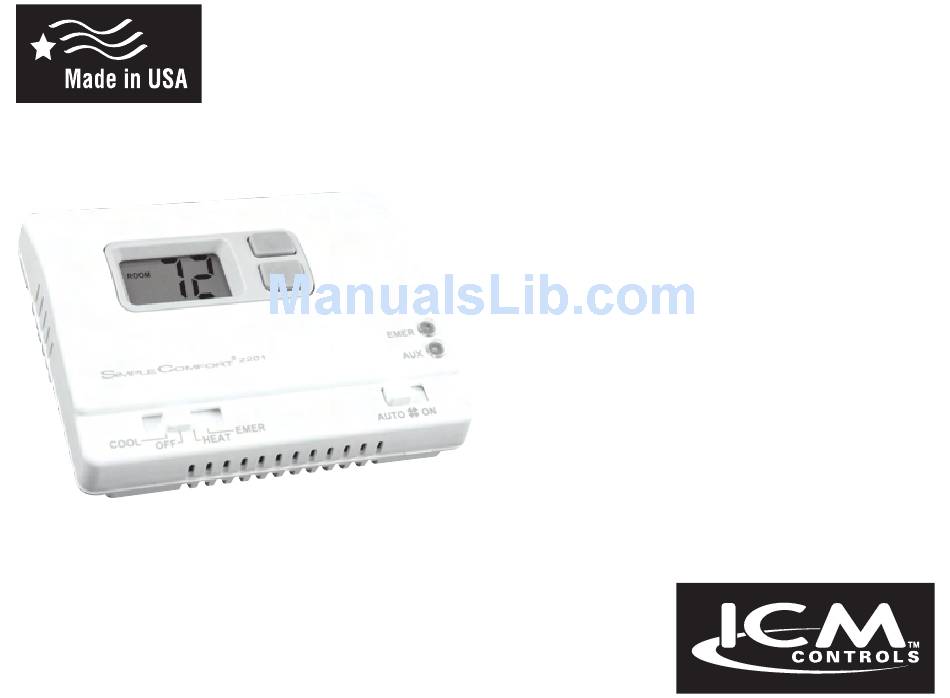

SC2201
Non-Programmable Electronic Thermostats
• For use with Heat Pumps
• Up to 2-Stage Heat, 1-Stage
Cool
• 30-Minute Power Loss Memory
Retention
• For use with 24 VAC Systems
• Optional backlit display
(SC2201L only)
Advertisement
Table of Contents
Related Manuals for ICM Controls SC2201
Summary of Contents for ICM Controls SC2201
- Page 1 SC2201 Non-Programmable Electronic Thermostats • For use with Heat Pumps • Up to 2-Stage Heat, 1-Stage Cool • 30-Minute Power Loss Memory Retention • For use with 24 VAC Systems • Optional backlit display (SC2201L only) Installation, Operation & Application Guide For more information on our complete range of American-made products – plus wiring diagrams, troubleshooting tips and more, visit us at www.icmcontrols.com...
-
Page 2: Table Of Contents
Table of Contents Parts Diagram ............1 Wiring Diagrams ...........10 Carrier Split Stream Condensers ......10 Specifications ............2 Coleman 3000 Series .......... 11 Features/Benefits...........2 Comfortmaker CYC Series ........12 Heil-Quaker 867.814 Series and PH50 Series ..13 Package Contents/Tools Required ......2 Payne Reliant and Endura Model ......14 Important Safety Information ........3 Rheem/Ruud: General Description . -
Page 3: Parts Diagram
Parts Diagram SC2201 Reset Switch O W2 G Mode Switch Fan Switch... -
Page 4: Specifications
Specifications Input: Room temperature setpoint • Voltage: 24 VAC (18-30 VAC) ROOM Room temperature Output: DIFF • Maximum: 1 amp maximum load per terminal Temperature differential setting (4 amp total maximum load for all terminals) • Temperature Ranges: – Temperature control range: 45°F to 90°F Accuracy: ± 1°F – Differential range: 1°F to 3°F • System configurations: Multi-stage heat pump (two-stage heat, one-stage cool) • Terminations: R, C, E, Y1, O, B, G, W2 • Second stage activation in heat mode: 2° below first stage (not adjustable) Features/Benefits • Multi-stage heating/cooling control • Automatic heating system shutdown if temperature exceeds 90°F • Multi-colored LED indicators for system status • 30-minute power interruption memory retention • Zone system compatible as a master thermostat • Independent setpoints for heat and cool • Adjustable temperature differential: 1°F to 3°F Package Contents/Tools Required Package includes: SimpleComfort ® 2201 non-programmable thermostat on base, thermostat cover, wiring labels, screws and wall anchors, Installation, Operation and Application Guide. -
Page 5: Important Safety Information
Important Safety Information • Always turn off power at the main power source by unscrewing fuse or switching circuit breaker to the off position before installing, removing, cleaning, or servicing this thermostat • Read all of the information in this manual before installing this thermostat • This thermostat should be installed only by a professional contractor • This is a 24 VAC low-voltage thermostat; do not install on voltages higher than 30 VAC • All wiring must conform to local and national building and electrical codes and ordinances • Do not switch system to cool if the outdoor temperature is below 50°F; this can damage the air conditioning system and may cause personal injury • The thermostat will not control your heating/air conditioning system without power; it requires a continuous 24 VAC circuit for proper system control • Use this thermostat only as described in this manual • While cleaning, do not get soap directly on thermostat switches or LCD readout; only use a damp cloth with a mild soap to wipe outside of thermostat cover General Description The SimpleComfort ® 2201 is intended to operate and is compatible with 24 VAC residential heat pumps with up to 2-stage heat/1-stage cool. It will operate with heat pump systems that are manual changeover and have auxiliary or emergency heating. There are no optional items required for standard installations. This thermostat is also compatible as a master thermostat in zoned system applications. -
Page 6: To Remove Existing Thermostat
To Remove Existing Thermostat ELECTRICAL SHOCK HAZARD – Turn off power at the main service panel by removing the fuse or switching the appropriate circuit breaker to the Off position before removing the existing thermostat. 1. Turn off power to the heating and cooling system by removing the fuse or switching off the appropriate circuit breaker. 2. Remove cover of old thermostat. This should expose the wires. 3. Label the existing wires with the enclosed wire labels before removing wires. See table below for old and new label identification. -
Page 7: To Install Thermostat
To Install Thermostat ELECTRICAL SHOCK HAZARD – Turn off power at the main service panel by removing the fuse or switching the appropriate circuit breaker to the Off position before removing the existing thermostat. IMPORTANT: Thermostat installation must conform to local and national building and electrical codes and ordinances. IMPORTANT: This thermostat is compatible with 100% lockout systems. To reset the system, turn thermostat to Off position for at least 60 seconds. Note: Mount the thermostat about five feet above the floor. Do not mount the thermostat on an outside wall, in direct sunlight, behind a door, or in an area affected by a vent or duct. -
Page 8: Testing The Thermostat
13. Tighten screws on terminal block. Gently tug wire to be sure of proper connection. Double check that each wire is connected to the proper terminal. 14. Replace cover on thermostat by snapping it in place. 15. Turn on power to the system at the main service panel. 16. Test thermostat operation as described in the following section. Testing the Thermostat CAUTION!: Do not switch system to cool if the outdoor temperature is below 50°F. This can damage the air conditioning system and may cause personal injury. 1. Put the Mode switch to Cool position. Mode 2. Press the button until the temperature setting is at least 3 degrees below the room temperature. The air conditioning system and fan should turn on. Cool Off Heat Emer Mode 3. Put the Mode switch in the Off position. The air conditioning system should turn off. The fan may have a delay. Cool Off Heat Emer Note: Pressing the Reset button once will bypass the 5-minute anti-short cycle compressor protection. - Page 9 Note: While in Cool or Heat mode, once the thermostat turns the system off, a built-in delay keeps the compressor from turning on for about 5 minutes. This protects the compressor. Mode 4. Put the Mode switch to the Heat position. 5. Press the button until the temperature setting is at least 3 degrees above Cool Off Heat Emer room temperature. The heating system should turn on. Note: The compressor may not turn on again for 5 minutes. Mode 6. Put the Mode switch to the Off position. The heating system should turn off. Once again the fan may have a delay. Cool Off Heat Emer 7. Put the Fan switch to the On position. The blower fan should turn on. Auto 8. Put the Fan switch to the Auto position. The blower fan should turn off. If all functions operate properly, the thermostat is installed correctly. Auto If the thermostat does not operate properly: • Check all wiring connections • See Troubleshooting (Page 21)
-
Page 10: Led Indicators
LED Indicators There are two LED indicators located on the front of the thermostat. They are designed to inform you of the following: AUX (GREEN): This turns on when the auxiliary (back-up) heating is in operation. This is the second (non- economy) stage of heat. It turns on 2 degrees below first stage and is not adjustable. EMER (RED): This light turns on whenever the emergency heat is manually selected (system switch is in the EMER position). While in the emergency heat mode, the heat pump compressor is off, and the emergency heat (same as the auxiliary heat) maintains the setpoint temperature. Operation Setting the Room Temperature (Setpoint Temperature) Step 1: Press the or button; the current temperature setpoint displays. Step 2: Press the or button until the desired temperature setpoint displays. Note: Holding down either the or button will scroll the temperature display. The new temperature setting is automatically saved. After 5 seconds, the display returns to showing the current room temperature. - Page 11 Setting a New Temperature Differential IMPORTANT: The default temperature differential is factory set at 1°F. When your room temperature varies by 1°F, the thermostat turns your system on. If you notice your system turning on and off too frequently, increase the temperature differential accordingly. Step 1: Remove cover. Insert a coin or screwdriver in slot at top if needed. Step 1: Press the reset button once (see diagram on Page 1). Step 3: The display will show This is the temperature differential setting. Step 4: Press the or button to adjust the temperature differential down or up. Step 5: Replace the thermostat cover. The display will return to the room temperature display five Differential Setting °F seconds after the last input. The new temperature differential 1°F setting will be saved. 2°F 3°F Starting the Thermostat Step 1: Move the Fan switch into the Auto position. • In Auto, indoor fan runs only during a heating or cooling cycle • In ON, indoor fan runs continuously Auto Step 2: Move the Mode switch to either Cool or Heat position, depending on Mode the season. The thermostat will now operate and maintain the room temperature at the desired setpoint. Note: When the thermostat operates the system, there is built-in Cool Off Heat Emer compressor protection. After the compressor turns off, the...
-
Page 12: Wiring Diagrams
Wiring Diagrams SimpleComfort 2201 Electronic Thermostat Conversion to: ® Carrier Split Stream Condensers and Heat Pump Systems SimpleComfort 2201 ® 24 VAC, Return Compressor Contactor Reversing Valve (Cooling Mode) Fan Contactor Circuit Emergency Heating Circuit 2nd Stage Heating Circuit 24 VAC, Common... -
Page 13: Coleman 3000 Series
SimpleComfort 2201 Electronic Thermostat Conversion to: ® Coleman 3000 Series Heat Pump Systems SimpleComfort 2201 ® 24 VAC, Return Compressor Contactor Reversing Valve (Heating Mode) Fan Contactor Circuit Emergency Heating Circuit 2nd Stage Heating Circuit 24 VAC, Common... -
Page 14: Comfortmaker Cyc Series
SimpleComfort 2201 Electronic Thermostat Conversion to: ® Comfortmaker CYC Series Heat Pump Systems Note 1: E and W2 terminals jumpered at thermostat. SimpleComfort 2201 ® Note 2: W2 terminal on Comfortmaker capped at PCB. Note 2: X terminal on Comfortmaker capped at PCB. 24 VAC, Return Compressor Contactor Reversing Valve (Cooling Mode) -
Page 15: Heil-Quaker 867.814 Series And Ph50 Series
SimpleComfort 2201 Electronic Thermostat Conversion to: ® Heil-Quaker 867.814 Series and PH50 Series Heat Pump Systems Note 1: E and W2 terminals jumpered at thermostat. SimpleComfort 2201 ® Note 2: W2 terminal on Heil-Quaker capped at PCB. 24 VAC, Return Compressor Contactor Reversing Valve (Cooling Mode) Fan Contactor Circuit... -
Page 16: Payne Reliant And Endura Model
SimpleComfort 2201 Electronic Thermostat Conversion to: ® Payne Reliant and Endura Model Heat Pump Systems Note 1: W3 terminal on Payne PCB capped at PCB. SimpleComfort 2201 ® 24 VAC, Return Compressor Contactor Reversing Valve (Cooling Mode) Fan Contactor Circuit Emergency Heating Circuit 2nd Stage Heating Circuit 24 VAC, Common... -
Page 17: Rheem/Ruud
SimpleComfort 2201 Electronic Thermostat Conversion to: ® Rheem/Ruud: -PGB, -PFA, -PCB, -PLA, and -PKA Series Heat Pump Systems Note 1: E and W2 terminals jumpered at thermostat. SimpleComfort 2201 ® 24 VAC, Return Compressor Contactor Reversing Valve (Heating Mode) Fan Contactor Circuit 2nd Stage Heating Circuit 24 VAC, Common... -
Page 18: Goodman, Janitrol, Trane/American Standard
SimpleComfort 2201 Electronic Thermostat Conversion to: ® Goodman, Janitrol, Trane/American Standard Heat Pump Systems Note 1: E and W2 terminals jumpered at thermostat. SimpleComfort 2201 ® Note 2: X2 terminal on Goodman, etc. capped at PCB. Note 2: T terminal on Goodman, etc. capped at PCB. 24 VAC, Return Compressor Contactor Reversing Valve (Cooling Mode) -
Page 19: York -E1Cs, -E1Fb, E1Fh
SimpleComfort 2201 Electronic Thermostat Conversion to: ® York -E1CS, -E1FB, E1FH Heat Pump Systems Note 1: E and W2 terminals jumpered at thermostat. SimpleComfort 2201 ® 24 VAC, Return Compressor Contactor Reversing Valve (Cooling Mode) Fan Contactor Circuit 2nd Stage Heating Circuit 24 VAC, Common... -
Page 20: Lennox Cb19
SimpleComfort 2201 Electronic Thermostat Conversion to: ® Lennox CB19 Heat Pump Systems SimpleComfort 2201 ® 24 VAC, Return Compressor Contactor Reversing Valve (Cooling Mode) Fan Contactor Circuit Emergency Heating Circuit 2nd Stage Heating Circuit 24 VAC, Common... -
Page 21: Lennox Hp19 And Hp20
SimpleComfort 2201 Electronic Thermostat Conversion to: ® Lennox HP19 and HP20 Heat Pump Systems SimpleComfort 2201 ® 24 VAC, Return V-VR Compressor Contactor Reversing Valve (Cooling Mode) Fan Contactor Circuit Emergency Heating Circuit 2nd Stage Heating Circuit 24 VAC, Common... -
Page 22: Fhp 1 Stage
SimpleComfort 2201 Electronic Thermostat Conversion to: ® FHP 1 Stage Heat Pump Systems SimpleComfort 2201 ® 24 VAC, Return Compressor Contactor Reversing Valve (Cooling Mode) Fan Contactor Circuit Emergency Heating Circuit 2nd Stage Heating Circuit 24 VAC, Common Note: For units with ECM motors and the 641-065 interface board, connect W2 from the thermostat to W1 at the heat pump. -
Page 23: Troubleshooting
Troubleshooting Symptom Remedy The system is not turning on Check the wiring (see Installation, Page 5) LCD is blank or displaying “Lo Bat” Verify 24 VAC is at thermostat Thermostat does not turn on the system as Decrease the temperature differential (see Setting a New Temperature frequently as it should Differential, Page 9) Thermostat is not properly controlling the fan Check the wiring (see Installation, Page 5) Thermostat is continuously turning on and off Increase the temperature differential (see Setting a New Temperature Differential, Page 9) Temperature display is not accurate Verify no heat producing objects are located near the thermostat Verify thermostat has adequate air flow to it Display not correct Press the reset button once – display will be refreshed... - Page 24 ONE-YEAR LIMITED WARRANTY The Seller warrants its products against defects in material or workmanship for a period of one (1) year from the date of manufacture. The liability of the Seller is limited, at its option, to repair, replace or issue a non-case credit for the purchase prices of the goods which are provided to be defective. The warranty and remedies set forth herein do not apply to any goods or parts thereof which have been subjected to misuse including any use or application in violation of the Seller’s instructions, neglect, tampering, improper storage, incorrect installation or servicing not performed by the Seller. In order to permit the Seller to properly administer the warranty, the Buyer shall: 1) Notify the Seller promptly of any claim, submitting date code information or any other pertinent data as requested by the Seller. 2) Permit the Seller to inspect and test the product claimed to be defective. Items claimed to be defective and are determined by Seller to be non-defective are subject to a $30.00 per hour inspection fee. This warranty constitutes the Seller’s sole liability hereunder and is in lieu of any other warranty expressed, implied or statutory. Unless otherwise stated in writing, Seller makes no warranty that the goods depicted or described herein are fit for any particular purpose. Patent No. , William Barry Blvd., North Syracuse, NY (Toll Free) 800-365-5525 (Phone) 315-233-5266 (Fax) 315-233-5276 www.icmcontrols.com LIA277...
