Operating Manual
Please Read Before Operating Unit

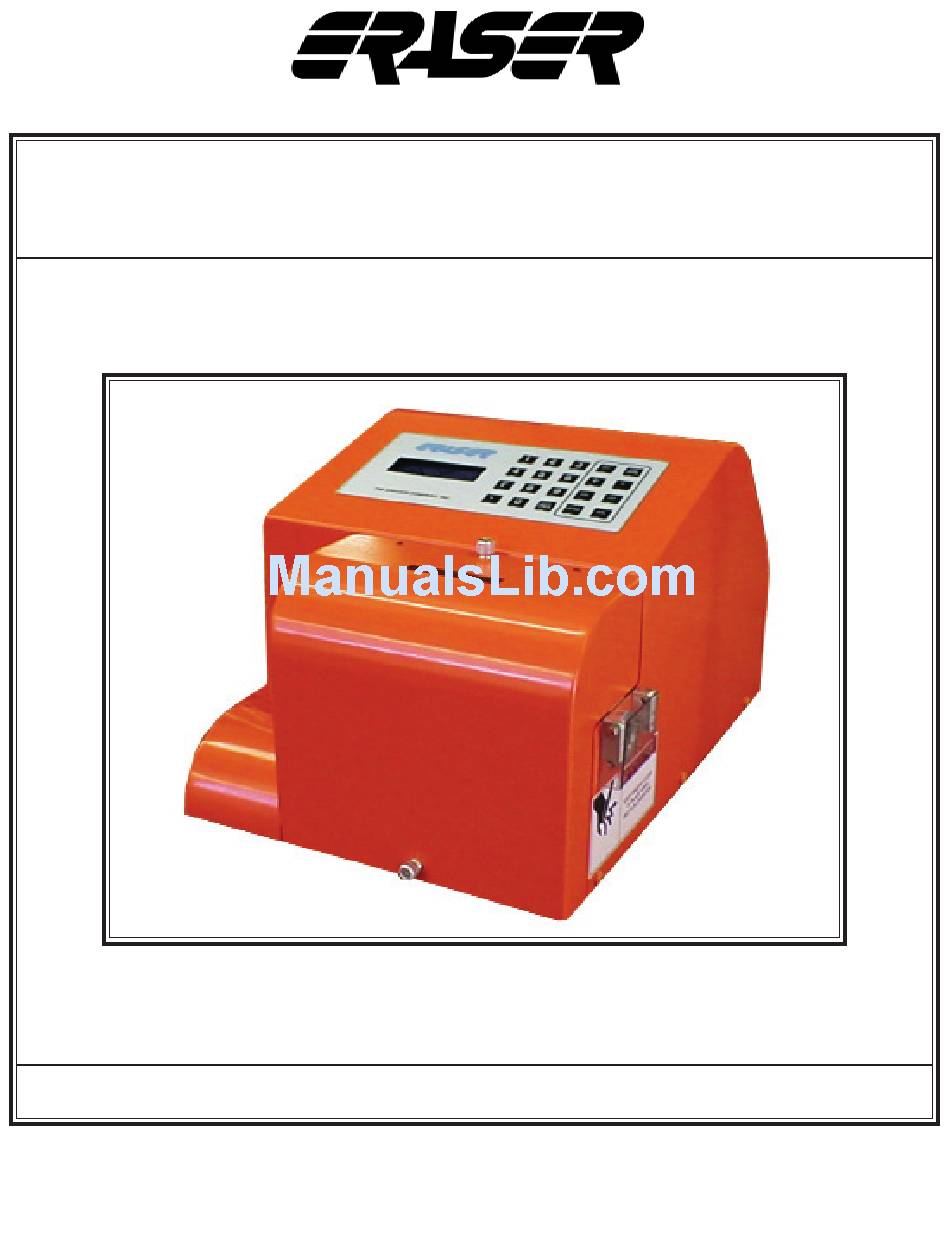

Model WC601D Automatic Tubing Cutter
Service and All Spare Parts Available
Phone: (315) 454-3237
Fax: (315) 454-3090
The Eraser Company, Inc.
Website: www.eraser.com
PO Box 4961/ Oliva Drive
E-mail: info@eraser.com
Syracuse, NY 13221, USA
Advertisement
Table of Contents
Related Manuals for Eraser WC601D
Summary of Contents for Eraser WC601D
- Page 1 Always Moving Forward ® Operating Manual Please Read Before Operating Unit Model WC601D Automatic Tubing Cutter Service and All Spare Parts Available Phone: (315) 454-3237 Fax: (315) 454-3090 The Eraser Company, Inc. Website: www.eraser.com PO Box 4961/ Oliva Drive E-mail: info@eraser.com...
-
Page 2: Specifications
IR1390 ......Optional Carbide Cutting Blade 28.6 72.6 AR0010(DE100) ......Turntable Dereeler 33.3 84.6 AR3801(DE400) ....Bench Mounted Dereeler AR0170(DE700) ....Compensating Dereeler 35.7 90.7 Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 3: Important Safety Instructions
Check with a licensed electrician if in doubt as to whether the machine is properly grounded. Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 4: Bushing Installation
Contact 1/32” from the opposite side of the blade from the Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 5: Operation
(toward the cutter) and the <-> key reverses consistently - do not over-tighten feed belts. Over this movement. Press the <CUT> key when the Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 6: Creating A New Batch
(except characters is 5 for this field. Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 7: Cut Length
9) or by pressing the CUT LENGTH <+> or <-> keys. As the value is changed, the CUT LENGTH ADJUST 0 QUANTITY 0 R Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 8: Keypad Legend
PROCESS screen (as described under Start up, COMPLETION screen appears: above) but has a subtle difference. When the <JOG> or <+> keys are pressed, material will feed Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... - Page 9 “F”, meaning that this is the “first” batch in this (one 6.0” piece), 5 (three 8.0” pieces) and 6 (one 2.0” kit. In addition, the Allowable Action Indicator (see Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 10 Position Indicator displays an “N” (indicating a “new” index ENTER 0 FOR MANUAL OR # FOR AUTOMODE Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 11 The third line (‘CURRENT BATCH’) displays the current batch PRESS ESC TO BREAK PRESS RUN TO PROCEED Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
-
Page 12: Blade Change
Loosen the set screws on the feed belt pulleys. Slide above) will change to “A”, indicating that a batch the pulleys and belts together from the spindles. can be added. Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 13: Troubleshooting
Tighten the belt feed adjusting knob clockwise to Belt feed tension is loose LENGTHS increase tension Send in sample material to Eraser for proper bushing Improper size bushings sizing Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... - Page 14 EXIT BUSHING SET SCREW ENTRANCE BUSHING SET SCREW ENTRANCE BUSHING EXIT BUSHING HEAD BUSHING FEED BELTS HEAD BUSHING SET SCREW (SHOWN WITH COVER REMOVED) Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 15 15 Model WC601D Automatic Tubing Cutter Cutting Head Blade Details CUTTING BLADE DRIVE BELT BLADE RETURN SPRING LOCKING SET SCREW BLADE STOP ADJUSTING SCREW BLADE RETENTION SCREWS (SHOWN WITH COVER, HOUSING, GUARD, EXIT BUSHING AND EXIT BUSHING SUPPORT REMOVED) ( SHOWN WITH COVER, HOUSING, GUARD, EXIT BUSHING AND EXIT BUSHING SUPPORT REMOVED ) The Eraser Company, Inc.
