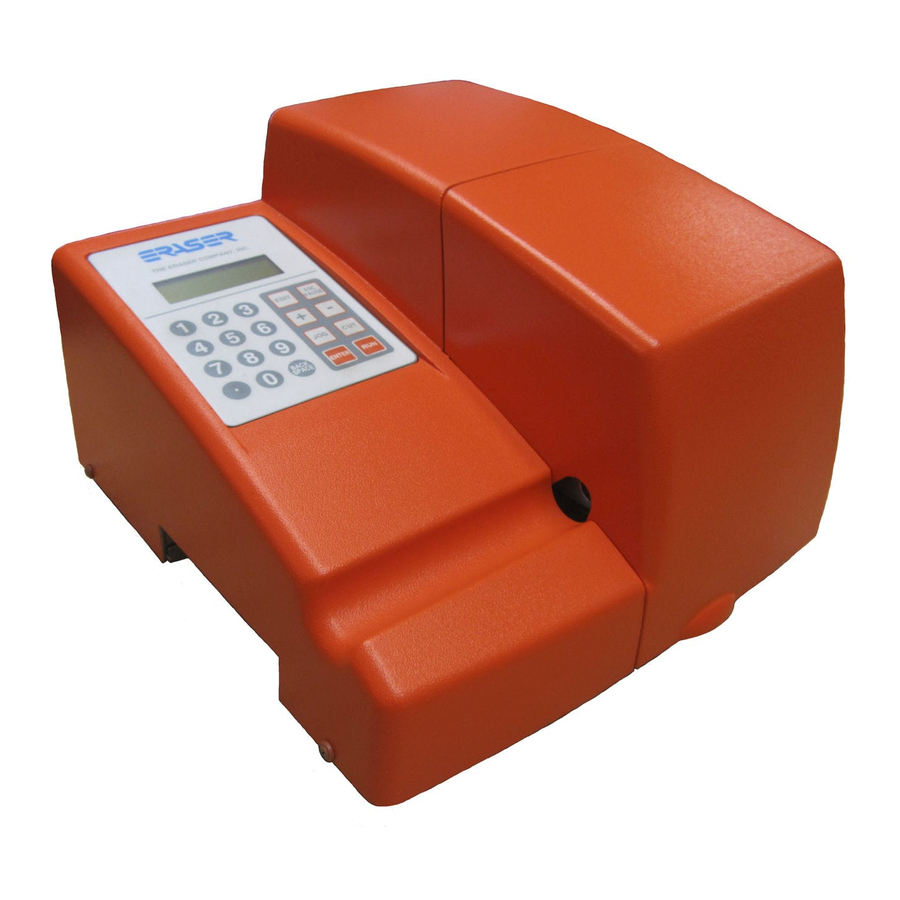

- Page 1 Always Moving Forward ® Operating Manual Please Read Before Operating Unit Model WC601A Wire & Tubing Cutter Please Call for Service or Spare Parts Phone: (315) 454-3237 Fax: (315) 454-3090 The Eraser Company, Inc. Website: www.eraser.com PO Box 4961/ Oliva Drive E-mail: info@eraser.com...
-
Page 2: Specifications
IR0763 ..... Custom bushing set 1/8” to 3/8” (3.175mm - 9.525mm) REPLACEMENT PARTS IR5161 ..Standard Wire Cutting Blade (Tool Steel) PR0232......Single Standard Feed Belt (2 required per unit) Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 3: Important Safety Instructions
CHECK FOR DAMAGED PARTS. Before continued Improper connection of the equipment-grounding Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 4: Operating Instructions
CAUTION: Environmental conditions for proper THE ERASER COMPANY operation should be 50°F-90°F (10°C-32°C). The WC601A [firmware revision date] operation of the WC601A should be in a well- Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... -
Page 5: Operation
LENGTH: 0.0 by entering the desired batch number. ABORT -ESC The length indication increments or decrements Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... - Page 6 If 10” is entered as the desired length, but the actual average cut piece measures 9.8”, a length Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 7 If the operator chooses main batch select menu back to the screen. Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 8 The first batch in any kit is stored at Index #0, the second batch position in the kit is Index #1, and so forth. Therefore, Batch position = [Index #] Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 9 <+> or <ENTER> key to move to the next index, and to enter the next batch in the kit’s sequence. LENGTH The KIT EDIT screen displays: QUANTITY Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 10 # OF KITS 10 KIT #1 quantity – in this instance, ‘0’ designates Manual KITS LEFT [Single] Kit Mode). After pressing the <ENTER> Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
- Page 11 • During Kit programming, you can use the <+> key bushings. Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090...
-
Page 12: General Maintenance
Tighten the feed belt adjusting knob clockwise to increase Erratic cut lengths correctly tension clockwise to increase tension Re-Install cut bushing (See the cut bushing installation Cut bushing too small procedure) Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • info@eraser.com • www.eraser.com • Fax 315-454-3090... - Page 13 13 MODEL WC601A AUTOMATIC WIRE & TUBING CUTTER The Eraser Company, Inc. Phone: (315) 454-3237 PO Box 4961/ Oliva Drive Fax: (315) 454-3090 Syracuse, NY 13221, USA Website: www.eraser.com Always Moving Forward ® E-mail: info eraser.com IR1555 REV 06/15...
