Youjie™ YJ HF600
Area-Imaging Scanner

Quick Start Guide

Aller à
www.honeywellaidc.com
Para Português, acesse www.honeywellaidc.com.
Ir a
www.honeywellaidc.com
Перейти на русскоязычный сайт
Türkçe için www.honeywellaidc.com.
查看中文简体版请登陆
한글
www.honeywellaidc.com
日本語 :
www.honeywellaidc.com
Vai a
www.honeywellaidc.com
Gehe zu
www.honeywellaidc.com
pour le français.
para español.
www.honeywellaidc.com.
로 이동합니다 .
per l'italiano.
für Deutsch.
www.honeywellaidc.com
www.honeywellaidc.com.
をご覧ください。
Rev A
2/16

Advertisement

loading

  Related Manuals for Honeywell YJ HF600

  Summary of Contents for Honeywell YJ HF600

  • Page 1: Quick Start Guide

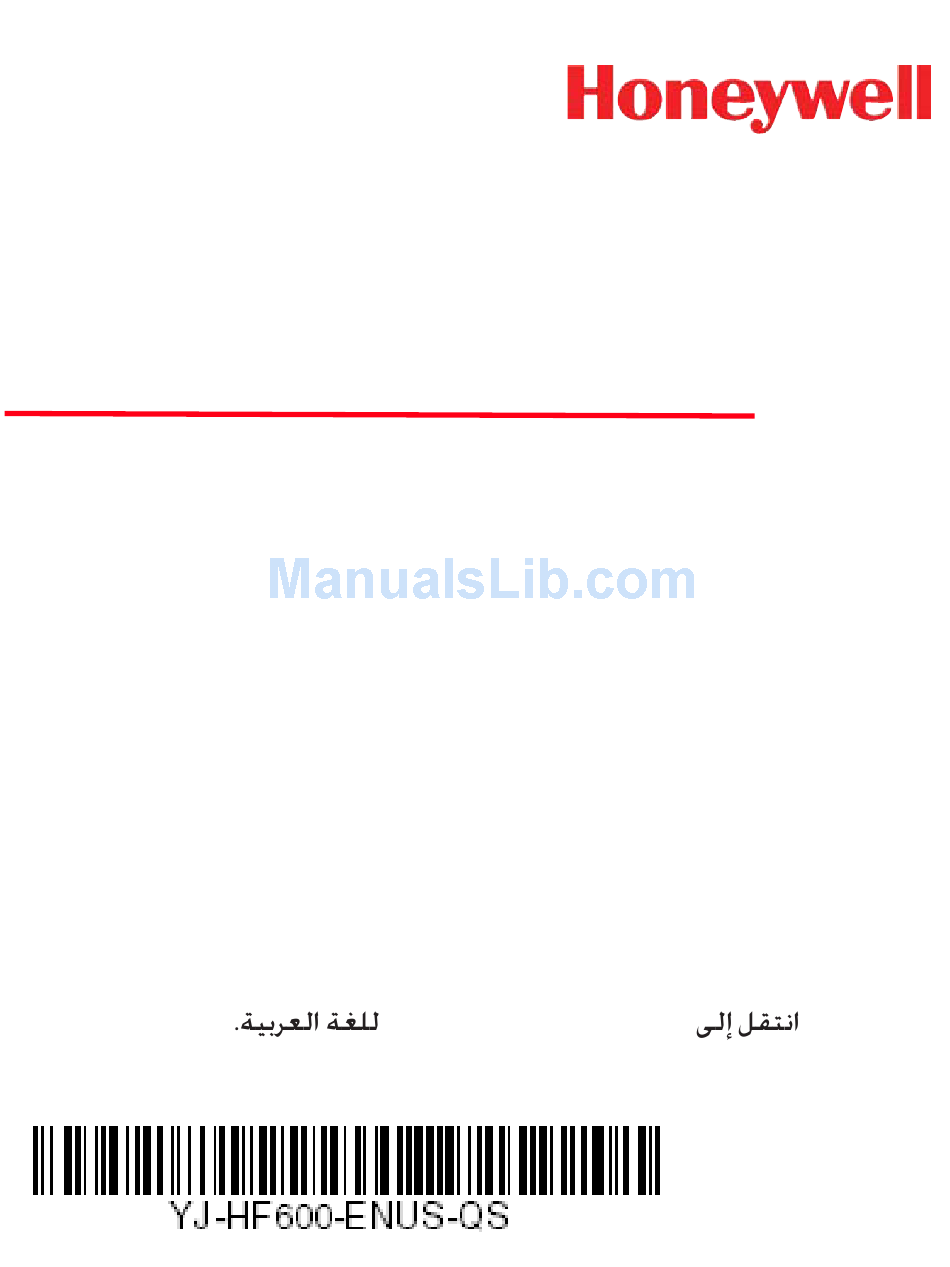

    Youjie™ YJ HF600 Area-Imaging Scanner Quick Start Guide Aller à www.honeywellaidc.com pour le français. Para Português, acesse www.honeywellaidc.com. Ir a www.honeywellaidc.com para español. Перейти на русскоязычный сайт www.honeywellaidc.com. Türkçe için www.honeywellaidc.com. 查看中文简体版请登陆 。 www.honeywellaidc.com. 한글 로 이동합니다 . www.honeywellaidc.com 日本語 : をご覧ください。...
  • Page 2: Getting Started

    Note: Refer to your user’s guide for information about cleaning your device. For localized language versions of this document, go to www.honeywellaidc.com. Getting Started Turn off computer’s power before connecting the scanner, then power up the computer once the scanner is fully connected. Power Supply Assembly (if included)
  • Page 3 Connecting the Scanner USB: RS232:...
  • Page 4: Keyboard Wedge

    Keyboard Wedge: Reading Techniques Present the bar code to the scanner. The LEDs turn up to read the code.
  • Page 5: Standard Product Defaults

    Standard Product Defaults The following bar code resets all standard product default settings. Standard Product Defaults Keyboard Country Your keyboard layout default is a US keyboard. To change this lay- out, scan the appropriate keyboard country code. Belgium Denmark Finland France Germany/Austria Great Britain...
  • Page 6 Norway Spain Switzerland (Default) Suffix If you want a carriage return after the bar code, scan the Add CR Suffix bar code. To add a tab after the bar code, scan the Add Tab Suffix bar code. Otherwise, scan the Remove Suffix bar code to remove the suffixes.
  • Page 7: Add Code Id Prefix To All Symbologies

    Add Code ID Prefix to all Symbologies Scan the following bar code if you wish to add a Code ID prefix to all symbologies at once. Add Code ID Prefix To All Symbologies (Temporary) Note: For a complete list of Code IDs, see the User’s Guide for your product at our website, www.honeywellaidc.com.
  • Page 8: Programming The Interface

    Programming the Interface...
  • Page 9 Scan one of the following bar codes to program your interface. Keyboard Wedge IBM PC AT and Compatibles with CR suffix USB IBM SurePos (USB Handheld Scanner) Interface USB IBM SurePos (USB Tabletop Scanner) Interface USB Keyboard (PC) USB Keyboard (Mac) USB Japanese Keyboard (PC) USB HID Bar Code Scanner RS232 Interface...
  • Page 10: Scan Modes

    Scan Modes When in IR Trigger mode, the scanner is activated when it “sees” a bar code. After the bar code is read, the scan illumination will turn off. When in IR Trigger - Mobile Phone mode, your scanner is optimized to read bar codes from mobile phone or other displays.
  • Page 11: Button And Led Indicator Location

    Default = IR Trigger mode. Button and LED Indicator Location Button/Green Left Blue LED Right Blue LED Right Blue LED Good Read Left Blue LED Error Button/Green Button Motion Sensor Mode Green LED Mobile Phone Read Mode activated Motion Sensor Mode When the button is pressed for more than 5 seconds, the scanner will go into Virtual Global Shutter mode.
  • Page 12: Data Format Editor Instructions

    Data Format Editor Instructions The following are abbreviated instructions for entering a data format. For complete instructions refer to your User’s Guide, available at our website, www.honeywellaidc.com. 1. Scan the Enter Data Format symbol. 2. Primary/Alternate Format: scan 0 for Primary Format 3.
  • Page 13: Programming Chart

    Programming Chart...
  • Page 14 Save...
  • Page 15: Limited Warranty

    For the user guide and other documentation, go to www.honeywellaidc.com. Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
