Honeywell Xenon Ultra 1960g
Para atingir a eficiência necessária para criar experiências elevadas para o
cliente, os varejistas precisam de uma solução de digitalização que capacite
os associados a se moverem por seus fluxos de trabalho de forma precisa e
sem impedimentos e com o Honeywell Xenon 1960g você tem tudo isso.
bztech.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xenon Ultra 1960g and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell Xenon Ultra 1960g

Summary of Contents for Honeywell Xenon Ultra 1960g

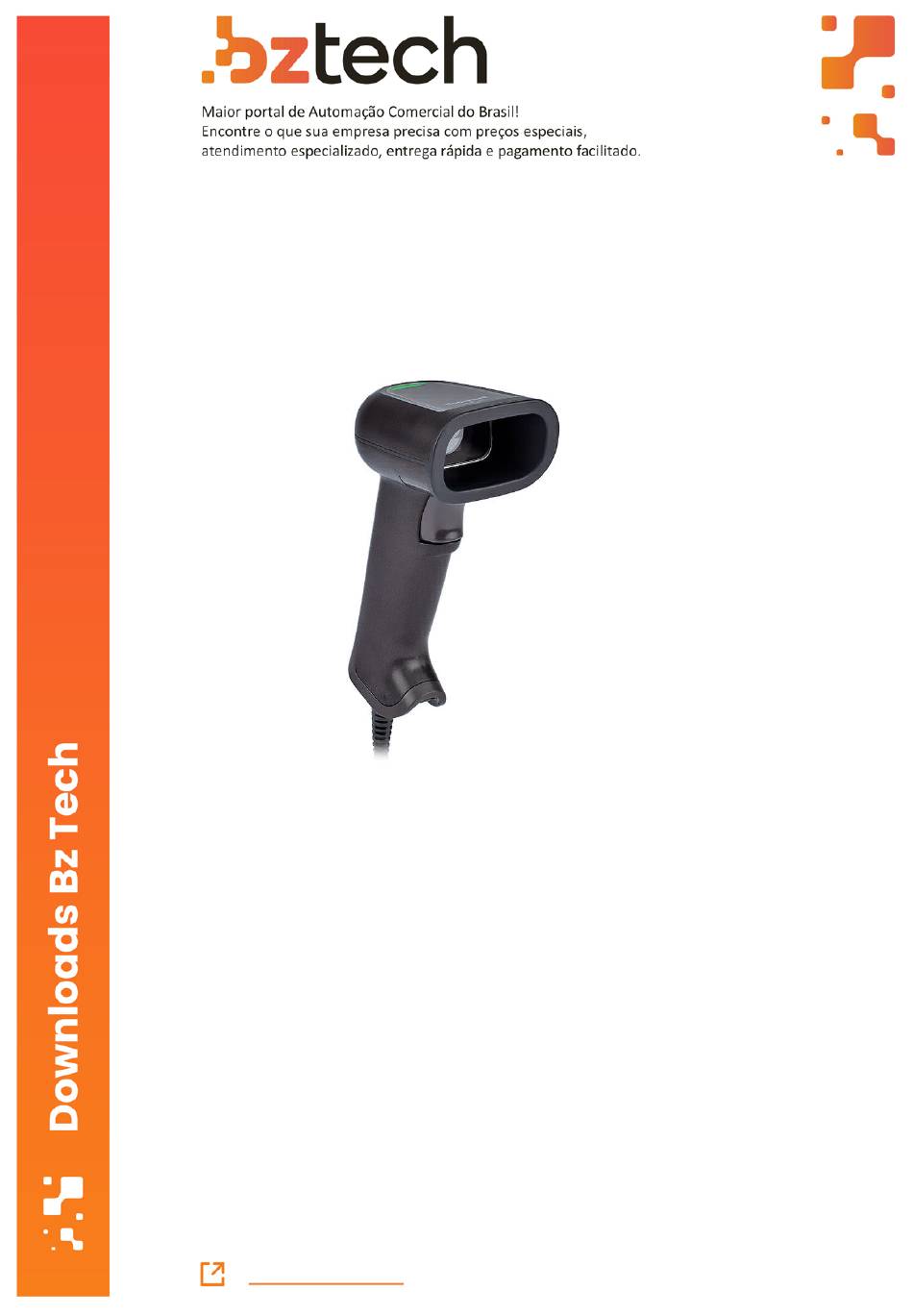

  • Page 1 Para atingir a eficiência necessária para criar experiências elevadas para o cliente, os varejistas precisam de uma solução de digitalização que capacite os associados a se moverem por seus fluxos de trabalho de forma precisa e sem impedimentos e com o Honeywell Xenon 1960g você tem tudo isso. bztech.com.br...
  • Page 2 Xenon™ Ultra 196X Series Area-Imaging Scanners Scanner Family: 1960g, 1960h, 1960li, 1962g, 1962h, 1962li User Guide...
  • Page 3 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. HII makes no representation or warranties regarding the information provided in this publication.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Customer Support ........................xvii Technical Assistance ......................xvii Product Service and Repair ..................... xvii Limited Warranty ......................... xvii Chapter 1 - Get Started ..................1 About This Manual......................... 1 Unpack Your Device........................1 Features of the Device........................2 Corded............................
  • Page 5 ACK/NAK Mode........................12 High Speed USB ...........................12 ® Verifone Ruby Terminal......................13 ® Gilbarco Terminal........................13 Honeywell Bioptic Aux Port .....................14 ® Datalogic™ Magellan Aux Port....................14 Wincor Nixdorf Terminal ......................14 Wincor Nixdorf Beetle™ Terminal ..................15 Wincor Nixdorf RS232 Mode A....................15 Keyboard Country Layout......................16 Keyboard Wedge Modifiers......................23...
  • Page 6 Scanner to Bioptic Communication ..................32 Scanner-Bioptic Packet Mode..................32 Scanner-Bioptic ACK/NAK Mode..................33 Scanner-Bioptic ACK/NAK Timeout ................33 Chapter 3 - Cordless System Operation .............35 How the Cordless Charge Base/Access Point Works.............35 Link the Scanner to a Base.......................35 Link the Scanner to an Access Point ..................36 Replace a Linked Scanner ......................36 Communication Between the Cordless System and the Host...........................36...
  • Page 7 Low Power Alert Range .......................45 Low Power Alert Flash Number ..................45 Low Power Alert Repeat ......................46 Low Power Alert Beep ......................46 Reset Scanner ..........................47 Scan While in Base Cradle......................47 Base Charge Modes........................47 Find My Button ..........................48 Find My Mode .........................48 Find My Pitch ..........................49 Error Indicators..........................49 Beeper Pitch - Base Error....................49...
  • Page 8 Enter Quantities ........................60 Batch Mode Output Order ....................62 Total Records...........................62 Delete Last Code........................62 Clear All Codes........................62 Transmit Records to Host....................63 Batch Mode Transmit Delay ....................63 Multiple Scanner Operation ....................64 Scanner Name..........................64 Application Work Groups ......................65 Application Work Group Selection ..................66 Reset the Factory Defaults: All Application Work Groups ..........67 Reset the Custom Defaults: All Application Work Groups ...........67 Use the Scanner with Bluetooth Devices................68...
  • Page 9 Beep on BEL Character ......................78 Trigger Click ...........................78 Good Read and Error Indicators ....................78 Beeper – Good Read......................78 Beeper Volume – Good Read ....................79 Beeper Pitch – Good Read ....................79 Beeper Pitch – Error ......................79 Beeper Duration – Good Read..................80 LED –...
  • Page 10 User-Specified Reread Delay ....................92 2D Reread Delay ........................93 Character Activation ........................93 Activation Character......................94 End Character Activation After Good Read ..............94 Character Activation Timeout...................94 Character Deactivation......................95 Deactivation Character .......................95 Illumination Lights ........................95 Aimer Delay.............................96 User-Specified Aimer Delay....................96 Aimer Mode ............................96 Presentation Aimer Mode ......................97 Centering............................97 Single Code Centering......................97 Custom Centering .........................97...
  • Page 11 Extract Delay ........................114 Chapter 5 - Healthcare Settings..............115 Quiet Operations - Combination Codes ................115 Silent Mode with Flashing LED ..................115 Silent Mode with Long LED ................... 116 Very Low Beeper (Nighttime Mode)................116 Low Beeper (Daytime Mode) ..................117 Quiet Operations - LED and Volume Settings ..............
  • Page 12 Chapter 7 - Data Format/Queue Busting..........129 Data Format Editor Introduction ..................129 Show Data Format ........................130 Add a Data Format........................130 Other Programming Selections ..................131 Terminal ID Table ........................132 Data Format Editor Commands ..................132 Send Commands ........................132 Move Commands........................138 Search Commands......................139 Miscellaneous Commands .....................142 Data Formatter...........................145 Data Format Non-Match Error Tone................146 Primary/Alternate Data Formats ..................147...
  • Page 13 Code 11............................166 Code 128 ............................167 ISBT 128 Concatenation ....................167 GS1-128 ............................169 Telepen............................170 UPC-A ............................172 UPC-A/EAN-13 with Extended Coupon Code .............. 174 Coupon GS1 DataBar Output ....................175 UPC-E0 ............................176 UPC-E1 ............................178 EAN/JAN-13 ..........................179 ISBN Translate........................
  • Page 14 MaxiCode............................205 Aztec Code ...........................206 Chinese Sensible (Han Xin) Code..................207 Postal Codes - 2D........................208 Planet Code Check Digit....................211 Postnet Check Digit ......................212 Australian Post Interpretation ..................212 Postal Codes - Linear ......................213 China Post (Hong Kong 2 of 5)..................213 Korea Post..........................214 Chapter 9 - Imaging Commands ............... 215 Single-Use Basis ........................215 Command Syntax........................215 Image Snap - IMGSNP......................216...
  • Page 15 Chapter 11 - Serial Programming Commands ........239 Conventions ..........................239 Menu Command Syntax ......................239 Query Commands........................240 Trigger Commands........................242 Reset the Custom Defaults ....................243 Menu Commands ........................244 Chapter 12 - Product Specifications............277 Xenon Ultra Product Specifications .................. 277 Depth of Field Charts ......................
  • Page 16 Change a Contactless Battery or Battery-Free Supercapacitor ......291 Troubleshoot a Corded Scanner..................291 Troubleshoot a Cordless System..................292 Troubleshoot a Base ......................292 Troubleshoot a Cordless Scanner ................293 Chapter A - Reference Charts ..............295 Symbology Charts........................295 Linear Symbologies ......................295 2D Symbologies ........................296 Postal Symbologies ......................297 ASCII Conversion Chart (Code Page 1252) ..............298 Lower ASCII Reference Table....................299 ISO 2022/ISO 646 Character Replacements ..............302...
  • Page 17 Xenon Ultra 196X Series User Guide...

  • Page 18: Customer Support

    For our latest contact information, see sps.honeywell.com. Product Service and Repair Honeywell International Inc. provides service for all of its products through service centers throughout the world. Go to sps.honeywell.com and select Support to find a service center near you or to get a Return Material Authorization number (RMA #) before returning a product.
  • Page 19 xviii Xenon Ultra 196X Series User Guide...

  • Page 20: Chapter 1 - Get Started

    Product specifications, dimensions, warranty, and customer support information are also included. Honeywell barcode scanners are factory programmed for the most common terminal and communications settings. If you need to change these settings, programming is accomplished by scanning the barcodes in this guide.

  • Page 21: Features Of The Device

    Features of the Device Corded LED Locations Cable Release (see page 288) Interface Cable Connection Cordless Front Scanner LEDs Battery LED Scanner Window End Cap Back Scanner LEDs Speaker* End Cap for Contactless Scanner End Cap for End Cap Screw Contact Scanner * Only applies to 1962g/1962li.

  • Page 22: Connect The Corded Device

    Connect the Corded Device Connect with USB A scanner can be connected to the USB port of a computer. 1. Connect the appropriate interface cable to the device first, then to the com- puter. Corded Scanner USB Connection: Note: The power supply must be ordered separately, if needed. 2.

  • Page 23: Connect With Keyboard Wedge

    Connect with Keyboard Wedge A scanner can be connected between the keyboard and PC as a “keyboard wedge,” where the scanner provides data output that is similar to keyboard entries. Note: Power must be turned off before connecting the keyboard cable. The following is an example of a keyboard wedge connection: 1.

  • Page 24: Connect With Rs232 Serial Port

    Connect with RS232 Serial Port 1. Turn off power to the terminal/computer. 2. Connect the appropriate interface cable to the scanner. Note: For the scanner to work properly, you must have the correct cable for your type of terminal/computer. Corded Scanner RS232 Serial Port Connection: Note: The power supply must be ordered separately, if needed.

  • Page 25: Connect The Cordless Device

    Connect the Cordless Device Note: If you are charging the scanner using the USB cable, the current available for charging is reduced and charge times are increased. Charging via the power supply or the BC1.2 charge port is faster. 1. Plug the power supply in the bottom of the base. Horizontal CCB Presentation CCB 2.

  • Page 26: Reading Techniques

    2D Matrix Symbol Menu Barcode Security Settings Honeywell scanners are programmed by scanning menu barcodes or by sending serial commands to the scanner. If you want to restrict the ability to scan menu codes, you can use the Menu Barcode Security settings. Contact the nearest...

  • Page 27: Reset The Custom Defaults

    You may have a series of custom settings and want to correct a single setting. To do so, just scan the new setting to overwrite the old one. For example, if you had previously saved the setting for Beeper Volume at Low to your custom defaults, and decide you want the beeper volume set to High, just scan the Set Custom Defaults barcode, then scan the Beeper Volume High menu code, and then Save Custom Defaults.

  • Page 28: Chapter 2 - Program The Interface

    CHAPTER PROGRAM THE INTERFACE Introduction This chapter describes how to program your system for the desired interface. Program the Interface - Plug and Play Plug and Play barcodes provide instant scanner set up for commonly used interfaces. Note: After you scan one of the codes, power cycle the host terminal to have the interface in effect.

  • Page 29: Laptop Direct Connect

    Laptop Direct Connect For most laptops, scanning the Laptop Direct Connect barcode allows operation of the scanner in parallel with the integral keyboard. The following Laptop Direct Connect barcode also programs a carriage return (CR) suffix and turns on Emulate External Keyboard (page 24).

  • Page 30: Usb Pc Or Macintosh Keyboard

    USB HID Barcode Scanner USB Serial If you are using a Microsoft® Windows® PC, you will need to download the latest driver from the Honeywell Technical Support Downloads Portal at honeywell.com/ PSSsoftware-downloads. The driver will use the next available COM Port number.

  • Page 31: Cts/Rts Emulation

    No extra configuration (e.g., baud rate) is necessary. Note: If you scan the USB Serial barcode either with an older Honeywell serial driver, or no driver installed, you may no longer be able to scan barcodes. If this happens, either uninstall the older driver versions and install the latest driver, or delete the specific device entry in Device Manager.

  • Page 32: Verifone ® Ruby Terminal

    High Speed USB On ® Verifone Ruby Terminal Scan the following Plug and Play code to program the scanner for a Verifone Ruby terminal. This barcode sets the baud rate to 1200 bps and the data format to 8 data bits, mark parity bit, 1 stop bit.

  • Page 33: Honeywell Bioptic Aux Port

    Honeywell Bioptic Aux Port Scan the following Plug and Play code to program the scanner for a Honeywell bioptic scanner auxiliary port configuration. This barcode sets the baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop bit.

  • Page 34: Wincor Nixdorf Beetle™ Terminal

    Wincor Nixdorf Beetle™ Terminal Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf Beetle terminal. The following prefixes are programmed for each symbology: Symbology Prefix Symbology Prefix Aztec Code Interleaved 2 of 5 Codabar MaxiCode Code 93 MicroPDF417...

  • Page 35: Keyboard Country Layout

    Keyboard Country Layout If your interface is USB Keyboard or Keyboard Wedge, your keyboard layout default is a US keyboard. To change this layout, scan the appropriate Keyboard Country barcode below. By default, national character replacements are used for the following characters: # $ @ [ \ ] ^ ‘...
  • Page 36 Keyboard Countries (Continued) Bulgaria (Latin) Canada (French legacy) Canada (French) Canada (Multilingual) Croatia Czech Czech (Programmers) Czech (QWERTY) Czech (QWERTZ) Denmark Dutch (Netherlands) Estonia Xenon Ultra 196X Series User Guide...
  • Page 37 Keyboard Countries (Continued) Faroese Finland France Gaelic Germany Greek Greek (220 Latin) Greek (220) Greek (319 Latin) Greek (319) Greek (Latin) Greek (MS) Xenon Ultra 196X Series User Guide...
  • Page 38 Keyboard Countries (Continued) Greek (Polytonic) Hebrew Hungarian (101 key) Hungary Iceland Irish Italian (142) Italy Japan ASCII Kazakh Kyrgyz (Cyrillic) Latin America Xenon Ultra 196X Series User Guide...
  • Page 39 Keyboard Countries (Continued) Latvia Latvia (QWERTY) Lithuania Lithuania (IBM) Macedonia Malta Mongolian (Cyrillic) Norway Poland Polish (214) Polish (Programmers) Portugal Xenon Ultra 196X Series User Guide...
  • Page 40 Keyboard Countries (Continued) Romania Russia Russian (MS) Russian (Typewriter) Serbia (Cyrillic) Serbia (Latin) Slovakia Slovakia (QWERTY) Slovakia (QWERTZ) Slovenia Spain Xenon Ultra 196X Series User Guide...
  • Page 41 Keyboard Countries (Continued) Spanish variation Sweden Switzerland (French) Switzerland (German) Tatar Turkey F Turkey Q Ukrainian United Kingdom United States (Dvorak) United States (Dvorak left) United States (Dvorak right) Xenon Ultra 196X Series User Guide...

  • Page 42: Keyboard Wedge Modifiers

    Keyboard Countries (Continued) United States (International) Uzbek (Cyrillic) Keyboard Wedge Modifiers ALT Mode If your barcode contains special characters from the extended ASCII chart, for example, an e with an accent grave (è), you will use ALT Mode. (See Extended ASCII Characters on page 299.) Note: Scan the ALT mode barcode after scanning the appropriate Keyboard Country code.
  • Page 43 Regular is used when you normally have the Caps Lock key off. * Regular Caps Lock is used when you normally have the Caps Lock key on. Caps Lock Shift Lock is used when you normally have the Shift Lock key on (not common to U.S.

  • Page 44: Keyboard Conversion

    Keyboard Conversion Alphabetic keyboard characters can be forced to be all upper case or all lowercase. So if you have the following barcode: “abc569GK,” you can make the output “ABC569GK” by scanning Convert All Characters to Upper Case, or to “abc569gk” by scanning Convert All Characters to Lower Case.

  • Page 45: Keyboard Modifiers

    Keyboard Modifiers This modifies special keyboard features, such as CTRL+ ASCII codes and Turbo Mode. Control + X (Control + ASCII) Mode On: The scanner sends key combinations for ASCII control characters for values 00-1F. Windows is the preferred mode. All keyboard country codes are supported.
  • Page 46 Turbo Mode: The scanner sends characters to a terminal faster. If the terminal drops characters, do not use Turbo Mode. Default = Off. Turbo Mode On * Turbo Mode Off Numeric Keypad Mode: Sends numeric characters as if entered from a numeric keypad.

  • Page 47: Rs232 Modifiers

    RS232 Modifiers RS232 Baud Rate Baud Rate sends the data from the scanner to the terminal at the specified rate. The host terminal must be set for the same baud rate as the scanner. Default = 115,200. 1200 2400 4800 9600 19200 38400...

  • Page 48: Rs232 Word Length: Data Bits, Stop Bits, And Parity

    * 115,200 RS232 Word Length: Data Bits, Stop Bits, and Parity Data Bits sets the word length at 7 or 8 bits of data per character. If an application requires only ASCII Hex characters 0 through 7F decimal (text, digits, and punctuation), select 7 data bits.

  • Page 49: Rs232 Receiver Time-Out

    8 Data, 1 Stop, Parity Odd 8 Data, 1 Stop, Parity Mark RS232 Receiver Time-Out The unit stays awake to receive data until the RS232 Receiver Time-Out expires. A manual or serial trigger resets the time-out. When an RS232 receiver is sleeping, a character may be sent to wake up the receiver and reset the time-out.

  • Page 50: Rs232 Timeout

    Flow Control with Timeout * RTS/CTS Off RS232 Timeout When using Flow Control with Timeout, you must program the length of the delay you want to wait for CTS from the host. Set the length (in milliseconds) for a timeout by scanning the barcode below, then setting the timeout (from 1-5100 milliseconds) by scanning digits from the Programming Chart, beginning on page...

  • Page 51: Scanner To Bioptic Communication

    * ACK/NAK Off Scanner to Bioptic Communication The following settings are used to set up communication between Honeywell scanners and bioptic scanners. Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout must be set to 3000 in order to communicate with a bioptic scanner.

  • Page 52: Scanner-Bioptic Ack/Nak Mode

    Scanner-Bioptic ACK/NAK Mode Bioptic ACK/NAK On must be scanned so the scanner will wait for an ACK or NAK from a bioptic scanner after each packet is sent. The Scanner-Bioptic ACK/NAK Timeout (below) controls how long the scanner will wait for a response. Default = Bioptic ACK/NAK Off.
  • Page 53 Xenon Ultra 196X Series User Guide...

  • Page 54: Chapter 3 - Cordless System Operation

    CHAPTER CORDLESS SYSTEM OPERATION This chapter is supported by 1962x Series scanners. How the Cordless Charge Base/Access Point Works A charge and communication base or an Access Point provides the link between the cordless scanner and the host system. The base/Access Point contains an interface assembly and an RF communication module.

  • Page 55: Link The Scanner To An Access Point

    Link the Scanner to an Access Point Turn on the computer (laptop/desktop). Plug the interface cable into the Access Point first and then into the Page Button appropriate port on the computer. The page button lights up when the connection to the host is made. Scan the linking barcode on the top of the Access Point to establish a connection between the Access Point and the scanner.

  • Page 56: Program The Scanner And Base Or Access Point

    When data is scanned, the data is sent to the host system via the base or Access Point. The cordless scanner recognizes data acknowledgment (ACK) from the base or Access Point. If it cannot be determined that the data has been properly sent to the base or Access Point, the scanner issues an error indication.

  • Page 57: System Conditions

    System Conditions The components of the cordless system interact in specific ways as you associate a scanner to a base or Access Point, as you move a scanner out of range, bring a scanner back in range, or swap scanners between two cordless systems. The following information explains the cordless system operating conditions.

  • Page 58: Find My Button

    Find My Button When you press the Find My button on the base, the scanners associated with that base will begin beeping (3 short and 1 long beep). If you press the trigger on a scanner that is beeping in response, or press the Find My button on the base or a second time, all associated scanners will stop beeping.

  • Page 59: Temporary Streaming Presentation Timeout

    Temporary Streaming Presentation Timeout Set a timeout for the length of time the illumination remains on and searching for barcodes when using Temporary Streaming Presentation Mode. Set the length for the timeout by scanning one of the barcodes below. Default = 10,000 ms (10 seconds).

  • Page 60: Battery Recommendations

    Avoid dropping the battery or device. If you suspect the battery and/or device is damaged or if intermittent power and charging issues occur, send the relevant device(s) to a Honeywell service center for inspection of the device and/or battery. •...

  • Page 61: Battery-Free Supercapacitor Information

    Caution: A Xenon Ultra battery-free supercapacitor can be only charged by a Xenon Ultra Presentation charge/communication base or Horizontal charge/communication base. Use of any non- Honeywell power supply may results in damage not covered by the warranty. Power is supplied to the cordless scanner by a rechargeable battery-free supercapacitor that is integrated in the scanner handle.

  • Page 62: Access Point Communication And Scanning

    Access Point Communication and Scanning The following feedback is provided by the Access Point (blue LED) and indicates communication and scanning status. Communication Condition USB suspend On continuously Power on, system idle Short blinks in multiple pulses. Occurs while Receiving data transferring data to/from the RF module or the Host port.

  • Page 63: Base Charge Status

    Base Charge Status When charging the base indicates the progress while the scanner resides in the base. Wireless Wireless Battery-Free Charger Charge Status Battery Charger Supcap Battery-Free Battery Supcap Charging Green LED Green LED Green LED LED Off Breathing Breathing Breathing Charge Complete Green On...

  • Page 64: Low Power Alerts

    Low Power Alerts Low power alerts allow you to customize battery LED to flash in different patterns when the charge level is low. Use the barcodes that follow to customize the settings for the power range being configured, the number of flashes per alert, the interval between flashes, the number of alerts, and the interval between alerts.

  • Page 65: Low Power Alert Repeat

    Interval Between Flashes Set the length of time, in seconds, between the LED flashes for a low power alert. To set the interval, scan the barcode below and then scan a digit (1-9) barcode from Programming Chart, beginning on page 309, then Save. Default = 2 seconds between flashes.

  • Page 66: Reset Scanner

    *Low Power Alert Beep On Reset Scanner Scanning this barcode reboots the scanner and causes it to relink with the base or Access Point. Reset Scanner Scan While in Base Cradle If you want to be able to scan barcodes while the scanner is in the base cradle, scan the Scan in Cradle On barcode below.

  • Page 67: Find My Button

    When Base Charge Off is selected, the scanner does not charge when the scanner is in the base cradle. When External or Interface Cable Power is selected, the scanner charges from the base’s external power supply, if there is one. If there is no external power supply to the base, the scanner charges from the interface cable.

  • Page 68: Find My Pitch

    Find My Mode Off Find My Pitch When you press the Find My button on the base or Access Point, the scanners associated with that base or Access Point will begin beeping (see Find My Mode page 48). You can set the pitch of the Find My beep for each scanner by scanning one of the following barcodes.

  • Page 69: Number Of Beeps - Base Error

    Number of Beeps - Base Error The number of beeps and LED flashes emitted by the base for an error condition can be programmed from 1 - 9. For example, if you program this option to have five error beeps, there will be five error beeps and five LED flashes in response to an error.

  • Page 70: Battery/Battery-Free Supercapacitor Information

    Battery/Battery-Free Supercapacitor Information Scan the barcode below to determine if you have a battery or a battery-free supercapacitor. Battery/Battery-Free Supercapacitor Info Scanner Modes Your scanner is capable of working in single scanner mode, multiple scanner mode, or with Bluetooth devices other than the base or Access Point. Charge Only Mode There may be times when you want to charge your scanner, but not link to the base.

  • Page 71: Linked Modes

    Linked Modes Locked Link Mode and Open Link Mode are the link modes that accommodate different applications. Scan the appropriate barcodes included in the Open Link and Locked Link Mode explanations that follow to switch from one mode to another. Default = Open Link Mode. Locked Link Mode - Single Scanner If you link a scanner to a base or an Access Point using the Locked Link Mode, other scanners are blocked from being linked if they are inadvertently placed into...

  • Page 72: Override Locked Scanner

    Override Locked Scanner If you need to replace a broken or lost scanner that is linked to a base or an Access Point, scan the Override Locked Scanner barcode below with a new scanner and place that scanner in the base, or scan the Access Point linking barcode. The locked link will be overridden;...

  • Page 73: Scanner Power Time-Out Timer

    Setting Sound 3 long beeps, medium pitch 3 long beeps, high pitch 4 short beeps, medium pitch 4 short beeps, high pitch single chirps, medium pitch 2 chirps, then 1 chirp, medium pitch single chirps, high pitch 2 chirps, then 1 chirp, high pitch Base Alarm Type Scanner Alarm Type Scanner Power Time-Out Timer...

  • Page 74: Power Save Mode

    0 seconds 200 seconds 400 seconds 900 seconds * 3600 seconds 7200 seconds Note: When the scanner is in power down mode, press the trigger to power the unit back up. There will be a set of power up beeps and a delay of up to a few seconds for the radio to join.

  • Page 75: Scanner Power Save Time-Out Timer

    Scanner Power Save Time-Out Timer Note: Power Save Mode only applies to Xenon Ultra battery-free scanners. When there is no activity and the scanner is out of the base within a specified time, the scanner enters Power Save Mode. Scan the appropriate barcode to change the time-out duration (in seconds).

  • Page 76: Flexible Power Management

    Flexible Power Management If you are experiencing network performance issues, and suspect the scanner is interfering with other devices, you can turn down the power output of the scanner. This reduces the range between the scanner and a base or an Access Point as shown in the following illustration: Scanner 802.11...

  • Page 77: Batch Mode

    Access Point once the scanner is back in range or when the records are manually transmitted. Note: Batch Mode is only supported by the Honeywell Charge and Communication Base (CCB) and Honeywell Access Point (AP). Batch mode has limitations when using multiple scanners to one base or Access Point.

  • Page 78: Batch Mode Beep

    Inventory Batch Mode Persistent Batch Mode Batch Mode Beep When scanning in Inventory Batch Mode (page 59), the scanner beeps every time a barcode is scanned. When Batch Mode Beep is On, you will also hear a click when each barcode is sent to the host. If you do not want to hear these clicks, scan Batch Mode Beep Off.

  • Page 79: Batch Mode Quantity

    RAM Storage Batch Mode Quantity When in Batch Mode, you may wish to transmit the number of multiple barcodes scanned, rather than a single barcode multiple times. For example, if you scan three barcodes called XYZ with Batch Mode Quantity Off, when you transmit your data it will appear as XYZ three times.
  • Page 80 5. Scan the quantity 0 barcode. Example: Change a quantity of 103 to 10. To correct an incorrect quantity, scan the quantity 0 barcode to replace the incorrect digits, then scan the correct quantity barcodes. 1. Scan the quantity 0 barcode to change the quantity to 1030. 2.

  • Page 81: Batch Mode Output Order

    Quantity Codes (Continued) Batch Mode Output Order When batch data is transmitted, select whether you want that data sent as FIFO (first-in first-out), or LIFO (last-in first-out). Default = Batch Mode FIFO. * Batch Mode FIFO Batch Mode LIFO Total Records If you wish to output the total number of barcodes scanned when in Batch Mode, scan Total Records.

  • Page 82: Transmit Records To Host

    Clear All Codes Transmit Records to Host If you are operating in Inventory Batch Mode (see Inventory Batch Mode on page 59), you must scan the following barcode to transmit all the stored data to the host system. Transmit Inventory Records Batch Mode Transmit Delay Sometimes when accumulated scans are sent to the host system, the transmission of those scans is too fast for the application to process.

  • Page 83: Multiple Scanner Operation

    Multiple Scanner Operation Note: Multiple Scanner Operation Mode for battery scanners allows you to link up to 7 scanners to one base or Access Point. You cannot join a 8th scanner until you unlink one of the 7 scanners or take a scanner out of range. Note: Multiple Scanner Operation Mode for battery-free supercapacitor scanners allows you to link up to 3 scanners to one base or Access Point.

  • Page 84: Application Work Groups

    0003 0004 0005 0006 0007 Reset You may also scan the Scanner Name barcode below and scan a number for the scanner name. For example, if you wanted to name the linked scanner “312,” you would scan the barcode below, scan the 3, 1, and 2 barcodes on the Programming Chart, beginning on page 309, then Save.

  • Page 85: Application Work Group Selection

    Honeywell’s online configuration tool, EZConfig-Scanning (page 236), makes it easy for you to program your system for use with multiple scanners and multiple work groups. The scanner keeps a copy of the menu settings it is using. Whenever the scanner is connected or reconnected to a base or an Access Point, the scanner is updated with the latest settings from the base or Access Point for its work group.

  • Page 86: Reset The Factory Defaults: All Application Work Groups

    Reset the Factory Defaults: All Application Work Groups The following barcode defaults all of the work groups to the factory default settings. PAPDFT& Factory Default Settings: All Work Groups To see what the factory default settings are, refer to the table of Menu Commands, beginning on page 244.

  • Page 87: Use The Scanner With Bluetooth Devices

    The scanner can be used either with the base, an Access Point, or with other Bluetooth devices. Those devices include personal computers, laptops, PDAs, and Honeywell mobility systems devices. Bluetooth Secure Simple Pairing (SSP) Secure Simple Pairing (SSP) allows you to connect simply and securely to other...

  • Page 88: Virtual Keyboard

    4. If your device does not automatically pair with the scanner, a PIN is displayed. This PIN must be scanned within 60 seconds. Quickly scan the Bluetooth PIN Code below and then scan the appropriate numeric barcodes from the Programming Chart, beginning on page 309, then Save.

  • Page 89: Pdas/Mobility Systems Devices

    PDAs/Mobility Systems Devices You may also use the scanner with a PDA or a Honeywell Mobility Systems device. Scan the barcode below and follow the instructions supplied with your Bluetooth device to locate the scanner, and connect with it. BT Connection - PDA/Mobility Systems Device Change the Scanner’s Bluetooth PIN Code...

  • Page 90: Maximum Link Attempts

    The table below shows the results of the Auto Reconnect On and Off settings: Event Auto Reconnect On Auto Reconnect Off Scanner out of range Relink occurs automatically. If The scanner is relinked by maximum number of link attempts pulling the trigger, or scanning is unsuccessful, then the scanner the Access Point linking must be relinked by either pulling...

  • Page 91: Relink Time-Out

    Scan the Maximum Link Attempts barcode, then scan the number of attempts for the setting (from 0-100) from theProgramming Chart, beginning on page 309, then Save. Default = 0. Maximum Link Attempts Note: When Auto Reconnect Mode is On, setting Maximum Link Attempts to zero will cause the scanner to try to link until the Power Time-Out Timer setting expires.

  • Page 92: Host Acknowledgment

    the scanner stops trying to connect to the base or Access Point, but retains any barcodes that may have been saved in batch mode. After one hour, the scanner powers off and batch mode data is lost. Example: Auto Reconnect Mode set to 0 Maximum Link Attempts set to 15 Other values at default setting When the scanner goes out of range, no action is taken to relink.
  • Page 93 • The host terminal software must be capable of interpreting the barcode data, make decisions based on the data content, and send out appropriate escape commands to the scanner. Escape commands are addressed to the scanner via “Application Work Groups.” Once a command is sent, all scanners in a group respond to that command.

  • Page 94: Host Ack On/Off

    Host ACK On/Off Host ACK On * Host ACK Off Host ACK Timeout You can set a timeout for the length of time the scanner waits for a valid escape command when using Host Acknowledgment Mode. Set the length (in seconds) for a timeout by scanning the following barcode, then setting the timeout (from 1-90 seconds) by scanning digits from the Programming Chart,...
  • Page 95 Xenon Ultra 196X Series User Guide...

  • Page 96: Chapter 4 - Input/Output Settings

    CHAPTER INPUT/OUTPUT SETTINGS Power Up Beeper The scanner can be programmed to beep when it’s powered up. If you are using a cordless system, the base can also be programmed to beep when it is powered up. Scan the Off barcode(s) if you don’t want a power up beep. Default = Power Up Beeper On - Scanner.

  • Page 97: Beep On Bel Character

    Beep on BEL Character You may wish to force the scanner to beep upon a command sent from the host. If you scan the Beep on BEL On barcode below, the scanner will beep every time a BEL character is received from the host. Default = Beep on BEL Off. *Beep on BEL Off Beep on BEL On Trigger Click...

  • Page 98: Beeper Volume - Good Read

    Beeper Volume – Good Read The beeper volume codes modify the volume of the beep the scanner emits on a good read. Default = High for 196xg/196xli, Low for 196xh scanners. * Low Medium * High Beeper Pitch – Good Read The beeper pitch codes modify the pitch (frequency) of the beep the scanner emits on a good read.

  • Page 99: Beeper Duration - Good Read

    Medium (3250 Hz) High (4200 Hz) Beeper Duration – Good Read The beeper duration codes modify the length of the beep the scanner emits on a good read. Default = Normal. * Normal Beep Short Beep Short Beep LED – Good Read The LED indicator can be programmed On or Off in response to a good read.

  • Page 100: Number Of Beeps - Error

    sync with one another. To change the number of beeps, scan the barcode below and then scan a digit (1-9) barcode from the Programming Chart, beginning on page 309, then Save. Default = 1. Number of Good Read Beeps/LED Flashes Number of Beeps –...

  • Page 101: User-Specified Good Read Delay

    User-Specified Good Read Delay If you want to set your own length for the good read delay, scan the barcode below, then set the delay (from 0 - 30,000 milliseconds) by scanning digits from the Programming Chart, beginning on page 309, then Save. User-Specified Good Read Delay Trigger Modes Manual Trigger...

  • Page 102: Trigger Timing

    Trigger Toggle - Image Capture Trigger Toggle - Centering Trigger Number This sets the number of trigger presses required to activate the Trigger Toggle Mode. 2 Quick Triggers 3 Quick Triggers 4 Quick Triggers Trigger Timing This sets the timing of the trigger presses in order to qualify as a trigger toggle, rather than a regular trigger press.

  • Page 103: Serial Trigger

    Trigger Toggle Timeout This sets the length of time the scanner stays in trigger toggle mode before reverting to scan mode. After scanning the Trigger Toggle Timeout barcode, set the time-out duration (from 0 to 65 seconds) by scanning digits from the beginning on page 309, then Save.

  • Page 104: Presentation Mode

    Presentation Mode Presentation Mode uses ambient light and scanner illumination to detect barcodes. When in Presentation Mode, the LEDs remain dim until a barcode is presented to the scanner, then the aimer turns on and the LEDs turn up to read the code.

  • Page 105: Presentation Led Behavior After Decode

    Presentation LED Behavior after Decode When a scanner is in presentation mode, the LED aimer dims 30 seconds after a barcode is decoded. If you wish to dim the LED aimer immediately after a barcode is decoded, scan the LEDs Off barcode, below. Default = LEDs On. * LEDs On LEDs Off Presentation Centering...
  • Page 106 Barcode 1 Barcode 2 100% Note: A barcode needs only to be touched by the centering window in order to be read. It does not need to pass completely through the centering window. Scan Presentation Centering On, then scan one of the following barcodes to change the top, bottom, left, or right of the centering window.

  • Page 107: Presentation Reread Control

    Left of Presentation Centering Window Right of Presentation Centering Window Presentation Reread Control This prevents accidental rereads of the same barcode in Presentation Mode. These commands only work when in Presentation Mode (see page 85). Default = Do Not Forget History, Run During Scan Session. Forget History and Run All the Time When the trigger ins initiated, barcode history is forgotten and the Reread Delay...

  • Page 108: In-Stand Sensor Mode

    When the trigger is initiated, barcode history is not forgotten, and the Reread Delay runs only during the scan session. * Do Not Forget History, Run During Scan Session In-Stand Sensor Mode This feature senses when the scanner is removed from the stand and tells it to begin manual triggering.

  • Page 109: Poor Quality Pdf Codes

    Poor Quality PDF Codes This setting improves the scanner’s ability to read damaged or badly printed PDF codes by combining information from multiple images. It is useful when a complete barcode cannot be seen in one image. This setting does not affect 1D barcode reading.

  • Page 110: Streaming Presentation Mode

    CodeGate On Out-of-Stand Streaming Presentation Mode When in Streaming Presentation mode, the scan illumination remains on all the time to continuously search for barcodes. Two modes are available, Normal and Enhanced. Normal mode offers good scan speed and the longest working ranges (depth of field).

  • Page 111: Reread Delay

    Scan the Hands Free Time-Out barcode, then scan the time-out duration (from 0- 300,000 milliseconds) from the Programming Chart, beginning on page 309, then Save. Default = 5,000 ms. Hands Free Time-Out Reread Delay This sets the time period before the scanner can read the same barcode a second time.

  • Page 112: 2D Reread Delay

    2D Reread Delay Sometimes 2D barcodes can take longer to read than other barcodes. If you wish to set a separate Reread Delay for 2D barcodes, scan one of the programming codes that follows. 2D Reread Delay Off indicates that the time set for Reread Delay used for both 1D and 2D barcodes.

  • Page 113: Activation Character

    Activation Character This sets the character used to trigger scanning when using Character Activation Mode. On the ASCII Conversion Chart (Code Page 1252), page 298, find the hex value that represents the character you want to use to trigger scanning. Scan the following barcode, then use the Programming Chart to read the alphanumeric...

  • Page 114: Character Deactivation

    Character Deactivation If you have sent a character from the host to trigger the scanner to begin scanning, you can also send a deactivation character to stop scanning. Scan the following On barcode to use character deactivation, then use Deactivation Character (following) to select the character you will send from the host to terminate scanning.

  • Page 115: Aimer Delay

    Aimer Delay The aimer delay allows a delay time for the operator to aim the scanner before the picture is taken. Use these codes to set the time between when the trigger is pulled and when the picture is taken. During the delay time, the aiming light will appear, but the LEDs won’t turn on until the delay time is over.

  • Page 116: Presentation Aimer Mode

    Presentation Aimer Mode This feature allows you to turn the aimer on and off while the scanner is in Presentation Mode, Presentation - Mobile Phone, Streaming Presentation Mode, or Streaming Presentation - Mobile Phone. When the Interlaced bar code is scanned, the aimer is interlaced with the illumination LEDs.
  • Page 117 that pass through the centering window you specify using the Top of Centering Window, Bottom of Centering Window, Left, and Right of Centering Window barcodes. Example: In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right, 8% top, and 25% bottom.

  • Page 118: Preferred Symbology

    Top of Centering Window Bottom of Centering Window Left of Centering Window Right of Centering Window Preferred Symbology The scanner can be programmed to specify one symbology as a higher priority over other symbologies in situations where both barcode symbologies appear on the same label, but the lower priority symbology cannot be disabled.

  • Page 119: High Priority Symbology

    Scan a barcode below to enable or disable Preferred Symbology. Default = Preferred Symbology Off. Preferred Symbology On * Preferred Symbology Off High Priority Symbology To specify the high priority symbology, scan the High Priority Symbology barcode below. On the Symbology Charts on page 295, find the symbology you want to set as high priority.

  • Page 120: Preferred Symbology Default

    encountered. Scan the barcode below, then set the delay (from 1-3,000 milliseconds) by scanning digits from the Programming Chart, beginning on page 309, then Save. Default = 500 ms. Preferred Symbology Time-out Preferred Symbology Default Scan the barcode below to set all Preferred Symbology entries to their default values.

  • Page 121: Output Sequence Editor Commands

    3. Length Specify what length (up to 9999 characters) of data output will be acceptable for this symbology. Make a note of the length. If you are using barcodes to create your output sequence, scan the 4 digit data length Programming Chart, beginning on page 309.
  • Page 122 SEQ_EN2 Require output sequence required. BEPSIN0 Good read beep - each code in sequence. BEPSIN1 Good read click - each code in sequence. BEPISE0 Good read beep - partial sequence output. BEPISE1 Error tone - partial sequence output. Examples outlining how to use these commands are shown below. Output Sequence Example 1 - Three Symbologies In this example, you are scanning PDF417, Code 128, and Code 39 barcodes, but you want the scanner to output Code 39 first, Code 128 second, and PDF417 third.
  • Page 123 SEQBLK62999943FF6A999954FF7299994DFF. SEQDFT;SEQ_EN1;SEQBLK62999943FF6A999954FF7299994DFF. The data is output as: CODE39SMPLTSTMSGCODE128MSGPDF417 Output Sequence Example 2 - Three Symbologies with <> Separators In this example, you are scanning the same three barcodes, but you want <> brackets and a carriage return and line feed to separate your output. The sequence editor would use the same command line as shown in Output Sequence Example 1 - Three Symbologies...

  • Page 124: Enter Output Sequence

    termination string for third code But you would add your <> separators for each sequence: SEQSEP99 separator for each sequence, 99 = all symbologies left bracket (<) right bracket (>) And add the carriage return and line feed as a suffix: SEQSUF99 separator for suffixes, 99 = all symbologies carriage return...
  • Page 125 Partial Sequence Example - Three Symbologies with <> Separators, but with a Damaged Code In this example, you are scanning PDF417, Code 128, and Code 39 barcodes, and you want the scanner to output Code 39 first, Code 128 second, and PDF417 third, in brackets, as shown below, but the Code 39 barcode has been damaged and cannot be output.
  • Page 126 SEQISU99 separator for suffixes, 99 = all symbologies carriage return line feed And you would add >PARTIAL< as the prefix to note the partial sequence: SEQTTS1 transmit partial sequence SEQIPR99 add partial sequence prefix, 99 = all symbologies right bracket (>) left bracket (<) The whole command line would look like this: SEQBLK62999943FF6A999954FF7299994DFF;SEQISE993C3E;SEQISU990D0...
  • Page 127 Output Sequence Timeouts You can set a timeout for every code in the output sequence defined by the SEQBLK command. The scanner applies the shortest timeout corresponding to any of the codes that have been read during the current trigger session. When the timeout expires, the scanner sends all codes that it has been read in the order they appear in the sequence defined by SEQBLK.
  • Page 128 To define a subset with an odd number of codes, insert a 0 before the final code index. For example, to define a 3-code subset consisting of the first, second, and third codes, use the command SEQSAT1203FF. In this example command SEQBLK62999943FF6A999954FF7299994DFF will set the first code in the sequence to Code 39 “C”, second code to Code 128 “T”, and third code to PDF417 “M”.

  • Page 129: Require Output Sequence

    4. First scan Code 128, and then scan PDF417. Output TSTMSGCODE128MSGPDF417 5. First scan PDF417, and then scan Code 128. Output TSTMSGCODE128MSGPDF417 Default Output Sequence Default Sequence programs the scanner to all universal values. Be certain you want to delete or clear all formats before you read the Default Sequence symbol. Default Sequence Require Output Sequence When an output sequence is Required, all output data must conform to an edited...

  • Page 130: Multiple Symbols

    Good Read Beep - Each Code in Sequence * Good Read Click - Each Code in Sequence Good Read Beep - Partial Sequence Output * Error Tone - Partial Sequence Output Multiple Symbols When this programming selection is turned On, it allows you to read multiple symbols with a single pull of the scanner’s trigger.

  • Page 131: No Read

    has been successfully decoded. Scan the Multiple Symbol Count barcode and then set the count (from 0-128) by scanning digits on the Programming Chart page 309, then Save. Default = 0 (Off). Multiple Symbols Count No Read With No Read turned On, the scanner notifies you if a code cannot be read. If using an EZConfig-Scanning Tool Scan Data Window (see page 237), an “NR”...

  • Page 132: Working Orientation

    Video Reverse and Standard Barcodes * Video Reverse Off Working Orientation Some barcodes are direction-sensitive. For example, KIX codes and OCR can misread when scanned sideways or upside down. Use the working orientation settings if your direction-sensitive codes will not usually be presented upright to the scanner.

  • Page 133: Extract Delay

    Vertical, Top to Bottom Extract Delay An extract delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each barcode in the message string. Scan the Extract Delay barcode below, then scan the number of 5ms delays, and the Save barcode from the Programming Chart, beginning on page 309.

  • Page 134: Chapter 5 - Healthcare Settings

    CHAPTER HEALTHCARE SETTINGS The following settings have been developed to enhance scanning in a healthcare environment. These settings are only supported by the Xenon Ultra 1960h scanner and the Xenon Ultra 1962h scanner and base. They allow you to set quickly configure streaming presentation, and to set the scanner and base to quiet modes for scanning that do not disturb resting patients.

  • Page 135: Silent Mode With Long Led

    Silent Mode with Long LED Scan the following barcode to completely silence the scanner and base. The scanner beep, base beep, base and scanner power up beep, and scanner linking sounds are all silenced. When a barcode is scanned, the LED and aimer remain solidly lit for 1 second.

  • Page 136: Low Beeper (Daytime Mode)

    Low Beeper (Daytime Mode) The following barcode sets all sounds to on, but at a low volume. The scanner beep, base beep, base and scanner power up beep, and scanner linking sounds are all set to low volume. Daytime Mode - Cordless Scanner and Base Daytime Mode - Corded Scanner...

  • Page 137: Number Of Led Flashes

    Number of LED Flashes If you have silenced the scanner’s beeper, you may set the number of times the LED flashes when reading barcodes. Default = 1 LED Flash. Note: If you have set LED Solid (No Flash) (page 119), to anything but Off, that setting will override the LED Flash settings.

  • Page 138: Led Solid (No Flash)

    LED Solid (No Flash) Under normal operations, the scanner’s LED flashes once for a good read. You may set the LED to remain on for a length of time after a good read instead of flashing. Default = LED Solid Off (Resume Flash). * LED Solid Off (Resume Flash) LED Solid 1 Second...

  • Page 139: Out-Of-Range Alarm Volume

    Find My Volume Medium Find My Volume High Out-of-Range Alarm Volume Note: This setting is not supported by the Xenon Ultra 1960h scanner. If your scanner is out range of the base, an alarm sounds from both your base and scanner.

  • Page 140: Out-Of-Range Delay

    Scanner Alarm Volume Medium Base Alarm Volume High Scanner Alarm Volume High Out-of-Range Delay Note: This setting is not supported by the Xenon Ultra 1960h scanner. When using the Out-of-Range Alarm settings, the length of the delay for the alarm is set with an Out-of-Range Delay.
  • Page 141 Vibrate Duration If you want to set the length for the good read vibration, scan the barcode below, then set the duration (from 100 - 2,000 milliseconds) by scanning digits from the Programming Chart, beginning on page 309, then Save. Default = 100 ms. Vibrate Duration Xenon Ultra 196X Series User Guide...

  • Page 142: Chapter 6 - Data Edit

    CHAPTER DATA EDIT Prefix/Suffix Overview When a barcode is scanned, additional information is sent to the host computer along with the barcode data. This group of barcode data and additional, user-defined data is called a “message string.” The selections in this section are used to build the user-defined data into the message string.

  • Page 143: Add A Prefix Or Suffix

    • Enter prefixes and suffixes in the order in which you want them to appear on the output. • When setting up for specific symbologies (as opposed to all symbologies), the specific symbology ID value counts as an added prefix or suffix character. •...

  • Page 144: Add A Carriage Return Suffix To All Symbologies

    Scan the Clear One Prefix or Clear One Suffix symbol. Step 1. Step 2. Determine the 2 digit hex value from the Symbology Chart (included in Symbology Charts, beginning on page 295) for the symbology from which you want to clear the prefix or suffix. Step 3.

  • Page 145: Suffix Selections

    Suffix Selections Add Suffix Clear One Suffix Clear All Suffixes Function Code Transmit By default, all ASCII control characters are transmitted with barcode data. These non-printable characters are translated into predefined key strokes, or CTRL+X functions (see ASCII Conversion Chart (Code Page 1252), beginning on page 298).

  • Page 146: Intercharacter Delay

    Intercharacter Delay An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each character of scanned data. Scan the Intercharacter Delay barcode below, then scan the number of 5ms delays from the beginning on page 309, then Save.

  • Page 147: Interfunction Delay

    Interfunction Delay An interfunction delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each control character in the message string. Scan the Interfunction Delay barcode below, then scan the number of 5ms delays, and the Save barcode from the Programming Chart, beginning on page 309.

  • Page 148: Chapter 7 - Data Format/Queue Busting

    CHAPTER DATA FORMAT/QUEUE BUSTING Data Format Editor Introduction You may use the Data Format Editor to change the scanner’s output. For example, you can use the Data Format Editor to insert characters at certain points in barcode data as it is scanned. The selections in the following pages are used only if you wish to alter the output.

  • Page 149: Show Data Format

    If you have changed data format settings, and wish to clear all formats and return to the factory defaults, scan the Default Data Format code below. * Default Data Format Show Data Format Scan the barcode below to show current data format settings. Data Format Settings Add a Data Format Scan the Enter Data Format symbol...

  • Page 150: Other Programming Selections

    Chart, beginning on page 309. For example, 50 characters is entered as 0050. Note: 9999 indicates all lengths. Step 6. Editor Commands Refer to Data Format Editor Commands (page 132). Scan the symbols that represent the command you want to enter. Step 7.

  • Page 151: Terminal Id Table

    Save Discard Terminal ID Table Terminal Model(s) Terminal ID PC keyboard (HID) Mac Keyboard PC Keyboard (Japanese) Serial (COM driver required) HID POS USB SurePOS Handheld USB SurePOS Tabletop Serial RS232 TTL RS232 True RS485 (IBM-HHBCR 1+2, 46xx) Reserved Keyboard PS2 compatibles AT compatibles Data Format Editor Commands...
  • Page 152 Send a number of characters F2 Include in the output message a number of characters followed by an insert character. Start from the current cursor position and continue for “nn” characters or through the last character in the input message, followed by character “xx.” Syntax = F2nnxx where nn stands for the numeric value (00-99) for the number of characters, and xx stands for the insert character’s hex value for its ASCII code.
  • Page 153 Send all characters up to a particular character F3 Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the search character “ss,” followed by an insert character. The cursor is moved forward to the “ss”...
  • Page 154 42 is the hex value for B The data is output as: 1234567890 Send all but the last characters E9 Include in the output message all but the last “nn” characters, starting from the current cursor position. The cursor is moved forward to one position past the last input message character included.
  • Page 155 1234567890**ABCDEFGHIJ <CR> Insert symbology name B3 Insert the name of the barcode’s symbology in the output message, without moving the cursor. Only symbologies with a Honeywell ID are included (see Symbology Charts on page 295). Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 298 for decimal, hex and character codes.
  • Page 156 B3 is the “Insert symbology name” command F4 is the “Insert a character multiple times” command 20 is the hex value for a space 01 is the number of times the space character is sent B4 is the “Insert barcode length” command F4 is the “Insert a character multiple times”...

  • Page 157: Move Commands

    If there are three keystrokes, the syntax would change from B5xxssnn for one keystroke to B5xxssnnssnnssnn. An example that would insert "abc" is as follows: B503001F00320030F833. Note: Key modifiers can be added together when needed. The sum is converted to hexadecimals.

  • Page 158: Search Commands

    FE and F7 Example: Manipulate barcodes that begin with a 1 Search for barcodes that begin with a 1. If a barcode matches, move the cursor back to the beginning of the data and send 6 characters followed by a carriage return.
  • Page 159 F1 is the “Send all characters” command 0D is the hex value for a CR The data is output as: DEFGHIJ <CR> Search backward for a character F9 Search the input message backward for “xx” character from the current cursor position, leaving the cursor pointing to the “xx”...
  • Page 160 Search backward for a string B1 Search backward for “s” string from the current cursor position, leaving cursor pointing to “s” string. Syntax = B1nnnnS where nnnn is the string length (up to 9999), and S consists of the ASCII hex value of each character in the match string. For example, B1000454657374 will search backward for the first occurrence of the 4 character string “Test.”...

  • Page 161: Miscellaneous Commands

    Miscellaneous Commands Suppress characters FB Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands. When the FC command is encountered, the suppress function is terminated. The cursor is not moved by the FB command.
  • Page 162 If the barcode has characters that the host application does not want included, you can use the E4 command to replace those characters with something else. In this example, you will replace the zeros in the barcode above with carriage returns. Command string: E402300DF10D E4 is the “Replace characters”...
  • Page 163 EC Example: Only output the data if the barcode begins with a number If you want only data from barcodes that begin with a number, you can use EC to check for the number. Command string: ECF10D EC is the “Check for a number” command F1 is the “Send all characters”...

  • Page 164: Data Formatter

    Insert a delay EF Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. Syntax = EFnnnn where nnnn stands for the delay in 5ms increments, up to 9999. This command can only be used with keyboard emulation. Discard Data B8 Discards types of data.

  • Page 165: Data Format Non-Match Error Tone

    requirements generates an error tone and the data in that barcode is not transmitted. If you wish to process this type of barcode without generating an error tone, see Data Format Non-Match Error Tone. • Data Format Required, Drop Prefix/Suffix Scanned data is modified according to your data format.

  • Page 166: Primary/Alternate Data Formats

    Data Format Non-Match Error Tone Off Primary/Alternate Data Formats You can save up to four data formats, and switch between these formats. Your primary data format is saved under 0. Your other three formats are saved under 1, 2, and 3. To set your device to use one of these formats, scan one of the barcodes below.

  • Page 167: Queue Busting Extraction

    Single Scan-Data Format 1 Single Scan-Data Format 2 Single Scan-Data Format 3 Queue Busting Extraction The following section allows you to create a Queue Busting barcode. Queue Busting takes multiple 1D barcodes and collates them with a separator to create a 2D barcode.

  • Page 168: Extraction Code Id

    Extraction Code ID Select 1D barcode symbology the barcodes to be collated. Scan the Extract Code ID barcode and then scan a digit (1-9) barcode from the Programming Chart, beginning on page 309, then Save. Extract Code ID Extraction Separator This sets the separator to be used between each barcode.
  • Page 169 Xenon Ultra 196X Series User Guide...

  • Page 170: Chapter 8 - Symbologies

    CHAPTER SYMBOLOGIES This programming section contains the following menu selections. Refer to Chapter 11 for settings and defaults. • All Symbologies • Interleaved 2 of 5 • Aztec Code • Korea Post • China Post (Hong Kong 2 of 5) •...

  • Page 171: All Symbologies

    All Symbologies For best scanner performance, you should only enable the symbologies that you need. Scan All Symbologies Off to disable all symbologies, then enable the symbologies you need by scanning the On barcode for each symbology. All Symbologies Off Message Length Description You are able to set the valid reading length of some of the barcode symbologies.

  • Page 172: Codabar Start/Stop Characters

    Codabar Start/Stop Characters Start/Stop characters identify the leading and trailing ends of the barcode. You may either transmit, or not transmit Start/Stop characters. Default = Don’t Transmit. Transmit * Don’t Transmit Codabar Check Character Codabar check characters are created using different “modulos.” You can program the scanner to read only Codabar barcodes with Modulo 16 check characters.

  • Page 173: Codabar Concatenation

    Codabar Concatenation Codabar supports symbol concatenation. When you enable concatenation, the scanner looks for a Codabar symbol having a “D” start character, adjacent to a symbol having a “D” stop character. In this case the two messages are concatenated into one with the “D” characters omitted. A 1 2 3 4 D D 5 6 7 8 A Select Require to prevent the scanner from decoding a single “D”...

  • Page 174: Code 39 On/Off

    Code 39 < Default All Code 39 Settings > Code 39 On/Off * On If you are reading Code 39 barcodes, Codablock A should remain disabled. If you are enabling Codablock A (see Codablock A on page 192), you should disable Code Code 39 Start/Stop Characters Start/Stop characters identify the leading and trailing ends of the barcode.

  • Page 175: Code 39 Message Length

    When Check Character is set to Validate and Transmit, the scanner only reads Code 39 barcodes printed with a check character, and will transmit this character at the end of the scanned data. Default = No Check Character. * No Check Character Validate, but Don’t Transmit Validate and Transmit Code 39 Message Length...

  • Page 176: Code 32 Pharmaceutical (Paraf)

    Code 32 Pharmaceutical (PARAF) Code 32 Pharmaceutical is a form of the Code 39 symbology used by Italian pharmacies. This symbology is also known as PARAF. Note: Trioptic Code (page 192) must be turned off while scanning Code 32 Pharmaceutical codes.

  • Page 177: Code 39 Code Page

    * Full ASCII Off Code 39 Code Page Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the barcode being scanned was created using a code page that is different from the one the host program is expecting.

  • Page 178: Interleaved 2 Of 5

    Interleaved 2 of 5 < Default All Interleaved 2 of 5 Settings > Interleaved 2 of 5 On/Off * On Check Digit No Check Digit indicates that the scanner reads and transmits barcode data with or without a check digit. When Check Digit is set to Validate, but Don’t Transmit, the unit only reads Interleaved 2 of 5 barcodes printed with a check digit, but will not transmit the check digit with the scanned data.

  • Page 179: Interleaved 2 Of 5 Message Length

    Interleaved 2 of 5 Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 6, Maximum Default = 80. Minimum Message Length Maximum Message Length FEBRABAN Decode Scan the barcodes below to turn FEBRABAN Boleto decoding on or off.

  • Page 180: Nec 2 Of 5 Message Length

    Check Digit No Check Digit indicates that the scanner reads and transmits barcode data with or without a check digit. When Check Digit is set to Validate, but Don’t Transmit, the unit only reads NEC 2 of 5 barcodes printed with a check digit, but will not transmit the check digit with the scanned data.

  • Page 181: Code 93 On/Off

    Code 93 < Default All Code 93 Settings > Code 93 On/Off * On Code 93 Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 0-80.

  • Page 182: Code 93 Code Page

    * Off Code 93 Code Page Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the barcode being scanned was created using a code page that is different from the one the host program is expecting.

  • Page 183: Straight 2 Of 5 Industrial Message Length

    Straight 2 of 5 Industrial Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48. Minimum Message Length Maximum Message Length Straight 2 of 5 IATA (two-bar start/stop)

  • Page 184: Straight 2 Of 5 Iata Message Length

    barcode below, then scan a redundancy count between 0 and 10 on the Programming Chart, beginning on page 309. Then scan the Save barcode. Default = 0. Straight 2 of 5 IATA Redundancy Straight 2 of 5 IATA Message Length Scan the barcodes below to change the message length.

  • Page 185: Matrix 2 Of 5 Message Length

    Matrix 2 of 5 Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Code 11 <Default All Code 11 Settings>...

  • Page 186: Code 11 Message Length

    Code 11 Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Code 128 <Default All Code 128 Settings>...

  • Page 187: Code 128 Message Length

    efficient design, 3) a variation of Code 128 that supports concatenation of neighboring symbols, and 4) the standard layout for barcodes on a blood product label. Use the barcodes below to turn concatenation on or off. Default =Off. * Off Code 128 Redundancy If you are encountering errors when reading Code 128 barcodes, you may want to adjust the redundancy count.

  • Page 188: Code 128 Code Page

    buffers Code 128 barcodes until it reads a Code 128 barcode that does not have the append trigger. The data is then transmitted in the order in which the barcodes were read (FIFO). Default = Off. * Off Code 128 Code Page Code pages define the mapping of character codes to characters.

  • Page 189: Gs1-128 Message Length

    Maximum Message Length GS1 Digital Link Per the Sunrise 2027 initiative, Honeywell has created a setting to convert Web URI barcodes (i.e., QR Code, Data Matrix) into GS1 element strings to be easily read by most host systems. To create a GS1 element string, first scan the GS1 Digital Link barcode and then the Web URI barcode.

  • Page 190: Telepen Output

    * Off Telepen Output Using AIM Telepen Output, the scanner reads symbols with start/stop pattern 1 and decodes them as standard full ASCII (start/stop pattern 1). When Original Telepen Output is selected, the scanner reads symbols with start/stop pattern 1 and decodes them as compressed numeric with optional full ASCII (start/stop pattern 2).

  • Page 191: Upc-A

    UPC-A <Default All UPC-A Settings> UPC-A On/Off * On Note: To convert UPC-A barcodes to EAN-13, see Convert UPC-A to EAN-13 on page 179. UPC-A Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not.

  • Page 192: Upc-A Addenda Required

    UPC-A Addenda This selection adds 2 or 5 digits to the end of all scanned UPC-A data. Default = Off for both 2 Digit and 5 Digit Addenda. 2 Digit Addenda On * 2 Digit Addenda Off 5 Digit Addenda On * 5 Digit Addenda Off UPC-A Addenda Required When Required is scanned, the scanner will only read UPC-A barcodes that have...

  • Page 193: Upc-A Addenda Separator

    milliseconds) for this timeout by scanning the barcode below, then setting the timeout (from 0-500 milliseconds) by scanning digits from the Programming Chart, beginning on page 309 of this manual, then Save. Default = 120. Note: The Addenda Timeout setting is applied to all addenda and coupon code searches. Addenda Timeout UPC-A Addenda Separator When this feature is On, there is a space between the data from the barcode and...

  • Page 194: Coupon Gs1 Databar Output

    Require Concatenation Addenda Timeout You can set a time during which the scanner looks for an addenda. If an addenda is not found within this time period, the data can be either transmitted or discarded, based on the setting you are using for UPC-A/EAN-13 with Extended Coupon Code.

  • Page 195: Upc-E0

    UPC-E0 <Default All UPC-E Settings> UPC-E0 On/Off Most U.P.C. barcodes lead with the 0 number system. To read these codes, use the UPC-E0 On selection. If you need to read codes that lead with the 1 number system, use UPC-E1 (page 178).

  • Page 196: Upc-E0 Addenda Separator

    Addenda Timeout You can set a time during which the scanner looks for an addenda. If an addenda is not found within this time period, the data can be either transmitted or discarded, based on the setting you are using for UPC-E0 Addenda Required.

  • Page 197: Upc-E0 Leading Zero

    UPC-E0 Leading Zero This feature allows the transmission of a leading zero (0) at the beginning of scanned data. To prevent transmission, scan Off. Default = On. * On UPC-E0 Addenda This selection adds 2 or 5 digits to the end of all scanned UPC-E data. Default = Off for both 2 Digit and 5 Digit Addenda.

  • Page 198: Ean/Jan-13

    * UPC-E1 Off EAN/JAN-13 <Default All EAN/JAN Settings> EAN/JAN-13 On/Off * On Convert UPC-A to EAN-13 When UPC-A Converted to EAN-13 is selected, UPC-A barcodes are converted to 13 digit EAN-13 codes by adding a zero to the front. When Do not Convert UPC-A is selected, UPC-A codes are read as UPC-A.

  • Page 199: Ean/Jan-13 Check Digit

    EAN/JAN-13 Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On. * On EAN/JAN-13 Addenda This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-13 data. Default = Off for both 2 Digit and 5 Digit Addenda.

  • Page 200: Beginning With 290 Addenda Required

    EAN-13 Beginning with 290 Addenda Required This setting programs the scanner to require a 5 digit addenda only on EAN-13 barcodes that begin with “290.” The following settings can be programmed: Require 5 Digit Addenda: All EAN-13 barcodes that begin with “290” must have a 5 digit addendum.
  • Page 201 Default = Don’t Require Addenda. * Don’t Require Addenda Require 2 Digit Addenda Require 5 Digit Addenda Require 2 or 5 Digit Addenda EAN-13 Beginning with 414/419 Addenda Required This setting programs the scanner to require any combination of a 2 digit addenda or a 5 digit addenda on EAN-13 barcodes that begin with a “414”...

  • Page 202: Beginning With 977 Addenda Required

    Require 2 or 5 Digit Addenda EAN-13 Beginning with 434/439 Addenda Required This setting programs the scanner to require any combination of a 2 digit addenda or a 5 digit addenda on EAN-13 barcodes that begin with a “434” or “439.” The following settings can be programmed: Require Addenda: All EAN-13 barcodes that begin with a “434”...

  • Page 203: Beginning With 978 Addenda Required

    Don’t Require 2 Digit Addenda: If you have selected Require 2 Digit Addenda, and you want to disable this feature, scan Don’t Require 2 Digit Addenda. EAN-13 barcodes are transmitted, depending on the setting you are using for EAN/JAN-13 Addenda Required.

  • Page 204: Ean/Jan-13 Addenda Separator

    Don’t Require 5 Digit Addenda: If you have selected Require 5 Digit Addenda, and you want to disable this feature, scan Don’t Require 5 Digit Addenda. EAN-13 barcodes are transmitted, depending on the setting you are using for EAN/JAN-13 Addenda Required.

  • Page 205: Isbn Translate

    ISBN Translate When On is scanned, EAN-13 Bookland symbols are translated into their equivalent ISBN number format. Default = Off. * Off EAN/JAN-8 <Default All EAN/JAN-8 Settings> EAN/JAN-8 On/Off * On EAN/JAN-8 Check Digit This selection allows you to specify whether or not the check digit should be transmitted at the end of the scanned data.

  • Page 206: Ean/Jan-8 Addenda Required

    EAN/JAN-8 Addenda This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-8 data. Default = Off for both 2 Digit and 5 Digit Addenda. 2 Digit Addenda On * 2 Digit Addenda Off 5 Digit Addenda On * 5 Digit Addenda Off EAN/JAN-8 Addenda Required When Required is scanned, the scanner will only read EAN/JAN-8 barcodes that...

  • Page 207: Ean/Jan-8 Addenda Separator

    setting the timeout (from 0-500 milliseconds) by scanning digits from the Programming Chart, beginning on page 309 of this manual, then Save. Default = 120. Note: The Addenda Timeout setting is applied to all addenda and coupon code searches. Addenda Timeout EAN/JAN-8 Addenda Separator When this feature is On, there is a space between the data from the barcode and the data from the addenda.

  • Page 208: Msi Check Character

    MSI Check Character Different types of check characters are used with MSI barcodes. You can program the scanner to read MSI barcodes with Type 10 check characters. Default = Validate Type 10, but Don’t Transmit. When Check Character is set to Validate Type 10/11 and Transmit, the scanner will only read MSI barcodes printed with the specified type check character(s), and will transmit the character(s) at the end of the scanned data.

  • Page 209: Msi Message Length

    MSI Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 4-48. Minimum Default = 4, Maximum Default = 48. Minimum Message Length Maximum Message Length GS1 DataBar Omnidirectional <...

  • Page 210: Gs1 Databar Limited

    GS1 DataBar Limited < Default All GS1 DataBar Limited Settings > GS1 DataBar Limited On/Off * On GS1 DataBar Expanded < Default All GS1 DataBar Expanded Settings > GS1 DataBar Expanded On/Off * On Xenon Ultra 196X Series User Guide...

  • Page 211: Gs1 Databar Expanded Message Length

    GS1 DataBar Expanded Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 4-74. Minimum Default = 4, Maximum Default = 74. Minimum Message Length Maximum Message Length Trioptic Code Note: If you are going to scan Code 32 Pharmaceutical codes...

  • Page 212: Codablock A Message Length

    If you are reading Code 39 barcodes, Codablock A should remain disabled. If you are enabling Codablock A, you should disable Code 39 (see Code 39 on page 155). Codablock A Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information.

  • Page 213: Codablock F Message Length

    Codablock F Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-2048. Minimum Default = 1, Maximum Default = 2048. Minimum Message Length Maximum Message Length Label Code The standard Label Code is used in libraries.

  • Page 214: Pdf417 Message Length

    PDF417 Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-2750. Minimum Default = 1, Maximum Default = 2750. Minimum Message Length Maximum Message Length MacroPDF417 MacroPDF417 is an implementation of PDF417 capable of encoding very large amounts of data into multiple PDF417 barcodes.

  • Page 215: Micropdf417 Message Length

    * Off MicroPDF417 Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-366. Minimum Default = 1, Maximum Default = 366. Minimum Message Length Maximum Message Length GS1 Composite Codes Linear codes are combined with a unique 2D composite component to form a new...

  • Page 216: Upc/Ean Version

    UPC/EAN Version Scan the UPC/EAN Version On barcode to decode GS1 Composite symbols that have a U.P.C. or an EAN linear component. (This does not affect GS1 Composite symbols with a GS1-128 or GS1 linear component.) Default = UPC/EAN Version Off. UPC/EAN Version On * UPC/EAN Version Off Note: If you scan coupons that have both UPC and GS1 Databar codes, you may wish to...

  • Page 217: Tcif Linked Code 39 (Tlc39)

    If GS1 Code Expansion Off is scanned, retail code expansion is disabled, and UPC- E expansion is controlled by the UPC-E0 Expand (page 176) setting. If the AIM ID is enabled, the value will be the GS1-128 AIM ID, ]C1 (see Symbology Charts page 295).

  • Page 218: Qr Code

    QR Code < Default All QR Code Settings > QR Code On/Off This selection applies to both QR Code and Micro QR Code. * On QR Code Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information.

  • Page 219: Qr Code Page

    Swipe: Pull and hold down the trigger and scan all appended QR Codes while keeping the trigger pressed. The scanner emits short beeps for each partial QR Code that is scanned and buffered. One long beep is emitted after the last QR Code is scanned and the data is complete.

  • Page 220: Dotcode

    Prohibit QR Code with Web Link Use this function to disable or enable the scanning of QR codes that contain “http” or “https”. (Prohibit QR codes with web links) (Allow QR codes with web links) DotCode < Default All DotCode Settings > DotCode On/Off * Off Poor Quality DotCodes...

  • Page 221: Digimarc Barcode

    DotCode Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-2400. Minimum Default = 1, Maximum Default = 2400. Minimum Message Length Maximum Message Length Digimarc Barcode™...

  • Page 222: Data Matrix

    Default = Uses Digimarc Decoder then Both Decoders. Uses ID Decoder then Both Decoders * Uses Digimarc Decoder then Both Decoders Uses ID Decoder then Alternates Decoders Uses Digimarc Decoder then Alternates Decoders Data Matrix < Default All Data Matrix Settings > Data Matrix On/Off * On Xenon Ultra 196X Series User Guide...

  • Page 223: Data Matrix Message Length

    Direct Part Marking Decoding If you are having trouble reading Direct Part Marking (DPM) barcodes, scan Dotpeen DPM Decoding for Dotpeen codes or scan Reflective (Etched) DPM Decoding for reflective (etched) codes Default = Disable DPM Decoding. Dotpeen DPM Decoding * Disable DPM Decoding Reflective (Etched) DPM Decoding...

  • Page 224: Maxicode

    on page 302), and scan the value and the Save barcode Character Replacements from the Programming Chart, beginning on page 309. The data characters should then appear properly. Data Matrix Code Page MaxiCode < Default All MaxiCode Settings > MaxiCode On/Off * Off MaxiCode Message Length Scan the barcodes below to change the message length.

  • Page 225: Aztec Code

    Aztec Code < Default All Aztec Code Settings > Aztec Code On/Off * On Aztec Code Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-3832.

  • Page 226: Aztec Code Page

    Aztec Code Page Aztec Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the barcode being scanned was created using a code page that is different from the one the host program is expecting.

  • Page 227: Han Xin Code Message Length

    Han Xin Code Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 1-7833. Minimum Default = 1, Maximum Default = 7833. Minimum Message Length Maximum Message Length Postal Codes - 2D The following lists the possible 2D postal codes, and 2D postal code combinations...

  • Page 228: Combination 2D Postal Codes

    Japanese Post On KIX Post On Planet Code On Also see Planet Code Check Digit, page 211. Postal-4i On Postnet On Postnet On Also see Postnet Check Digit, page 212. Postnet with B and B’ Fields On InfoMail On Combination 2D Postal Codes: InfoMail and British Post On Intelligent Mail Barcode and...
  • Page 229 Postnet and Postal-4i On Postnet and Intelligent Mail Barcode On Postal-4i and Intelligent Mail Barcode On Postal-4i and Postnet with B and B’ Fields On Planet Code and Postnet On Planet Code and Postnet with B and B’ Fields On Planet Code and Postal-4i On Planet Code and...

  • Page 230: Planet Code Check Digit

    Planet Code, Postal-4i, and Intelligent Mail Barcode On Postnet, Postal-4i, and Intelligent Mail Barcode On Planet Code, Postal-4i, and Postnet with B and B’ Fields On Planet Code, Intelligent Mail Barcode, and Postnet with B and B’ Fields On Postal-4i, Intelligent Mail Barcode, and Postnet with B and B’...

  • Page 231: Postnet Check Digit

    * Don’t Transmit Check Digit Postnet Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of Postnet data. Default = Don’t Transmit. Transmit Check Digit * Don’t Transmit Check Digit Australian Post Interpretation This option controls what interpretation is applied to customer fields in Australian 4-State symbols.

  • Page 232: Postal Codes - Linear

    Combination C and N Tables Postal Codes - Linear The following lists linear postal codes. Any combination of linear postal code selections can be active at a time. China Post (Hong Kong 2 of 5) <Default All China Post (Hong Kong 2 of 5) Settings> China Post (Hong Kong 2 of 5) On/Off * Off China Post (Hong Kong 2 of 5) Message Length...

  • Page 233: Korea Post

    Korea Post <Default All Korea Post Settings> Korea Post * Off Korea Post Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 152) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 48. Minimum Message Length Maximum Message Length Korea Post Check Digit...

  • Page 234: Chapter 9 - Imaging Commands

    CHAPTER IMAGING COMMANDS The scanner is like a digital camera in the way it captures, manipulates, and transfers images. The following commands allow you to alter the way the scanner performs these functions. Note: If you are using the scanner in a stand, you must set the In-Stand Sensor Mode to Off in order to take images (see In-Stand Sensor Mode on page 89).

  • Page 235: Step 1 - Take A Picture Using Imgsnp

    Image Ship - IMGSHP (page 219) Intelligent Signature Capture - IMGBOX (page 228) The modifiers for each of these commands follow the command description. Note: The images included with each command description are examples only. The results you achieve may be different from those included in this manual. The quality of the output you receive will vary depending on lighting, quality of the initial image/object being captured, and distance of the scanner from the image/object.
  • Page 236 B - Beeper Causes a beep to sound after an image is snapped. No beep (default) Sounds a beep when the image is captured T - Wait for Trigger Waits for a hardware trigger press before taking the image. This is only available when using Photo Style (1P).

  • Page 237: D - Delta For Acceptance

    G - Gain Gain is used in Manual Style only (2P). Like a volume control, the gain modifier boosts the signal and multiplies the pixel value. As you increase the gain, the noise in an image is also amplified. No gain (default) Medium gain Heavy gain Maximum gain...

  • Page 238: Image Ship - Imgshp

    U - Update Tries This sets the maximum number of frames the scanner should take to reach the Delta for Acceptance. Update Tries is only available when using Photo Style (1P). (Default = 6) Range: 0 - 10 % - Target Set Point Percentage Sets the target point for the light and dark values in the captured image.

  • Page 239: Imgshp Modifiers

    IMGSHP Modifiers A - Infinity Filter Enhances pictures taken from very long distances (greater than 10 feet or 3m). The Infinity Filter should not be used with IMGSNP Modifiers (page 216). Infinity filter off (default) Infinity filter on Example: Infinity Filter off (0A) Infinity Filter on (1A) from approximately 12 feet from approximately 12 feet (3.66m)
  • Page 240 E - Edge Sharpen An edge sharpen filter cleans up the edges of an image, making it look cleaner and sharper. While edge sharpening does make the image look cleaner, it also removes some fine detail from the original image. The strength of the edge sharpen filter can be entered from 1 to 24.

  • Page 241: H - Histogram Stretch

    H - Histogram Stretch Increases the contrast of the transmitted image. Not available with some image formats. No stretch (default) Histogram stretch Example: Histogram Stretch at 0H: Histogram Stretch at 1H: I - Invert Image Invert image is used to rotate the image around the X or Y axis. Invert around the X axis (flips picture upside down) Invert around the Y axis (flips picture left to right) Example:...

  • Page 242: If- Noise Reduction

    IF- Noise Reduction Used to reduce the salt and pepper noise in an image. No salt and pepper noise reduction (default) Salt and pepper noise reduction Example: Noise Reduction Off (0if): Noise Reduction On (1if): IR - Image Rotate Image as snapped (rightside up) (default) Rotate image 90 degrees to the right Rotate image 180 degrees (upside down) Rotate image 90 degrees to the left...

  • Page 243: K - Gamma Correction

    J - JPEG Image Quality Sets the desired quality when the JPEG image format is selected. Higher numbers result in higher quality, but larger files. Smaller numbers result in greater amounts of lossy compression, faster transmission times, lower quality, but smaller files. (Default = 50) Image is compressed as much as possible while preserving quality factor of n (n = 0 - 100)
  • Page 244 The bottom edge of the shipped image corresponds to row n - 1 of the image in memory. Range: 000 - 639. (Default = all rows) Example: Uncropped Image: Image Crop set to Image Crop set to 300R: 300L: Image Crop set to 200B: Image Crop set to 200T: Alternately, specify the number of pixels to cut from the outside margin of the image;...

  • Page 245: U - Document Image Filter

    The smaller number of pixels shipped, the smaller the image, however, after a certain point the image becomes unusable. ship every pixel (default) ship every 2nd pixel, both horizontally and vertically ship every 3rd pixel, both horizontally and vertically Pixel Ship Pixel Ship Example: Pixel Ship set to 1S:...

  • Page 246: W - Histogram Ship

    V - Blur Image Smooths transitions by averaging the pixels next to the hard edges of defined lines and shaded areas in an image. Don’t blur (default) Blur Example: Blur Image Off (0V): Blur Image On (1V): W - Histogram Ship A histogram gives a quick picture of the tonal range of an image, or key type.

  • Page 247: Intelligent Signature Capture - Imgbox

    * Native Resolution Intelligent Signature Capture - IMGBOX IMGBOX allows you to configure the size and location of a signature capture area relative to its proximity to a barcode. This allows you to tailor a signature capture area to a specific form. In order to use IMGBOX, you need a set form where the signature box location is in a known location relative to a barcode.

  • Page 248: Imgbox Modifiers

    To see this example, align the aimer with the signature area (not with the barcode), then press the trigger. Send the following IMGBOX command string after the trigger press: Example: IMGBOX245w37h55y. Note: Case is not important in the command string. It is used here only for clarity. The following image is captured: The IMGBOX commands have many different modifiers that can be used to change the size and appearance of the signature image output by the scanner.

  • Page 249: B - Output Image Height

    B - Output Image Height This option is used to size the image vertically. If using this option, set the resolution (R) to zero. Example: Image Height set to 50B: Image Height set to 100B: D - Pixel Depth This indicates the number of bits per pixel in the transmitted image, which defines whether it will be grayscale or black and white.

  • Page 250: H - Height Of Signature Capture Area

    H - Height of Signature Capture Area The height of the signature capture area must be measured in inches divided by .01. In the example, the height of the area to be captured is 3/8 inch, resulting in a value of H = .375/0.01 = 37.5. Example: IMGBOX245w37h55y.

  • Page 251: W - Width Of Signature Capture Area

    decimal point between the first and second digit. For example, use 2500 to specify a resolution of 2.5. Set to zero when using the A and B modifiers (see A - Output Image Width B - Output Image Height on page 230). Example: Resolution set to 0R: Resolution set to 1000R:...

  • Page 252: Y - Vertical Barcode Offset

    Y - Vertical Barcode Offset The vertical barcode offset allows you to offset the vertical center of the signature capture area. Negative numbers indicate that the signature capture is above the barcode, and positive numbers indicate that the area is below the barcode. Measurements are in multiples of the minimum bar width.
  • Page 253 Xenon Ultra 196X Series User Guide...

  • Page 254: Chapter 10 - Utilities

    CHAPTER UTILITIES To Add a Test Code I.D. Prefix to All Symbologies This selection allows you to turn on transmission of a Code I.D. before the decoded symbology. (See the Symbology Charts, beginning on page 295 for the single character code that identifies each symbology.) This action first clears all current prefixes, then programs a Code I.D.

  • Page 255: Totalfreedom

    Decoding apps and Data Formatting apps can be created using TotalFreedom. For further information about TotalFreedom, go to our website at sps.honeywell.com. Application Plug-Ins (Apps) Any apps that you are using can be turned off or on by scanning the following barcodes.

  • Page 256: Ezconfig For Scanning Introduction

    Configure with EZConfig for Scanning Use the EZConfig for Scanning tool to configure your scanner online: 1. Access the Honeywell Technical Support Downloads Portal at honeywell.com/ PSSsoftware-downloads. 2. Go to Software > Barcode Scanners > Software > Tools and Utilities >...

  • Page 257: Reset The Factory Defaults

    Reset the Factory Defaults Caution: This selection erases all your settings and resets the scanner to the original factory defaults. It also disables all plugins. If you aren’t sure what programming options are in your scanner, or you’ve changed some options and want to restore the scanner to factory default settings, first scan the Remove Custom Defaults barcode, then scan Activate Defaults.

  • Page 258: Chapter 11 - Serial Programming Commands

    CHAPTER SERIAL PROGRAMMING COMMANDS The serial programming commands can be used in place of the programming bar- codes. Both the serial commands and the programming barcodes will program the scanner. For complete descriptions and examples of each serial programming command, refer to the corresponding programming barcode in this manual. The device must be set to an RS232 interface (see page 10).

  • Page 259: Query Commands

    scanner. This setting is changed by using the BT_NAM command, which accepts alphanumeric values. If the name is not known, a wild- card (*) can be used :* Note: Since the base stores all work group settings and transfers to them to scanner once they are linked, changes are typically done to the base and not to the scanner.

  • Page 260: Concatenation Of Multiple Commands

    SubTag Field Usage When a query is used in place of a SubTag field, the query applies only to the sub- set of commands available that match the Tag field. In this case, the Data field should not be used because it is ignored by the device. Data Field Usage When a query is used in place of the Data field, the query applies only to the spe- cific command identified by the Tag and SubTag fields.

  • Page 261: Trigger Commands

    This response indicates that Codabar Coding Enable (CBRENA) has a range of val- ues from 0 to 1 (off and on). Example: What is the default value for Codabar Coding Enable? Enter: cbrena^. Response: CBRENA1[ACK] This response indicates that the default setting for Codabar Coding Enable (CBRENA) is 1, or on.

  • Page 262: Reset The Custom Defaults

    The scanner scans until a barcode has been read, until the deactivate command is sent, or until the serial time-out has been reached (see Read Time-Out on page 84 for a description, and the serial command on page 255). Reset the Custom Defaults If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults barcode below.

  • Page 263: Menu Commands

    *High Speed Off USBSPD0 High Speed On USBSPD1 Plug and Play Codes Verifone Ruby Terminal PAPRBY Gilbarco Terminal PAPGLB Honeywell Bioptic Aux Port PAPBIO Datalogic Magellan Aux Port PAPMAG Wincor Nixdorf Terminal PAPWNX Wincor Nixdorf Beetle PAPBTL Wincor Nixdorf RS232 Mode A...
  • Page 264 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Azeri (Cyrillic) KBDCTY81 Azeri (Latin) KBDCTY80 Belarus KBDCTY82 Belgium KBDCTY1 Bosnia KBDCTY33 Brazil KBDCTY16 Brazil (MS) KBDCTY59 Bulgaria (Cyrillic) KBDCTY52 Bulgaria (Latin) KBDCTY53 Canada (French legacy) KBDCTY54 Canada (French) KBDCTY18 Canada (Multilingual)
  • Page 265 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Irish KBDCTY73 Italian (142) KBDCTY56 Italy KBDCTY5 Japan ASCII KBDCTY28 Kazakh KBDCTY78 Kyrgyz (Cyrillic) KBDCTY79 Latin America KBDCTY14 Latvia KBDCTY42 Latvia (QWERTY) KBDCTY43 Lithuania KBDCTY44 Lithuania (IBM) KBDCTY45 Macedonia KBDCTY34...
  • Page 266 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Turkey Q KBDCTY24 Ukrainian KBDCTY76 United Kingdom KBDCTY7 United Stated (Dvorak right) KBDCTY89 United States (Dvorak left) KBDCTY88 United States (Dvorak) KBDCTY87 United States (International) KBDCTY30 Uzbek (Cyrillic) KBDCTY77 ALT Mode * Off...
  • Page 267 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Keyboard Modifiers *Control + X Off KBDCAS0 DOS Mode Control + X KBDCAS1 Windows Mode Control + X KBDCAS2 Windows Mode Prefix/Suffix Off KBDCAS3 DOS Mode Control + X Mode On KBDCAS4 with Windows Mode Prefix/Suffix Supports ALT 3 Digit HEX Mode...
  • Page 268 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry RS232 Handshaking *RTS/CTS Off 232CTS0 Flow Control, No Timeout 232CTS1 Two-Direction Flow Control 232CTS2 Flow Control with Timeout 232CTS3 RS232 Timeout (1-5100 232DEL#### milliseconds) *XON/XOFF Off 232XON0 XON/XOFF On 232XON1 *ACK/NAK Off...
  • Page 269 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Low Power Alert Beep Off LPIBEP0 *Low Power Alert Beep On LPIBEP1 Reset Scanner Reset Scanner RESET_ Scan While in Base Cradle Scan in Cradle Off (Horizontal BT_SIC0 CCB default) Scan in Cradle On (Presentation...
  • Page 270 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Scanner Power Time-Out Timer 0 Seconds BT_LPT0 200 Seconds BT_LPT200 400 Seconds BT_LPT400 900 Seconds BT_LPT900 *3600 Seconds BT_LPT3600 7200 Seconds BT_LPT7200 Power Save Mode *Disabled PWRDWN0 Enabled PWRDWN1 Scanner Power Save Time-Out...
  • Page 271 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Quantity Codes BATNUM0 BATNUM1 BATNUM2 BATNUM3 BATNUM4 BATNUM5 BATNUM6 BATNUM7 BATNUM8 BATNUM9 Batch Mode Output Order *FIFO BATLIF0 LIFO BATLIF1 Total Records Total Records BATNRC Delete Last Code Delete Last Code BATUND Clear All Codes...
  • Page 272 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Application Work Group *Group 0 GRPSEL0 Selections Group 1 GRPSEL1 Group 2 GRPSEL2 Group 3 GRPSEL3 Group 4 GRPSEL4 Group 5 GRPSEL5 Group 6 GRPSEL6 Group 7 GRPSEL7 Reset the Factory Defaults: All Factory Default Settings:...
  • Page 273 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Beep on BEL Character Beep on BEL On BELBEP1 *Beep on BEL Off BELBEP0 Trigger Click BEPTRG1 *Off BEPTRG0 Beeper - Good Read BEPBEP0 BEPBEP1 Beeper Volume - Good Read BEPLVL0 *Low (Default-196xh) BEPLVL1...
  • Page 274 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Trigger Toggle Timeout Trigger Toggle Timeout (Range 0 - TRGTGT## 65) *5 Serial Trigger Mode Read Time-Out TRGSTO#### (0 - 300,000 ms) *30,000 Presentation Mode Presentation Mode PAPTPR Camera Motion Presentation Mode Camera Motion On...
  • Page 275 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Streaming Presentation Streaming Presentation Mode - PAPSPN Normal Streaming Presentation Mode - PAPSPE Enhanced Hands Free Time-Out Range (0 - 300,000 ms) *5000 ms TRGPTO###### Reread Delay Short (500 ms) DLYRRD500 *Medium (750 ms)
  • Page 276 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Centering Window Centering On DECWIN1 *Centering Off DECWIN0 Left of Centering Window (*40%) DECLFT### Right of Centering Window (*60%) DECRGT### Top of Centering Window (*40%) DECTOP### Bottom of Centering Window DECBOT### (*60%) Preferred Symbology...
  • Page 277 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Good Read Beep - Partial BEPISE0 Sequence Output *Error Tone - Partial Sequence BEPISE1 Output Multiple Symbols SHOTGN1 *Off SHOTGN0 Multiple Symbols Count Multiple Symbols Count (Range 0 SHOCNT - 128) *0 No Read...
  • Page 278 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Low Beeper (Daytime Mode) - beplfn0;beplfr10;beppwr1;beplv Corded Scanner l1;bepbip0;bepFQ12700;beplot Quiet Operations - LED and Volume Settings Linking LED Colors and *Green LED Flashes/Sound BEPPAR1 Sound Red LED Flashes/Silent BEPPAR0 Number of LED Flashes *1 LED Flash...
  • Page 279 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Prefix Add Prefix PREBK2## Clear One Prefix PRECL2 Clear All Prefixes PRECA2 Suffix Add Suffix SUFBK2## Clear One Suffix SUFCL2 Clear All Suffixes SUFCA2 Function Code Transmit *Enable RMVFNC0 Disable...
  • Page 280 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Single Scan Data Format Change Single Scan-Primary VSAF_0 Data Format Single Scan-Data Format 1 VSAF_1 Single Scan-Data Format 2 VSAF_2 Single Scan-Data Format 3 VSAF_3 Queue Busting Extraction *Disabled EXTBAR0 PDF417...
  • Page 281 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Code 39 Check Char. *No Check Char. C39CK20 Validate, But Don’t C39CK21 Transmit Validate, C39CK22 and Transmit Code 39 Message Length Minimum (0 - 48) *0 C39MIN## Maximum (0 - 48) *48 C39MAX## Code 39 Append...
  • Page 282 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Code 93 Default All Code 93 C93DFT Settings C93ENA0 C93ENA1 Code 93 Message Length Minimum (0 - 80) *0 C93MIN## Maximum (0 - 80) *80 C93MAX## Code 93 Append C93APP1 *Off C93APP0...
  • Page 283 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Code 128 Default All Code 128 128DFT Settings 128ENA0 128ENA1 ISBT Concatenation *Off ISBENA0 ISBENA1 Code 128 Redundancy Range (0 - 10) *0 128VOT## Code 128 Message Length Minimum (0 - 80) *0 128MIN## Maximum (0 - 80) *80...
  • Page 284 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry UPC-A 5 Digit Addenda *Off UPAAD50 UPAAD51 UPC-A Addenda Required *Not Required UPAARQ0 Required UPAARQ1 Addenda Timeout Range (0 - 500) *120 DLYADD##### UPC-A Addenda UPAADS0 Separator UPAADS1 UPC-A/EAN-13 with Extended *Off...
  • Page 285 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Convert UPC-A to EAN-13 UPC-A Converted to EAN-13 UPAENA0 *Do not Convert UPC-A UPAENA1 EAN/JAN-13 Check Digit E13CKX0 E13CKX1 EAN/JAN-13 Addenda 2 Digit Addenda On E13AD21 *2 Digit Addenda Off E13AD20 5 Digit Addenda On E13AD51...
  • Page 286 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry EAN/JAN-8 Default All EAN/ EA8DFT JAN-8 Settings EA8ENA0 EA8ENA1 EAN/JAN-8 Check Digit EA8CKX0 EA8CKX1 EAN/JAN-8 Addenda *2 Digit Addenda Off EA8AD20 2 Digit Addenda On EA8AD21 *5 Digit Addenda Off EA8AD50 5 Digit Addenda On EA8AD51...
  • Page 287 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry GS1 DataBar Limited Default All GS1 DataBar Limited RSLDFT Settings RSLENA0 RSLENA1 GS1 DataBar Expanded Default All GS1 DataBar RSEDFT Expanded Settings RSEENA0 RSEENA1 GS1 DataBar Expanded Msg. Minimum (4 - 74) *4 RSEMIN## Length...
  • Page 288 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry UPC/EAN Version COMUPC1 *Off COMUPC0 GS1 Composite Codes Msg. Length Minimum (1-2435) *1 COMMIN#### Maximum (1-2435) *2435 COMMAX#### GS1 Emulation GS1-128 Emulation EANEMU1 GS1 DataBar Emulation EANEMU2 GS1 Code Expansion Off EANEMU3 EAN8 to EAN13 Conversion...
  • Page 289 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Digimarc Barcode Decoder Attempts (0-10) *3 DIGSTR## DIGENA0 DIGENA1 Uses ID Decoder then Both DIGENA2 Decoders *Uses Digimarc Decoder then DIGENA3 Both Decoders Uses ID Decoder then Alternates DIGENA4 Decoders Uses Digimarc Decoder then...
  • Page 290 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Postal Codes - 2D 2D Postal Codes *Off POSTAL0 Single 2D Postal Codes Australian Post On POSTAL1 British Post On POSTAL7 Canadian Post On POSTAL30 Intelligent Mail Barcode On POSTAL10 Japanese Post On POSTAL3...
  • Page 291 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Postal-4i, Intelligent Mail POSTAL27 Barcode, and Postnet with B and B’ Fields On Planet, Postal-4i, Intelligent Mail POSTAL28 Barcode, and Postnet On Planet, Postal-4i, Intelligent Mail POSTAL29 Barcode, and Postnet with B and B’...
  • Page 292 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry *LED State - Off SNPLED0 LED State - On SNPLED1 Exposure (1-7874 microseconds) SNPEXP *7874 *Gain - None SNPGAN1 Gain - Medium SNPGAN2 Gain - Heavy SNPGAN4 Gain - Maximum SNPGAN8 Target White Value (0-255) *125...
  • Page 293 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry *Rotate Image none IMGROT0 Rotate Image 90° right IMGROT1 Rotate Image 180° right IMGROT2 Rotate Image 90° left IMGROT3 JPEG Image Quality (0-100) *50 IMGJQF### *Gamma Correction Off IMGGAM0 Gamma Correction On (0-1000) IMGGAM###...
  • Page 294 Serial Command Setting Selection # Indicates a numeric Page * Indicates default entry Application Plug-Ins (Apps) *Decoding Apps On PLGDCE1 Decoding Apps Off PLGDCE0 *Formatting Apps On PLGFOE1 Formatting Apps Off PLGFOE0 List Apps PLGINF Reset the Factory Defaults Remove Custom Defaults DEFOVR Activate Defaults DEFALT...
  • Page 295 Xenon Ultra 196X Series User Guide...

  • Page 296: Chapter 12 - Product Specifications

    CHAPTER PRODUCT SPECIFICATIONS Note: For Xenon Ultra accessory specifications, see the Xenon Ultra 196x Series Accessories User Guide on sps.honeywell.com. Xenon Ultra Product Specifications Parameter Specification Mechanical Height 6.3 inches (160.2mm) Length 4.3 inches (108.2mm) Width 2.8 inches (70.4mm) Weight 147.2 g (5.2 oz.)
  • Page 297 Parameter (Continued) Specification Frequency 2.4 GHz (ISM Band) Frequency Hopping Bluetooth v Range 33 ft. (10 m) typical with Adaptive Frequency Hopping. Class 1: 100m line of sight (default), programmable to Class 2: 10m line of sight. BLE is available. Environmental Temperature Ranges: Operating...

  • Page 298: Depth Of Field Charts

    Depth of Field Charts Retail/Healthcare Typical Performance Focus Standard Range High Density Near Near Symbology Distance Distance Distance Distance 2 mil Code 39 3 mil Code 39 1.34 6.85311 0.71 6.85 5 mil Code 39 0.91 12.24 0.28 11.61 10 mil Code 39 27.44 21.57 13 mil UPC...
  • Page 299 Focus (Continued) Standard Range High Density Symbology Near Near (Continued) Distance Distance Distance Distance Resolution (1D) 2.5 mil 2 mil Resolution (2D) 5 mil 5 mil Xenon Ultra 196X Series User Guide...

  • Page 300: Retail/Healthcare Guaranteed Performance

    Retail/Healthcare Guaranteed Performance Focus Standard Range High Density Near Near Symbology Distance Distance Distance Distance 2 mil Code 39 3 mil Code 39 2.05 6.06 5.67 5 mil Code 39 1.81 11.14 0.51 10.16 10 mil Code 39 25.63 16.81 13 mil UPC 22.4 13.98...

  • Page 301: Light Industrial Typical Performance

    Light Industrial Typical Performance Focus Extreme Density Near Symbology Distance Distance 2 mil Code 39 2.95 3 mil Code 39 3.98 5 mil Code 39 10 mil Code 39 8.86 13 mil UPC 1.02 7.83 7.5 mil Code 128 5.08 15 mil Code 128 0.98 8.74...

  • Page 302: Light Industrial Guaranteed Performance

    Light Industrial Guaranteed Performance Focus Extreme Density Near Symbology Distance Distance 2 mil Code 39 0.39 3 mil Code 39 3.54 5 mil Code 39 4.33 10 mil Code 39 7.83 13 mil UPC 1.18 7.09 7.5 mil Code 128 4.09 15 mil Code 128 7.72...

  • Page 303: Standard Connector Pinouts

    Standard Connector Pinouts Note: The following pin assignments are not compatible with some Honeywell legacy products. Use of a cable with improper pin assignments may lead to damage to the unit. Use of any cables not provided by the manufacturer may result in damage not covered by your warranty.

  • Page 304: Usb

    10 Pin Modular Plug - connects to the base Cable shield Cable select Supply ground +5V power Data + 10 Data - Required Safety Labels Illumination output Part Number, Serial Number and Revision Compliance Information Label location location Xenon Ultra 196X Series User Guide...
  • Page 305 Xenon Ultra 196X Series User Guide...

  • Page 306: Chapter 13 - Maintenance And Troubleshooting

    CHAPTER MAINTENANCE AND TROUBLESHOOTING Repairs Repairs and/or upgrades are not to be performed on this product. These services are to be performed only by an authorized service center (see Customer Support page xvii). Maintenance Your device provides reliable and efficient operation with a minimum of care. Although specific maintenance is not required, the following sections describe periodic checks to ensure dependable operation.

  • Page 307: About Disinfectant-Ready Models

    When properly seated, the connector is held in the scanner’s handle by a flexible retention tab. The interface cable is designed to be field replaceable. • Order replacement cables from Honeywell or from an authorized distributor. • When ordering a replacement cable, specify the cable part number of the original interface cable.

  • Page 308: Replace Cables And Batteries In Cordless Systems

    Replace Cables and Batteries in Cordless Systems Replace an Interface Cable in a Base 1. Turn the power to the host system OFF. 2. Disconnect the base’s cable from the terminal or computer. 3. Turn the base upside down. 4. Pull the connector out while maintaining pressure on the connector release clip.
  • Page 309 2. Remove the end cap and remove the battery or battery-free supercapacitor from the handle. 3. Insert replacement battery or battery-free supercapacitor. 4. Replace end cap and screw together. Xenon Ultra 196X Series User Guide...

  • Page 310: Change A Contactless Battery Or Battery-Free Supercapacitor

    Change a Contactless Battery or Battery-Free Supercapacitor 1. Remove the screw on the bottom of the scanner with a T10 torx. Keep the screw nearby. 2. Remove the end cap/battery or battery-free supercapacitor from the handle. 3. Replace end cap/battery or battery-free supercapacitor and screw together. Troubleshoot a Corded Scanner The scanner automatically performs self-tests whenever you turn it on.

  • Page 311: Troubleshoot A Cordless System

    Troubleshoot a Cordless System Troubleshoot a Base Note: Go to sps.honeywell.com and then select Support > Software and Downloads to check for the latest software for both the scanner and the base. If your base is not functioning properly, review the following troubleshooting guidelines to try to isolate the problem.

  • Page 312: Troubleshoot A Cordless Scanner

    Troubleshoot a Cordless Scanner Note: Make sure that your scanner’s battery/battery-free supercapacitor is charged. Go to sps.honeywell.com and then select Support > Software and Downloads to check for the latest software for both the scanner and the base.to check for the latest software for both the scanner and the base or Access Point.
  • Page 313 Xenon Ultra 196X Series User Guide...

  • Page 314: Chapter A - Reference Charts

    99) entry. Refer to Data Edit beginning on page 123 and Data Format/Queue Busting beginning on page 129 for information about using Code ID and AIM ID. Linear Symbologies Honeywell Possible modifiers Linear Symbology All Symbologies Codabar Code 11 Code 128...

  • Page 315: 2D Symbologies

    0, 1, 2, 3, 8, 9, A, B, C UPC-A UPC-A with Add-On UPC-A with Extended Coupon Code UPC-E UPC-E with Add-On UPC-E1 Add Honeywell Code ID 5C80 Add AIM Code ID 5C81 Add Backslash 5C5C Batch mode quantity 2D Symbologies...

  • Page 316: Postal Symbologies

    Honeywell Possible modifiers 2D Symbology Chinese Sensible Code (Han Xin Code) Codablock A 0, 1, 4, 5, 6 Codablock F 0, 1, 4, 5, 6 Code 49 0, 1, 2, 4 Data Matrix Dot Code GS1 Composite GS1 DataBar Omnidirectional...

  • Page 317: Ascii Conversion Chart (Code

    ASCII Conversion Chart (Code Page 1252) In keyboard applications, ASCII Control Characters can be represented in 3 different ways, as shown below. The CTRL+X function is OS and application dependent. The following table lists some commonly used Microsoft functionality. This table applies to U.S. style keyboards. Certain characters may differ depending on your Country Code/PC regional settings.

  • Page 318: Lower Ascii Reference Table

    Lower ASCII Reference Table Note: Windows Code page 1252 and lower ASCII use the same characters. Printable Characters Character Character DEC Character <SPACE> " & < > ⌂ Extended ASCII Characters CP 1252 ASCII Alternate Extended PS2 Scan Code ↑ €...
  • Page 319 Extended ASCII Characters (Continued) CP 1252 ASCII Alternate Extended PS2 Scan Code Œ î Reserved ì Reserved Ž Ä Numeric Keypad Enter 0x1C Å Numeric Keypad / 0x35 É 0x3B ‘ æ 0x3C ’ Æ 0x3D “ ô 0x3E ” ö...
  • Page 320 Extended ASCII Characters (Continued) CP 1252 ASCII Alternate Extended PS2 Scan Code  ┬ à ├ Ä ─ Å í Æ ╞ Ç ╟ È ╚ É ╔ Ê ╩ Ë ╦ Ì ╠ Í ═ Î ╬ Ï ╧ Ð...

  • Page 321: Iso 2022/Iso 646 Character Replacements

    (standard ASCII) Automatic National Character ISO/IEC 2022 2 (default) Replacement Binary Code page Default “Automatic National Character replacement” will select the below Honeywell Code Page options for Code128, Code 39 and Code 93. United States ISO/IEC 646-06 Canada ISO /IEC 646-121...
  • Page 322 Honeywell Code Page Selection Method/ Keyboard Code Standard Country Country Page Option Spain ISO/IEC 646-17 Spain ISO/IEC 646-85 Xenon Ultra 196X Series User Guide...
  • Page 323 à â ç ê î ô é ù è û à â ç ê É ô é ù è û ¥ ‾ ¥ ‾ £ ˜ £ à ° ç § µ é ù è ¨ § Ä Ö Ü ä...

  • Page 324: Keyboard Key References

    Keyboard Key References 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7D 7E 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 4B 50 55 5A 5F 64 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 4C 51 56 5B 60 65 1F 20 21 22 23 24 25 26 27 28 29...
  • Page 325 Xenon Ultra 196X Series User Guide...

  • Page 326: Sample Symbols

    SAMPLE SYMBOLS UPC-A Interleaved 2 of 5 01234567890 0 123456 7890 EAN-13 9 780330 290951 Code 128 Code 39 Code 128 BC321 Codabar A13579B Code 93 Straight 2 of 5 Industrial 123456 123456-9$ Matrix 2 of 5 6543210 RSS-14 PDF417 Car Registration (01) 00123456789012 Code 49...
  • Page 327 SAMPLE SYMBOLS (CONTINUED) Postnet Data Matrix Zip Code Test Symbol QR Code Numbers MaxiCode Micro PDF417 Test Message Test Message DotCode 12345 Xenon Ultra 196X Series User Guide...

  • Page 328: Programming Chart

    PROGRAMMING CHART Xenon Ultra 196X Series User Guide...
  • Page 329 PROGRAMMING CHART (CONTINUED) Save Discard Reset Note: If you make an error while scanning the letters or digits (before scanning Save), scan Discard, scan the correct letters or digits, and Save again. Xenon Ultra 196X Series User Guide...
  • Page 331 Honeywell 855 S. Mint Street Charlotte, NC 28202 sps.honeywell.com ™ XEN196X-EN-UG-01 Rev E 8/24...

This manual is also suitable for:

Xenon ultra 196 seriesXenon ultra 1960hXenon ultra 1960liXenon ultra 1962gXenon ultra 1962hXenon ultra 1962li

Table of Contents
