Rating:
Amperes:
RPM:
Collets:
Weight:
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665
Technical questions
Replacement parts
Parts missing from package
PRODUCT SPECIFICATIONS
120 V, 60 Hz AC
1.5 A
0–35,000 RPM (no load)
1/16", 3/32" & 1/8"
1 lb 6 oz (0.62 kg)
1

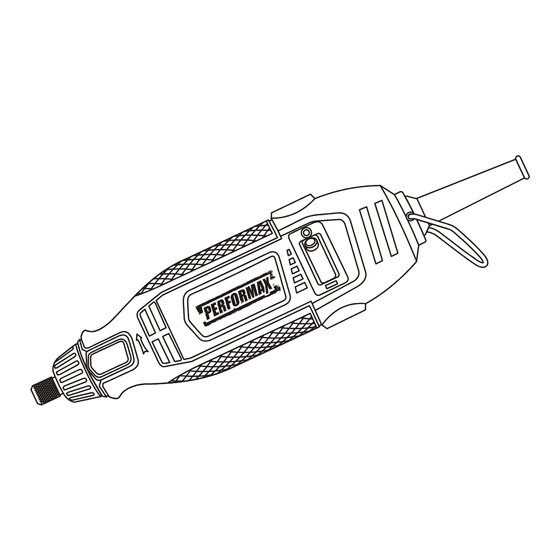

ROTARY TOOL
Owner's Manual
241-0967
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Performax 241-0967
Summary of Contents for Performax 241-0967
-
Page 1: Product Specifications
ROTARY TOOL 241-0967 Owner’s Manual PRODUCT SPECIFICATIONS Rating: 120 V, 60 Hz AC Amperes: 1.5 A RPM: 0–35,000 RPM (no load) Collets: 1/16", 3/32" & 1/8" Weight: 1 lb 6 oz (0.62 kg) Need Assistance? Call us on our toll free customer support line: 1-866-349-8665 ... -
Page 2: Table Of Contents
TABLE OF CONTENTS Product specifications ………….………………………………………………………………... Table of contents ……………………………………………………………………...………..General safety warnings ……………………………………………………………..………..3–4 Eye, ear, & lung protection …………………………………………………………………..3–4 Electrical safety ……………………………………………………………………….………..Power tool safety ……………………………………………………………………...………..5–6 General warning ………………………………………………………………………………..Work area safety ………………………………………………………….…………..………..Electrical safety ……………………………………………………………………….………..Personal safety ………………………………………………………………………..……….. -
Page 3: General Safety Warnings
GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. It must be understood that common sense and caution are factors which cannot be built into the product. -
Page 4: Electrical Safety
GENERAL SAFETY WARNINGS EYE, EAR & LUNG PROTECTION – cont’d WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities. -
Page 5: Power Tool Safety
POWER TOOL SAFETY WARNING: Read all safety warnings and When operating a power tool outdoors, use all instructions. Failure to follow the warnings an extension cord suitable for outdoor use. and instructions may result in electric shock, fire Use of a cord suitable for outdoor use reduces and/or serious injury. -
Page 6: Power Tool Use And Care
POWER TOOL SAFETY PERSONAL SAFETY – cont’d Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting Dress properly. Do not wear loose clothing edges are less likely to bind and are easier to or jewelry. Keep your hair, clothing and control. -
Page 7: Specific Safety Rules
SPECIFIC SAFETY RULES Always wear safety goggles and dust mask. Use only in well-ventilated area. Using WARNING: Know your rotary tool. Do personal safety devices and working in a safe not plug the tool into the power source until environment reduces risk of injury. you have read and understand this Instruction Manual. -
Page 8: Extension Cord Safety
EXTENSION CORD SAFETY WARNING: Keep the extension cord clear of the working area. Position the cord so it will not get caught on the workpiece, tools or any other obstructions while you are working with the power tool. Make sure any extension cord used with this tool is in good condition. -
Page 9: Symbols
SYMBOLS WARNING: Some of the following symbols may appear on the rotary tool. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes No load speed Hertz Alternating or direct... -
Page 10: Know Your Rotary Tool
KNOW YOUR ROTARY TOOL ON/OFF switch & speed control Spindle lock button Hanging loop Collet nut Air vents Umbrella ACCESSORIES Illustration Description Size/Shape Regular duty cut-off 15/16" X 0.025 wheel Super duty cut-off 1 1/4” wheel - fiberglass reinforced Grinding wheel Assorted 1/2”... -
Page 11: Accessories
ACCESSORIES Illustration Description Size/Shape 1” Felt polishing wheel 1/2” Felt polishing wheel 3/8” Felt polishing tip Rubber polishing 7/8” wheel Drum sander with 1/4” 1/8” shank Drum sander with 1/2” 1/8” shank 1/8” Screw mandrel Mandrel for felt 1/8” wheel 1”... - Page 12 ACCESSORIES Illustration Description Size/Shape Aluminum oxide 3/8” cylinder grinding stone Aluminum oxide 5/8” Radial grinding stone 1/4” Axial Brass brush 1/2” Axial Brass brush 1/4” Axial Bristle brush 1/2” Axial Bristle brush 3/4” Radial Stainless steel brush 1/8” Cylinder Multi-purpose bit Multi-purpose bit 3/32”...
-
Page 13: Accessory Description & Use
ACCESSORY DESCRIPTION & USE There are many different types of accessories that can be used with this rotary tool. The following charts identify the most popular accessories and their uses. NOTE: Please see the accessory case contents on Pages 10, 11 & 12 to identify the accessories that are included with this rotary tool. -
Page 14: Accessory Description & Use
ACCESSORY DESCRIPTION & USE Accessory Description Accessory Use Multi-purpose drill bit Cuts wood, plastic, fiberglass, drywall, laminate and aluminum and vinyl siding. Stainless steel brush Stainless steel brushes do not cause "after-rust" when used on corrosive-resistant materials like pewter, aluminum and stainless steel. Flap wheel Flap wheels grind and polish flat or contoured surfaces. -
Page 15: Assembly And Operating
ASSEMBLY AND OPERATING ON/OFF & SPEED CONTROL SWITCH While holding the spindle lock button down, turn the collet nut counter clockwise until it Both the ON/OFF and speed control functions is removed. are controlled by one switch (1) located on the top of the tool (Fig. -
Page 16: Selecting Proper Speeds
ASSEMBLY AND OPERATING INSTALLING ACCESSORIES – cont`d SELECTING PROPER SPEEDS Press the spindle lock button and engage it Different speeds are required depending upon in the spindle. While holding the spindle the type of operation being performed. The lock button down, hand-tighten the collet by following chart outlines those basic speeds: turning it clockwise. -
Page 17: Maintenance
MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 18: Exploded View
EXPLODED VIEW... -
Page 19: Parts List
PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the rotary tool. Any attempt to repair or replace electrical parts on this rotary tool may create a safety hazard unless repairs are performed by a qualified technician. -
Page 20: Warranty
® back to your nearest MENARDS® retail store. At its discretion, PERFORMAX agrees to have the tool or any defective part(s) repaired or replaced with the ®...
Need help?
Do you have a question about the 241-0967 and is the answer not in the manual?
Questions and answers
I went to change the collett but it won't loosen. How do i fix this?
To fix a stuck collet on a Performax 241-0967:
1. Turn the switch OFF and disconnect the tool from the power source.
2. Depress the spindle lock button and slowly turn the collet nut until the spindle locks.
3. While holding the spindle lock button down, turn the collet nut counterclockwise until the collet becomes loose.
Do not tighten the collet nut without an accessory installed, as this may damage the collet.
