Performax 241-1397 Owner's Manual

Performax 241-1397 Owner's Manual

8 volt li-ion cordless driver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

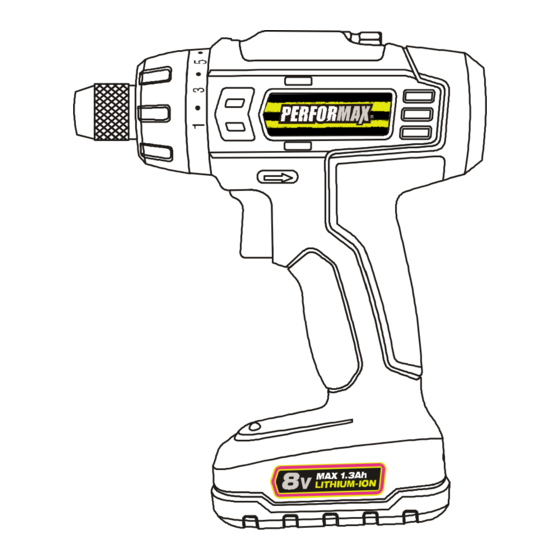

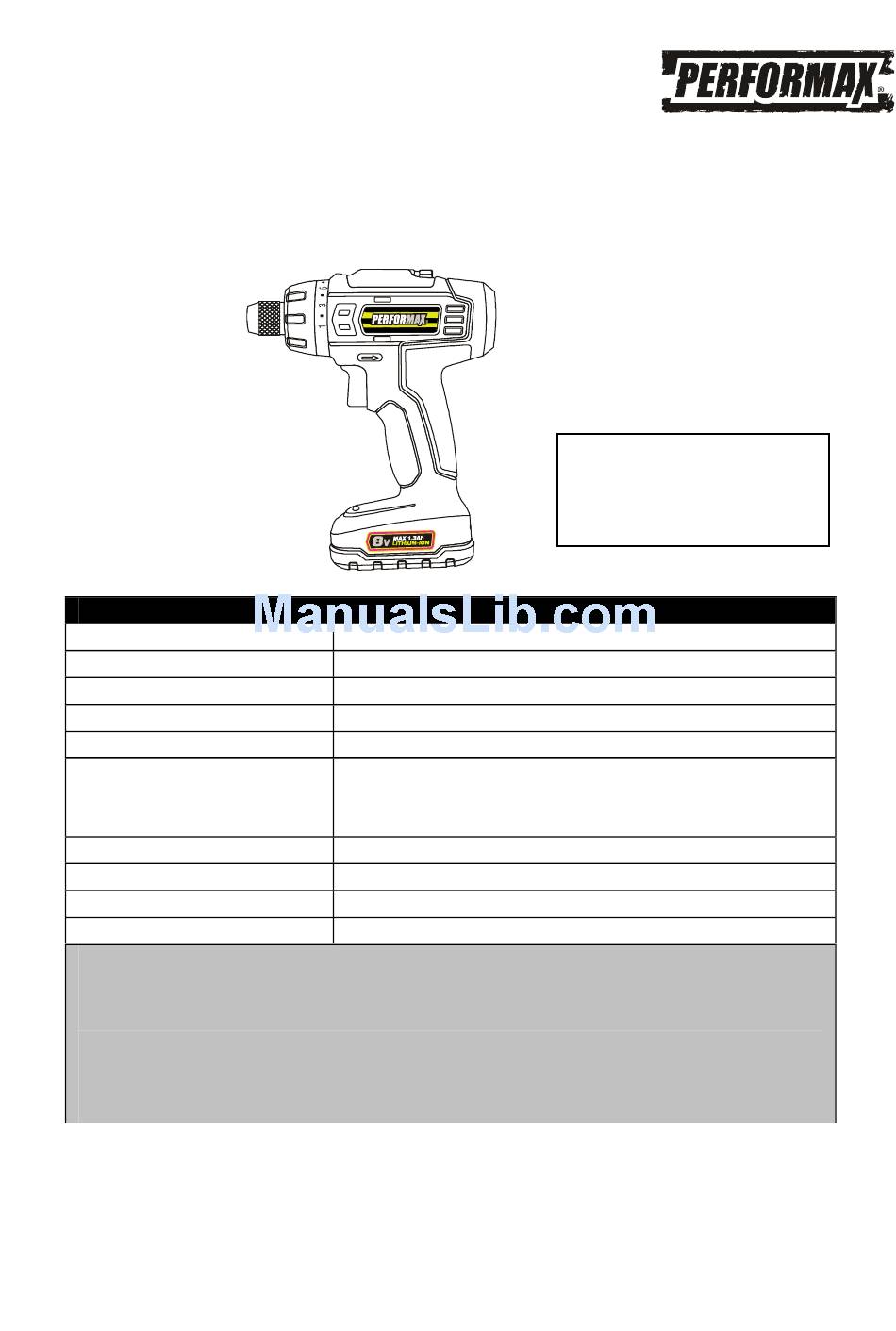

8 VOLT LI-ION CORDLESS DRIVER
Rotation:
Variable speed:
Variable torque:
Torque clutch positions:
Hex drive:
Battery:
Battery charger:
Charger input:
Charger output:
Weight:
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665
•
Technical questions
•
Replacement parts
•
Parts missing from package
PRODUCT SPECIFICATIONS
Clockwise or counter clockwise
0–400 RPM (no load)
90 in/lb (maximum)
16 + drill mode
Quick release ¼" (6.35 mm)
Integral 8V Li-ion, 1.3 Ah (Maximum initial
battery voltage (measured without workload) is
8 volts. Nominal voltage is 7.2)
3–5 hour, Class 2
120 V AC, 60 Hz
9 V DC, 400 mA (maximum)
1 lb 12 oz (0.79 kg)
Owner's Manual
Maximum initial battery
voltage (measured without
workload) is 8 volts.
Nominal voltage is 7.2.
241-1397

Advertisement

Table of Contents
loading

Related Manuals for Performax 241-1397

Summary of Contents for Performax 241-1397

  • Page 1 8 VOLT LI-ION CORDLESS DRIVER 241-1397 Owner’s Manual Maximum initial battery voltage (measured without workload) is 8 volts. Nominal voltage is 7.2. PRODUCT SPECIFICATIONS Rotation: Clockwise or counter clockwise Variable speed: 0–400 RPM (no load) Variable torque: 90 in/lb (maximum)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product specifications ………….………………………………………………………………... Table of contents ……………………………………………………………………....General safety warnings ………………………………………………………………………… 3–4 Eye, ear & lung protection ………………………………………………………………………. 3–4 Electrical safety …………………………………………………………………………………... Power tool safety ……………………………………………………………………....5–6 General safety rules ……………………………………………………………………………... Work area ………………………………………………………………….……………………... Electrical safety …………………………………………………………………………………... Personal safety …………………………………………………………………………………...

  • Page 3: General Safety Warnings

    GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. It must be understood that common sense and caution are factors which cannot be built into the product.

  • Page 4: Electrical Safety

    GENERAL SAFETY WARNINGS WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities.

  • Page 5: Power Tool Safety

    POWER TOOL SAFETY If operating a power tool in a damp location WARNING: Read all safety warnings is unavoidable, use a residual current device and instructions. Failure to follow the warnings (RCD) protected supply. Use of a ground fault and instructions may result in electric shock, fire circuit interrupter (GFCI) reduces the risk of and/or serious injury.

  • Page 6: Power Tool Use And Care

    POWER TOOL SAFETY Battery tool use and care PERSONAL SAFETY – cont’d Power tool use and care Recharge only with the charger specified by the manufacturer. A charger that is suitable for Do not force the power tool. Use the correct one type of battery pack may create a risk of fire power tool for your application.

  • Page 7: Specific Safety Rules

    SPECIFIC SAFETY RULES WARNING: Always use the correct shape of screwdriver bit Know your cordless driver. that matches the head of the screw. Do not plug in the charger until you have read and understand this Instruction Manual. Always use the largest size screwdriver bit that Learn the tool’s applications and limitations, will properly fit into the head of the screw.

  • Page 8: Battery & Charger Safety

    BATTERY & CHARGER SAFETY WARNING: Do not use the charger to charge any batteries Only use the charger other than this 8V cordless driver battery. Other supplied with this kit to charge the 8V batteries may explode. battery. Charging any other batteries may damage the charger and possibly cause Do not operate charger if the cord or plug is serious injury.

  • Page 9: Symbols

    SYMBOLS WARNING: Some of the following symbols may appear on the cordless driver. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes No load speed Hertz Alternating or direct...

  • Page 10: Know Your Cordless Driver

    KNOW YOUR CORDLESS DRIVER Single ended screwdriver bits #1 & #2 – one each Quick release collar vents Forward / Torque reverse switch clutch Trigger switch LED worklight / charging indicator Charging receptacle Battery pack NOTE: The battery pack is contained within the main housing of the driver and cannot be removed.

  • Page 11: Assembly And Operating

    ASSEMBLY AND OPERATING CHARGING THE BATTERY Worklight When the trigger switch is squeezed to turn the Place the driver near a 120 V, 60 Hz driver ON, the LED will turn ON at the same electrical outlet. time to provide lighting to the screwdriver bit. When the trigger switch is released, the driver Insert the small battery charger plug (1) and the LED will both turn OFF.

  • Page 12: Forward/Reverse Switch

    ASSEMBLY AND OPERATING VARIABLE SPEED TRIGGER SWITCH INSTALLING SCREWDRIVER BITS – cont’d Release the quick release collar. This cordless driver is equipped with a variable- speed ON/OFF trigger switch. Pull outward on the screwdriver bit to ensure it is properly locked into the collet. To start the driver, gently squeeze the NOTES: trigger switch (2) (Fig.

  • Page 13: Preparing Screw Holes

    ASSEMBLY AND OPERATING PREPARING SCREW HOLES ADJUSTING THE TORQUE COLLAR – cont’d Rotate adjustment ring to align the correct It is important to prepare screw holes before torque setting number with the torque attempting to fasten two pieces of wood indicator arrow (4).

  • Page 14: Driving Screws

    ASSEMBLY AND OPERATING DRIVING SCREWS When driving screws, care must be taken to use a bit that correctly fits the head of the screw being driven. Make sure you use the largest bit size that will properly fit into the head of the screw.

  • Page 15: Maintenance

    MAINTENANCE GENERAL battery during use increases the internal temperature of the battery. The result is WARNING: increased power as the tool is used. When servicing this tool, use only identical replacement parts. The LITHIUM-ION BATTERY MAINTENANCE use of any other part may create a hazard or cause product damage.

  • Page 16: Exploded View

    EXPLODED VIEW...

  • Page 17: Parts List

    PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the cordless driver. Any attempt to repair or replace electrical parts on this cordless driver may create a safety hazard unless repairs are performed by a qualified technician.
  • Page 18 PARTS LIST Key # Part # Part Name Quantity 2010080097 Shaft bushing 2040050125 Main shaft 2010240001 Fixing ring 2010090012 Gear ring 2010230001 Driving plate 4110020003 Rolling pin 1170070012 Planetary carrier 2010010021 Planetary gear 1170070011 Planetary carrier 2010010020 Planetary gear 2030020025 Big washer 4020010028 Screw M3x8...

  • Page 19: Year Limited Warranty

    ® back to your nearest MENARDS® retail store. At its discretion, PERFORMAX agrees to have the tool or any defective part(s) repaired or replaced with the ®...
