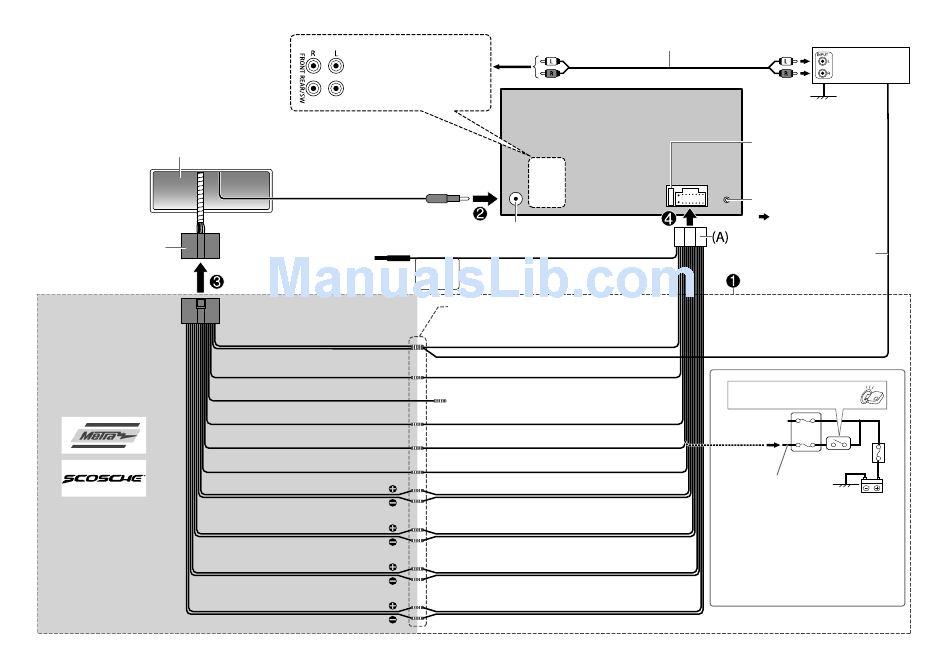

Wiring connection

Vehicle dashboard
Factory wiring
harness (vehicle)
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Front output
Rear/subwoofer output
To the steering
Light blue/yellow
wheel remote
STEERING
control adapter
REMOTE
Recommended

connection

Blue: To power antenna
Blue/white: To amplifier
Antenna terminal
WHEEL
Join the same color wires together.
Blue/white: Remote (200 mA max.)
Orange/white: Illumination
(Not used) Insulate to prevent short circuit
Yellow: Battery 12 V
Red: Ignition 12 V
Black: Ground
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
Green/black
Purple: Rear speaker (right)
Purple/black
Signal cord (not supplied)
Fuse (10 A)
Microphone input jack
( 10)
Ignition switch
Car fuse block
Separate red wire
Make this connection if your vehicle
factory wiring harness does not have
"12 V ignition switch" wire.
JVC Amplifier
Remote wire
(not supplied)
