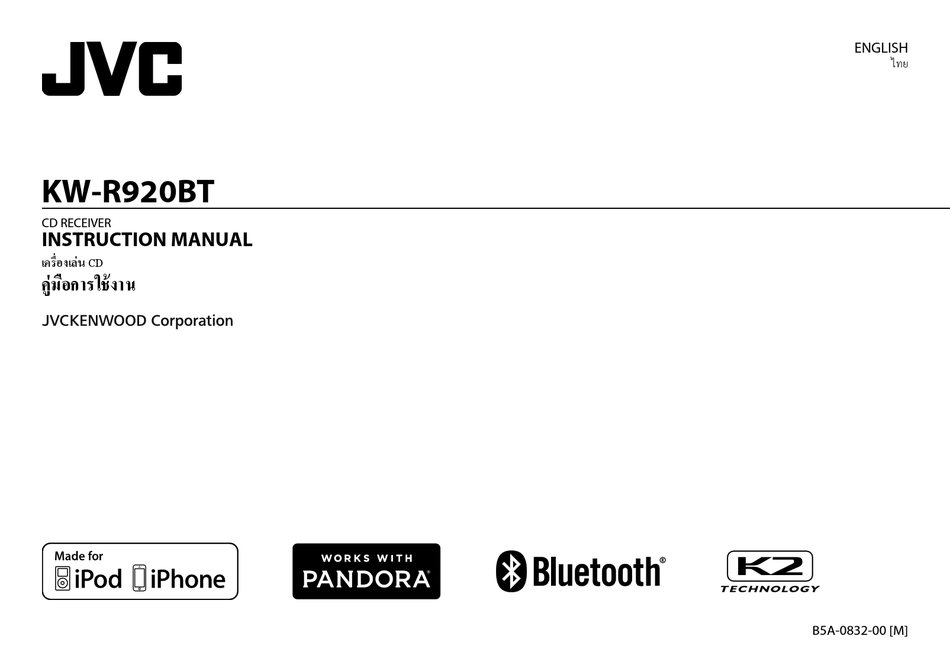

ENGLISH ไทย KW-R920BT CD RECEIVER INSTRUCTION MANUAL เครื ่ อ งเล น CD คู ่ ม ื อ การใช้ ง าน B5A-0832-00 [M]...
Page 2
• The Bluetooth® word mark and logos are registered trademarks owned by AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE license.
Page 3
The marking of products using lasers The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class.
CONTENTS BEFORE USE BEFORE USE IMPORTANT • To ensure proper use, please read through this manual before using this product. It is especially important BASICS that you read and observe Warning and Caution in this manual. GETTING STARTED • Please keep the manual in a safe and accessible place for future reference. 1 Cancel the demonstration Warning 2 Set the clock...
BASICS Faceplate Remote control (RM-RK52) How to reset Remote sensor (Do not expose to bright sunlight.) Loading slot Display window Press twice within 5 seconds. Pull out the insulation sheet when using for the first time. How to replace the battery Volume knob On the faceplate On the remote control...
Turn the volume knob to select [24H/ 12H], then press the knob. For details on how to update the firmware, see: Turn the volume knob to select [12 HOUR] or [24 HOUR], then press the <http://www.jvc.net/cs/car/>. knob. FACTORY RST YES: Resets the settings to default (except the stored station). ; NO: Cancels.
RADIO GETTING STARTED CLOCK CLOCK SYNC AUTO: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; OFF: Cancels. CLOCK DISP ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels. ENGLISH Select the display language for menu and music information if applicable.
RADIO Select a stored station LOCAL SEEK ON: Searches only AM/SW1/SW2 stations with good reception. ; OFF: Cancels. Press or one of the number buttons (1 to 6). • Settings made are applicable only to the selected source/station. Once (or) you change the source/station, you need to make the settings again. Press Turn the volume knob to select a preset number, then press the IF BAND...
: iPod or ANDROID Do not leave the cable inside the car when not using. When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the ANDROID application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting.
Page 10
If you have many files, you can search through them quickly. AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY Turn the volume knob quickly to browse through the list quickly. application installed in the Android device.
Page 11
Pandora® (Applicable for Australia or New Zealand models only) Preparation: Create and save a new station Install the latest version of the Pandora application on your device Press (iPhone/ iPod touch), then create an account and log in to Pandora. Turn the volume knob to select [NEW STATION], then press the knob.
Press to turn on the unit. – Hands-Free Profile (HFP) Search and select “JVC UNIT” on the Bluetooth device. “BT PAIRING” flashes on the display. – Advanced Audio Distribution Profile (A2DP) • For some Bluetooth devices, you may need to enter the Personal Identification Number –...
Page 13
– Bluetooth function of the connected device is turned on. – [AUTO CNNT] is set to [ON]. ( 14) – JVC MUSIC PLAY application is installed on Receive a call the Android device ( 7) and [AUTO MODE] is When there is an incoming call: selected ( 8).
Page 14
BLUETOOTH® Default: XX On the faceplate On the remote control MIC LEVEL –10 — +10 (–4): The sensitivity of the microphone increases While talking on the first incoming call... as the number increased. Answer another incoming ( Not available ) Press or the volume NOISE RDCT –5 — +5 (0): Adjust the noise reduction level until the least call and hold the current...
Page 15
BLUETOOTH® Make a call using voice recognition Make a call Press and hold to activate the connected phone. You can make a call from the call history, phonebook, or dialing the number. Speak the name of the contact you want to call or the voice Call by voice is also possible if your mobile phone has the feature.
Page 16
You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time. pairing has been deleted, and the unit exits check mode. JVC Smart Music Control is designed to view JVC car receiver status and perform simple control • To cancel, press and hold to turn off the power, operations on Android smart phones.
Page 17
BLUETOOTH® BLUETOOTH — Audio Internet radio via Bluetooth Listen to Pandora (Applicable for Australia or New Zealand models only) You can listen to Pandora on the Android device via Bluetooth on this unit. Preparation: Select [ON] for [PANDORA] in [SRC SELECT]. ( 4) Open the Pandora application on your device.
AUDIO SETTINGS Use a portable audio player Connect a portable audio player (commercially available). 3.5 mm stereo mini plug with “L” shaped connector (commercially available) Portable audio player Auxiliary input jack Select [ON] for [AUX] in [SRC SELECT]. ( 4) Press repeatedly to select AUX.
Page 19
AUDIO SETTINGS Default: XX SUB.W LEVEL * SPK-OUT * (Not applicable when 3-way crossover is selected.) 00 to +06 (+03): Adjusts the output level of the subwoofer EQ SETTING connected via speaker lead. ( 29) EQ PRESET Select a preset equalizer suitable to the music genre. (Select [USER] PRE-OUT –50 to +10 (00): Adjusts the output level of the subwoofer to use the settings made in [EASY EQ] or [PRO EQ].)
Page 20
AUDIO SETTINGS Connection via speaker leads SND EFFECT For connections without using an external amplifier. However, with this ENHANCE (Not applicable for FM/AM source.) settings you can also enjoy the subwoofer output. ( 29) SML/ MED/ LRG: Virtually enhances the sound space. ; OFF: Cancels. Audio signal through rear speaker lead RESPONSE LV1/ LV2/ LV3: Virtually makes the sound more realistic. ;...
Page 21
AUDIO SETTINGS 2-way crossover setting items Crossover settings Below are the available setting items for 2-way SPK SIZE crossover and 3-way crossover. FRONT SIZE 8CM/ 10CM/ 12CM/ 13CM/ 16CM/ 17CM/ 18CM/ 4×6"/ 5×7"/ 6×8"/ Caution 6×9"/ 7×10" Select a crossover type according to how the speakers TWEETER SML/ MID/ LRG/ NONE (not connected) are connected.
Page 23
DISPLAY SETTINGS BRIGHTNESS Set the brightness for button and display illuminations for day and night DAY COLOR Store your own day and night colors for different zone. separately. 1 Select a zone. ( 20) 1 DAY / NIGHT: Select day or night. 2 RED / GREEN / BLUE: Select a primary color.
• Recordable/ReWritable discs that have not been finalized. • 8 cm CD. Attempting to insert using an adapter may cause malfunction. More information Visit also the following website <http://www.jvc.net/cs/car/> for: About USB devices – Latest firmware updates and latest compatible item list •...
REFERENCES About Android device Change the display information • This unit supports Android OS 4.1 and above. Each time you press , the display information changes. • Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory •...
( 23) intended. or the order in which files were recorded (disc). Cannot playback at • Make sure JVC MUSIC PLAY APP is installed on the Elapsed playing time is This depends on the recording process earlier. [AUTO MODE].
Page 27
TROUBLESHOOTING Symptom Remedy Symptom Remedy No Bluetooth device is • Search from the Bluetooth device again. “NO DEVICE” or “READING” • Switch off the developer options on the Android device. keeps flashing. detected. • Reset the unit. ( 3) • Reconnect the Android device. •...
SPECIFICATIONS TROUBLESHOOTING FM Frequency Range Symptom Remedy 87.5 MHz — 108.0 MHz (50 kHz step) Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 μV/75 Ω) “PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, Quieting Sensitivity 17.2 dBf (2.0 μV/75 Ω) then connect the device again.
Page 29
SPECIFICATIONS Dynamic Range 90 dB Version Bluetooth Ver.2.1+EDR/ Bluetooth 3.0 Channel Separation 85 dB Frequency Range 2.402 GHz — 2.480 GHz MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 Output Power +4 dBm (MAX), 0 dBm (AVE) Power Class 2 WMA Decode Compliant with Windows Media Audio Maximum Communication Range Line of sight approx.
Warning Part list for installation • The unit can only be used with a 12 V DC power supply, negative ground. (A) Trim plate (B) Wiring harness (C) Flat head screw (D) Round head screw • Disconnect the battery’s negative terminal before wiring and mounting. (M5 ×...
Wiring connection Signal cord (not supplied) JVC Amplifier * Rear/ Front/ Subwoofer output IMPORTANT For 3-way crossover: Tweeter/ We recommend installing the unit with a Mid Range/ Woofer output commercially available custom wiring harness specific for your car and leave this job to professionals Fuse (10 A)
