Wireless keypad (extra accessory)
Is NOT included, but can be bought separately.
To connect the extra wireless keypad, it must be added as a remote control.
Press the "P" button and hold it down for 6 seconds, until LED no. 7 flashes.
Then press the "+" so LED no. 7 glows constantly.
Type 11 and "ARROW TO L" then repeat: type 11 and
"ARROW TO L". When the door opener has received the
signal from the external keypad twice, all lamps will light
up except LED no. 7, which will flash. Then press the "P"
button to save the setting.
Each remote control can operate up to 2 door openers,
so a function "Arrow" button can be programmed for
each motor unit.
The factory code is 11 for the left and 22 for the right.

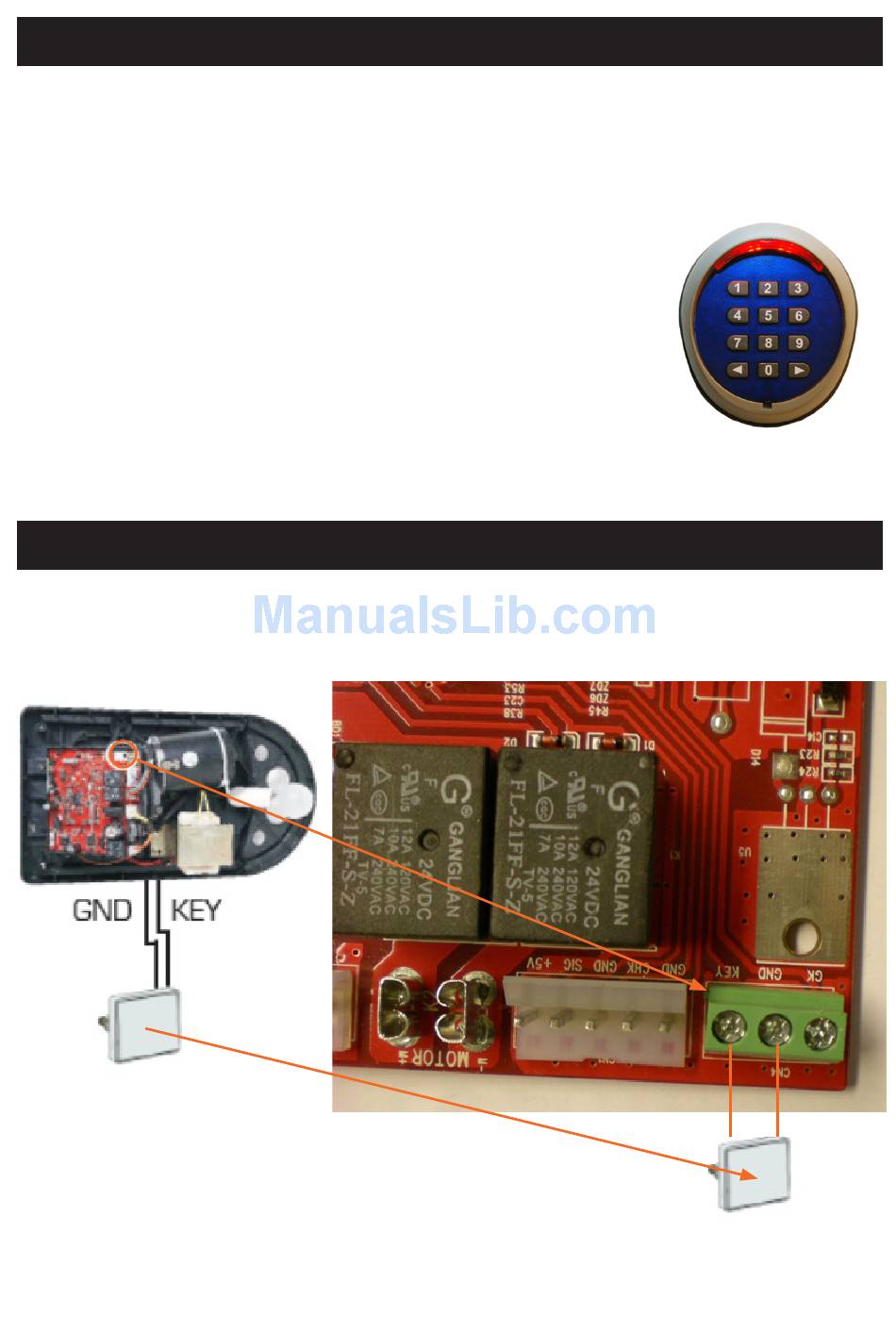

Addition of a manual switch (not supplied)
If a wired connection is required, it can be set up by wiring in a flip switch. The
leads are fitted on the printed circuit board in the terminal strip. The leads are
marked "GND" and "KEY".
