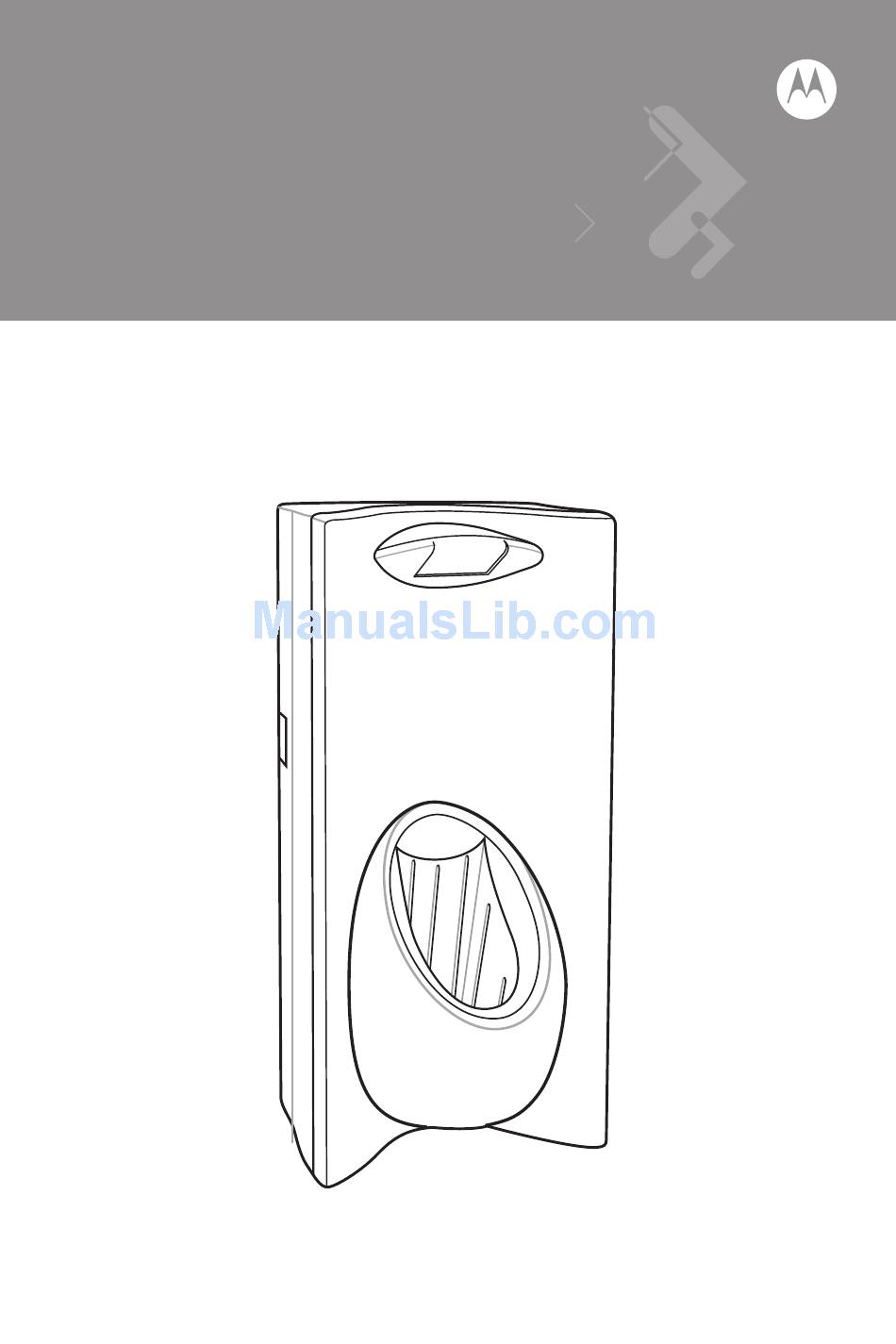

- Page 1 PSS-3CR01 Charging Cradle Quick Reference Guide...
-
Page 2: Warranty
PSS-3CR01 Charging Cradle © 2008 MOTOROLA, INC. All rights reserved. Motorola reserves the right to make changes to any product to improve reliability, function, or design. Motorola does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. -
Page 3: Mounting The Cradle
Quick Reference Guide Introduction The PSS-3CR01 Charging cradle is used to charge the MC17 mobile computer. There are two configurations available: The PSS-3C01-01R contains a locking mechanism that locks the mobile computer in the cradle and the PSS-3C01-NLR that does not contain the locking mechanism. - Page 4 PSS-3CR01 Charging Cradle • No more than six cradles can be powered off of one power supply and power cable 25-66420-01R. • No more than 12 cradles can be powered off of one power supply and “Y” power cable 25-67592-01R.
-
Page 5: Removing The Front Cover
Quick Reference Guide Assembly Replace cover. Secure the two captive screws. NOTE Do not install the target cover until you are sure that you do not need to remove the front cover again. Place cradle ID bar code on target cover prior to installing the target cover. -
Page 6: Battery Charging
PSS-3CR01 Charging Cradle Loosen two captive screws securing the front cover to the back housing. Target Cover Pull front cover away from back housing and then lift out of the back housing. Battery Charging • The Li-Ion battery recharges when... -
Page 7: Led Indications
Regulatory Information This device is approved under the Symbol Technologies brand; Symbol Technologies, Inc., is the Enterprise Mobility business of Motorola, Inc (“Motorola”) All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. -
Page 8: Power Supply
PSS-3CR01 Charging Cradle Any changes or modifications to Symbol Technologies equipment, not expressly approved by Symbol Technologies, could void the user's authority to operate the equipment. Power Supply Use only a Symbol approved power supply output rated at 12Vdc and minimum 9A. -
Page 9: Marking And European Economic Area (Eea)
Waste Electrical and Electronic Equipment (WEEE) English: For EU Customers: All products at the end of their life must be returned to Motorola for recycling. For information on how to return product, please go to: http://www.symbol.com/environmental_compliance. Bulgarish: За клиенти от ЕС: След края на полезния им живот всички... - Page 10 Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Motorola al final de su ciclo de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto, visite: http://www.symbol.com/environmental_compliance.
- Page 11 Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Motorola-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa http://www.symbol.com/environmental_compliance. Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Motorola för återvinning. Information om hur du returnerar produkten finns på http://www.symbol.com/environmental_compliance.
-
Page 12: Service Information
1-800-927-9626 http://www.motorola.com MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their registered owners. © Motorola, Inc. 2008...
