Quality features
Features
Upfront variable-speed fan w/slide control
Separate remote raise/lower switch
Blower rating (CFM)
Optional blower mount capabilities
3-1/4" x 10" rectangular duct
Minimum 6" round duct capability
Removable grease filters
Appearance
Color appearance*
Cover plate
Telescopic snorkel assembly
Weights & Dimensions
Width (in inches)
Approx. shipping weight (lbs.)
Power/Ratings
Current rating amps @ 120V
*SS = Stainless steel, WW = White on white, CC = Bisque on bisque, BB = Black on black.

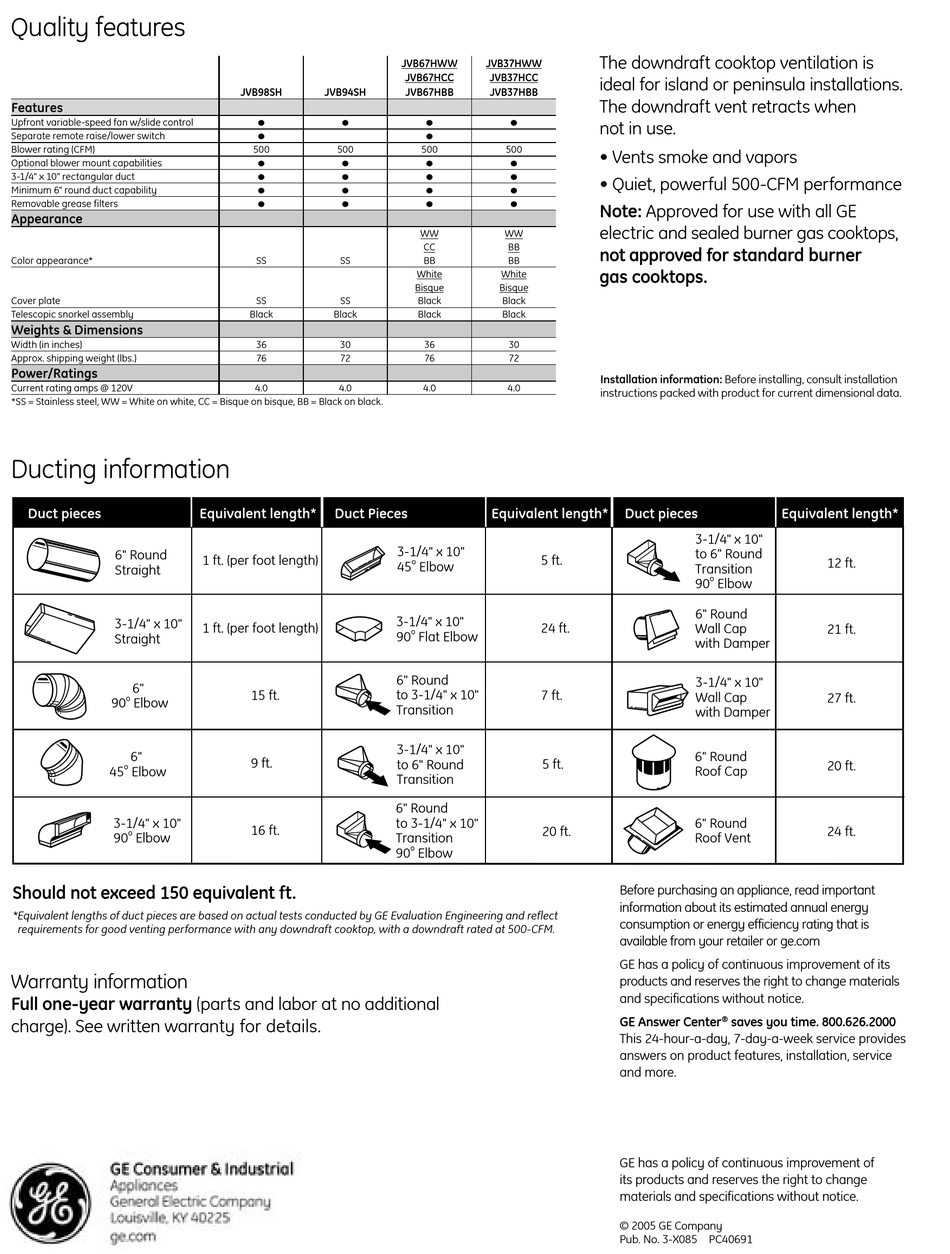

Ducting information

Duct pieces
6" Round
Straight
3-1/4" x 10"
Straight
6"
o
90
Elbow
6"
o
45
Elbow
3-1/4" x 10"
o
90
Elbow
SHOULD NOT EXCEED 150 EQUIVALENT FT.
Should not exceed 150 equivalent ft.
*Equivalent lengths of duct pieces are based on actual tests conducted by GE Evaluation Engineering and reflect requirements for good venting
* Equivalent lengths of duct pieces are based on actual tests conducted by GE Evaluation Engineering and reflect
performance with any downdraft cooktop, with a downdraft rated at 500 CFM.
requirements for good venting performance with any downdraft cooktop, with a downdraft rated at 500-CFM.

Warranty information

Full one-year warranty (parts and labor at no additional
charge). See written warranty for details.
JVB98SH
JVB94SH
500
500
SS
SS
SS
SS
Black
Black
36
30
76
72
4.0
4.0
Equivalent length*
Duct Pieces
1 ft. (per foot length)
1 ft. (per foot length)
15 ft.
9 ft.
16 ft.
JVB67HWW
JVB37HWW
JVB67HCC
JVB37HCC
JVB67HBB
JVB37HBB
500
500
WW
WW
CC
BB
BB
BB
White
White
Bisque
Bisque
Black
Black
Black
Black
36
30
76
72
4.0
4.0
Equivalent length*
3-1/4" x 10"
5 ft.
o
45
Elbow
3-1/4" x 10"
24 ft.
o
90
Flat Elbow
6" Round
to 3-1/4" x 10"
7 ft.
Transition
3-1/4" x 10"
to 6" Round
5 ft.
Transition
6" Round
to 3-1/4" x 10"
20 ft.
Transition
o
90
Elbow
The downdraft cooktop ventilation is
ideal for island or peninsula installations.
The downdraft vent retracts when
not in use.
• Vents smoke and vapors
• Quiet, powerful 500-CFM performance
Note: Approved for use with all GE
electric and sealed burner gas cooktops,
not approved for standard burner
gas cooktops.
Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.
Duct pieces
3-1/4" x 10"
to 6" Round
Transition
o
90
Elbow
6" Round
Wall Cap
with Damper
3-1/4" x 10"
Wall Cap
with Damper
6" Round
Roof Cap
6" Round
Roof Vent
Before purchasing an appliance, read important
information about its estimated annual energy
consumption or energy efficiency rating that is
available from your retailer or ge.com
GE has a policy of continuous improvement of its
products and reserves the right to change materials
and specifications without notice.
GE Answer Center
saves you time. 800.626.2000
®
This 24-hour-a-day, 7-day-a-week service provides
answers on product features, installation, service
and more.
GE has a policy of continuous improvement of
its products and reserves the right to change
materials and specifications without notice.
© 2005 GE Company
Pub. No. 3-X085 PC40691
