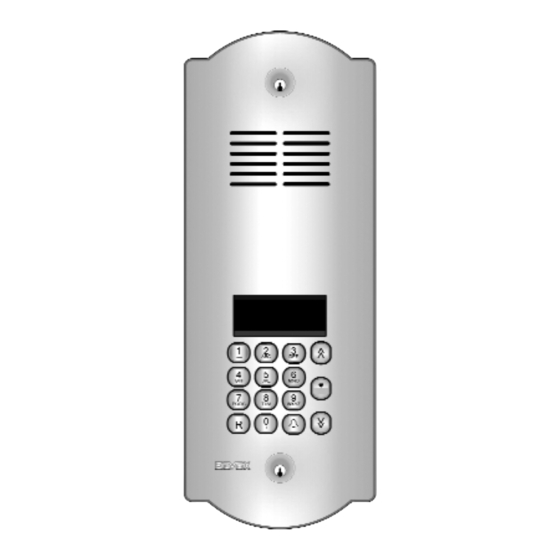

(alphanumeric audio entrance panel)
ART. 89F7/CT
(alphanumeric colour video entrance panel)
ART. 805N/T
(additional entrance panel)
Audio and video elvox 2-Wire system with entrance panels
series Patavium keypad and numerical display
Installation and operation manual
ART. 89F4/CT
ART. 805N/T
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ART. 89F4/T and is the answer not in the manual?

Questions and answers

Related Manuals for Elvox ART. 89F4/T

Summary of Contents for Elvox ART. 89F4/T

  • Page 1 ART. 89F4/T ART. 89F4/CT ART. 805N/T ART. 89F4/T (alphanumeric audio entrance panel) ART. 89F7/CT (alphanumeric colour video entrance panel) ART. 805N/T (additional entrance panel) Audio and video elvox 2-Wire system with entrance panels series Patavium keypad and numerical display ®...
  • Page 2 INTRODUCTION Controls: Wiring for terminal block con- 2 – Reset The PATAVIUM serie TWO WIRE ELVOX electronic entrance pa- nection 3 - Balance nels consist of the following parts: - 1 brass plate with gold-plating and varnishing using the tita- nium nitride PVD technique.
  • Page 3 INSTALLATION OF THE ENTRANCE PANEL Fig. 4 The installation of the basic entrance panel requires the use of the flush-mounted back box placed inside the package. Installation - Install the back boxes at approx. 1,65 m high from the back box upper side to the soil (Fig.
  • Page 4 Fig. 5 Fig. 7 Fig. 6 Fig. 8 Fig. 9...
  • Page 5 The essential programming operations, which must be carried out before PRELIMINARY OPERATIONS any others, are: The entrance panel is supplied already with a standard configuration, to be - Slave entrance panel assignment. On systems with a single entrance modified in the case of multiple entrance panels in the same system and panel, the entrance panel will be defined as Master.
  • Page 6 SEQUENCE PROGRAMMING PASSWORD MESSAGE LANGUAGE ANSWER TIME ENTRANCE PANEL ID CONVERSATION TIME NUMBER OF CODING DIGITS SELF-START TIME LOCK CODE 1.5 PREFERENTIAL LOCK TIME CODE 1.6 PREFERENTIAL FUNCTION 1 TIME CODE x 200 FUNCTION 2 TIME LOCK PASSWORDS x 200 EXTERNAL VOLUME KEY F1 x 200...
  • Page 7 - 1.1 MESSAGE LANGUAGE Indicates the message display mode, in Italian or English. NUMBER OF RINGTONE CY- Default value = English. CLES When the following message is displayed in the 1st line: Press 1 for “ITALIAN” and 2 for “ENGLISH” (or other language depending COMMON LOCKS on the software version).
  • Page 8 Default value = Use the push-buttons to select one of the 200 passwords. If When the following message is displayed in the 1st line: applicable, key in the password and press to select it. Next to the desired password, press to access change mode.
  • Page 9 10 seconds for a full name index. To deactivate, press - 2.2 DEVICE NAMES ELVOX TWO WIRE alphanumeric entrance panels are equipped with an Example : electronic name index for 200 users. Each user can be assigned a pair of To key in the previous name, press the following push-buttons in succes- names (a and b) of 16 characters each.
  • Page 10 When the following message is displayed in the 1st line: - 2.9 FUNCTION 2 TIME To be programmed at the user's discretion. This is the activation time of the device connected between terminals +12V / F2. Default value = 1 s, mini- mum value 0.5 s, maximum value 255 s.
  • Page 11 3.3 ENABLING/DISABLING Button Action To be programmed as required. This function enables the user to pro- gramme, for each device, controls on certain commands received by the Do nothing entrance panel. This currently relates to the programming of common locks F1 and F2.
  • Page 12 If the ID is outside the limit, the first line of the display will signal the incon- - 3.8 COMMON F2 gruity: To be programmed as required. This parameter enables indirect activation of the F2 function, at the same time as activation of the F2 function of ano- ther entrance panel, at the command of an interphone/monitor interphone.
  • Page 13 When the following message is displayed in the 1st line: - 4.2. CLOCK The clock can be programmed so that the service is performed correctly. The date and time are stored also when the panel is switched off, for at least 2 days, by means of a SuperCap capacitor.
  • Page 14 If the first code is higher than the second, or if one is programmed and the other is not, a warning is displayed, requesting the user to check the other Once in configuration mode, use the push-buttons code: to move between parameters, the push-button to confirm changes, and the push-button to cancel changes.
  • Page 15 CLASS MEANING 6209 (+ 6009) 6309 YES = the monitor switches on when a panel call is made (except for 6209) YES = the green led is managed as door open indicator YES = the lock pushbutton is used by the device NO = the pushbutton is used externally (only for 6309/P, 6309/CP) YES = the stair light pushbutton is used by the device NO = the pushbutton is used externally (only for 6309/P, 6309/CP)
  • Page 16 CLASS MEANING 6209 (+ 6009) 6309 P0 is lock push-button Functions assigned to pushbuttons. P1, P2, P3, P7 and P8 as default (i.e. not programmed) take the specified value First call group programming Fourth and last call group programming First door call Fourth door call...
  • Page 17 CLASS MEANING 6601 6611 8879 YES = the monitor switches on when a panel call is made (not for 6601AU or 6611AU) YES = the green led is managed as door open indicator YES = if the F1 / F2 pushbutton is programmed directly on a specific panel, only panels 1 to 8 can be programmed NO = only panels 9 to 15...
  • Page 18 CLASS MEANING 6209 (+ 6009) 6309 P0 is lock push-button Functions assigned to pushbuttons. P1, P2, P3, P7 and P8 as default (i.e. not programmed) take the specified value First call group programming Fourth and last call group programming First door call Fourth door call...
  • Page 19 V.V. On/Off -> [YES] To activate the audio line press the push-but- - FLAG PROGRAMMING ton talk/listen. To deactivate the audio line press Next to the desired FLAG, press 1 for YES and 0 for NO. the push-button again (default in model /F of mo- nitor).
  • Page 20 In the following table there is the list of the secondary IDs, for DESCRIPTION each primary from 1 to 50, which are automatically used follo- Main power supply for ELVOX 2-WIRE audio and video door entry systems. wing the procedure :”Assignation of the secondary Identification TECHNICAL SPECIFICATIONS Codes”,...
  • Page 21 INSTALLATIONS WITH ACTIVE DISTRIBUTOR 692D/2. The termination jumper must be positioned on “B” (for Elvox cable) or on “C” (for CAT5 twisted pair cable) IF AND ONLY IF the BUS terminates at the de- vice itself. It must be left on “A” if effecting entry-exit using terminals 1-2 on 692D/2.
  • Page 22 SINGLE AND MULTIPLE RESIDENCE AUDIO DOOR ENTRY SYSTEM WITH INTERPHONES SERIES PETRARCA, 8870, 6600 AND ONE AUDIO ENTRANCE PANEL (REF. SI435). Interphone cable riser Mains F- Art. 6922 EXT+ EXT+ A0 - Interphone type 6901, type 6901/D EXT- EXT- VLED VLED A1 - Interphone series Petrarca type 6209 A2 - Interphone series 6600...
  • Page 23 SINGLE AND MULTIPLE RESIDENCE AUDIO DOOR ENTRY SYSTEM WITH INTERPHONES SERIES PETRARCA, 8870, 6600 AND THREE AUDIO ENTRANCE PANELS (REF. SI338). Interphone cable riser A0 - Interphone type 6901, type 6901/D A1 - Interphone series Petrarca type 6209 A2 - Interphone series 6600 type 6601/AU, 660C/AU, 6701/AU type 6611/AU, 661C/AU, 6711/AU, type 6xxx/AUF A3 - Interphone series 8870 type 8879...
  • Page 24 AUDIO DOOR ENTRY SYSTEM FOR BUILDING COMPLEX WITH ONE MAIN ENTRANCE PANEL AND ONE STAIRWAY PANEL PER APARTMENT BLOCK (REF. si340+si334). SI334 SI334 ID=2 ID=1 Mains Mains I- Art. 692S I- Art. 692S F- Art. 6922 F- Art. 6922 BUS D BUS P BUS D BUS P...
  • Page 25 AUDIO DOOR ENTRY SYSTEM FOR BUILDING COMPLEX WITH THREE MAIN ENTRANCE PANELS AND TWO STAIR- WAY PANELS PER APARTMENT BLOCK (REF. si341+si334). SI334 SI334 Mains Mains I- Art. 692S I- Art. 692S F- Art. 6922 F- Art. 6922 BUS D BUS P BUS D BUS P...
  • Page 26 CONNECTION OF MONITORS WITH AND WITHOUT FLOOR DISTRIBUTOR TYPE 692D AND 692D/2 (REF. si638). G- Art. 6923 Monitor cable riser Monitor cable riser Mains G- Art. 6923 Mains 1C 2C N2- Art. 692D/2 G- Art. 6923 Monitor cable riser Video door entry system cable riser wiring. The video door entry units (interphones) can be connec- ted to the cable riser in the following ways: Mains...
  • Page 27 SINGLE AND MULTIPLE RESIDENCE VIDEO DOOR ENTRY SYSTEM WITH PETRARCA, GIOTTO AND 6600 SERIES VIDEO INTER- PHONES AND ONE VIDEO ENTRANCE PANEL (REF. si433). Monitor cable riser Mains G- Art. 6923 B0 - Monitor series Wide touch type 7311 B1 - Monitor series 7200 type 7211 B2 - Monitor series 6600 type 6621, 662C, 6721 type 6611, 661C, 6711,...
  • Page 28 WIRING DIAGRAM FOR “TWO WIRE ELVOX” VIDEO INTERPHONE INSTALLATIONS WITH TWO OR MORE MONITOR RISERS WITH DISTRIBUTORS TYPE 692D/2 (SI424). Monitor cable riser G- Art. 6923 Mains Mains 1C 2C F- Art. 6922 Art. 692D/2 B0 - Monitor series Wide touch type 7311...
  • Page 29 VIDEO ENTRANCE PANEL SYSTEM FOR SINGLE AND TWIN RESIDENCE WITH MONITORS SERIES PETRARCA, GIOTTO, 6600, ONE ENTRANCE PANEL WITH EXTERNAL CAMERA IN B/W (Ref. SI367). Monitor cable riser G- Art. 6923 Mains B0 - Monitor series Wide touch type 7311 B1 - Monitor series 7200 type 7211 B2 - Monitor series 6600 type 6621, 662C, 6721...
  • Page 30 SINGLE AND MULTIPLE RESIDENCE VIDEO DOOR ENTRY SYSTEM WITH INTERCOMMUNICATING MONITORS (REF. si611). Monitor cable riser Monitor cable riser 1C 2C 1C 2C Art. 692D/2 Art. 692D/2 Mains Mains I- Art. 692S F- Art. 6922 I- Art. 692S F- Art. 6922 BUS D BUS P BUS D...
  • Page 31 VIDEO DOOR ENTRY SYSTEM FOR BUILDING COMPLEX (REF. SI380). Monitor cable riser Monitor cable riser Mains ID=2 Mains ID=1 I- Art. 692S I- Art. 692S F- Art. 6922 F- Art. 6922 BUS D BUS P BUS D BUS P EXT+ EXT+ EXT- EXT-...
  • Page 32 VIDEO DOOR ENTRY SYSTEM FOR BUILDING COMPLEX WITH THREE MAIN ENTRANCE PANELS AND TWO STAIR- WAY PANELS PER APARTMENT BLOCK (AUDIO AND VIDEO) (REF. SI382). Audio entry panel with push-buttons C0 - Audio entry panel with alphanumeric display Video entry panel with push-buttons D0 - Video entry panel with alphanumeric display Power supply type 6922 Separator type 692S...
  • Page 33 Electronic unit with alphanumeric keyboard, backlit sign with house Electronic unit with alphanumeric keyboard (up to 8 modules type number (panel Art. 12N4, 12N3, 12N2, 12N1) 805N, 80PN). Monitor cable riser Monitor cable riser ELVOX ELVOX ELVOX ELVOX EXT+ EXT+...
  • Page 34 EXT+ EXT- VLED Art. 6582 Art. 6582 Art. 6582 EXT+ EXT- VLED +12V type 6582 +12V ELVOX ELVOX ELVOX ELVOX Add power sup- power power ply for the first supply for the supply for the 60 modulesi next 60 modu-...
  • Page 35 VARIANT Wiring diagram for additional mechanical doorbells. Additional doorbells operating at 12V can be connected by using relay type 0170/101 connected as shown in the diagram. Mains A0 - Interphone type 6901, type 6901/D A1 - Interphone series Petrarca type 6209 G- Art.
  • Page 36 VARIANT Wiring diagram of additional electronic ringtone type 860A. The electronic ringtone type 860A features a two or three-note ringtone connected between terminal 7 and terminal 8. The ringtone must be powered at mains voltage. The doorbell rhithm follows the call push- button pressure. Ringtone Ringtone Ringtone...
  • Page 37 VARIANTE Schema di collegamento delle suonerie supplementari a timpano. Si possono collegare suonerie supplementari funzionanti da 12 V alla tensione di mains, utilizzando il relay Art. 0170/101 collegandole come illustrato nello schema. Relay Art. 0170/101 Relay Portata Art. 0170/101 3A 230V Portata 3A 230V Additional ringtone...
  • Page 38 Relay Art. 0170/101 Mains G- Art. 6923 Suoneria supplementare Alimentazione suoneria VARIANT Wiring diagram with simultaneous switch-on of two or more moni- tors with power supply type 6923. The power supply unit Type 6922 can simultaneously power one video entrance panel and two monitors Type 6029, 6029/C, 6611, 6621, 661C, 662C, 6711, 6721 switched on.
  • Page 39 ADDITIONAL SUPPLY VOLTAGES The hereby wiring diagrams are reference examples for the ta- In “Elvox TWO WIRE ” installations, power supply type 6922 po- bles to follow (Tab. A, Tab. B and Tab. C) for the insertion of the wers all the appliances: entrance panels, interphones, monitors, additional power supply type 6923.
  • Page 40 Table for audio entrance panel systems with 1 or more entrance panels connected in parallel and one audio riser. Number of audio entrance panels con- Number of interphones inserted with the nected in parallel. Number of power supplies Type 6923 same call 1 active and the others engaged From 1 to 10...
  • Page 41 SAFETY INSTRUCTIONS FOR INSTALLERS - Carefully read the instructions on this leaflet: they give important information on the safety, use and maintenance of the installation. - After removing the packing, check the integrity of the set. Packing components (plastic bags, expanded polystyrene etc.) are dangerous for children. In- stallation must be carried out according to national safety regulations.
  • Page 42 NOTE:...
  • Page 43 NOTE:...
  • Page 44 Via Pontarola, 14/a 35011 Campodarsego PD Tel. +39 049 920 2511 Fax +39 049 920 2603 S6I.89F.4TE RL. 02 13 01 www.elvox.com ELVOX - Campodarsego - Italy...
