Page 1: Ethernet Switch

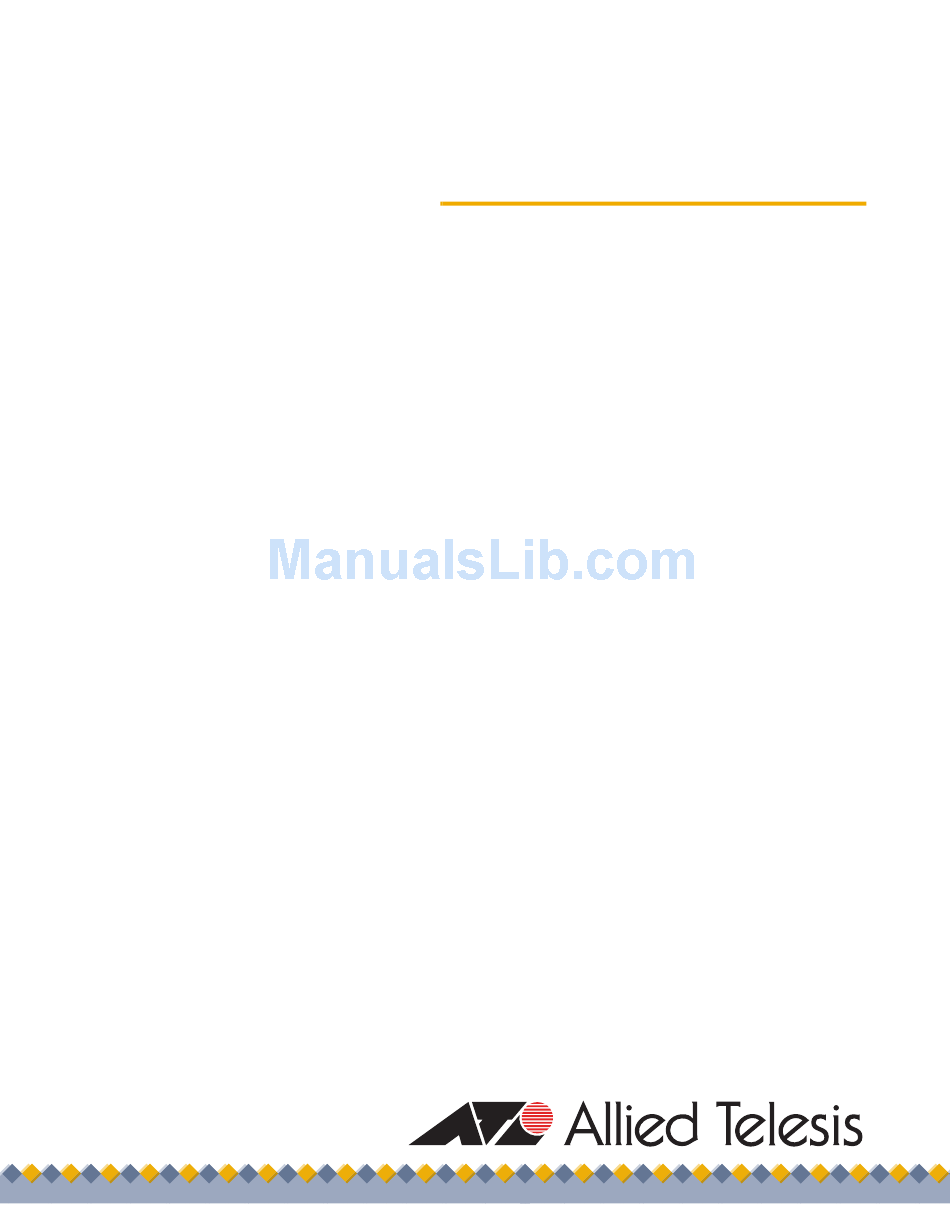

10-Gigabit Ethernet Switch AT-10408XP Installation Guide 613-000707 Rev. C... - Page 2 Allied Telesis, Inc. has been advised of, known, or...
- Page 3 European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment. Allied Telesis ensures RoHS conformance by requiring supplier Declarations of Conformity, monitoring incoming materials, and maintaining manufacturing process controls.
- Page 4 PDF document titled “Translated Safety Statements” (613-000405) which is posted on the Allied Telesis website at www.alliedtelesis.com. This document is also included with the documentation CD that is...
-
Page 5: Table Of Contents
Contents Preface ....................................11 Safety Symbols Used in this Document..........................12 Where to Find Web-based Guides ............................13 Contacting Allied Telesis ..............................14 Online Support ................................14 Email and Telephone Support ............................14 Warranty ..................................14 Returning Products................................14 For Sales or Corporate Information ..........................14 Chapter 1: Overview ................................15 Features ....................................16... - Page 6 Contents...
- Page 7 Figures Figure 1. AT-10408XP Front Panel .............................17 Figure 2. AT-10408XP Back Panel............................17 Figure 3. XFP Port LED ...............................19 Figure 4. Management Port LED ............................19 Figure 5. SD Card Slot LED..............................20 Figure 6. Status LEDs .................................21 Figure 7. AT-FAN01, Fan Only Module ..........................22 Figure 8.
- Page 8 Figures...
- Page 9 Tables Table 1. Safety Symbols ..............................12 Table 2. XFP Port LED ...............................19 Table 3. Management Port LED ............................20 Table 4. SD Card Slot LED ..............................20 Table 5. Status LEDs ................................21 Table 6. Supported 10GBase-R XFPs ..........................24 Table 7. RJ-45 Style RS-232 Port Pinouts .........................48 Table 8.
- Page 10 Tables...
-
Page 11: Preface
Preface This guide contains instructions on how to install the AT-10408XP 10 Gigabit Ethernet Switch. This preface contains the following sections: “Safety Symbols Used in this Document” on page 12 “Where to Find Web-based Guides” on page 13 “Contacting Allied Telesis” on page 14... -
Page 12: Safety Symbols Used In This Document
Preface Safety Symbols Used in this Document This document uses the safety symbols defined in Table 1. Table 1. Safety Symbols Symbol Meaning Description Caution Performing or omitting a specific action may result in equipment damage or loss of data. Warning Performing or omitting a specific action may result in electrical shock. -
Page 13: Where To Find Web-Based Guides
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide Where to Find Web-based Guides The installation and user guides for all Allied Telesis products are available in portable document format (PDF) on our web site at www.alliedtelesis.com. You can view the documents online or download... -
Page 14: Contacting Allied Telesis
Base to submit questions to our technical support staff and review answers to previously asked questions. Email and For Technical Support via email or telephone, refer to the Allied Telesis web site: www.alliedtelesis.com. Select your country from the list Telephone displayed on the website. -
Page 15: Chapter 1: Overview
Chapter 1 Overview The AT-10408XP 10-Gigabit Ethernet Switch is designed to simplify the task of expanding an Ethernet, Fast Ethernet, or Gigabit Ethernet network. This chapter contains the following sections: “Features” on page 16 “Front and Back Panels” on page 17 “Ports”... -
Page 16: Features
Chapter 1: Overview Features The features of the AT-10408XP 10-Gigabit Ethernet Switch include: Port status LEDs Eight XFP (10 Gigabit small form factor pluggable) slots supporting 10GBase-R XFP transceivers One 10/100/1000Base-T in-band management port with auto MDI/ MDI-X One RJ-45 style RS-232 terminal port One SD slot supporting 512KB and 1GB SD cards IEEE 802.3 and IEEE 802.3u compliant... -
Page 17: Front And Back Panels
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide Front and Back Panels Figure 1 illustrates the front panel of the AT-10408XP 10-Gigabit Ethernet Switch. Local Management Port AT-10408XP 10 Gigabit Ethernet Switch PORT ACTIVITY CLASS 1 NORMAL 10G LINK LASER PRODUCT BUSY... -
Page 18: Ports
Chapter 1: Overview Ports The AT-10408XP 10-Gigabit Ethernet Switch features the following ports: eight XFP ports, one 10/100/1000Base-T in-band management port, and one RS-232 terminal port. XFP Ports The eight XFP (10-Gigabit small form factor pluggable) slots support 10GBase-R XFP transceivers. -
Page 19: Leds
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide LEDs The AT-10408XP 10-Gigabit Ethernet Switch has four groups of LEDs, as defined in the following sections: “XFP Port LED,” next “10/100/1000Base-T Port LED” on page 19 “SD Card Slot LED” on page 20 “Status LEDs”... -
Page 20: Sd Card Slot Led
Chapter 1: Overview Table 2. Management Port LED Color State Description Green A valid link has been established on the port at 1000 Mbps. Blinking The port is transmitting or receiving data. Amber A valid link has been established on the port at 10 or 100 Mbps. -
Page 21: Status Leds
In the following table, the PSU1 and PSU2 LEDs refer to the slots on the rear of the chassis. When you are facing the AT-10408XP switch, the PSU1 LED pertains to the module installed in the left slot and the PSU2 LED pertains to the module installed in the right slot. -
Page 22: Power Supplies And Fan
Chapter 1: Overview Power Supplies and Fan The switch has two rear power supply slots, which can accommodate the following combinations of power supplies and fan unit: Two AT-PWR02 PSU, AC Only power supplies One AT-PWR02 PSU, AC Only power supply and one AT-FAN01, Fan Only Module In order to be operational, the switch MUST have at least one power supply installed. -
Page 23: Figure 8. At-Pwr02 Psu, Ac Only
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide P W R G O O FA U LT A C IN P U T 10 0- 24 0V A C 50 /6 0H 3. 0A A T - P 1210 W R 0... -
Page 24: Xfp Transceivers
Chapter 1: Overview XFP Transceivers The AT-10408XP 10-Gigabit Ethernet Switch supports the 10GBase-R XFP models listed in Table 5. Table 5. Supported 10GBase-R XFPs Wavelength Type Distance (m) Model (nm) 10GBase-SR 33 (62.5µ MMF) AT-XP8SR 10-GBase-LR 1310 10,000 AT-XP8LR 10-GBase-ER... -
Page 25: Network Topology
Figure 9. Enterprise Network Aggregation In Figure 9, switches and server farms aggregate at 10/100/1000Base-T switches. Those switches, as well as 10Gb Ethernet SAN controllers aggregate at AT-10408XP 10-Gigabit Ethernet Switches, one in the main office and one in the branch office. - Page 26 Chapter 1: Overview...
-
Page 27: Chapter 2: Installation
Chapter 2 Installation This chapter contains the following sections: “Reviewing Safety Precautions” on page 28 “Selecting a Site for the Switch” on page 30 “Unpacking the Switch” on page 31 “Installing the Switch on a Desktop” on page 32 “Installing the Switch in a Rack” on page 33 “Installing an XFP Transceiver”... -
Page 28: Reviewing Safety Precautions
Note indicates that a translation of the safety statement is available in a PDF document titled “Translated Safety Statements” (613-000405) on the Allied Telesis website at www.alliedtelesis.com. Warning: To prevent electric shock, do not remove the cover. No user-serviceable parts inside. This unit contains hazardous voltages and should only be opened by a trained and qualified technician. - Page 29 AT-10408XP 10-Gigabit Ethernet Switch Installation Guide Circuit Overloading: Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
-
Page 30: Selecting A Site For The Switch
Chapter 2: Installation Selecting a Site for the Switch Observe the following requirements when choosing a site for your switch: If you plan to install the switch in an equipment rack, ensure that the rack is safely secured and that it will not tip over. Devices in a rack should be installed starting at the bottom, with the heavier devices near the bottom of the rack. -
Page 31: Unpacking The Switch
Telesis. 2. Place the switch on a level, secure surface. 3. Ensure the following hardware components are included in your switch package. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. Two rack-mount brackets... -
Page 32: Installing The Switch On A Desktop
Chapter 2: Installation Installing the Switch on a Desktop You can place AT-10408XP 10-Gigabit Ethernet Switch on a desktop or install it in a 19-inch rack. To install the switch in a rack, refer to “Installing the Switch in a Rack” on page 33. -
Page 33: Installing The Switch In A Rack
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide Installing the Switch in a Rack To install the AT-10408XP 10-Gigabit Ethernet Switch in a rack, perform the following procedure: 1. If attached, remove the rubber feet using a flat-head screwdriver. 2. Install a bracket on one side of the switch using a Phillips screwdriver and four of the rack-mount screws included with the switch, as shown in Figure 10. -
Page 34: Figure 11. Mounting The Switch On The Rack
Chapter 2: Installation 4. Mount the switch on a 19-inch rack using four screws (not included), as shown in Figure 11 A T- 1 0 4 0 8 10 Gi ga bit Et he rn et Sw itc XF P XF P PO RT AC TIV... - Page 35 AT-10408XP 10-Gigabit Ethernet Switch Installation Guide Circuit Overloading: Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
-
Page 36: Installing An Xfp Transceiver
Chapter 2: Installation Installing an XFP Transceiver The AT-10408XP 10-Gigabit Ethernet Switch has eight XFP ports. Note The transceiver can be hot-swapped; you do not need to power off the switch to install a transceiver. However, always remove the cables before removing the transceiver. -
Page 37: Figure 13. Inserting The Xfp
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide 4. Slide the XFP transceiver into an XFP slot on the switch, as shown in Figure 13. X FP 10 /1 00 /1 00 0B as e- T X FP 10 00 LI NK... -
Page 38: Cabling And Powering On The Switch
Chapter 2: Installation Cabling and Powering On the Switch Connecting a To connect a fiber optic cable to an XFP installed in the AT-10408XP 10- Gigabit Ethernet Switch, perform the following procedure: XFP Fiber Optic Cable 1. Remove the dust plug from the XFP, as shown in Figure 14. -
Page 39: Connecting The 10/100/1000 Base-T In-Band Management Port
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide Connecting the To connect the cable to the 10/100/1000Base-T in-band management port, perform the following procedure: 10/100/1000 Base-T In-band 1. Plug the cable into the port, as shown in Figure 16. Management Port X FP... -
Page 40: Powering On The Switch
Chapter 2: Installation Note For the terminal port pinouts, refer to “RJ-45 Style RS-232 Terminal Port Pinouts” on page 48. Powering On the To power on the switch, perform the following procedure: Switch 1. Plug the power cord into the AC power connector on the back of the switch, as shown in Figure 18. -
Page 41: Starting A Local Management Session
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide Starting a Local Management Session To start a local management session on an AT-10408XP 10-Gigabit Ethernet Switch, perform the following procedure: 1. Connect one end of the RJ-45 style RS-232 terminal cable to the terminal port on the switch, as shown in Figure 19. -
Page 42: Figure 20. Command Line Login Screen
The default switch name is “(none)” and the pound sign (#) prompt indicates the Privileged Exec mode which is the default mode accessed by the manager login. For detailed information about configuring the AT-10408XP 10-Gigabit Ethernet Switch, refer to the AT-S83 Management Software Command Line Interface User’s Guide. -
Page 43: Warranty Registration
Some products have a longer warranty coverage than others. The AT-10408XP 10-Gigabit Ethernet Switch has a limited lifetime warranty (24 months fan & PSU). All Allied Telesis warranties are subject to the terms and conditions set out on the Allied Telesis website at www.alliedtelesis.com/warranty. - Page 44 Chapter 2: Installation...
-
Page 45: Chapter 3: Troubleshooting
Note If you need further assistance, please contact Allied Telesis Technical Support. Refer to “Contacting Allied Telesis” on page 14. Check the Status LEDs on the front of the switch. If the PSU1 or the PSU2 LED is red and the FAULT LED is red, then there may be a problem with the unit not receiving power. - Page 46 Chapter 3: Troubleshooting...
-
Page 47: Appendix A: Technical Specifications
Appendix A Technical Specifications Physical Specifications Dimensions: 440 mm x 438mm x 43.6 mm (17.36 in x 17.36 in x 1.72 in) Weight: As shipped: 5.85 kg (12.9 lbs) Environmental Specifications Operating Temperature: 0º C to 40º C (32º F to 104º F) Storage Temperature: -20º... -
Page 48: Rj-45 Style Rs-232 Terminal Port Pinouts
Appendix A: Technical Specifications RJ-45 Style RS-232 Terminal Port Pinouts Figure 1 illustrates the pin layout and Table 1 describes the pinouts for the RJ-45 style RS-232 terminal port. Figure 1. RJ-45 Connector and Port Pin Layout. Table 1. RJ-45 Style RS-232 Port Pinouts Signal Request to Send Not Used... -
Page 49: In-Band Management Port Cabling
AT-10408XP 10-Gigabit Ethernet Switch Installation Guide In-band Management Port Cabling Table 2 contains the cabling specifications for the in-band management port. Table 2. In-band Management Port Cabling and Distances Maximum Speed Type of Cable Operating Distance 10 Mbps Category 3 or better 100-ohm shielded or... - Page 50 Appendix A: Technical Specifications...
