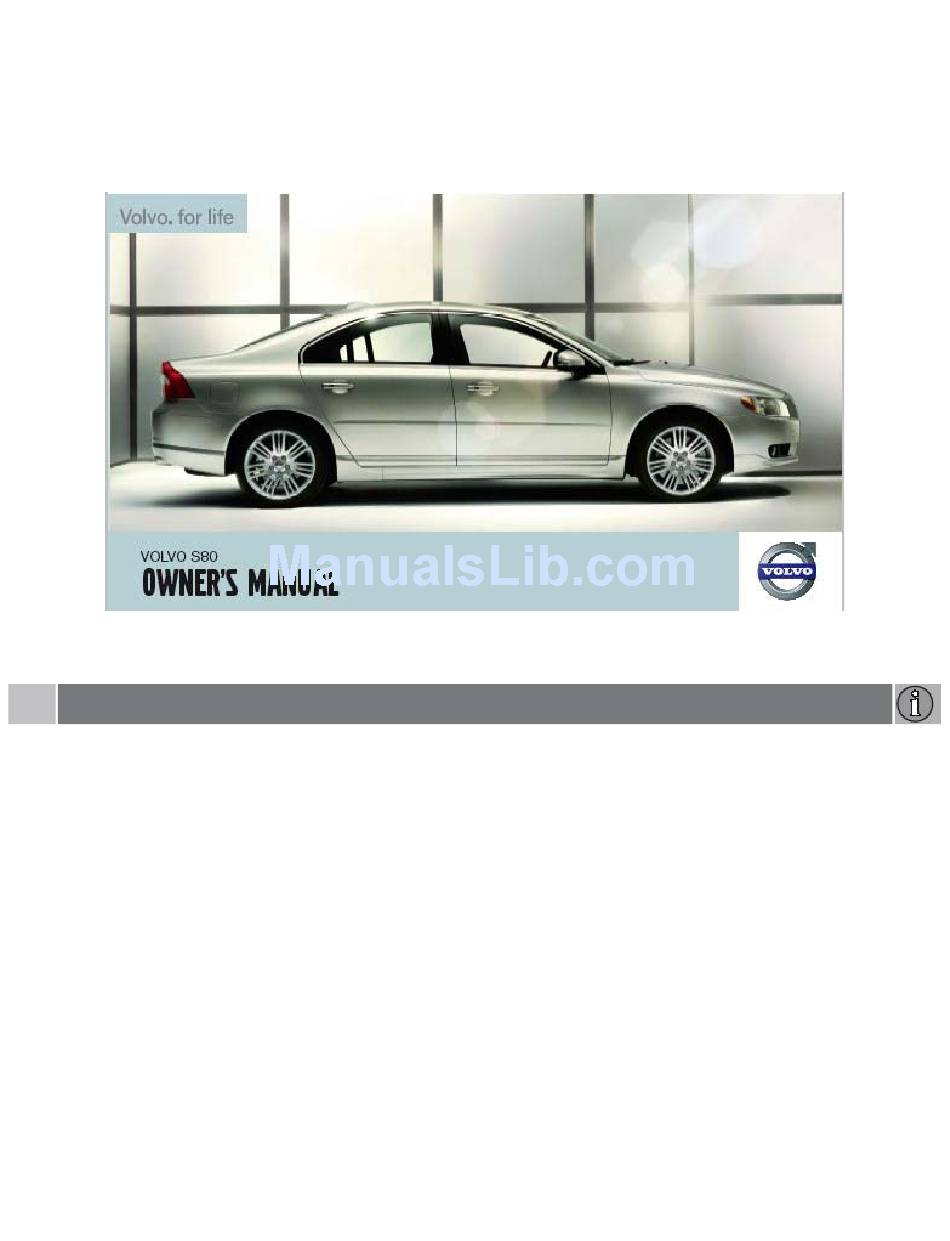

Page 1 VOLVO OWNER'S MANUAL S80 THANK YOU FOR CHOOSING VOLVO Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual.
Page 2: Table Of Contents
Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7 1-800-663-8255 www.volvocanada.com 2006 © Volvo Car Corporation. All rights reserved. Contents 00 Introduction 01 Safety 02 Locks and alarm Important information Occupant safety...
Page 3 Transmission (option) Brakes Passenger compartment convenience Parking brake Bluetooth hands-free (option) Contents 06 Maintenance and specifications 07 Index Volvo maintenance Index Maintaining your car Hood and engine compartment Engine oil Fluids Replacing bulbs Wiper blades and washer fluid Battery Fuses...
Page 4: Introduction
Do not export your Volvo to another country before investigating that country's applicable safety and emission control requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada and other countries.
Page 5: Environment
Volvo and the environment Volvo is committed to the well being of its customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.
Page 6 Volvo is actively looking at advanced technology alternative-fuel vehicles. When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can: Maintain proper air pressure in your tires.
Page 7: Occupant Safety
Occupant safety Volvo's concern for safety Safety is Volvo's cornerstone. Our concern dates back to 1927 when the first Volvo rolled off the production line. Three-point seat belts (a Volvo invention), safety cages, and energy-absorbing impact zones were designed into Volvo vehicles long before it was fashionable or required by government regulation.
Page 8: Reporting Safety Defects
Volvo strongly recommends that if your vehicle is covered under a service campaign, safety or emission recall or similar action, it should be completed as soon as possible. Please check with your local retailer or Volvo Cars of North America, LLC if your vehicle is covered under these conditions.
Page 9: Safety In The Passenger Compartment
Using seat belts Volvo, the inventor of the three-point seat belt, urges you and all occupants of your vehicle to wear seat belts and ensure that children are properly restrained, using an infant, convertible, or booster seat determined by age, weight and height.
Page 10 WARNING Never repair the belt yourself; have this work done by a trained and qualified Volvo service technician only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection available to you in the event of a collision.
Page 11 Warning symbols in the instrument panel As an enhancement to the three-point seat belts, your Volvo is equipped with a Supplemental Restraint System (SRS). Volvo's SRS consists of seat belt tensioners, front airbags, side impact airbags, a front passenger occupant weight sensor, and inflatable curtains.
Page 12 (see below). This may cause airbag deployment which could result in personal injury. Have the vehicle towed to a trained and qualified Volvo service technician for repairs.
Page 13 As the movement of the seats' occupants compresses the airbags, some of the gas is expelled at a controlled rate to provide better cushioning. Both seat belt tensioners also deploy, minimizing seat belt slack. The entire process, including inflation and deflation of the airbags, takes approximately one fifth of a second. The location of the front airbags is indicated by "SRS AIRBAG"...
Page 14: Safety In The Passenger Compartment
See also the Occupant Weight Sensor information on page Should you have questions about any component in the SRS system, please contact a trained and qualified Volvo service technician or Volvo Customer Support: In the USA Volvo Cars of North America, LLC Customer Care Center P.O.
Page 15 WARNING Children must never be allowed in the front passenger's seat. Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a passenger-side front airbag.
Page 16 Disabling the passenger's side front airbag Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a front passenger side airbag, and be properly restrained for their size and weight. See...
Page 17 Safety in the passenger compartment Volvo recommends that children always be properly restrained in appropriate child restraints in the rear seats. Do not assume that the passenger's side front airbag is disabled unless the PASSENGER AIRBAG OFF indicator lamp is lit. Make sure the child restraint is properly installed. If there is any doubt as to the status of the passenger's side front airbag, move the child restraint to the rear seat.
Page 18 1-800-458-1552 In Canada Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7 1-800-663-8255 01 Safety Safety in the passenger compartment WARNING No objects that add to the total weight on the seat should be placed on the front passenger's seat. If a child is seated in the front passenger's seat with any additional weight, this extra weight could cause the OWS system to enable the airbag, which might cause it to deploy in the event of a collision, thereby injuring the child.
Page 19 No objects, accessory equipment or stickers may be placed on, attached to or installed near the SIPS airbag system or in the area affected by SIPS airbag deployment. Never try to open or repair any components of the SIPS airbag system. This should be done only by a trained and qualified Volvo service technician.
Page 20 Safety in the passenger compartment Volvo Inflatable Curtain (VIC) The Volvo Inflatable Curtain system This system consists of inflatable curtains located along the sides of the roof liners, stretching from the center of both front side windows to the rear edge of the rear side door windows. It is designed to help protect the heads of the occupants of the front seats and the occupant of the outboard rear seating positions in certain side impact collisions.
Page 21 01 Safety Safety in the passenger compartment Whiplash Protection System - WHIPS Whiplash Protection System (WHIPS) - front seats only The WHIPS system consists of specially designed hinges and brackets on the front seat backrests designed to help absorb some of the energy generated in a collision from the rear (when the vehicle is rear-ended). In the event of a collision of this type, the hinges and brackets of the front seat backrests are designed to change position slightly to allow the backrest/head restraint to help support the occupant's head before moving slightly rearward.
Page 22: Crash Mode
If your vehicle has been involved in a rear-end collision, the front seat backrests must be inspected by a trained and qualified Volvo service technician, even if the seats appear to be undamaged. Certain components in the WHIPS system may need to be replaced.
Page 23 Never attempt to repair the vehicle yourself or to reset the electrical system after the vehicle has displayed SAFETY MODE SEE MANUAL. This could result in injury or improper system function. Restoring the vehicle to normal operating status should only be done by a trained and qualified Volvo service technician.
Page 24: Child Safety
Please check local regulations. A specially designed and tested booster cushion (not available in Canada) can be obtained from your Volvo retailer for children weighing 33 - 80 lb. (15 - 36 kg) and 38-54 inches (97 - 137 cm) in height.
Page 25 Volvo's recommendations Why does Volvo believe that no child should sit in the front seat of a vehicle? It's quite simple really. A front airbag is a very powerful device designed, by law, to help protect an adult.
Page 26: Child Restraint Systems
Drive safely! 01 Safety Child restraint systems Child restraints There are three main types of child restraint systems: infant seats, convertible seats, and booster cushions. They are classified according to the child's age and size. The following section provides general information on securing a child restraint using a three-point seat belt. Refer to pages 40-41 for information on securing a child restraint using ISOFIX lower anchors and/or top tether anchorages.
Page 27: Infant Seats
A small child's head represents a considerable part of its total weight and its neck is still very weak. Volvo recommends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that children should ride rearward facing, properly restrained, as long as possible.
Page 28 1. Place the infant seat in the rear seat of the vehicle. 2. Attach the seat belt to the infant seat according to the manufacturer's instructions. 3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible. WARNING An infant seat must be in the rear-facing position only.
Page 29: Convertible Seats
4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function. 5. Press the infant seat firmly in place, let the seat belt retract and pull it taut. A sound from the seat belt retractor's automatic locking function will be audible at this time and is normal.
Page 30 2. Attach the seat belt to the convertible seat according to the manufacturer's instructions. WARNING A small child's head represents a considerable part of its total weight and its neck is still very weak. Volvo recommends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that children should ride rearward facing, properly restrained, as long as possible.
Page 31 Convertible seats 3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible. 4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function. 5.
Page 32: Booster Cushions
WARNING A child seat should never be used in the front passenger seat of any vehicle with a front passenger airbag - not even if the "Passenger airbag off" symbol near the rear-view mirror is illuminated (on vehicles equipped with Occupant Weight Sensor).
Page 33: Isofix Lower Anchors
4. Ensure that the seat belt is pulled taut and fits snugly around the child. WARNING The hip section of the three-point seat belt must fit snugly across the child's hips, not across the stomach. The shoulder section of the three-point seat belt should be positioned across the chest and shoulder. The shoulder belt must never be placed behind the child's back or under the arm.
Page 34: Top Tether Anchors
01 Safety Top tether anchors Child restraint anchorages Your Volvo is equipped with child restraint top tether anchorages in the rear seat. Securing a child seat 1. Place the child restraint on the rear seat. 2. Fold up the plastic cover over the anchorage to be used.
Page 35: Integrated Booster Cushion
Integrated booster cushion (option) Volvo's optional integrated booster cushion is located in the center seating position. This booster cushion has been specially designed to help safeguard a child seated in the rear seat. This cushion should be stowed (folded up into the rear seat backrest) when not in use.
Page 36 Use this booster cushion only with children who weigh between 33 and 80 lbs (15 and 36 kg) and whose height is between 38 and 54 in (97 and 137 cm). In Canada, Transport Canada's weight recommendation is 40-80 lbs (18- 36 kg).
Page 37 Fold down the backrest section of the booster cushion. Fasten the Velcro strip. Fold up the booster cushion into the rear seat backrest NOTE See also the instructions on the integrated booster cushion. 01 Safety Integrated booster cushion WARNING DEATH or SERIOUS INJURY can occur Follow all instructions on the booster cushion and in the vehicle's owner's manual.
Page 38: Child Safety Locks
In the event of a collision while the integrated booster cushion was occupied, the entire booster cushion and seat belt must be replaced. The booster cushion should also be replaced if it is badly worn or damaged in any way. This work should be performed by a trained and qualified Volvo service technician only 01 Safety...
Page 39 There are no manual child safety locks on vehicles equipped with the optional power child safety locks. WARNING Remember, in the event of an accident, the rear seat passengers cannot open the doors from the inside with the controls in position A (manual child safety locks) or if the power child safety lock function is activated. Contents Top of Page...
Page 40: 02 Locks And Alarm
2 0 0 7 VOLVO 02 Locks and alarm Remote key and key blade Keyless drive Locks Alarm 02 Locks and alarm 02 Locks and alarm Remote key and key blade Introduction Two remote keys or optional Personal Car Communicators (PCC) are provided with your vehicle. They enable you to unlock the doors and trunk, and also function as ignition keys to start the vehicle or operate electrical components.
Page 41 Loss of a remote key If a remote key is lost, the other one must be taken with the vehicle to a trained and qualified Volvo service technician. As an anti-theft measure, the code of the lost remote must be erased from the system.
Page 42 The vehicle will start only with a properly coded key. If you misplace a key, take the other keys to a trained and qualified Volvo service technician for reprogramming as an antitheft measure.
Page 43 Replacing the battery in the remote key The batteries should be replaced if: The information symbol illuminates and Replace car key battery is shown in the display and/or if the locks do not react after several attempts to unlock or lock the vehicle. NOTE The remote key's range is normally approximately 60 ft (20 m) from the vehicle.
Page 44 This function can be changed so that all doors unlock at the same time under Car settings lock settings Doors, unlock. See page 115 for a description of the menu system. Approach lighting - As you approach the vehicle, press button on the remote control to light the interior lighting, parking lights, license plate lighting and the lights in the door mirrors (option).
Page 45 NOTE If none of the indicator lights flash when the information button has been pressed several times from different places in relation to the vehicle, contact an authorized Volvo service technician. The indicator lights provide information according to the illustration below.
Page 46 approximately 300 ft (100 m) from the vehicle. Buildings or other obstacles may interfere with the function of the PCC. Outside of the PCC's range If the PCC is more than approximately 300 ft (100 m) from the vehicle when the information button is pressed, no new information will be received.
Page 47 Locking the doors with the detached key blade 1. Lock the rear doors and the front passenger's door by pressing the lock button on each door. 2. Turn the key blade one-quarter turn counter-clockwise to lock the driver's door. NOTE This does not arm the alarm or lock the trunk.
Page 48: Remote Key And Key Blade
By utilizing the remote key with the key blade removed, the valet locking feature enables you to block access to the trunk and glove compartment for e.g., valet parking or when the vehicle is brought to the retailer for service. With the valet locking function activated: The vehicle's doors can be locked or unlocked with the remote The engine can be started...
Page 49 Opening the remote key/PCC Slide the spring loaded catch to the side and pull the key blade out of the remote control NOTE Turn the remote key with the buttons downward so that the battery does not fall out when the cover is removed. Insert a small screwdriver in the hole behind the spring loaded catch and carefully pry up the cover CAUTION When handling batteries, avoid touching their contact surfaces as this could result in poor battery function in the...
Page 50: Keyless Drive
Old batteries should be properly recycled. 02 Locks and alarm Keyless drive Keyless drive (models with Personal Car Communicator only) Keyless locking and unlocking This system makes it possible to unlock and lock the vehicle without having to press any buttons on the Personal Car Communicators (PCC).
Page 51 The doors and the trunk can be locked by pressing the lock button in any of the outside door handles. NOTE All doors and the trunk must be closed when the lock button is pressed. Otherwise, the vehicle will not lock. Keyless drive remote control and driver's seat memory When you leave the vehicle with a PCC in your possession and lock any door, the position of the driver's seat will be stored in the seat's memory.
Page 52: Locks
device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. CAUTION Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Siemens VDO 5WK48891 Tested To Comply With FCC Standards...
Page 53 The lock buttons on the door panel can be used to lock or unlock all doors and the trunk at the same time. Unlocking Press the unlock button. Locking Press the lock button after the front doors have been closed. Each door can be locked individually with the lock button on the respective doors.
Page 54 Unlocking the trunk with the remote key Press the trunk unlock button on the remote. See also page NOTE This function does not open the trunk. Locking the trunk with the remote key Press the lock button on the remote. See also page Unlocking the trunk from inside the vehicle Press the button on the lighting panel...
Page 55 If the remote key is not functioning properly, the trunk can be unlocked with the detachable key blade. See page 53 information on removing the key blade from the remote key. Pull out the cover over the trunk's keyhole. Unlock the trunk by inserting the key blade in the keyhole and turning a half turn counterclockwise as shown in the illustration.
Page 56: Alarm
The siren is disconnected when the alarm is disarmed. A message will appear in the information display if a fault should occur in the alarm system. Contact an authorized Volvo service technician. NOTE Do not attempt to repair any of the components in the alarm system yourself. This could affect the insurance policy on the vehicle.
Page 57 description of the menu system. USA FCC ID: MAYDA 5823(3) This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 58 Temporarily disarming the alarm Turning off the accessory alarm sensor(s) In certain situations it may be desirable to turn off the accessory inclination and movement alarm sensors if, for example, you drive your vehicle onto a ferry where the rocking of the boat could trigger the alarm or if a pet is left in the vehicle with the doors locked.
Page 59 2 0 0 7 VOLVO 03 Your driving environment Instruments and controls Ignition modes Seats Steering wheel Lighting Wipers and washers Power windows Mirrors Power moonroof HomeLink® Universal Transceiver (option) Starting the engine Transmission Brakes Parking brake 03 Your driving environment...
Page 60: 03 Your Driving Environment
03 Your driving environment Instruments and controls 03 Your driving environment Instruments and controls Information displays...
Page 61 The information displays show information on some of the vehicle's functions, such as cruise control, the trip computer and messages. The information is shown with text and symbols. More detailed information can be found in the descriptions of the functions that use the information displays. Gauges Speedometer Fuel gauge, see also the section on refueling beginning on...
Page 62 As you drive, a computer called On- Board Diagnostics II (OBDII) monitors your vehicle's engine, transmission, electrical and emission systems. The malfunction indicator (CHECK ENGINE) light will illuminate if the computer senses a condition that potentially may need correcting. When this happens, please have your vehicle checked by a trained and qualified Volvo service...
Page 63 2. Restart the engine. 3. If the warning light goes off, no further action is required. If the warning light remains on, the vehicle should be driven to a trained and qualified Volvo service technician for inspection. See page 107 for additional information.
Page 64 If the light comes on while driving, stop the vehicle, stop the engine immediately, and check the engine oil level. If the oil level is normal and the light stays on after restart, have the vehicle towed to the nearest trained and qualified Volvo service technician.
Page 65 193. If the brake fluid level is normal but the symbols are still lit, the vehicle can be driven, with great care, to an authorized Volvo workshop to have the brake system checked. If the level in the reservoir is below MIN, the vehicle should be transported to an authorized Volvo workshop to have the brake system checked.
Page 66: Ignition Modes
Reminder - doors not closed If one of the doors, the hood or trunk lid is not closed properly, the information or warning symbol comes on together with an explanatory text message in the instrument panel. Stop the vehicle in a safe place as soon as possible and close the door, hood or trunk.
Page 67 Inserting and removing the remote key The various ignition modes are accessed by inserting the remote key into the ignition slot. The remote key can be removed from the ignition slot by pressing the key in. It will then be ejected slightly and can be removed from the slot.The gear selector must be in position P (Park).
Page 68: Seats
03 Your driving environment Ignition modes Functions with timer The audio system can be operated without a key for 15 minutes at a time by pressing the POWER button. The power windows work for several minutes after the key has been removed, although not after the door has been opened. NOTE Use the POWER button for the audio system when the engine is not running to avoid discharging the battery.
Page 69 Raise/lower front edge of seat cushion, pump up/down. Backrest tilt: turn the control to adjust the angle of the backrest. Raise/lower the seat, pump up/down. Control panel for power seat. WARNING Do not adjust the seat while driving. The seat should be adjusted so that the brake pedal can be depressed fully. In addition, position the seat as far rearward as comfort and control allow.
Page 70 Front edge of seat cushion up/down Seat forward/backward and up/down Backrest tilt Operation The seats can be adjusted for a short period after unlocking the door with the remote control without the key in the ignition slot. Seat adjustment is normally made when the ignition is on and can always be made when the engine is running.
Page 71 same way. To program (store) a seat position and door mirror position in button 1. Move the seat (and door mirrors) to the desired position using the seat and mirror adjustment controls. 2. Press and hold down the M (memory) button 3.
Page 72 If the seat accidentally begins to move, press one of the buttons to stop the seat. WARNING Because the driver's seat can be adjusted with the ignition off, children should never be left unattended in the vehicle. Movement of the seat can be STOPPED at any time by pressing any button on the power seat control panel. Do not adjust the seat while driving.
Page 73 WARNING When the backrest is returned to the upright position, check that it is properly locked in place. Return the head restraints to the upright position. Long loads should always be securely anchored to help avoid injury in the event of a sudden stop. Always turn the engine off and apply the parking brake when loading/unloading the vehicle.
Page 74: Steering Wheel
1. The ignition must be in mode I or II. 2. Press the button to lower the rear head restraints for improved visibility. NOTE The head restraint must be returned to the upright position manually. The outboard head restraints cannot be folded down on models that are not equipped with this button. WARNING For safety reasons, no one should be allowed to sit in the outboard rear seat positions if the head restraints are folded down.
Page 75: Lighting
Cruise control, see page 142 Adaptive cruise control (option), see page 144. Audio and telephone controls, see page 114. 03 Your driving environment Steering wheel Horn Press the steering wheel hub to sound the horn. 03 Your driving environment Lighting Lighting panel...
Page 76 The intensity of the instrument lighting is adjusted with the thumb wheel. High/low beam headlights Low beams When the engine is started, the low beams are activated automatically (daytime running lights) if the headlight control is in position Daytime running lights can be deactivated by an authorized Volvo workshop. NOTE...
Page 77 The use of daytime running lights is mandatory in Canada. Continuous high beams cannot be activated when the headlight switch is in position . High beam flash will function in these positions. High beam flash Move the lever toward the steering wheel to position .
Page 78 Parking lights The front and rear parking lights can be turned on even when the ignition is switched off. Turn the headlight control to the center position (the license plate lighting comes on at the same time). The lighting also comes on when the trunk lid is opened in order to alert anyone traveling behind your vehicle. 03 Your driving environment Lighting Brake lights...
Page 79 Press the button to switch the fog lights on/off. The light in the button comes on when the fog lights are on. NOTE Regulations regarding the use of the front fog lights may vary, depending on where you drive. Rear fog light The single rear fog light is located in the driver's side taillight cluster.
Page 80 NOTE Regulations regarding the use of the hazard warning flasher may vary, depending on where you live. Turn signals When changing lanes The driver can automatically flash the turn signals 3 times by moving the turn signal lever up or down to position and releasing it.
Page 81 Overhead courtesy lighting. The lighting in the front part of the passenger compartment is controlled with the buttons in the roof console. Switch has three positions for all passenger compartment lighting: Off - right side depressed, automatic lighting off. Neutral position. On - left side depressed, passenger compartment lighting on.
Page 82 Home safe lighting When you leave your vehicle at night, you can make use of the home safe lighting function to illuminate the area in front of the vehicle. 1. Remove the key from the ignition slot. 2. Pull the direction indicator lever as far as possible towards the steering wheel (to position 4) and release it. 3.
Page 83 2 0 0 7 VOLVO 03 Your driving environment Wipers and washers Windshield wipers/washers Rain sensor on/off Thumb wheel sensitivity/frequency Windshield wipers off Move the lever to position 0 to switch off the windshield wipers. Single sweep Move the lever upward from position 0 to sweep the windshield one stroke at a time for as long as the lever is held up.
Page 84: Wipers And Washers
The wipers will make an extra sweep each time the thumb wheel is adjusted upward. When the rain sensor is activated, the symbol will illuminate in the instrument panel. Activating and setting the sensitivity When activating the rain sensor, the vehicle must be running or in ignition mode II and the windshield wiper lever must be in position 0.
Page 85: Power Windows
using two alternatives: Low/high beam headlights on The headlights will be washed the first time the windshield is washed. Thereafter, the headlights will only be washed once for every five times the windshield is washed within a 10-minute period. Parking lights on Optional Active Bi-Xenon headlights will be washed once for every five times the windshield is washed.
Page 86 Manual up/down Auto up/down. All power windows can be operated using the control panel in the driver's door. The control panels in the other doors only operate the window in the respective doors. For the power windows to function, the ignition must be in at least mode I. When the vehicle has been running, the power windows can be operated for several minutes after the remote key has been removed from the ignition slot, or until a door has been opened.
Page 87: Mirrors
passenger compartment. The windshield and side windows have laminated glass. Water and dirt repellent glass The front side windows are treated with a coating that improves the view in difficult weather conditions. 03 Your driving environment Mirrors Power door mirrors Adjusting 1.
Page 88 Tilting the door mirror when parking (option) The door mirror can be tilted down for the driver to view the side of the road when parking for example. Engage reverse gear and press the L or R button. The door mirror resets when reverse gear is disengaged. Automatic retraction when locking When the vehicle is locked/unlocked with the remote key the door mirrors are automatically retracted/extended.
Page 89: Power Moonroof
03 Your driving environment Power moonroof Power moonroof (option on certain markets only) The moonroof controls are located in the ceiling console near the rearview mirror. The moonroof can be opened vertically and horizontally. The vehicle's must be in ignition mode I or II for the moonroof to be operated. Sliding moonroof Opening, automatic Opening, manual...
Page 90: Homelink® Universal Transceiver (Option)
Never extend any object or body part though the open moonroof, even if the vehicle's ignition is completely switched off. Tilt position Opening Press the rear edge of the control upward to position Closing Pull the rear edge of the control down to position and hold it until the moonroof has closed completely.
Page 91 HomeLink is a system that can be programmed to learn the codes of three different remote controlled-devices (for example, a garage door opener, remote lighting, entry gate). HomeLink's sun visor-mounted transceiver, powered by your car's electrical system, may then be used in place of your handheld remote controls. The HomeLink transceiver consists of three programmable buttons and an indicator light.
Page 92 2. Position the hand-held transmitter 1-3 inches away from the HomeLink surface 03 Your driving environment HomeLink® Universal Transceiver (option) (located on your sun visor), keeping the HomeLink indicator light in view. Using both hands, simultaneously press and hold both the desired HomeLink button and hand held transmitter button. DO NOT release until the HomeLink indicator light flashes slowly and then rapidly.
Page 93 upon successful training. DO NOT release until the HomeLink indicator light flashes slowly and then rapidly. When the indicator light flashes rapidly, both buttons may be released. (The rapid flashing indicates successful training.) 03 Your driving environment HomeLink® Universal Transceiver (option) 4.
Page 94 vary by garage door opener brand. If there is difficulty locating the training button, reference the garage door opener owner's manual or please visit our Web site at www.HomeLink.com. 2. Press the training button on the garage door opener motor head unit (which activates the "training light"). NOTE Following step 2, there are 30 seconds in which to initiate step 3.
Page 95: Starting The Engine
Starting the engine Starting the engine 1. Fasten the seat belt. WARNING Before starting the engine, check that the seat, steering wheel and mirrors are adjusted properly. Make sure the brake pedal can be depressed completely. Adjust the seat if necessary. 1.
Page 96 Does not apply to vehicles with the optional keyless drive. 03 Your driving environment Starting the engine CAUTION When starting in cold weather, the automatic transmission may shift up at slightly higher engine speeds than normal until the automatic transmission fluid reaches normal operating temperature. Do not race a cold engine immediately after starting.
Page 97 Follow these instructions to jump start your vehicle's dead battery or to jump start another vehicle's dead battery using your vehicle. If the 12-volt auxiliary battery to be used is in another vehicle, check that the vehicles are not touching to prevent premature completion of a circuit.
Page 98: Transmission
03 Your driving environment Transmission Automatic transmission Depress the button on the front of the gear selector knob to move the gear selector between the R, N, D, and P positions. The gear selector can be moved freely between the Geartronic (manual shifting) and (D)rive positions while driving. Park position (P) Select the P position when starting or parking.
Page 99 Reverse (R) The vehicle must be stationary when position R is selected. Neutral position (N) No gear is engaged and the engine can be started with the gear selector in this position. Apply the parking brake if the vehicle is stationary with the gear selector in position N. Drive (D) D is the normal driving position.
Page 100: Brakes
If the fluid level is below the MIN mark in the reservoir or if a brake system message is shown in the information display: DO NOT DRIVE. Have the vehicle towed to a trained and qualified Volvo service technician and have the brake system inspected.
Page 101 Water on brake discs and brake pads affects braking Driving in rain and slush or passing through an automatic car wash can cause water to collect on the brake discs and pads. This will cause a delay in braking effect when the pedal is depressed. To avoid such a delay when the brakes are needed, depress the pedal occasionally when driving through rain, slush, etc.
Page 102 MIN mark in the reservoir or if a brake system-related message is shown in the information display: DO NOT DRIVE. Have the vehicle towed to a trained and qualified Volvo service technician and have the brake system inspected. 03 Your driving environment...
Page 103: Parking Brake
5. When parking a vehicle always put the gear selector in P. WARNING Press down the parking brake pedal firmly to its full extent. Parking on a hill If the vehicle is pointing uphill, turn the front wheels so that they point away from the curb. If the vehicle is pointing downhill, turn the front wheels so that they point toward the curb.
Page 104 2. Press the control. 3. Release the brake pedal and ensure that the vehicle is at a standstill. 4. When the vehicle is parked, the gear selector must be in position P. symbol in the instrument panel flashes while the parking bake is being applied, and glows steadily when the parking brake has been fully applied.
Page 105 Parking brake not fully released - A fault is preventing the parking brake from being released. Contact an authorized Volvo workshop. If you drive off with this error message showing, a warning signal sounds. Parking brake not applied - A fault is preventing the parking brake from being applied. Try to apply and release.
Page 106 Contents Top of Page...
Page 107: 04 Comfort And Driving Pleasure
2 0 0 7 VOLVO 04 Comfort and driving pleasure Menus and messages Climate system Audio system Trip computer Compass Stability system Active chassis system-Four C Cruise control Adaptive Cruise Control-ACC Collision warning system (option) Park assist (option) Blind Spot Information System (option)
Page 108 Navigation button - scrolls and selects among menu options ENTER - selects menu options MENU - accesses the menu system EXIT - leads back one step in the menu structure. A long press exits the menu system. Steering wheel keypad ENTER EXIT Navigation buttons.
Page 109 The navigation button can be used instead of ENTER and EXIT when navigating the menu hierarchy. The right arrow is equal to ENTER and the left arrow to EXIT. The menu options are numbered and can also be selected directly with the numerical keypad (1-9 only). 04 Comfort and driving pleasure Menus and messages Menu overview...
Page 110 Audio settings Main menu Bluetooth cell phone Bluetooth (option) Change phone Remove phone The menu option for audio settings is available in all audio sources. 04 Comfort and driving pleasure Menus and messages Main instrument panel READ - access to the list of messages and message confirmation. Thumbwheel - browse among menus and options in the list of functions.
Page 111 When a warning, information or indicator symbol comes on, a corresponding message appears on the information display. An error message is stored in a memory list until the fault is rectified. Press READ to acknowledge and scroll among the messages. NOTE If a warning message appears while you are using the trip computer, the message must be read and confirmed by pressing READ before the previous activity can be resumed.
Page 112 04 Comfort and driving pleasure Climate system Introduction Air conditioning The vehicle is equipped with Electronic Climate Control (ECC). The climate control system cools, heats or dehumidifies the air in the passenger compartment. NOTE The air conditioning can be switched off, but to ensure the best possible climate comfort in the passenger compartment and to prevent the windows from misting, it should always be on.
Page 113 Volvo service technician. Refrigerant Volvo cares about the environment. The air conditioning system in your car contains a CFC-free refrigerant - R134a. This substance will not deplete the ozone layer. The air conditioning system contains 1.59 lbs (720 g) of R134a. The systems uses PAG oil.
Page 114 Menu settings The default settings for three of the climate system's functions can be changed in the menu system, see page 115: Blower speed in automatic mode, see page 122. Recirculation timer for passenger compartment air, see page 122. Automatic rear window defrosting, see page The functions can also be returned to factory settings in the menu system.
Page 115 Air vents in the door pillars Open Closed Horizontal airflow Vertical airflow Direct the outer air vents toward the side windows to defrost. Direct the vents into the passenger compartment to maintain a comfortable climate in the rear seat. Electronic climate control, ECC Ventilated front driver's seat (option) Blower Heated front driver's seat (option)
Page 116 A/C - On/Off Heated rear window and door mirrors, see page Defroster Recirculation/Air quality system Temperature control, driver's side 04 Comfort and driving pleasure Climate system Ventilated front seats (option) The ventilation system consists of fans in the seats and backrests that draw air through the seat upholstery. The cooling effect increases as the air in the passenger compartment becomes cooler.
Page 117 Press the button once for the highest heat level - three indicator lights come on. Press the button twice for a lower heat level - two indicator lights come on. Press the button three times for the lowest heat level - one indicator light comes on. Press the button four times to switch off the heat - no indicator lights come on.
Page 118 For a description of the menu system, see page 115. Temperature control The temperatures on the driver and passenger sides can be set independently. When the vehicle is started, the most recent setting is resumed. NOTE Heating or cooling cannot be speeded up by selecting a higher/lower temperature than the actual temperature required.
Page 119 04 Comfort and driving pleasure Climate system If the air in the car recirculates for too long, there is a risk of condensation forming on the insides of the windows, especially in winter. Timer The timer function minimizes the risk of fogging, or stale air when the recirculation function is selected by automatically switching off the function after a certain length of time, depending on the ambient temperature.
Page 120: Audio System
Climate system Air distribution table 04 Comfort and driving pleasure Audio system Introduction The audio system is available in two versions: High Performance or Premium Sound. The system version is shown in the display when the audio system is switched on. If the audio system is on when the ignition is switched off, it will come on automatically the next time the ignition is put in mode I or higher.
Page 121 Socket for external audio source (AUX) Steering wheel keypad Center console control panel Control panel with headphones socket (option) Steering wheel keypad Confirm selection in menu system. Go higher in the menu system. Interrupt current function. Volume A short press scrolls between CD tracks or preset radio stations. A long press searches within CD tracks or searches for radio stations automatically.
Page 122 Volume Scroll/search forward and backward Audio source, activating Headphones sockets (3.5 mm) - accessory Activating/deactivating The control panel is activated by pressing MODE when the audio system is switched on. It is switched off automatically when the audio system is switched off or by a long press on MODE. Scroll/search forward and backward Short presses on are used to scroll between CD tracks or preset radio stations.
Page 123 04 Comfort and driving pleasure Audio system Audio functions Internal audio sources: AM, FM and CD External audio source. For connection, see page 125 Push button and knob controls for making sound settings Navigation button for AUX volume and equalizer Volume and on/off Audio volume and automatic volume control The audio system compensates for disrupting noises in the passenger compartment by increasing the volume according...
Page 124 Under Surround, 3 channel stereo or Dolby pro logic II can be activated by selecting 3-ch Dpl2 respectively. This enables the following options: Center level - Level for the center speaker. Surround level - Level for surround sound. Equalizer Sound levels for different frequencies can be adjusted separately using the equalizer 1.
Page 125: Audio System
Scan CD Playing a CD (CD player If a music CD is in the player when CD is pressed, it will be played automatically. Otherwise, insert a disc and press Certain markets only. Playing a CD (CD changer) If a CD position with a music CD is already selected when CD is pressed, it will be played automatically. Otherwise select a disc with the number buttons 1-6 or on the navigation button.
Page 126 Navigating the disc and playing tracks If a disc containing sound files is inside the CD player, press ENTER to display the disc's directory structure. The directory structure is navigated in the same way as the audio system's menu structure. Sound files have the symbol and directories have the symbol.
Page 127 Radio functions Navigation button for automatic tuning Press to cancel a menu selection or a selected function Manual tuning Scan the current wave band Auto store the strongest radio stations in the area in which you are driving Station preset buttons Select wave band AM and FM (FM1 and FM2) Automatic tuning 1.
Page 128 1. Select a wave band using FM or AM. 2. Hold in AUTO until Autostoring... appears on the display. Once Autostoring... disappears from the display, the stations are stored. The radio continues in Auto mode and Auto appears on the display. The automatically stored presets can now be selected using the preset buttons. Automatic preset storage can be cancelled using EXIT.
Page 129 1. Press Power to switch on the audio system (see pages 127 for information on the standard audio and radio functions). 2. Press the MODE button repeatedly until Sirius 1 or 2 is displayed. Activating Sirius radio 1. Tune to a satellite channel that has no audio, which means that the channel is unsubscribed and the text "Call 888- 539-SIRIUS TO SUBSCRIBE"...
Page 130 Audio system Direct channel entry The Sirius satellite channels are in numerical order throughout all of the categories. To access a channel directly: 1. Press MENU and scroll to Direct channel entry. 2. Use the numerical keypad to enter the channel's number. 3.
Page 131 2. Scroll to Song seek 3. Press ENTER to activate or deactivate the function. NOTE When the song has ended, the radio will remain tuned to the channel on which the song was played. Radio text The text that is displayed about the song that is currently playing can be changed. Use the AUTO button or the menu to display the Artist, Title, Composer, or switch radio text off.
Page 132 Temp. unskip all ch. This function will temporarily unskip all channels and make them available for selection. The channels remain on the skip list and will again be skipped the next time the ignition is switched on. Channel lock Access to specific channels can be restricted (locked). A locked channel will not provide audio, song titles, or artist information.
Page 133: Trip Computer
Sirius settings menu and press ENTER. 2. Press and hold the ENTER button for 2 seconds. 3. The current code will be displayed. Your Volvo retailer can also provide you with assistance. SIRIUS ID This function displays the 12-digit Sirius activation ID.
Page 134: Compass
Current speed in mph (Canadian models only) This function provides the driver with an instantaneous conversion of the car's current speed from km/h to mph. Current fuel consumption (Instantaneous) Current fuel consumption is calculated every second. The information on the display is updated every few seconds. When the vehicle is stationary, "----"...
Page 135 The compass may need to be calibrated if, for example, the vehicle is driven into a new magnetic zone. The characters are shown in the mirror's display if calibration is necessary. 1. Stop the vehicle in a large open area, away from traffic. 2.
Page 136: Stability System
04 Comfort and driving pleasure Stability system Introduction The Dynamic Stability and Traction Control system (DSTC) consists of a number of functions designed help reduce wheel spin, counteract skidding, and to generally help improve directional stability. CAUTION A pulsating sound will be audible when the system is actively operating and is normal. Traction control (TC) This function is designed to help reduce wheel spin by transferring power from a drive wheel that begins to lose traction to the wheel on the opposite side of the vehicle (on the same axle).
Page 137: Active Chassis System-Four C
1. Stop the vehicle in a safe place and turn off the engine. 2. Restart the engine. If the message remains when the engine is restarted, drive to an authorized Volvo workshop to have the system inspected. Symbols in the instrument panel If the symbols are displayed at the same time, read the message in the information display.
Page 138 immediate steering response. The indicator light in the button will be on to indicate that Sport mode has been selected. Advanced In this mode, movement of the shock absorbers is minimal and body sway in curves or when cornering is sharply reduced.
Page 139: Cruise Control
2 0 0 7 VOLVO 04 Comfort and driving pleasure Cruise control Operation Standby mode Resume set speed Deactivating Activate/set speed Set speed indicator Engaging the cruise control function Before a speed can be set, the cruise control system must be engaged (put in standby mode).
Page 140 Adjusting the set speed After a speed has been set, it can be increased or decreased by using the buttons. Press and hold down until the vehicle reaches the desired speed. This will become the set speed when the button is released. Press r for approximately a half second and release the button to increase or decrease vehicle speed by approximately 1 mph (1.6 km/h).
Page 141: Adaptive Cruise Control-Acc
Do not use the adaptive cruise control system in demanding driving conditions such as city traffic, winding roads, at intersections, on slippery surfaces, in poor visibility, heavy rain, etc. Maintenance of cruise control components must only be performed by an authorized Volvo workshop. WARNING Adaptive cruise control cannot cover all driving situations and traffic, weather and road conditions.
Page 142 to remain approximately 2 seconds behind the vehicle ahead). 04 Comfort and driving pleasure Adaptive Cruise Control-ACC WARNING Adaptive cruise control is not a collision avoidance system. The driver is always responsible for applying the brakes if the system does not detect another vehicle. Adaptive cruise control does not react to slow moving or stationary vehicles.
Page 143 NOTE The red warning light may be difficult to see in strong sunlight or when sunglasses are being worn. WARNING Cruise control only warns of vehicles detected by the radar sensor, see page 146. In some cases there may be no warning or the warning may be delayed.
Page 144: Adaptive Cruise Control-Acc
if the speed of vehicles ahead is significantly different from your own speed. The radar sensor has a limited field of vision. In some situations it may detect a vehicle other than the one expected or not detect vehicles at all. In certain situations, the radar sensor cannot detect vehicles at close quarters, for example a vehicle that suddenly enters the lanes between your vehicle and the one that the system has already detected.
Page 145 Adaptive cruise control is disengaged (goes into standby mode): If the speed drops below approximately 20 mph (30 km/h). When the brake pedal is depressed. If the gear selector is moved to position N. During wheel spin or wheel lock-up. If the vehicle's speed is increased by using the accelerator pedal for more than 1 minute.
Page 146 The set time interval to vehicles ahead is increased with and decreased with . The current time interval is shown briefly in the display following adjustment. Five different time intervals can be selected. A longer time interval results in smoother speed control. The recommended time interval is three to five. Time intervals one and two are primarily intended for driving in queues in heavy traffic, in which case you must intervene more often.
Page 147: Collision Warning System (Option)
The driver is responsible for maintaining a safe distance and speed, even when the collision warning system is in use. Maintenance of the collision warning system components must only be performed by a trained and qualified Volvo technician. Function...
Page 148 Visual warning signal, collision risk Sensor The radar sensor detects vehicles ahead that are moving in the same direction as your vehicle. In the event of a collision risk, you will be alerted by a red warning light and an audible warning signal. If the risk of collision increases after the warning, brake support is activated.
Page 149 A delayed warning means that brake support will also be delayed. The false warnings may be in the form of both audio and visual signals. NOTE The number of false warnings can be limited by reducing the warning distance. See the section "Set warning distance."...
Page 150: Park Assist (Option)
- The collision warning system is temporarily disengaged. The message is shown temporarily if for example slush has collected in front of the radar sensor. Collision warn. Service required - The collision warning system is disengaged. Contact an authorized Volvo workshop if the message remains. 04 Comfort and driving pleasure...
Page 151 If the information symbol illuminates and Park Assist syst Service required is shown on the information display, this indicates that the system is not functioning properly and has been disengaged. Consult a Volvo retailer or authorized Volvo service technician. CAUTION In certain circumstances, the park assist system may give unexpected warning signals that can be caused by external sound sources that use the same ultrasound frequencies as the system.
Page 152: Blind Spot Information System
Press the Park assist button on the center console to temporarily deactivate the system(s). The indicator light in the button will go out when the system(s) have been deactivated. If the vehicle is equipped with front and rear park assist, both systems will be deactivated by pressing the button. Park assist will be automatically reactivated the next time the engine is started, or if the button is pressed (the indicator light in the button will illuminate).
Page 153 BLIS camera Indicator light BLIS symbol The Blind Spot Information System (BLIS) is an information system that indicates the presence of another vehicle moving in the same direction as your vehicle in the sideview mirror's "blind area." WARNING BLIS is an information system, NOT a warning or safety system. BLIS does not eliminate the need for you to visually confirm the conditions around you, and the need for you to turn your head and shoulders to make sure that you can safely change lanes.
Page 154 04 Comfort and driving pleasure Blind Spot Information System (option) When does BLIS function The system functions when your vehicle is moving at speeds above 6 mph (10 km/h). When you pass another vehicle: The system reacts when you pass another vehicle at a speed of up to 6 mph (10 km/h) faster than that vehicle. When you are passed by another vehicle: The system reacts if your vehicle is passed by another vehicle at a speed of up to 43 mph (70 km/h) faster than your vehicle.
Page 155 cameras were obscured. In both of the above mentioned conditions, a message will appear in the information display. When driving in such conditions, the system's function will be limited or it may be temporarily switched off. See page 157 for instructions. When the message is no longer displayed, BLIS will return to normal function.
Page 156: Passenger Compartment Convenience
04 Comfort and driving pleasure Passenger compartment convenience Storage spaces 04 Comfort and driving pleasure Passenger compartment convenience Compartment in door panel Storage pocket on the front edge of the front seat cushions Ticket clip Glove compartment Storage compartment, 12 V socket and AUX input...
Page 157 Includes cup holder for driver and passenger, 12 V socket and small storage compartment. Cigarette lighter and ashtray (option) Your Volvo retailer has lighters and ashtrays available as accessories. Glove compartment The owner's manual and maps can be kept here. There are also holders for pens and fuel cards. The glove...
Page 158: Passenger Compartment Convenience
The light comes on automatically when the cover is lifted. Jacket holder The jacket holder is only designed for light clothing. 12-volt sockets The electrical socket can be used for 12-volt accessories such as cell phone chargers and coolers. The maximum current is 10 A.
Page 159: Bluetooth Hands-Free (Option)
Electrical socket in the trunk (option) Fold down the cover to access the electrical socket. It works whether or not the ignition is switched on. Use the electrical socket with the engine running to avoid draining the battery. 04 Comfort and driving pleasure Bluetooth hands-free (option) Introduction Cellular phone...
Page 160 Volume Number and letter buttons On/Off Navigation button End/refuse calls, clear entered characters, interrupt current function. The same functions are available in optional steering wheel keypad. Accept calls. The same functions are available in optional steering wheel keypad. Can also be adjusted with the steering wheel keypad. Keep in mind The menus are controlled from the center console and the steering wheel keypad.
Page 161 2. Activate the hands-free function with PHONE. The menu option Add phone is shown in the display. If one or more cell phones have already been registered, these phones will also be displayed. 3. Select phone. The audio system searches for cell phones in the vicinity. The search takes approximately 30 seconds. The cell phones detected are specified with their respective Bluetooth™...
Page 162: Bluetooth Hands-Free (Option)
Incoming calls In manual answer mode, calls are accepted by pressing ENTER. Calls can be accepted even if the audio system is in CD or FM mode. Pressing ENTER will mute the audio system. You may press EXIT to refuse or terminate a call. Auto answer The auto answer function means that calls are accepted automatically.
Page 163 The connected cell phone's ring signal is not deactivated when one of the hands-free system's integrated signals is used. In order to select the connected phone's ring signal , go to Phone settings Sounds and volume Ring signals Use mobile phone signal.
Page 164 If the phone book contains a caller's contact information, this is shown in the display. Searching for entries in phone book The easiest way to search in the phone book is with long presses on the keys 2 to 9. This starts a search in the phone book based on the key's first letter. The phone book can also be reached with on the navigation button or with on the steering wheel keypad.
Page 165 04 Comfort and driving pleasure This page left intentionally blank. Contents Top of Page...
Page 166: 05 During Your Trip
2 0 0 7 VOLVO 05 During your trip Driving recommendations Refueling Loading Towing a trailer Emergency towing 05 During your trip 05 During your trip Driving recommendations General information Economical driving conserves natural resources Better driving economy may be obtained by thinking ahead, avoiding rapid starts and stops and adjusting the speed of your vehicle to immediate traffic conditions.
Page 167 At highway driving speeds, fuel consumption will be lower with the air conditioning on and the windows closed than with the air conditioning off and the windows open. Using the onboard trip computer's fuel consumption modes can help you learn how to drive more economically. Other factors that decrease gas mileage are: Dirty air cleaner Dirty engine oil and clogged oil filter...
Page 168 Before a long distance trip It is always worthwhile to have your vehicle checked by a trained and qualified Volvo service technician before driving long distances. Your retailer will also be able to supply you with bulbs, fuses, spark plugs and wiper blades for your use in the event that problems occur.
Page 169 Volvo Washer Solvent should be diluted as follows: Down to 14° F (-10° C): 1 part washer solvent and 4 parts water Down to 5°...
Page 170 To meet seasonal air quality standards, some areas require the use of "oxygenated" fuel. Volvo allows the use of the following "oxygenated" fuels; however, the octane ratings listed on this page must still be met.
Page 171 Volvo engines are designed to achieve rated horsepower, torque, and fuel economy performance using premium 91 octane fuel. Volvo recommends premium for best performance, but using 87 octane or above will not affect engine reliability. In demanding driving conditions, such as operating the vehicle in hot weather, towing a trailer, or driving for extended periods at higher altitudes than normal, it may be advisable to switch to higher octane fuel (91 or higher) or to change gasoline brands to fully utilize your engine's capacity, and for the smoothest possible operation.
Page 172 With the exception of gas line antifreeze during winter months, do not add solvents, thickeners, or other store-bought additives to your vehicle's fuel, cooling, or lubricating systems. Overuse may damage your engine, and some of these additives contain organically volatile chemicals. Do not needlessly expose yourself to these chemicals. WARNING Never carry a cell phone that is switched on while refueling your vehicle.
Page 173 If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps.
Page 174 The rear seat should not be loaded to a level higher than 2 in. (5 cm) below the upper edge of the rear side windows. Objects placed higher than this level could impede the function of the Volvo Inflatable Curtain.
Page 175 Load anchoring eyelets The load anchoring eyelets are used to fasten straps to help anchor items in the trunk. WARNING Cover sharp edges on long loads to help prevent injury to occupants. Secure the load to help prevent shifting during sudden stops. Always secure large and heavy objects with a seat belt or cargo retaining straps.
Page 176 There is a hatch in the right section of the rear seat backrest that can be opened for transportation. Fold the right backrest forward. Release the hatch in the rear seat backrest by sliding the catch up while folding the hatch forward. Return the backrest to the upright position with the hatch open.
Page 177 Volvo has developed especially for your vehicle. Volvo-approved removable roof racks are designed to carry the maximum allowable roof load for this vehicle: 220 lbs (100 kg). For non-Volvo roof racks, check the manufacturer's weight limits for the rack.
Page 178 Do not connect the trailer's brake system directly to the vehicle's brake system. More frequent vehicle maintenance is required. Remove the ball and drawbar assembly when the hitch is not being used. Volvo recommends the use of synthetic engine oil when towing a trailer over long distances or in mountainous areas. WARNING Bumper-attached trailer hitches must not be used on Volvos, nor should safety chains be attached to the bumper.
Page 179 Installing the ball holder 1. If necessary, remove the cotter pin from the locking bolt and slide the locking bolt out of the hitch assembly. 2. Slide the ball holder into the hitch assembly. 3. Align the hole in the ball holder with the one in the hitch assembly. 4.
Page 180 The towing eyelet is located under the floor of the trunk, with the spare tire. This eyelet must be screwed into the positions provided on the right sides of either the front or rear bumper (see illustration). Attaching the towing eyelet 1.
Page 181 Volvo recommends the use of flat bed equipment. If wheel lift equipment must be used, please use extreme caution to help avoid damage to the vehicle. In this case, the vehicle should be towed with the rear wheels on the ground if at all possible.
Page 182 This maintenance program contains inspections and services necessary for the proper function of your vehicle. The maintenance services contain several checks that require special tools and training, and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time-tested and proven Genuine Volvo Parts and Accessories.
Page 183: 06 Maintenance And Specifications
Maintenance Your Volvo passed several major inspections before it was delivered to you, in accordance with Volvo specifications. The maintenance procedures outlined in the Warranty and Service Records Information booklet, many of which will positively affect your vehicle's emissions, should be performed as indicated. It is recommended that receipts for vehicle emission maintenance be retained in case questions arise concerning maintenance.
Page 184 Wipe driver information displays with a soft cloth. Visually inspect battery terminals for corrosion. Corrosion may indicate a loose terminal connector, or a battery near the end of its useful service life. Consult your Volvo retailer for additional information. As needed: Wash the car, including the undercarriage, to reduce wear that can be caused by a buildup of dirt, and corrosion that can be caused by salt residues.
Page 185: Hood And Engine Compartment
OBD II system to "ready" for inspection. A half-hour trip of mixed stop- and-go/highway driving is typically needed to allow OBD II to reach readiness. Your Volvo retailer can provide you with more information on planning a trip.
Page 186: Engine Oil
The oil level should be checked every time the vehicle is refueled. This is especially important during the period up to the first scheduled maintenance service. page 246 for oil specifications. Refer to the Warranty and Service Records Information booklet for information on the oil change intervals. Volvo recommends oil products. CAUTION...
Page 187 Not checking the oil level regularly can result in serious engine damage if the oil level becomes too low. Oil that is lower than the specified quality can damage the engine. Volvo does not recommend the use of oil additives. Always add oil of the same type and viscosity as already used.
Page 188: Fluids
Do not top off with water only. This reduces the rust-protective and antifreeze qualities of the coolant and has a lower boiling point. It can also cause damage to the cooling system if it should freeze. Top off with Volvo Genuine Coolant/Antifreeze only (a 50/50 mix of water and antifreeze).
Page 189 If the fluid level is below the MIN mark in the reservoir or if a brake-related message is shown in the information display: DO NOT DRIVE. Have the car towed to a trained and qualified Volvo service technician and have the brake system inspected.
Page 190: Replacing Bulbs
Active Bi-Xenon headlights (option) - due to the high voltage used by these headlights, these bulbs should only be replaced by a trained and qualified Volvo service technician. Turn off the lights and remove the remote key from the ignition before changing any bulbs.
Page 191 Always switch off the ignition before starting to replace a bulb. The optional Bi-Xenon headlight bulbs contain trace amounts of mercury. These bulbs should always be disposed of by a trained and qualified Volvo service technician. Removing the headlight housing 1.
Page 192 6. Replace the defective bulb(s), see page 204. Reinserting the headlight housing 1. Plug in the connector until it clicks into place. 2. Reinstall the headlight housing and locking pins. Check that they are correctly inserted. The headlight housing must be properly inserted and secured in place before the lighting is switched on or the remote key is inserted into the ignition slot.
Page 193 5. Replace the bulb and reinsert it into the headlight housing. 6. Put the cover back into position and reinstall the headlight housing. 06 Maintenance and specifications Replacing bulbs High beam, Halogen 1. Remove the headlight housing from the vehicle (see the instructions on page 198.) 2.
Page 194 5. Remove the burned out bulb and install a new one. It can only be secured in one position. 6. Press the bulb holder into the socket and press until it clicks into place. 7. Put the cover back into position and reinstall the headlight housing. Turn signals 1.
Page 195 3. Pull the wire to withdraw the bulb holder. 4. Pull out the burned out bulb and install a new one. It can only be secured in one position. 5. Press the bulb holder into the socket and press until it clicks into place. 6.
Page 196 Parking lights (LED) Turn signals Side maker lights (LED) Brake lights Rear fog light (driver's side only) Backup light NOTE If an error message remains in the display after a faulty bulb has been replaced, contact an authorized Volvo workshop. Brake lights...
Page 197 Turn signal Rear fog light (driver's side only) Backup light License plate lighting 1. Remove the screws with a screwdriver. 2. Carefully detach the entire bulb housing and pull it out. 3. Replace the bulb. 4. Refit the entire bulb housing and screw it into place. 06 Maintenance and specifications Replacing bulbs Footwell lighting...
Page 198 The trunk lighting is located on opposite sides of the trunk. 1. Insert a screwdriver and gently turn so that the bulb housing comes loose. 2. Replace the bulb. 3. Check that the bulb illuminates and press it back into the bulb housing. Vanity mirror lighting Removing the mirror glass 1.
Page 199: Wiper Blades And Washer Fluid
06 Maintenance and specifications Wiper blades and washer fluid Wiper blades Service position The wiper blades must be in the service (vertical) position for replacement or washing. 1. Switch off the ignition (ignition mode 0, see page 75) and keep the remote key in the ignition slot 2.
Page 200 With the wipers in the service position, fold out the wiper arm from the windshield. Press the button on the wiper blade attachment and pull the wiper blade straight out, parallel with the wiper arm. Slide in the new wiper blade until it clicks into place. Check that the blade is securely in place.
Page 201: Battery
Battery Warning symbols on the battery NOTE A used battery should be disposed of in an environmentally responsible manner. Consult your Volvo retailer or take the battery to a recycling station. Handling Check that the battery cables are correctly connected and tightened.
Page 202 Never disconnect the battery when the engine is running (for example, when replacing the battery). The service life and function of the battery is influenced by factors such as the number of starts, discharging, driving style, driving conditions, climatic conditions etc. Never use a quick charger to charge the battery.
Page 203 WARNING Connect and disconnect the positive and negative cables in the correct sequence. 06 Maintenance and specifications Battery Removal Switch off the ignition and wait at least 5 minutes before disconnecting the battery so that all information in the vehicle's electrical system can be stored in the control modules. Open the clips on the front cover and remove the cover.
Page 204: Fuses
Release the rubber moulding so that the rear cover is free. Remove the rear cover by pulling it away. Detach the black negative cable . Detach the red positive cable , detach the ventilation hose from the battery and loosen the screw holding the battery clamp Move the battery to the side and lift it up.
Page 205 2. From the side, examine the curved metal wire in the fuse to see if it is intact. If the wire is broken, insert a new fuse of the same color and amperage (written on the fuse). If fuses burn out repeatedly, have the electrical system inspected by a trained and qualified Volvo service technician. WARNING Never use fuses with higher amperage than those stated in the following tables.
Page 206 Engine compartment, upper Engine compartment, front Engine compartment, lower Positions...
Page 207 Fuses 16-33 are 35-41 may be changed at any time when necessary. Fuses 1-15, 34, and 42-44 are relays/ circuit breakers and should only be removed or replaced by a trained and qualified Volvo service technician. There is a special fuse removal tool on the underside of the cover.
Page 208 Under the glove compartment Fold aside the interior trim covering the fuse box. Press the cover's lock and fold it up. The fuses are accessible. Positions...
Page 209 06 Maintenance and specifications Fuses 06 Maintenance and specifications Fuses Trunk...
Page 210 Positions...
Page 211: Wheels And Tires
06 Maintenance and specifications Wheels and tires Introduction Your vehicle is equipped with tires according to the vehicle's tire information placard on the B-pillar (the structural member at the side of the vehicle, at the rear of the driver's door opening). The tires have good road holding characteristics and offer good handling on dry and wet surfaces.
Page 212 WARNING The wheel and tire sizes for your Volvo are specified to meet stringent stability and handling requirements. Unapproved wheel/ tire size combinations can negatively affect your vehicle's stability and handling. Approved tire sizes are shown in the Tire inflation pressure tables beginning on page 221.
Page 213 You should replace the spare tire when you replace the other road tires due to the aging of the spare. A tire's age can be determined by the DOT stamp on the sidewall (see the illustration above). A tire with e.g., visible cracks or discoloration should be replaced immediately. Improving tire economy Maintain correct tire pressure.
Page 214 WARNING Under-inflation is the most common cause of tire failure and may result in severe tire cracking, tread separation, or "blowout," with unexpected loss of vehicle control and increased risk of injury. Under-inflated tires reduce the load carrying capacity of your vehicle. When weather temperature changes occur, tire inflation pressures also change.
Page 215 Wheels and tires Tire inflation pressure table - U.S. models The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory.
Page 216 Wheels and tires Tire inflation pressure table - Canadian models The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory.
Page 217 Tire Pressure Monitoring System (TPMS)-U.S models only The tire pressure monitoring system uses sensors mounted in the tire valves to check inflation pressure levels. When the vehicle is moving at a speed of approximately 20 mph (30 km/h) or faster, these sensors transmit inflation pressure data to a receiver located in the vehicle.
Page 218 20 mph (30 km/h) or faster to erase the message. Volvo recommends that TPMS sensors be fitted on all wheels used on the vehicle. Volvo does not recommend moving sensors back and forth between sets of wheels.
Page 219 Self supporting run flat tires Certain models equipped with the Tire Pressure Monitoring System (TPMS) can also be equipped with self supporting run flat tires. Tires of this type have specially reinforced sidewalls that make it possible to continue driving in the event of a drop in inflation pressure.
Page 220 Federal law mandates that tire manufacturers place standardized information on the sidewall of all tires (see the illustration). The following information is listed on the tire sidewall: The tire designation (the following figures are examples of a tire designation): 1. 215: the width of the tire (in millimeters) from sidewall edge to sidewall edge. The larger the number, the wider the tire.
Page 221 This limit is set by the tire manufacturer. Recommended tire inflation pressure: inflation pressure, established by Volvo, which is based on the type of tires that are mounted on a vehicle at the factory. This inflation pressure is affected by the number of occupants in the vehicle, the amount of cargo, and the speed at which the vehicle will be driven for a prolonged period.
Page 222 Permissible axle weight The maximum allowable weight that can be carried by a single axle (front or rear). These numbers are shown on the Federal/Canadian Motor Vehicle Safety Standards (FMVSS/ CMVSS) label. The total load on each axle must never exceed its maximum permissible weight.
Page 223 Snow chains can be used on your Volvo with the following restrictions: Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. If accessory, aftermarket or "custom" tires and wheels are installed and are of a size different than the original tires and wheels, chains in some cases CANNOT be used.
Page 224 Recommended tire pressure (see the placard on the B-pillar or on the fuel filler door) should be maintained irrespective of which position on the vehicle the temporary spare tire is used on. In the event of damage to this tire, a new one can be purchased from your Volvo retailer. WARNING...
Page 225 Incorrectly mounted tires impair the car's braking properties and ability to force aside rain, snow and slush. The tires with the most tread should always be at the rear (to reduce the risk of skidding). Contact a Volvo workshop if you are unsure about the tread depth. 06 Maintenance and specifications...
Page 226 Spare wheel The spare wheel (Temporary spare) is only intended for temporary use. Replace the spare wheel with a normal wheel as soon as possible. The car's handling may be altered by the use of the spare wheel. The correct tire pressure for the spare wheel is stated in the tire pressure tables, see pages 221 and 222.
Page 227 Changing a tire: 1. Apply the parking brake. 2. Put the gear selector in P. 3. Block the wheels that are on the ground with wooden blocks or large stones. 4. Remove the wheel cover (where applicable) using the lug wrench in the tool bag.With the vehicle still on the ground, use the lug wrench to loosen the wheel nuts 1/2-1 turns by exerting downward pressure.
Page 228 The jack must correctly engage the jack attachment. Be sure the jack is on a firm, level, non-slippery surface. Never allow any part of your body to be extended under a vehicle supported by a jack. Use the jack intended for the vehicle when changing a tire. For any other job, use stands to support the vehicle. Apply the parking brake and put the gear selector in the (P)ark position.
Page 229 Never use wax on the rubber seals around the moonroof. Exterior plastic components Cleaning exterior plastic components should be done with a cleaning agent specially designed for this purpose. Solvents or stain removers should not be used. Consult your Volvo retailer. Automatic car wash...
Page 230 We do NOT recommend washing your car in an automatic wash during the first six months (because the paint will not have hardened sufficiently). An automatic wash is a simple and quick way to clean your car, but it is worth 06 Maintenance and specifications Vehicle care remembering that it may not be as thorough as when you yourself go over the car with sponge and water.
Page 231 06 Maintenance and specifications Vehicle care Volvo also offers a special leather softener that should be applied after the cleaner and protectant. It leaves leather soft and smooth, and reduces friction between leather and other finishes in the vehicle. Volvo recommends cleaning, protecting and conditioning your vehicle's leather two to four times a year. Ask your...
Page 232 The floor mats should be vacuumed or brushed clean regularly, especially during winter when they should be taken out for drying. Spots on textile mats can be removed with a mild detergent. For best protection in winter, Volvo recommends the use of Volvo rubber floor mats. Consult your Volvo retailer.
Page 233 Paint - touch-up pen Brush Masking tape If the stone chip has not gone down to the bare metal and an undamaged color coat remains, you can add paint immediately after removing dirt. page 241 for the location of the model plate. NOTE When touching up the vehicle, it should be clean and dry.
Page 234 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
Page 235 Dimensions 06 Maintenance and specifications Specifications Weights 06 Maintenance and specifications Specifications Engine specifications...
Page 236 Operation in hot climates When temperatures exceed 86° F (30° C) in your area, Volvo recommends, for the protection of your engine, that you use a heavier weight oil, such as such as SAE 5W-40 or 0W-40. See the viscosity chart.
Page 237 Operation in temperate climates Incorrect viscosity oil can shorten engine life. Under normal use when temperatures do not exceed 86° F (30° C), SAE 5W-30 will provide good fuel economy and engine protection. See the viscosity chart. Extreme engine operation Synthetic oils meeting SAE 0W-30 or 0W-40 and complying with oil quality requirements are recommended for driving in areas of sustained temperature extremes (hot or cold), when towing a trailer over long distances, and for prolonged driving in mountainous areas.
Page 238 Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions. Models without headlight washers 06 Maintenance and specifications Specifications Electrical system General information 12 volt system with a voltage-regulated alternator. Single pole system in which the chassis and engine block are used as conductors.
Page 239 Volvo programs Volvo On Call Roadside Assistance Your new Volvo comes with a four year ON CALL roadside assistance. Additional information, features, and benefits are described in a separate information package in your glove compartment. If you have misplaced your package, dial: In the U.S.A.
Page 240 2 0 0 7 VOLVO Index Numerics 12-volt sockets 160, 161 Accessory installation warning Active Bi-Xenon headlights Active chassis system Active yaw control Adaptive cruise control 144-148 Air conditioning Air distribution Air distribution table Air vents Airbags disconnecting the front passenger's side...
Page 241 Automatic transmission Geartronic 105-106 general description 105-106 shiftlock override Axle weight Battery changing 208-209 maintenance remote control, replacing specifications warning symbols Black box Blind Spot Information System(BLIS) 155-159 Bluetooth hands-free 162-166 Booster cushion, integrated 42-44 Booster cushions Brake lights Brake support Brake system checking fluid level emergency brake assistance...
Page 242 Child restraint systems 32-33 booster cushions convertible seats 36-38 infant seats 34-35 ISOFIX/LATCH anchors top tether anchors Child safety 29-31 booster cushions child restraint systems 32-33 convertible seats 36-38 infant seats 34-35 Child safety locks Climate system air distribution air vents Interior Air Quality System introduction passenger compartment filter...
Page 243 120-124 Economical driving Electric parking brake Electronic Climate Control 120-123 air distribution table Interior Air Quality System ventilated seats Emergency brake lights Emergency locking retractor Emergency starting Emergency towing 185-186 Emission inspection readiness Engine specifications starting starting with keyless drive Engine compartment overview Engine oil checking...
Page 244 Gauges Geartronic automatic transmission 105-106 General warnings Generator warning light Glossary of tire terminology Glove compartment locking Grocery bag holder Gross vehicle weight Hazard warning flashers Headlight washers Headlights active bi-xenon lights changing bulbs 199-200 high beam flash high/low beams switch Heartbeat sensor (alarm system) Heated front seats...
Page 245 Integrated booster cushion 42-44 Intelligent Driver Information System (IDIS) Interior Air Quality System 119, Interior lighting 88-89 ISOFIX anchors Jump starting Key blade 53-54 valet locking Keyless drive locking and unlocking the vehicle 56-57 starting the engine Labels list of location of LATCH anchors Leather care...
Page 246 Mirrors defroster power door rearview, auto-dim function retractable vanity Moonroof 96-97 Motor oil checking specifications volumes Occupant safety Occupant weight sensor 21-23 Octane recommendations Odometer, trip checking low pressure warning light specifications volumes On Call Roadside Assistance Opening the trunk from the inside Overhead courtesy lighting 88-89 Oxygen sensors, heated...
Page 247 speed-dependent Power windows 92-93 laminated glass water repellent glass Pregnancy, using seat belts during Proposition 65 warning 9, 104, 209, Radio functions Sirius satellite radio 132-135 Rain sensor READ button 116-117 Rear fog light Rear park assist 153-154 Rear seats center head restraint folding heated...
Page 248 Safety defects, reporting Safety, occupant Seat belts Automatic locking retractor/Emergency locking retractor buckling maintenance reminder reminder warning light securing child restraint systems 34, 36, tensioners unbuckling use during pregnancy using Seats, front 77-78 Self supporting run flat tires Shiftlock override Side impact airbags Side marker lights, changing bulbs Sirius satellite radio...
Page 249 Supplemental restraint system warning light Taillights, changing bulbs Temporary spare tire Three-way catalytic converter Tire pressure monitoring system indicator light Tires changing from summer to winter designations glossary of terms improving economy inflation pressure 218-219 inflation pressure tables 221-222 self supporting run flat tires snow spare specifications...
Page 250 Vehicle maintenance performed by the owner Vehicle weights Ventilated seats Volvo and the environment Volvo Inflatable curtain Volvo maintenance Volvo On Call Roadside Assistance Volvo programs Warning flashers, hazard Warning lights 70-73 Warning symbol Warning system, collision 150-152...
Page 251 Wheels changing 234-235 storing Wheels and tires, introduction Whiplash protection system 26-27 Windows laminated glass power 92-93 water repellent glass Windshield rain sensor washer fluid 206, washers wipers/washers Wiper blades, replacing Contents Top of Page...

Volvo 2007 S80 Owner's Manual

Table of Contents

Introduction

1 Safety

2 0 0 7 Volvo S80

Volvo S80

2 0 0 7 Volvo S80

4 Comfort and Driving Pleasure

5 During Your Trip

2 0 0 7 Volvo S80

Quick Links

Chapters

Related Manuals for Volvo 2007 S80

Summary of Contents for Volvo 2007 S80

Table of Contents
