Volvo S80 Wiring Diagram

2007
Hide thumbs Also See for S80:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Operating Manual
VOLVO
S80 (07-)
TP 39100202
2007

Advertisement

Table of Contents
loading

Related Manuals for Volvo S80

Summary of Contents for Volvo S80

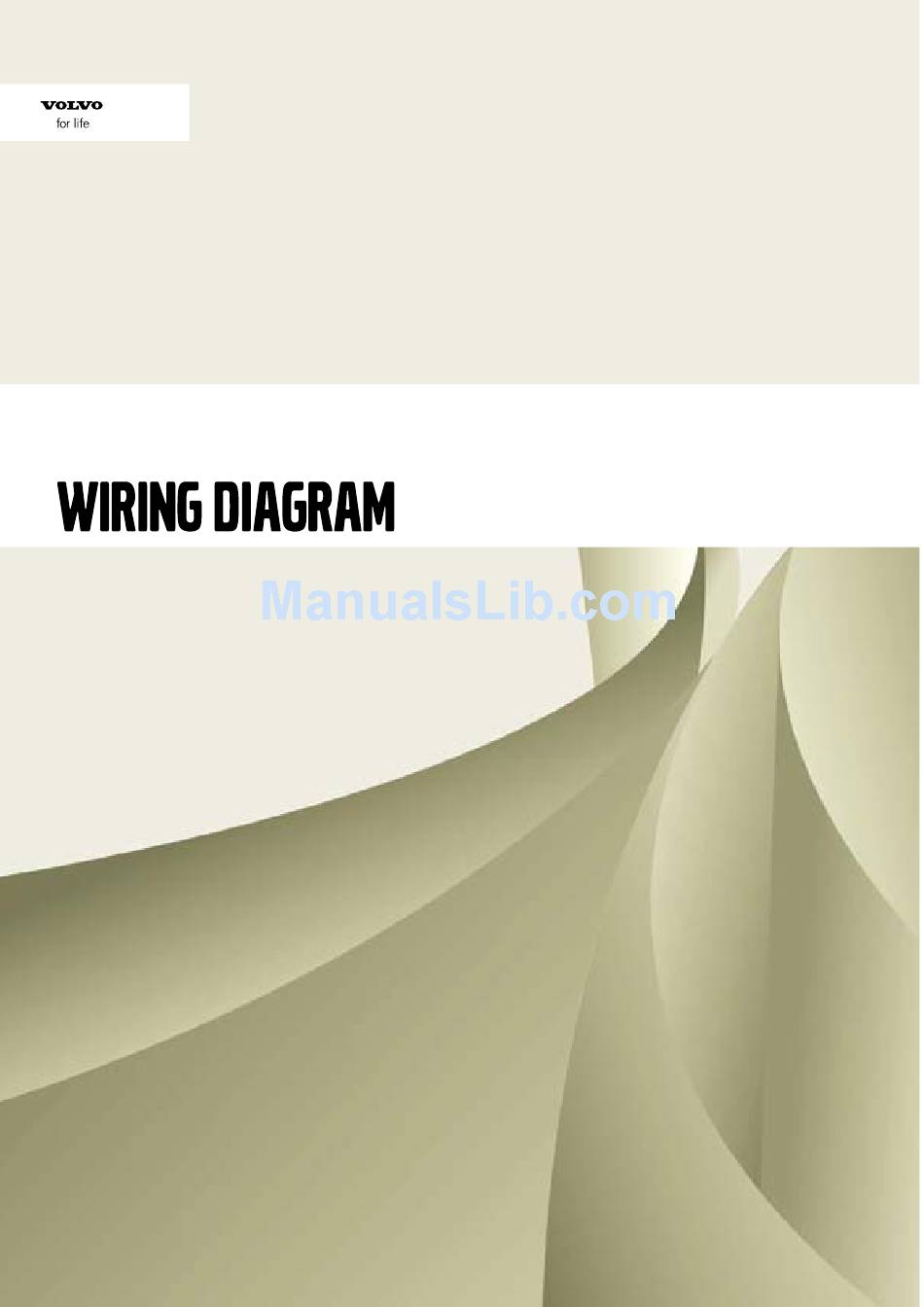

  • Page 1 VOLVO S80 (07-) TP 39100202 2007...

  • Page 2: Vehicles With Srs (Airbag)/Sips Bag

    2. Damage or malfunction of the SRS/SIPS bag/IC system. Work involving the SRS/SIPS bag/IC systems or other components in the vehicle that may affect the SRS/SIPS bag/IC systems must always be performed by an authorized Volvo workshop. In case of doubt, consult the SRS and SIPS bag/IC service manual.

  • Page 3: Table Of Contents

    MOST data communication ........44 High-pressure headlight washer ........85 Steering Wheel Module (SWM) ........45 Horn ................ 86 Anti-theft alarm ............87 Keyless vehicle 1:2 ............88 Parking assistance............90 Collision warning with brake servo....... 91 TP39100202 S80(07-) 2007...
  • Page 4 Power door mirrors, LHD ........... 126 Index 1:2 ............256 Heated door mirrors, LHD.......... 127 Heated door mirrors with camera function, LHD..128 Power door mirrors, RHD .......... 129 List of components 1:6 ......258 Heated door mirrors, RHD ......... 130 TP39100202 S80(07-) 2007...

  • Page 5: Explanations

    = Finland VT, VO = Violet = Great Britain WH, W = White = Israel YE, Y = Yellow = Japan = Korea = Norway = Netherlands = Sweden = United States of America = Western Europe TP39100202 S80(07-) 2007...

  • Page 6: How To Use The Wiring Diagrams 1:2

    Fuse Electrical distribution rail/box G. Component location Audio The end of the manual contains a section that Service/diagnostics describes component appearance and location in Contact reel numerical order. Meter Ignition component/shunt Optics Ground connection Branching point Connector TP39100202 S80(07-) 2007...

  • Page 7: How To Use Wiring Diagrams 2:2

    = CAN communication 74/601 = MOST communication BK-OG 73/5030 73/5033 = MOST communication = Connection with distribution box 31/47 31/48 31/94 31/93 31/83 = Further connection to... = Connector between cable harnesses = Connector connected in component 10/17 TP39100202 S80(07-) 2007...

  • Page 8: Electrical Distribution 1:2

    9/42 RD-BK 11A/1 2/22 4/56C5:1 11A/2 RD_BU 4/56C5:2 RD-GN 11A/3 15/32 RD-GY 11A/4 15/32 RD-BN 11A/5 15/32 11A/6 2/193 RD-GY VT-GN 4/56C1:48 11B/14 11B/13 11B/11 11B/9 11B/15 11B/12 11B/10 11B/24 11B/8 11B/25 11B/26 31/3 C1:1 C1:1 73/3076 TP39100202 S80(07-) 2007...
  • Page 9 2/82 YE-VT RD-GY RD-VT BU-RD 11D/D1 11D/C1 11D/D2 11D/C2 11D/D3 11D/C3 11D/D4 74/505 BU-RD 11D/C4 73/5069 RD-GY 11D/D5 11D/C5 11D/D6 11D/C6 11D/D7 11D/C7 11D/D8 11D/C8 11D/D9 11D/C9 11D/D10 11D/C10 11D/D11 11D/C11 11D/C12 11D/D12 RD-BN GY BU RD-BN TP39100202 S80(07-) 2007...

  • Page 10: Fuses

    Main fuse for fuses in CEM 4/56 11A/3 11D/A1-11D/A11 Fuses in cargo compartment 15/32 11A/4 11D/B1-11D/B8 Fuses in cargo compartment 15/32 11D/C1-11D/C7 Fuses in cargo compartment 15/32 11A/5 11D/D1-11D/D7 Fuses in cargo compartment 15/32 11A/7 9/42 PTC element continues TP39100202 S80(07-) 2007...

  • Page 11: Engine Compartment Electrical Center F9-F21

    Forward-aimed radar (FLR) 11B/19 4/99 Electronic power steering control module 11B/20 4/28 Transmission Control Module (TCM) 4/46 Engine Control Module (ECM) Supplemental Restraint System (SRS) 11B/21 9/43 Heated windshield washer nozzle, left 9/44 Heated windshield washer nozzle, right continues TP39100202 S80(07-) 2007...

  • Page 12: Engine Compartment Electrical Center F22-F34

    Engine Control Module (ECM), not 2.4l diesel 11B/31 4/28 Transmission Control Module (TCM) 11B/32 Electromagnetic clutch, climate control system 2/22 11B/33 2/22 Relay, climate control system 2/239 Relay, coolant pump, 8 cyl. 11B/34 6/25 Starter motor 2/35 continues TP39100202 S80(07-) 2007...

  • Page 13: Engine Compartment Electrical Center F35-F38

    8/19 Solenoid, variable valve timing, intake, 8 cyl. 8/81 Solenoid, variable valve timing, exhaust, 8 cyl. 8/117 Solenoid, variable valve timing, intake, bank 1, 8 cyl. 8/118 Solenoid, variable valve timing, exhaust, bank 1, 8 cyl. continues TP39100202 S80(07-) 2007...

  • Page 14: Engine Compartment Electrical Center F39-F44

    Heated fuel filter, 5 cyl. 2.4l diesel 6/73 Coolant pump, 8 cyl. 2/239 11B/41 6/67 Pump, fuel leakage control, not 2.4l diesel 11A/42 20/22-26 Glow plug 4/109 11A/43 4/121 Coolant fan control module, not 2.5l turbo, auto 11A/44 4/71 Cooling fan control module TP39100202 S80(07-) 2007...

  • Page 15: Central Electronic Module (Cem) F1-F15

    Right-hand front lamp housing 4/33 Sunroof Module (SRM) 10/48 Right-hand reversing light 10/55 Left-hand reversing light 10/46 Fog light, right rear 10/53 Fog light, left rear 6/127 Washer motor K5A, K5B 4/80 Forward Sensing Module (FSM) continues TP39100202 S80(07-) 2007...

  • Page 16: Central Electronic Module (Cem) F17-F28

    16/35 Siren Control Module (SCM) 17/13 Data link connector 3/132 Start Control Unit (SCU) 4/93 Keyless Vehicle Module (KVM) 10/19 Auxiliary brake light 3/9, 4/56 10/43 Right brake light 3/9, 4/56 10/50 Left brake light 3/9, 4/56 TP39100202 S80(07-) 2007...

  • Page 17: Rear Electrical Center Fa1-Fa11

    3/129 Right rear Door Module (RDM) 11D/A6 17/19 12V outlet, cargo compartment 11D/A7 2/82 Relay, rear window defroster Rear window defroster 2/82 11D/A9 17/39 13-pin outlet, tow hitch cable harness FA11 11D/A11 4/110 Trailer Module (TRM), Accessory TP39100202 S80(07-) 2007...

  • Page 18: Rear Electrical Center Fb1-Fb7

    Suspension Module (SUM) 11D/B3 9/12 Seat Heating Module (SHM), left 11D/B4 9/13 Seat Heating Module (SHM), right 11D/B5 9/15 Control module, rear right seat heater 11D/B6 4/82 Differential Electronic Module (DEM) 11D/B7 9/14 Control module, rear left seat heater TP39100202 S80(07-) 2007...

  • Page 19: Rear Electrical Center Fc2-Fc7

    Lock motor, rear left brake disc 4/115 11D/C3 6/147 Lock motor, rear right brake disc 4/115 11D/C4 4/93 Keyless Vehicle Module (KVM) 11D/C6 9/13 Seat Heating Module (SHM), passenger side 11D/C7 9/12 Seat Heating Module (SHM), driver’s side TP39100202 S80(07-) 2007...

  • Page 20: Rear Electrical Center Fd1-Fd7

    16/108 Multimedia Module (MMM) 11D/D4 16/145 Remote digital audio receiver (RDAR) 11D/D5 16/105 Audio module (AUD) 11D/D6 3/281 Infotainment Control Module (ICM) 16/1 Integrated Audio Module (IAM) 11D/D7 16/60 Phone Module (PHM) 16/147 Bluetooth Phone Module (BPM) TP39100202 S80(07-) 2007...

  • Page 21: Battery Pf1-Pf2

    Fuses in the engine compartment electrical center 11B/30-11B/34 Fuses in the engine compartment electrical center 11B/35-11B/41 Fuses in the engine compartment electrical center 2/32 11A/42-11A/44 Fuses in the engine compartment electrical center 6/25 Starter motor 6/26 Alternator Control Module (ACM) TP39100202 S80(07-) 2007...

  • Page 22: Relays

    Relays Relays in the engine compartment R2 15/33 Engine compartment cold zone Relay function 2/17 Relay, horn TP39100202 S80(07-) 2007...

  • Page 23: Relays In The Engine Compartment R8-R9

    Relays Relays in the engine compartment R8-R9 15/31 Engine compartment electrical center Relay function 2/31 Relay, 15-feed 2/193 Relay, comfort functions TP39100202 S80(07-) 2007...

  • Page 24: Relays In The Engine Compartment R10-R13

    Relays Relays in the engine compartment R10-R13 15/31 Engine compartment electrical center Relay function 2/32 Main relay, engine management system 2/239 Relay, coolant pump, 8 cyl. 2/35 Starter motor relay 2/22 Relay, climate control system TP39100202 S80(07-) 2007...

  • Page 25: Rear Electrical Center Ra1-Rb2

    Relays Rear electrical center RA1-RB2 2/88 2/75 2/82 15/32 Rear electrical center Relay function 2/82 Relay, rear window defroster 2/75 Rear adjustable head restraint relay 2/88 Relay, 15-feed rear TP39100202 S80(07-) 2007...

  • Page 26: Central Electronic Module (Cem)

    Front fog lights High beam Reversing lights K5-A Washer motor K5-B Washer motor K6-B Central locking motor, trunk lid Fuel pump Steering Column Lock module (SCL) K10-A Seat Heating Module (SHM), interior lighting Lock motor, fuel filler cover TP39100202 S80(07-) 2007...

  • Page 27: Ground Connections Overview

    Ground connections Overview 31/100 31/89 31/XX9 XX14 31/88 31/90 31/2 31/95 XX10 31/AL XX15 31/XX5 31/96 31/93 31/94 31/4 31/XX4 31/1 31/3 31/83 31/10 31/7 31/84 31/6 31/15 31/67 31/65 31/68 31/47 31/TRM 31/48 INFOT TP39100202 S80(07-) 2007...
  • Page 28 Rear 12V outlet, LHD 10/72 Front ashtray lighting 16/111 Rear headphone sockets, LHD 31/7 Bottom rail, left 3/271 Contact, immobilizer, clutch pedal 3/284 Diagnostic contact, brake light, LHD 4/56 Central Electronic Module (CEM), RHD 7/51 Accelerator pedal sensor, LHD TP39100202 S80(07-) 2007...
  • Page 29 8/134 Solenoid, reverse interlock, manual Front 12V outlet, RHD 9/12 Seat Heating Module (SHM), driver’s side 9/13 Seat Heating Module (SHM), passenger side 9/25 Rear 12V outlet, RHD 10/72 Front ashtray lighting 16/111 Rear headphone sockets, RHD TP39100202 S80(07-) 2007...
  • Page 30 Seat Heating Module (SHM), passenger side, LHD 9/15 Control module, rear right seat heater 17/19 12V outlet, cargo compartment 31/68 Rear seat riser, RH side 2 4/83 Fuel pump control module 6/33 Fuel pump 6/35 Fuel pump, auxiliary heater 9/38 Heated fuel filter TP39100202 S80(07-) 2007...
  • Page 31 Spark plug with ignition coil, 6 cyl. 20/6 Spark plug with ignition coil, 6 cyl. 20/8 Spark plug with ignition coil, 6 cyl. 20/7 Spark plug with ignition coil, 8 cyl. 20/12 Spark plug with ignition coil, 8 cyl. TP39100202 S80(07-) 2007...
  • Page 32 4/56 Central Electronic Module (CEM) Washer fluid level sensor 7/73 Coolant level sensor 7/203 Forward-aimed radar (FLR) 31/100 Engine ignition coils 20/8 Spark plug with ignition coil, 8 cyl. 20/13 Spark plug with ignition coil, 8 cyl. TP39100202 S80(07-) 2007...

  • Page 33: 31/Xx4 - 31/Al

    13-pin outlet, tow hitch cable harness 31/INFOT Infotainment 16/46 High Level Display Front module (HLDF) 16/105 Audio module (AUD) 16/108 Multimedia Module (MMM) 16/145 Remote digital audio receiver (RDAR) 31/AL Auxiliary lights 10/65 Auxiliary light, front right 10/69 Auxiliary light, front left TP39100202 S80(07-) 2007...

  • Page 34: Control Modules Overview Of Locations

    Control modules Overview of locations TP39100202 S80(07-) 2007...

  • Page 35: Overview Of Designations

    Wiper Motor Module (WMM) 3/128 Left rear Door Module (LDM) 4/31 4/31 Fan control module 3/111 Light Switch Module (LSM) 4/71 4/71 Cooling fan control module 16/108 Multimedia Module (MMM) 17/13 17/13 Data link connector 7/93 Occupant Weight Sensor (OWS) TP39100202 S80(07-) 2007...

  • Page 36: Central Electronic Module (Cem) 1:3

    C2:64 VT-GN 4/52 C2:70 RD-GY 2/75:1, 2/75:3 C2:57 RD-BN 7/214:3 C2:76 YE-OG 4/83:4, 6/33:4 C3:76 4/102:2 C3:71 VT-BN 5/1C1:9 K6-B C2:71 YE-VT 6/8:1 C2:67 YE-BU 6/37:2 C1:67 16/35:3 C3:73 17/13:16, 4/6:1 C3:74 RD-VT 3/132:1 C2:66 RD-WH 3/9:1 TP39100202 S80(07-) 2007...
  • Page 37 10/17:2 C2:73 GN-BN 10/18:1 C1:68 YE-OG 10/6:1 C1:69 BU-RD 10/5:1 K5-A C1:71 6/127:1 K5-B C1:72 VT-GN 6/127:2 C1:65 C3:66 RD-GN 4/9C2:67, 7/93:2 C1:55 GN-WH 4/16C1:8 C2:58 4/115C1:22 C2:55 BU-RD 7/51:6 C3:68 BU-RD 3/65:1, 9/42C1:1 C4:18 BU-BK 8/48:1 TP39100202 S80(07-) 2007...
  • Page 38 VT-OG 4/33:6 C4:4 GY-BN 4/119:2 C4:6 YE-GY 10/19:2 C4:7 7/199:2 C4:14 73/3030 VT-WH 4/33:2 BK-RD C4:15 RD-BN 7/199:3 73/3036 C4:16 RD-BN 4/119:1 BK-GN C4:17 BU-BK 7/149:3 C1:54 C4:20 GY-BK 10/22C1:3 C2:65 BK-GN BK-VT 31/96 31/95 31/7 31/84 TP39100202 S80(07-) 2007...

  • Page 39: High Speed Can Data Communication

    GN-BK GN-BK GN-BK 73/4008 BU-BK GN-BK BU-BK GN-BK GN-BK GN-BK GN-BK BU-BK 73/5015 BU-BK BU-BK GN-BK GN-BK GN-BK BU-BK BU-BK GN-BK C1:7 GN-BK GN-BK C1:8 BU-BK BU-BK BU-BK BU-BK BU-WH BU-WH GN-OG GN-OG BU-BK BU-BK GN-BK GN-BK TP39100202 S80(07-) 2007...

  • Page 40: Midspeed Can Data Communication, Lhd

    C2:15 C2:3 GY-OG GY-OG C4:3 GY-OG GY-OG C1:14 VT-OG VT-OG C4:4 C1:7 GY-OG C2:1 VT-OG C2:2 VT-OG VT-OG VT-OG VT-OG BU-RD C2:3 GY-OG C2:15 73/5005 GY-OG GY-OG GY-OG GY-RD 73/5003 YE-BU VT-OG GY-OG VT-WH YE-GN VT-OG GY-OG TP39100202 S80(07-) 2007...

  • Page 41: Midspeed Can Data Communication, Rhd

    VT-OG VT-OG C2:15 GY-OG GY-OG C2:3 73/5009 GY-OG GY-RD VT-OG BU-RD VT-OG C4:4 GY-OG 73/5001 C4:3 73/5007 GY-OG GY-OG C2:1 C1:14 VT-OG VT-OG C2:2 C1:7 VT-OG VT-OG C2:15 73/5005 C2:3 GY-OG GY-OG VT-OG YE-BU GY-OG VT-WH YE-GN TP39100202 S80(07-) 2007...

  • Page 42: Lin Data Communication 1:2

    GN-BK 6/1 LHD 6/1 RHD 3/132 74/413 C3:50 BUS 1 BUS 2 4/102 YE-BU BUS 3 C3:49 GY-BU YE-BU C1:36 7/149 C4:8 GY-RD BUS 2 4/119 C2:17 GY-BN BUS 0 RRX/RKE C2:40 C4:4 GY-BN 4/93 C4:14 GY-BN TP39100202 S80(07-) 2007...
  • Page 43 I5 D A:88 A:46 BU-BN BU-BN 6/96 C1:3 C1:2 3/176 27/3 3/126 3/127 27/4 C1:20 C2:4 C1:20 C2:4 BLIS BLIS GN-WH GN-WH GN-WH GN-WH 73/5019 GN-WH GN-WH GN-WH 3/128 3/129 74/507 74/509 74/510 74/508 GN-WH GN-WH GN-WH GN-WH TP39100202 S80(07-) 2007...

  • Page 44: Most Data Communication

    Control modules MOST data communication 16/1 16/147 C4:2 C2:1 16/60 C4:1 C2:2 C4:1 C4:2 74/402 74/404 C2:1 C2:2 3/281 16/105 C4:1 C4:2 16/108 16/145 RDAR C3:1 C3:1 C3:2 C3:2 TP39100202 S80(07-) 2007...

  • Page 45: Steering Wheel Module (Swm)

    C1:7 C3:3 GN-BK 4/68 C1:4 C1:3 3/131 3/135 SWSR 3/281 C3:5 C1:6 C1:6 GN-OG GN-OG 74/401 C1:2 C3:4 C1:3 73/4016 C1:2 C2:1 C2:2 73/4017 8/30 C2:34 C2:1 BN-OG C2:2 C2:33 C2:7 C2:35 OG-BK 8/61 C2:8 C2:36 31/83 TP39100202 S80(07-) 2007...

  • Page 46: Group 23 Fuel System Engine Management System, 5 Cyl. 2.5L Turbo 1:2

    GN-VT YE-GY 20/7 A:58 BK-RD BK-RD GY-BK 73/3004 YE-GY 20/5 A:34 BU-OG BK-RD 31/89 7/166 A:10 BU-GN 73/3083 GY-YE A:85 GN-WH A:20 6/120 BU-GN A:75 BU-OG A:14 A:19 73/3089 A:88 GN-VT A:65 BU-RD YE-VT A:74 BU-BN 31/2 TP39100202 S80(07-) 2007...
  • Page 47 BU-WH B:26 YE-OG YE-OG YE-OG B:21 B:34 BK-WH BK-WH B:35 74/512 73/5082 74/507 17 18 73/5072 73/5071 4/83 B:54 B:41 6/62 7/69 BK-YE C1:3 BK-YE C1:2 BK-YE 73/3012 BU-BN BU-BN 73/3069 6/33 BU-BN 31/7 31/68 31/XX5 31/84 TP39100202 S80(07-) 2007...
