This manual deals with the operation and care of your Volvo.
Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your
Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this
vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and
maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts
at all times in this (or any other) automobile. And, of course, please do not operate a vehicle if you may be affected by
alcohol, medication or any impairment that could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels
attached to the driver's door opening and on the left wheel housing in the engine compartment.
Volvo and the environment
Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the
environment in which we all live. Caring for the environment means an everyday involvement in reducing our
environmental impact.
Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental
impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling
are all important considerations.

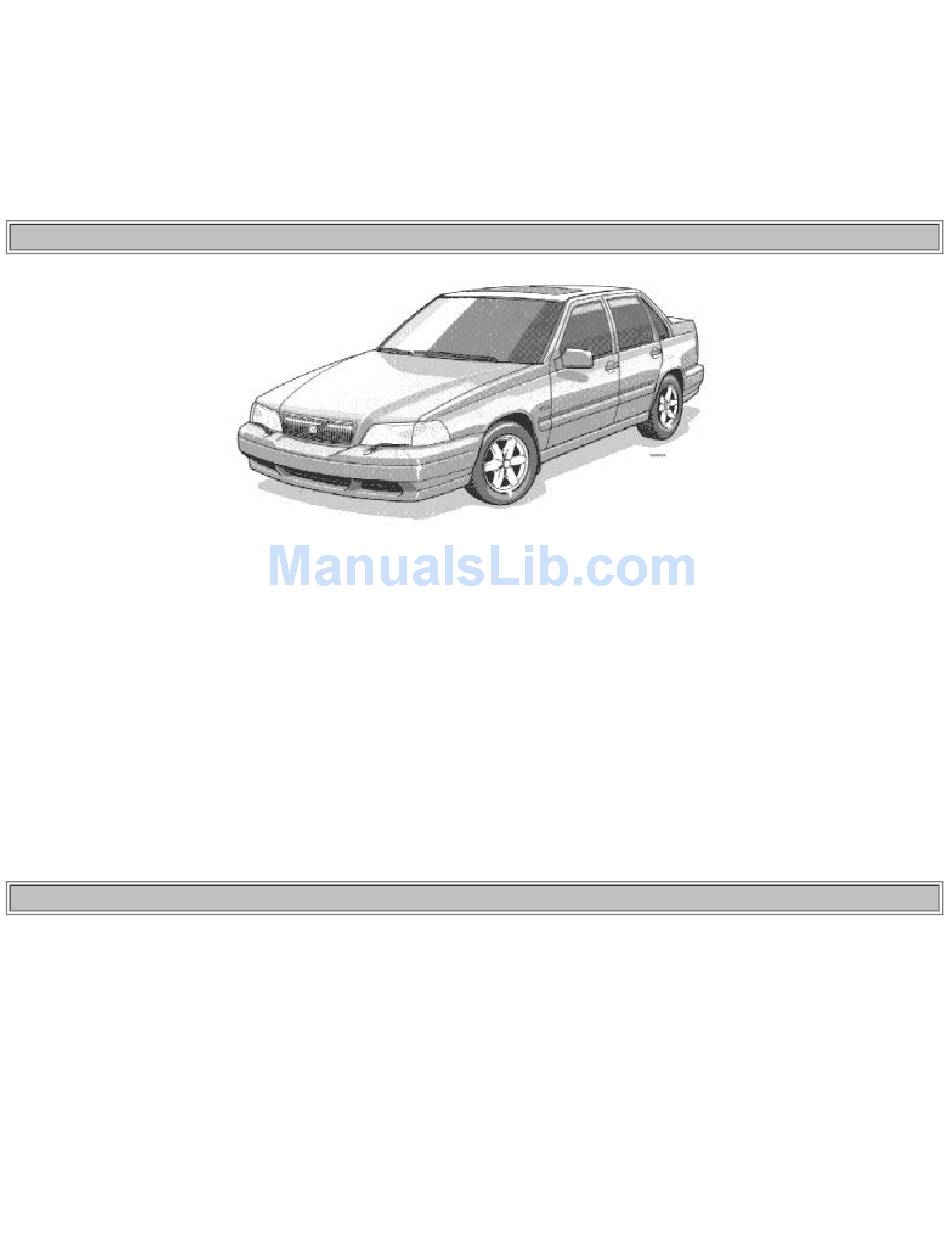

VOLVO
S70 & V70
1 9 9 8
VOLVO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1998 V70 and is the answer not in the manual?

Questions and answers

Jack
July 11, 2025

Are the bottom six numbers on the speedometer relating to kilometres or miles when reading to give you accuracy for description to buyer prior to selling please ?

0

Related Manuals for Volvo 1998 V70

Summary of Contents for Volvo 1998 V70

  • Page 1 This manual deals with the operation and care of your Volvo. Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual.
  • Page 2 In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles. When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can: Maintain proper air pressure in your tires.
  • Page 3 All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation.

  • Page 4: Chapter 1 - Occupant Safety

    Despite our strongest recommendations, and your best intentions, not wearing a seat belt is like believing "It'll never happen to me!". Volvo urges you and all adult occupants of your car to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height.
  • Page 5 To buckle: Pull the belt out far enough to insert the latch plate into the receptacle (buckle for rear seats) until a distinct snapping sound is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far.
  • Page 6 Never repair the belt on your own; have this done by an authorized Volvo retailer only.
  • Page 7 to support the occupant's head. To raise: Pull straight up To lower: Pull forward and push down Contents Top of Page...

  • Page 8: Chapter 2 - Instruments And Controls

    Chapter 2 - Instruments and controls pg. 16 Instruments, switches and controls Number Subject Page No. Trunk/ tailgate open control pg. 47 Power window controls pg. 40 Power mirror control pg. 50 Fuel tank open control pg. 67 Central locking button pg.
  • Page 9 Keylock (automatic transmission only) This means that when you switch off the ignition, the gear selector must be in the (P)ark position before the starting (ignition) key can be removed from the ignition switch. Anti-lock Brake System (ABS) The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 12 mph (20 km/h).
  • Page 10 pg. 22 Turn signals, high/low beams pg. 31 Cruise control pg. 34 Adjustable steering wheel pg. 23 Windshield wiper/washer pg. 26 Tailgate wiper/washer (wagons) pg. 32 Heated front seats (optional) pg. 33 Auxiliary socket pg. 141 Audio system pg. 35-39 Heating and ventilation controls pg.
  • Page 11 3 Speedometer 4 Clock, ambient temperature sensor, trip computer (certain models) 5 Trip odometer Used for measuring shorter distances. The last digit indicates 1/10 mile/kilometer. 6 Odometer 7 Trip odometer reset button 8 Tachometer Reads thousands of engine rpm. The engine should not be operated in red range. The highest permitted constant engine speed is 6,200 rpm.

  • Page 12: Chapter 3 - Body And Interior

    Chapter 3 - Body and interior pg. 41 Body and interior Body and interior The seats, sun roof, mirrors, etc. are described on the following pages. Page No. Subject pg. 42 Keys pg. 43 Doors and locks pg. 44 Remote keyless entry system pg.
  • Page 13 An an added anti-theft measure, new keys have been developed which may take slightly longer to copy or replace if the original keys are misplaced. Duplicate keys may be ordered from your Volvo retailer. The key number codes are stamped on a separate tag supplied with the keys. This tag should be separated from the key ring and kept in a safe place.
  • Page 14 WARNING! The doors should not be locked while driving. In case of an accident, this may hinder rapid access to the occupants of the vehicle. (Also see information on "Child safety locks".) Central locking button (on both front doors) Central locking button The central locking buttons on both front door armrests can be used to lock or unlock all doors and trunk/tailgate and set the alram if your car is so equipped.
  • Page 15 The car can also be locked/unlocked with the key. As an extra security precaution in certain situations (valet parking,etc.), Volvo recommends that the transmitter not be included when the keys are given to anyone. The service key can be used instead. If one of transmitters is misplaced , contact the nearest authorized Volvo retailer for assistance.
  • Page 16 WARNING! Volvo does not recommend using the transmitter to lock the doors from inside the car. On cars equipped with an alarm, the alarm would be activated and would sound when one of the doors is opened. The doors must not be locked using the remote transmitter while the vehicle is occupied.

  • Page 17: Chapter 4 - Starting And Driving

    Chapter 4 - Starting and driving pg. 65 Starting and driving Starting and driving This section on starting and driving contains items such as starting the engine, operating the gear selector, towing, trailers, etc. Page No. Subject pg. 66 Break-in period pg.
  • Page 18 Posted speed limits should not be exceeded. Deposit control gasoline (detergent additives) Volvo recommends the use of gasoline containing deposit control additives. These additives have shown to be efficient in keeping injectors and intake valves clean. Consistent use of deposit control gasolines will help ensure good driveability and fuel economy.
  • Page 19 To meet seasonal air quality restrictions, some states require the use of "oxygenated" fuel in certain areas. Volvo allows the use of the following "oxygenated fuels; however, the octane ratings listed on this page must still be met.
  • Page 20 NOTE: If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp may indicate a fault. Use only Volvo original or approved fuel filler caps. CAUTION: Avoid spilling gasoline during refueling. Gasolines containing alcohol can cause damage to painted surfaces, which may not be covered under the New Vehicle Limited Warranty.
  • Page 21 Other factors which decrease gas mileage are: Worn or dirty spark plugs Incorrect spark plug gap Dirty air cleaner Dirty engine oil and clogged oil filter Dragging brakes Incorrect front end alignment Some of the above mentioned items and others are checked at the standard Maintenance Service intervals. NOTE: ( D )rive or 5th gear (manual transmissions) should be used as often as possible to help improve fuel economy.

  • Page 22: Chapter 5 - Wheels And Tires

    Chapter 5 - Wheels and tires pg. 85 Wheels and tires Wheels and tires The handling and riding comfort of the vehicle is dependent on the inflation pressure and the type of tires fitted. Read the following pages carefully. Page No. Subject pg.
  • Page 23 CAUTION: The car must not be driven with wheels of different dimensions. The use of different size wheels can seriously damage your car's transmission. * * This also applies to models equipped with All Wheel Drive (AWD). pg. 87 Wheels and tires (cont.) Snow chains Snow tire chains can be used on your Volvo with the following restrictions:...
  • Page 24 All Wheel Drive) . Use only Volvo approved snow chains. Snow chains may be mounted on tire dimension 185/65R15 and 195/60R15. Tire dimension 205/55R15 and 205/50R16 require a special type of snow chain. Consult your Volvo retailer. Snow chains may not be used on 205/55R16 tires. * If accessory, aftermarket or "custom"...
  • Page 25 Vehicle Loading The tires on your Volvo will perform to specifications at all normal loads when inflated as recommended on the tire information label* located on the inside of the fuel filler flap. This label lists both the tire and vehicle design limits.
  • Page 26 ALL PASSENGER CAR TIRES MUST CONFORM TO FEDERAL SAFETY REQUIREMENTS IN ADDITION TO THESE GRADES TREADWEAR The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded at 150 would wear one and one half (1 1/2) times as well on the government course as a tire graded 100.

  • Page 27: Chapter 6 - In Case Of Emergency

    Chapter 6 - In case of emergency pg. 91 In case of an emergency In case of an emergency Even if you maintain your car in good running condition, there is always the possibility that something might go wrong and prevent you from driving, such as a punctured tire, blown fuse or bulb, etc. For additional information, see section "ON CALL Road Assistance".
  • Page 28 With the car still on the ground, use the lug wrench to loosen the wheel bolts 1/2 - 1 turn. Turn the bolts counterclockwise to loosen. Fold out the crank handle on the jack by pressing the nob on the handle downward. To attach the jack, refer to the illustration on the following page.
  • Page 29 Attaching the jack on cars with All Wheel Drive (AWD) Due to the greater weight of AWD-equipped cars, these models have an additional jack attachment point, located directly in front of the rear axle. When using a workshop floor jack, make sure that the correct attachment is used and that the jack does not damage the fuel tank.
  • Page 30 Temporary Spare tire is used on. In the event of damage to this tire a new one can be purchased from your Volvo retailer. CAUTION: The car must not be driven with wheels of different dimensions or with a spare tire other than the one that came with the car.

  • Page 31: Chapter 7 - Car Care

    Minor scratches can be repaired by using Volvo touch-up paint. NOTE: When ordering touch-up paint from your Volvo retailer, use the paint code indicated on the model plate. The plate is located in the engine compartment, on the inside of the left front fender.
  • Page 32 Paint - touch-up bottle Brush Masking tape NOTE: When touching up the car, it should be clean and dry. The surface temperature should be above 60° F (15° C). Scars on the surface If the stone chip has not penetrated down to the metal and undamaged layer of paint remains, the touch-up paint can be applied as soon as the spot has been cleaned.
  • Page 33 2. Thoroughly mix the primer and apply it with a small brush. When the primer surface is dry, the paint can be applied using a brush. Mix the paint thoroughly; apply several thin paint coats and let dry after each application. 3 If there is a longer scratch, you may want to protect surrounding paint by masking it off.
  • Page 34 with clean water. WARNING! When the car is driven immediately after being washed, apply the brake several times in order to remove any moisture from the brake linings. Engine cleaning agents should not be used when the engine is warm. This constitutes a fire risk. NOTE: When washing the car, remember to remove dirt from the drain holes in the doors and sills.
  • Page 35 Leather upholstery/suede-like upholstery (alcantera) can be cleaned with a soft cloth and mild soap solution. For more different spots, Volvo offers a leather care kit. On no account must gasoline, naphtha or similar cleaning agents be used on the plastic or the leather since these can cause damage.
  • Page 36 Cleaning floor mats The floor mats should be vacuumed or brushed clean regularly, especially during winter when they should be taken out for drying. Spots on textile mats can be removed with a mild detergent. Bear in mind Take extra care when removing stains such as ink or lipstick since the coloring can spread. Use solvents sparingly.

  • Page 37: Chapter 8 - Service And Routine Maintenance

    6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) Standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
  • Page 38 The maintenance services contain several checks which require special instruments and tools and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time tested and proven Genuine Volvo Parts and Accessories.

  • Page 39: Emission System Maintenance

    Maintenance services Your Volvo has passed several major inspections before being delivered to you, according to Volvo specifications. The maintenance services outlined in this book should be performed as indicated. The extended maintenance service intervals make it even more advisable to follow this program. Inspection and service should also be performed any time a malfunction is observed or suspected.
  • Page 40 3) These services apply to turbo-charged models and some non-turbo models, depending on actual driving conditions (see page 125 for details). 4) For proper functioning of the vehicle and its emission control system, Volvo recommends that the timing belt be replaced every 70,000 miles (112,000 km). pg. 119 Maintenance schedule (cont.)
  • Page 41 Operation of all lights Level of windshield washer fluid The following should also be carried out at regular intervals: Washing (check all drain holes) Polishing Cleaning Contents Top of Page...

  • Page 42: Chapter 9 - Specifications

    Meeting API specification SG, SG/CD, SH or Energy Conserving (EC) II For best fuel economy and engine protection, consult with your authorized Volvo retailer for recommended oils. Oil with a different quality rating may not provide adequate engine protection. Synthetic oils complying with oil quality requirements are recommended for : driving in areas of sustained temperature extremes (hot or cold), when towing a trailer over long distances or for prolonged driving in mountainous areas.
  • Page 43 Engine lubrication is provided by an eccentric pump driven from the crankshaft. Full-flow type oil filter. Exhaust emission control accomplished by multiport fuel injection, heated oxygen sensor(s) and three-way catalytic converter Designation: Volvo B 5254 S Output 168 hp at 6200 rpm (125 kw 103 rps) Max torque 162.3 ft.
  • Page 44 Designation: Volvo B 5254 T Output 190 hp at 5100 rpm (142 kw/85 rps) Max torque 199 ft. lbs. at 1800-4998 rpm (270 Nm/30-83.3 rps) Number of cylinders 5 Bore 3.27" (83 mm) Stroke 3.54" (90 mm) Displacement 2.4 liters Compression ratio 9.0:1...
  • Page 45 The engine is equipped with a multiport fuel injection system Distributor ignition system Firing order 1-2-4-5-3 Distributor ignition setting Not adjustable Spark plugs Bosch FR 7 DC or Champion RC9YC Spark plug gap 0.028" (0.7 mm) Turbo-charged models: Champion RC8PYP (or equivalent) Spark plug gap 0.03"...

  • Page 46: Chapter 10 - Audio Systems

    Chapter 10 - Audio systems pg. 141 Audio systems Audio systems This chapter describes the audio system in your car. pg. 142 SC-813 pg. 155 SC-816 pg. 171 SC-900 pg. 194 General information pg. 142 Audio system SC-813 (certain models) The following pages describe the use of your SC-813 Cassette radio and CD remote control 1.
  • Page 47 CD-Disc No. selector 10. PROG - Reversing the tape 11. Dolby B NR button 12. Cassette eject 13. Not in use 14. Scan 15. Auto seek memory Seek tuning up/down TP -Next/Previous song CD -Next UP/Previous DOWN track Manual tuning TP -fast forward/Rewind CD -Music search UP/DOWN 18.
  • Page 48 To enter the code After installation or when the set has been disconnected from power, the set displays "COdE" when it is switched on. Enter the 4-digit code using the preset buttons. If the correct code is entered, "on" is displayed and the set is ready to use.
  • Page 49 Turn the button clockwise to increase the volume. The volume control is electronic and has no end stop. C - Waveband selector The desired waveband is set by pressing one of the waveband selector buttons. The frequency and waveband is shown on the display.
  • Page 50 A - Seek tuning up/down Press the left side tune button to tune to lower frequencies and the right side to tune to higher frequencies. The radio seeks the next audible station and stops there. If you wish to continue the seek tuning, press the tuning button again. B - Preset programming 1.
  • Page 51 B - Bass control Adjust the bass by sliding the control up or down (up to increase, down to decrease). A "detent" indicates "equalized" bass. C - Treble control Adjust the treble by sliding the control up or down (up to increase, down to decrease). A "detent" indicates "equalized" treble.
  • Page 52 D - Scan Press this button to listen to each station for five seconds. Press it again to stop scanning. "Scan" will be displayed during scanning. E - Active sound control (ASC) The ASC function automatically adjusts the volume level of the audio system according to driving speed. To deactivate ASC depress the "ASC"...
