Summary of Contents for Rowenta PU2120

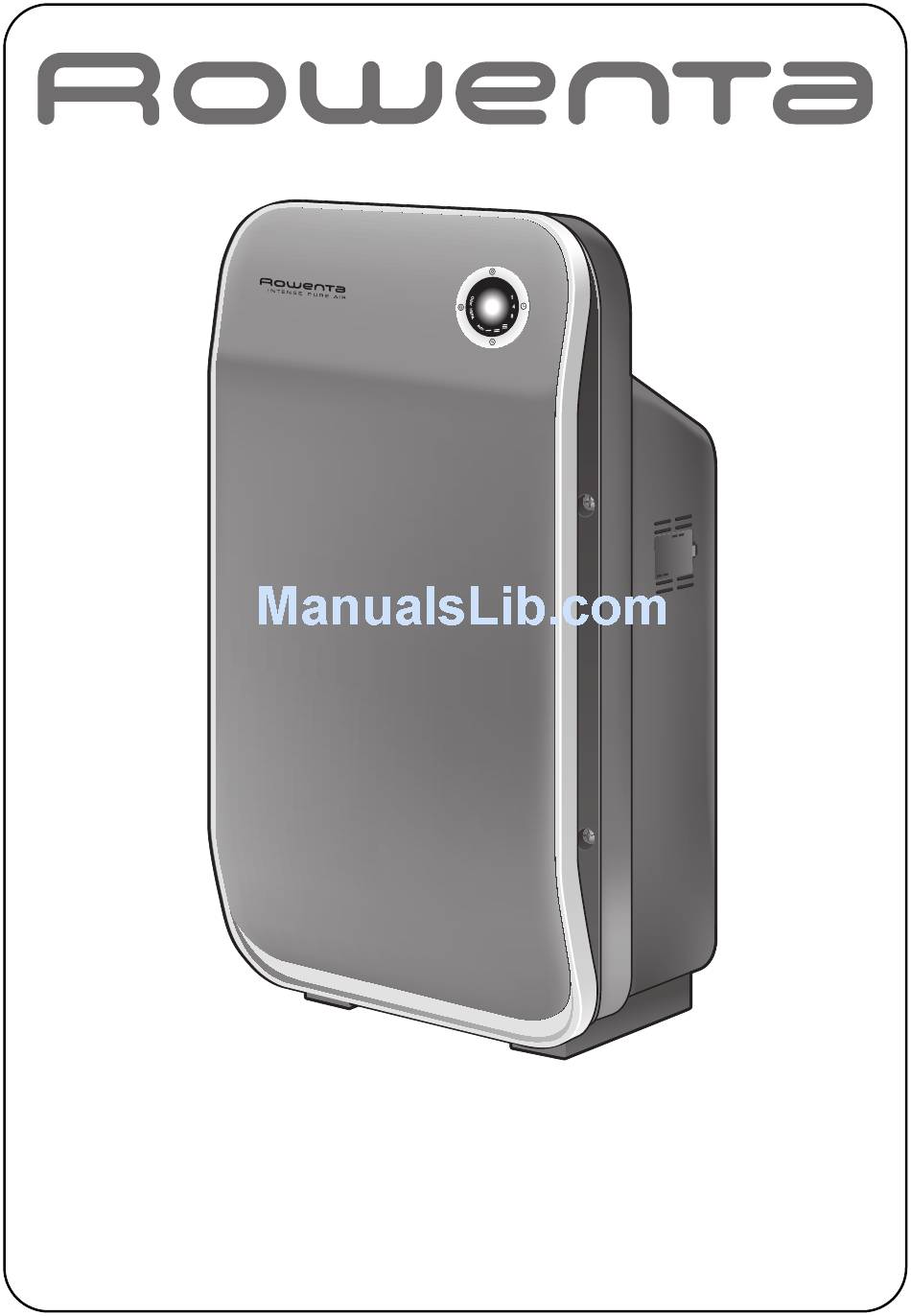

  • Page 1 PU2120 INTENSE PURE AIR NC00113345/03 - 24/13...
  • Page 3: Operating Principle

    Read the instructions for use and safety instructions carefully before use and keep them. OPERATING PRINCIPLE • The ventilation system sucks air into the pre-filter, which removes the largest suspended impurities such as dust, pollen, pet hair, etc. • The air then passes into the activated charcoal filter which captures gases and eliminates unpleasant smells (in particular tobacco).
  • Page 4 DISASSEMBLING/REASSEMBLING FILTERS Fig.5a Fig.5b Fig.5c Fig.5d Fig.5e Fig.5f Fig.5g Fig.5h Fig.5i Fig.5j Fig.5k...
  • Page 5: Very Important

    WARNINGS It is essential that you read these instructions carefully and comply with the following recommendations: • This appliance should not be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety.
  • Page 6: Switching On The Appliance

    SWITCHING ON THE APPLIANCE Before using for the first time, check to make sure that your power supply system corresponds to that indicated on the appliance. Your appliance can be used with a power plug without an earth connection. It is a class II appliance (double insulation).
  • Page 7: Maintenance

    1- Pre-filter 2 - Activated charcoal filter 3- HEPA filter For optimum performance of the appliance, only use filters provided by ROWENTA. To preserve the quality of the filters, they are protected in packaging that must be removed before use.
  • Page 8: Particle Sensor

    PARTICLE SENSOR The particle sensor needs regular and adequate cleaning (every 2 months); the following recommendations must be followed: 1. Clean the air inlet and outlet using a soft brush or hoover. 2. Open the sensor cover located on the right of the appliance. 3.
  • Page 9 SETTING THE PARTICLE SENSOR The appliance is pre-set to medium sensitivity. If the air quality remains poor after two hours in operation or very good for more than one hour when the air does not seem clean, the user can adjust the sensor sensitivity by following the instructions below.
  • Page 10: In The Event Of Problems

    STORAGE When you are not using the appliance, store it in a dry place. IN THE EVENT OF PROBLEMS • Never dismantle your appliance yourself. A poorly repaired appliance can cause risks for the user. • Check the troubleshooting table below before contacting an approved Service Centre: Problem Check Solution...
