Summary of Contents for Atag Blauwe Engel S-HR

  • Page 1 Reliability Innovations...
  • Page 2: Table Of Contents

    Contents Introduction ......................................... 3 Boiler description ......................................3 The boiler ........................................4 Program keys with indication lights ................................4 The boiler display ......................................5 reading ....................................5 Choosing a technical or a reading ..............................5 The technical reading ..................................5 The reset key ......................................
  • Page 3: Introduction

    Introduction Congratulations with the choice you have made, in choosing an ATAG Blauwe Engel S-HR heating boiler. This can be an boiler with or without hot water facility. While developing the ATAG Blauwe Engel S-HR it has been taken into account that the boiler adjusts and adapts itself to the required temperatures.
  • Page 4 The unit anticipates the heat required by the heating installation and/or hot water facility. By doing so as low a possible heat input is given for the required output. The boiler is provided with an electrical ignition and energy saving pump start to prevent waste of energy. Furthermore the revolutions per minute of this circulation pump will adjust itself to the amount required by the installation.
  • Page 5: The Boiler

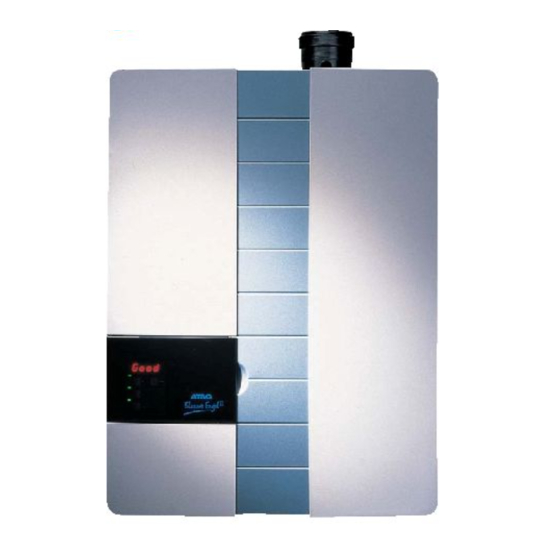

    The boiler The casing of the boiler consists of metal and synthetic material which can be cleaned with a normal cleanser. At the left front side of the boiler is an opening door panel. You can already see a part of the control lights and the display through the dark transparant window. After opening the door, the control panel with the function keys is clearly visible.
  • Page 6: Program Keys With Indication Lights

    Program keys with indication lights Press this key in order to turn on and off the central heating program. This program will become active when the key is pushed and the indication light is illuminated. In this case the boiler will activate the burner when the room thermostat is calling for heat. Press this key in order to turn on and off the hot water program.
  • Page 7: The Boiler Display

    The boiler display The reading of the boiler display can be done in two ways. reading display During this reading the display will only show what is necessary. Under normal circumstances the display will give a reading and if a fault is established this will be reflected with the E for error and a certain step number code.
  • Page 8: The Technical Reading

    The technical reading During this reading the display will show in which operating status the boiler is active. The technical reading is being repeated every 2 display seconds by the reading of the waterpressure The first figure of the technical reading indicates the status in which the boiler is active and the third and fourth figure indicate the water temperature of the boiler.
  • Page 9: Adjusting The Flow Water Temperature

    Adjusting the flow water temperature For the user who has chosen the technical reading according to page 5 you can easily adjust the flow water temperature to his or her own wish. display In order to adjust the flow water temperature the following actions have to be taken.
  • Page 10: Adjusting The Type Of Installation

    Adjusting the type of installation The boiler is designed in such a way that it will adjust itself automatically to what is necessary for a normal heating system. In some cases the installation may have convectors or complete underfloor heating. One can easily choose for the type of heating installation adjustments that belong to the system such as maximum water-flow temperature or for the warming up of the installation after a night period.
  • Page 11: Replenishing Or Complete Filling Up Of The Installation

    Replenishing or complete filling up of the installation The installation functions at an optimum water pressure of between 1 and 2 bar. If the step key is pushed briefly, the water pressure can be shown. After this the waterpressure is shown. When the step key is pushed again briefly one will return to the reading.
  • Page 12: Operating Instructions S-Hr Series Page 2

    Operating instructions S-HR series page...
  • Page 13 The company reserves the right to change the specifications and dimensions without prior notice. E. & O. E. Operating instructions S-HR series page...
  • Page 14 Distributor for UK Distributor for Ireland Total Energy Management Ltd. ATAG Heating UK Ltd. Unit 9, Ballybritt Industrial Estate, Unit M1 Monivea Road, Hilton Business Park Galway, Ireland. East Wittering West Sussex PO20 8RL Phone: (091) 769174 Phone: 01243 673888...
